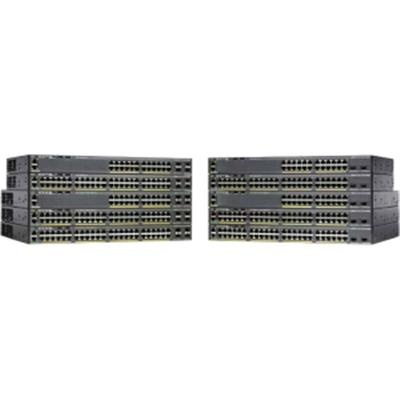

Cisco Catalyst WS-C2960XR-24TS-I, 24-Port Gigabit Stackable IP Lite Layer 3 Managed Switch, 4x 1G SFP Uplinks

Cisco Catalyst WS-C2960XR-24TS-I, 24-Port Gigabit Stackable IP Lite Layer 3 Managed Switch, 4x 1G SFP Uplinks
Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Cisco Catalyst WS-C2960XR-24TS-I, 24-Port Gigabit Stackable IP Lite Layer 3 Managed Switch, 4x 1G SFP Uplinks

Part #: SWHCIS2454209
  • Brand: Cisco
  • MPN: WS-C2960XR-24TS-I
  • Part #: SWHCIS2454209
  • UPC: 882658598142
  • 10 Gigabit: No
  • 10 Gigabit Ports: 0 Ports
  • Form Factor: 1U Rackmount
  • Management Level: Managed L3
  • Number of Ports: 24 Ports
  • PoE: Yes
  • PoE Ports: 24 Ports
  • PoE Budget: 740 Watts
  • View more

Features

Catalyst 2960-X series Software Features
All Catalyst 2960-X Series Switches use a single Universal Cisco IOS Software Image for all SKUs. Depending on the switch model, the Cisco IOS image automatically configures either the LAN Lite, LAN Base, or IP Lite feature set.
LAN Lite models have reduced functionality and scalability for small deployments with basic requirements. Cisco Catalyst 2960-X Family of Switches are available with the LAN Base and LAN Lite feature sets and Catalyst 2960-XR Family of switches are available IP Lite feature sets.
Note that each switch model is tied to a specific feature level; LAN Lite cannot be upgraded to LAN Base and LAN Base cannot be upgraded to IP Lite.
Product Line: Catalyst
Product Model: 2960XR-24TS-I
Product Name: Catalyst 2960XR-24TS-I Ethernet Switch
Product Series: 2960-XR
Product Type: Ethernet Switch
I/O Expansions
Expansion Slot Type: SFP
Number of SFP Slots: 4
Number of Total Expansion Slots: 4
Interfaces/Ports
Bypass: No
LRE Port: No
Management Port: Yes
Modular: No
Number of Network (RJ-45) Ports: 24
Port/Expansion Slot Details: 24 x Gigabit Ethernet Network
Port/Expansion Slot Details: 4 x Gigabit Ethernet Expansion Slot
Token Ring Port: No
Total Number of Network Ports: 24
USB: Yes
Management & Protocols
Manageable: Yes
Management:
  • Web-based Management
  • VLAN
  • QoS
  • Syslog
  • Telnet
  • RMON I, II
  • SNMP v1, v2c, v3
  • DHCP
  • CLI
Media & Performance
Ethernet Technology: Gigabit Ethernet
Media Type Supported: Twisted Pair
Network Technology: 10/100/1000Base-T
Twisted Pair Cable Standard: Category 5
Memory
Flash Memory: 128 MB
Memory Technology: DRAM
Standard Memory: 512 MB
Network & Communication
Layer Supported: 3
Physical Characteristics
Depth: 406.4 mm
Form Factor: Rack-mountable
Height: 44.5 mm
Weight (Approximate): 5.90 kg
Width: 444.5 mm
Power Description
Input Voltage: 110 V AC
Input Voltage: 220 V AC
PoE (RJ-45) Port: Yes
Power Source: Power Supply
Redundant Power Supply: Yes
Reliability
MTBF: 557320 Hour

Specifications

Manufacturer Part No:
WS-C2960XR-24TS-I
Brand:
Product Type:
-
UPC
882658598142
Product Family:
Catalyst
Shipping Weight:
5 kg
PB Part No:
SWHCIS2454209
Product Model:
WS-C2960XR-24TS-I,
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
