CTC Union IGS-803SM-8PH24 Managed PoE switch 8 x 10/100/1000Base-T ports and 3 x 100/1000Base-X SFP slots with 8 PoE+ (180W)

CTC Union IGS-803SM-8PH24 Managed PoE switch 8 x 10/100/1000Base-T ports and 3 x 100/1000Base-X SFP slots with 8 PoE+ (180W)
Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

CTC Union IGS-803SM-8PH24 Managed PoE switch 8 x 10/100/1000Base-T ports and 3 x 100/1000Base-X SFP slots with 8 PoE+ (180W)

Part #: SWHCTC1034
  • Brand: CTC Union
  • MPN: IGS-803SM-8PH24
  • Part #: SWHCTC1034
  • UPC:
  • Form Factor: N/A
  • Management Level: Smart / Web Managed
  • Number of Ports: 11 Ports
  • PoE: Yes
  • PoE Ports: 8 Ports
  • PoE Budget: 180 Watts
  • Stacking: No
  • Uplink Ports: 3
  • View more

Features

Product Description

The IGS-803SM-8PH24 model is a managed industrial grade Gigabit PoE (Power over Ethernet) switch with 8x 10/100/1000Base-T PoE ports and 3 SFP Gigabit/Fast Ethernet ports that provide stable and reliable Ethernet transmission. The Ethernet switch supports a variety of management functions, including STP/RSTP/MSTP/ ITU-T G.8032 Ring and multiple u-Ring for redundant cabling , advanced PoE management functions such as PoE device auto-checking and auto reset, PoE power weekly scheduling, Layer 2 Ethernet IGMP, VLAN, QoS ,Security ,IPv6, bandwidth control, port mirroring, cable diagnostic and Green Ethernet. Housed in rugged DIN rail or wall mountable enclosures, this switch is designed for harsh environments, such as industrial networking, Traffic surveillance, security automation applications, IP surveillance ,City Security , intelligent transportation systems (ITS) and is also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications. IGS-803SM-8PH24 has an operating temperature range -10 to 60°C.


Features


- 8x 10/100/1000Base-T RJ-45 with 3x 100/1000Base-X SFP Fiber

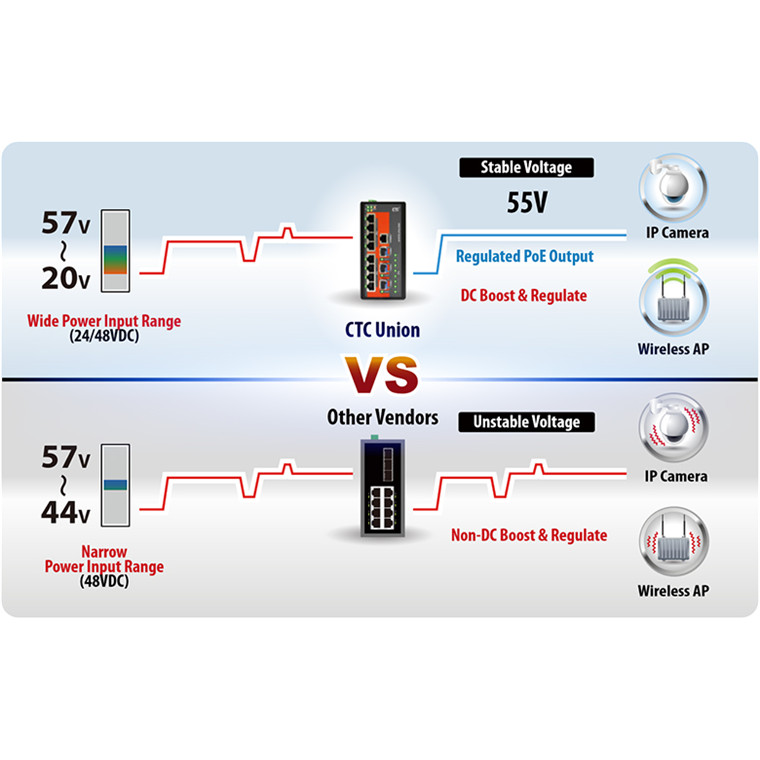

- 24/48VDC redundant dual input power, and built-in power booster design upto 55 VDC for PoE/PoE+ output
- Constant and regulated PoE output voltage at 55VDC
- Provides 8-port IEEE802.3af / 802.3at PoE output (30W per Port)
- Maximum PoE output power budget 180W
- Advanced PoE Management, PoE PD Failure Auto Checking and auto reset, PoE configuration for power planning, weekly scheduling
- UL60950-1, CE, FCC, Rail Traffic EN50121-4 certified
- Industrial Grade EMS, EMI, EN61000-6-2, EN61000-6-4 certified
- Cable diagnostic, Measuring cable OK or broken point distance
- Supports Green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet) management to optimize the power consumption
- STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring (EPR) for redundant cabling
- Provide up to 5 instances that each supports u-Ring, u-Chain or Sub-Ring type for flexible uses

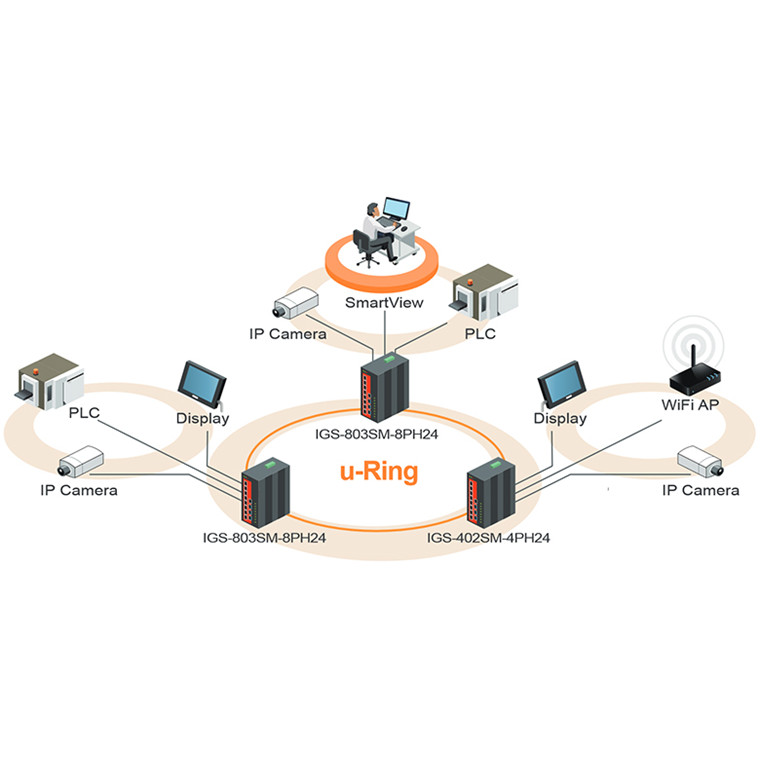

- u-Ring for Redundant Cabling, recovery time<10ms in 250 maximum devices
- DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
- QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control, DiffServ
- IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, MVR
- Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
- IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
- Security : Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
- Software upgrade via TFTP and HTTP, redundant firmware to avoid in case of upgrade failure
- RMON, MIB II, Port mirroring, Event syslog, DNS, NTP/SNTP, IEEE802.1ab LLDP
- Supports IPv6 Telnet server /ICMP v6
- CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management
- SmartView Management System support

Specifications

Manufacturer:
CTCUnion

Manufacturer Part No:
IGS-803SM-8PH24

Interface Type:
Fast Ethernet, Gigabit Ethernet

Management:
web-managed, SNMP, local console

Transceiver Format:
SFP

Power Type:
redundant, DC 24~60V embedded PSU

Connectors:
8 x RJ45 (Ethernet), 3 x SFP slot, screw block

PoE Output:
30 Watts/port

Type:
Layer 2, Industrial(hardened)

Features:
RSTP, MSTP, 802.3ad LACP, G.8032 Ring, IGMP snooping, dual firmware image, 802.1q VLAN, port based VLAN, 802.1p CoS, bandwidth limiting, 9K Jumbo frame support
Manufacturer Part No:
IGS-803SM-8PH24
Brand:
CTC Union
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
SWHCTC1034
Product Model:
IGS-803SM-8PH24
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
