AMDEX CTS 1GBase-X SFP to 10/100/1000 Base-T 802.3BT 90W Output POE RuggedMediaConverter.OperatingTemperature -20°C to 60°C (Environmental). Optional Slim Mount & Power Supply Not Included.
Out of stock
AMDEX CTS 1GBase-X SFP to 10/100/1000 Base-T 802.3BT 90W Output POE RuggedMediaConverter.OperatingTemperature -20°C to 60°C (Environmental). Optional Slim Mount & Power Supply Not Included.
- Brand: AMDEX
- MPN: SRC-3002SFP-BT
- Part #: SWHCTC1058
- UPC:
- Brand: AMDEX
- MPN: SRC-3002SFP-BT
- Part #: SWHCTC1058
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Media Converters





AMDEX CTS 1GBase-X SFP to 10/100/1000 Base-T 802.3BT 90W Output POE RuggedMediaConverter.OperatingTemperature -20°C to 60°C (Environmental). Optional Slim Mount & Power Supply Not Included.
- Brand: AMDEX
- MPN: SRC-3002SFP-BT
- Part #: SWHCTC1058

Product URL: https://www.pbtech.co.nz/product/SWHCTC1058/AMDEX-CTS-1GBase-X-SFP-to-101001000-Base-T-8023BT
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Connection Technology System (CTS) SRC-3002SFP-BT functions as a robust media converter designed to operate in temperatures ranging from -20 to 60°C. It facilitates the conversion from 100/1000Base-X SFP to a 10/100/1000Base-T RJ-45 port, fully compliant with the IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards.
The SRC-3002SFP-BT is compatible with the IEEE 802.3af/at/btstandard, allowing it to deliver a maximum of 90 watts of Power over Ethernet (PoE) output to powered devices (PDs) through a Cat5/5E cable in the RJ-45 port. This capability significantly simplifies wiring configurations.
While functioning as an unmanaged media converter, the SRC-3002SFP-BT offers user-friendly configuration and monitoring through a DIP switch and LED indicator on its panel. The DIP switch allows control over various functions, such as Alarm, PSE Auto Power Off, Data-diode, and more.
With these features, SRC-3002SFP-BT not only become a user-friendly product, but also a comprehensive solution.
Link Alarm
Alert users to connectivity issues as copper and fibre optic interfaces are designed to be link-interdependent. Link down on either side will result in the other's disconnection
Adjustable Fiber Speed
Adjust the fibre speed manually and compatible with more network applications
DIN-rail Installation
Supports DIN-rail installation method
Wall-mounting Installation
Supports wall-mounting installation method
-20°C ~ 60°C
To boasts an extended temperature range, enabling operation from -20°C~60°C
Auto PoE Power Off
It automatically deactivates PoE output in the event of a fibre link disruption
Power over Ethernet
Data flows and the electrical current is carried over the same Ethernet cable. The feature can significantly reduce the otherwise extensive wiring installations
Data-diode
The Data-Diode function is tailored for this scenario, allowing users to customise it for single or bi-directional transmission, along with the specified direction

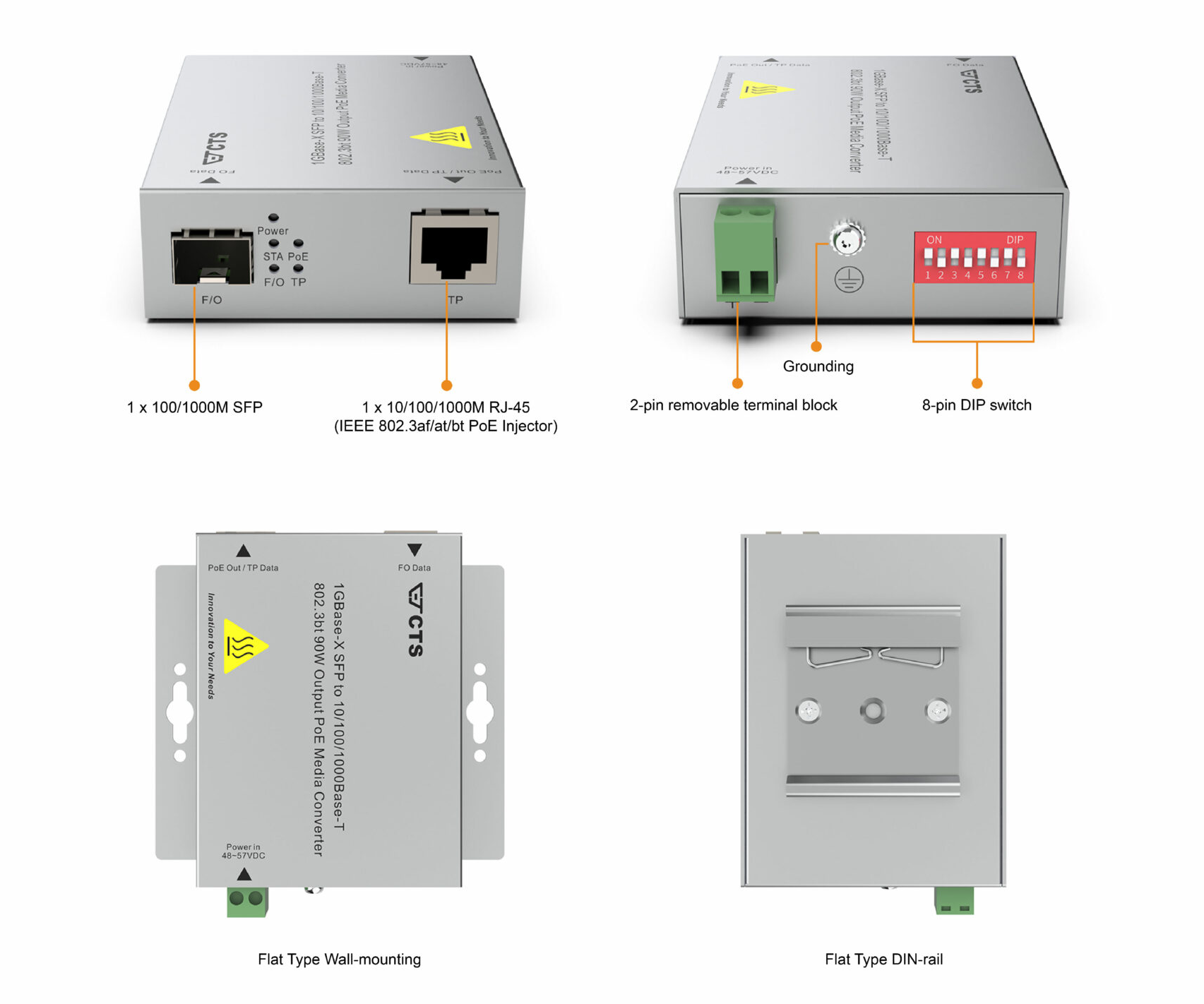

Hardware Overview
Specifications
General
Model
SRC-3002SFP-BT
Fiber Slot
Speed(Mbps): 100/1000
????: SFP
Slot: 1
TP Port
Speed(Mbps): 10/100/1000
Port: 1
Support Power Source
1 x 48~57V DC with 2-pin removable terminal block
Interface
1 x 100/1000Base-X SFP Slot
1 x 10/100/1000Base-T RJ-45 with
IEEE 802.3af/at/bt injector, up to 90W PoE power output
LED
Power, Status,
TP Link/Act/Speed, F/O Link/Act/Speed
PoE
Power Requirement
DC Input: 48~57V (2-pin removable terminal block)
Max. Power Consumption: 102W (348 BTU/h)
Hardware
MAC Address Table: 2K
Non-blocking Switching Fabric: 4Gbps
Throughput @ 64Bytes: 2.9Mpps
Jumbo Frame: 9K Bytes
Packet Buffer: 1Mbit
Store and Forward Switching Mechanism
Auto-Cross over for MDI/MDI-X in TP port
Auto-Negotiation in TP Port
Full/Half Duplex Mode Operation
Environmental Condition
Operation
-20°C~60°C
Storage Temperature
-40°C~85°C
Humidity
5%~95% RH, Non-Condensing
Dimension & Weight
Size
71 x 94 x 26mm (W x D x H)
Weight
220 g
Housing
Aluminum(Upper), Iron(Bottom), IP30
Safety
EMC/Safety
FCC Class A, CE
ESD
- Air Discharge: +/-8kV
- Contact Discharge: +/-4kV
EFT
- DC Power: +/-0.5kV
Surge Protection: +/-3kV
