Edimax IGS-1005 Industrial 5-Port Gigabit DIN Rail Switch.Data Delivery up to 200m 10Mbps Full- Duplex.Supports QoS 802.1p for Video & Voice Traffic Priority. Dual Power Inputs, Surge Protectiion. IP30.

PB Tech price
PB Tech price
$ 148 .70
 +GST
$ 171 .00
 inc GST
$148.70  +GST
$171.00

Edimax IGS-1005 Industrial 5-Port Gigabit DIN Rail Switch.Data Delivery up to 200m 10Mbps Full- Duplex.Supports QoS 802.1p for Video & Voice Traffic Priority. Dual Power Inputs, Surge Protectiion. IP30.

  • Brand: Edimax
  • MPN: IGS-1005
  • Part #: SWHEDM1054
  • UPC:
PB Tech price
$ 148 .70 $ 171 .00
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 03 Oct When will I receive it?
$148.70  +GST
$171.00
  • Brand: Edimax
  • MPN: IGS-1005
  • Part #: SWHEDM1054
  • UPC:

10 Gigabit

No

10 Gigabit Ports

0 Ports

Form Factor

Desktop

Management Level

Not Specified

Number of Ports

5 Ports

PoE

No

PoE Ports

0 Ports

PoE Budget

N/A

Similar in-stock products available at PB Tech right now

Features

EDIMAX Industrial 5-Port Gigabit DIN Rail Switch.Data Delivery up to 200m @10Mbps Full-Duplex. Supports QoS 802.1p for Video & Voice Traffic Priority. Dual Power Inputs, Surge Protectiion. IP30.

- 5 Gigabit Ethernet ports
- 6KV Surge protection to avoid damage to the switch and connected devices
- Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network service
- P-fail relay with alarm and notification when an event of power failure occurs
- Supports QoS 802.1p for video & voice traffic priority
- Wide operating temperature range of -20°C ~+70°C
- Guaranteed long distance to 200 meters
- Flexible deployment with DIN-Rail mounting kit and wall-mount feature
- IP30-rated, fanless rugged industrial design for harsh environments

6KV Surge & Power BackFeed Protection

Supports 6KV lightning surge and power backfeed protection for connected devices from non-standard power sources. Further avoiding damage done to the switch and connected devices.



Wide Temperature Range

The industrial switch operates with a wide temperature range from -20°C ~ 70°C for industrial network deployment in extreme hot and freezing environments.



PoE Long Range Guaranteed 200M

Provides the PoE long-range solution with a guarantee of 200 meters ideal for surveillance and parking lot applications.



Reliable Power Redundancy

Supports power redundancy with three power inputs to decrease unexpected risk and ensures stable and reliable network service quality.



QoS with Improved Traffic Efficiency

Supports 802.1p QoS for ensuring first priority voice and video traffic for reduced package loss, lower latency and jitter on the network.

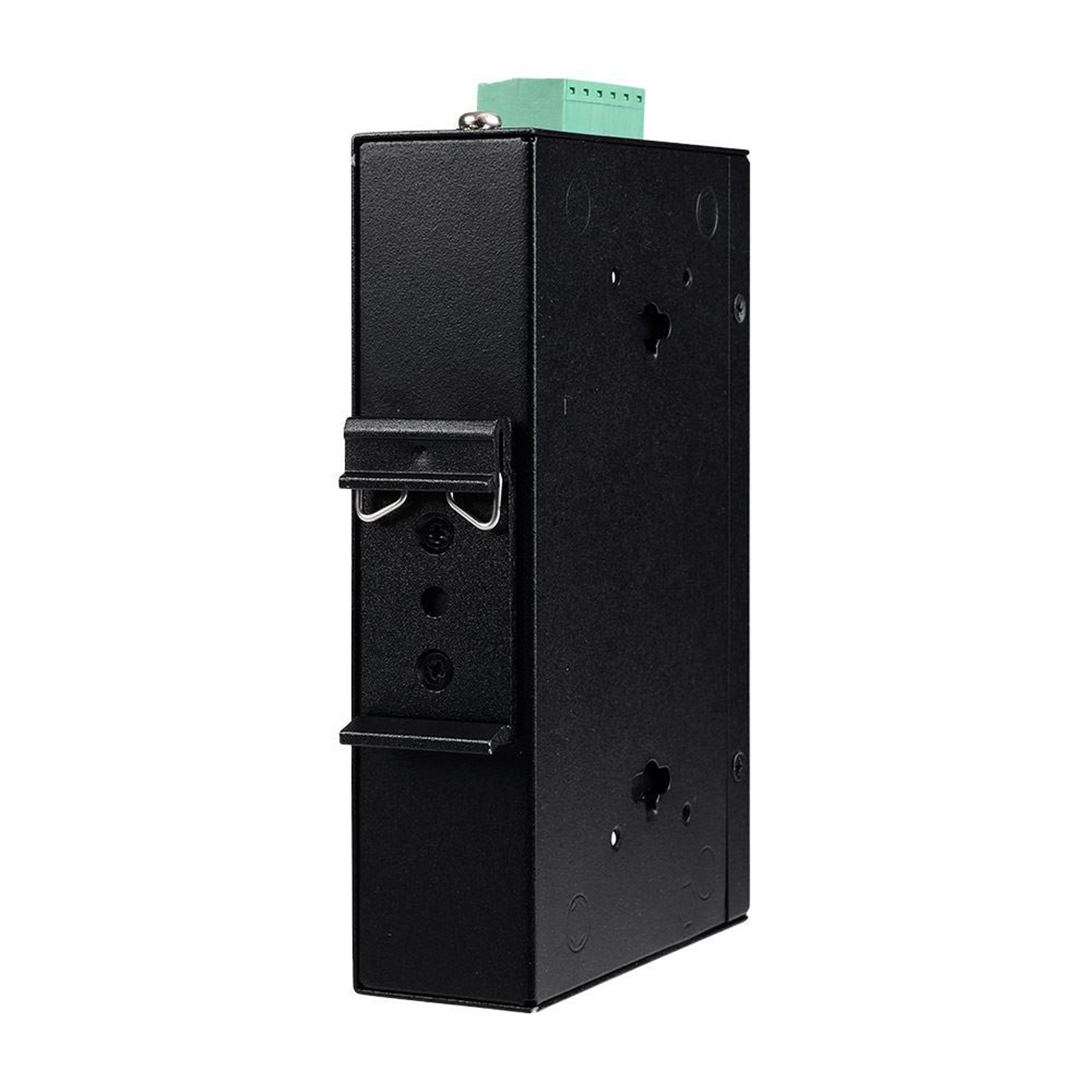

Flexible DIN-Rail & Wall Mount

The switch is designed with flexibility for DIN-rail mounts or wall-mount deployment.

Specifications

HARDWARE

Ports

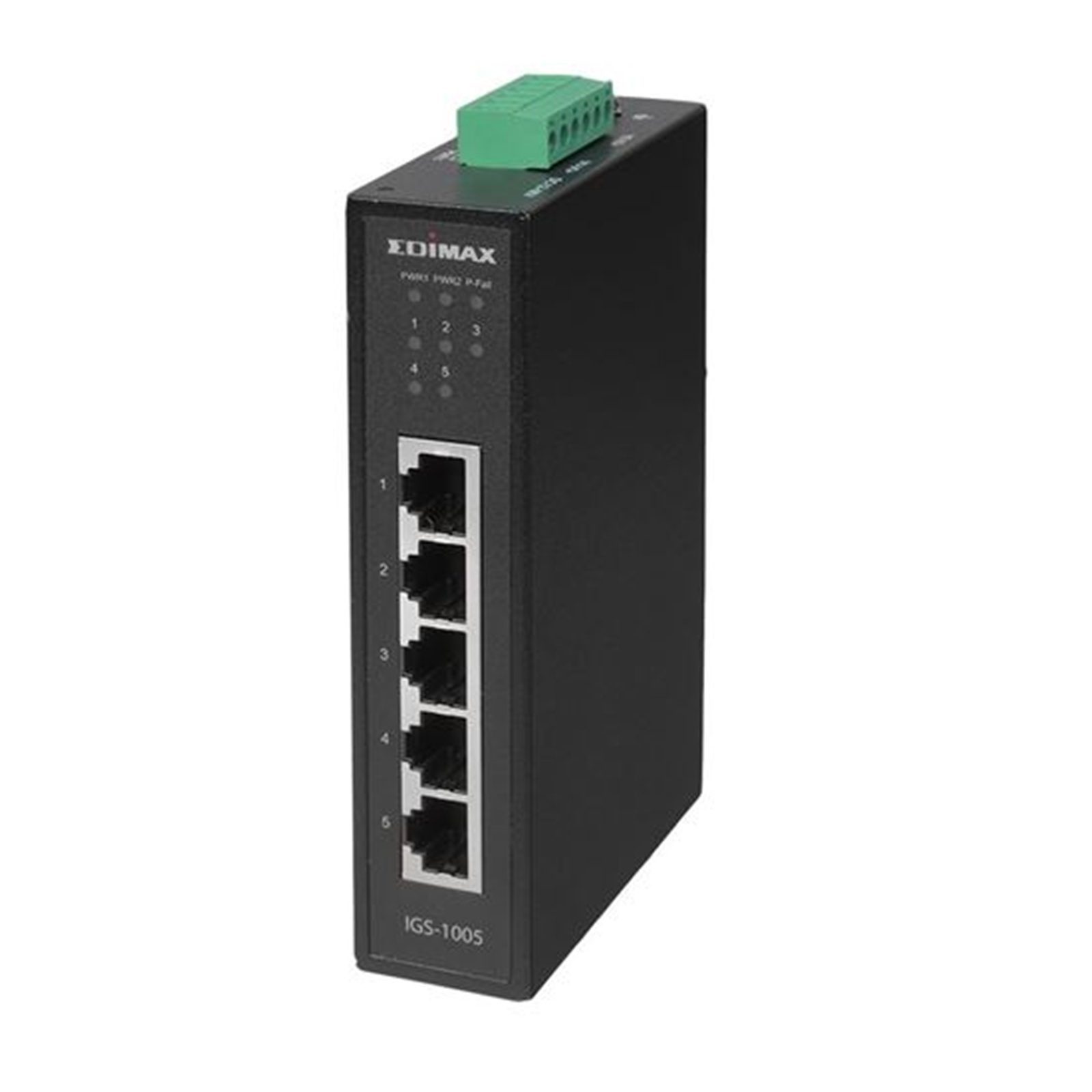

5x RJ-45 10/100/1000Base-T Gigabit Ports

Connector

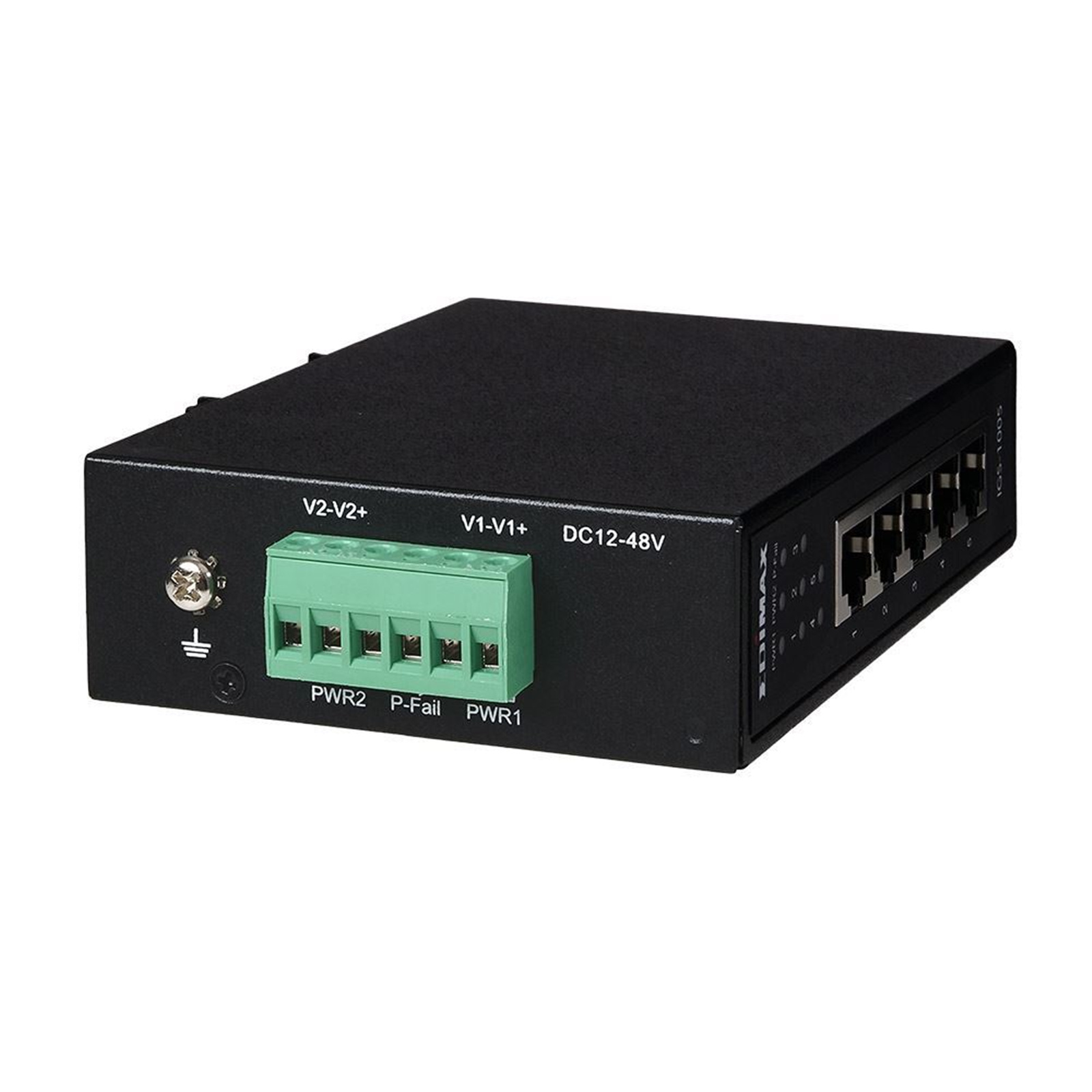

Removable 6-pin Terminal Block (Pin1/2 for Power 1, Pin 3/4 for P-Fail (Power failure Alarm Relay), Pin 5/6 for Power 2)
Grounding Point with Screw

LED Indicators

Per Port: Link/Act
Per Unit: PWR1, PWR2, P-Fail

Power Input

External Power Supply
- Power Input: 12V~48V DC, 2.5A (Terminal Block)
- Redundant Power Input: 12V~48V DC, 2.5A (Terminal Block)

Mounting

DIN-rail Mount (DIN-rail Mount Kit Included) / Wall Mount

Housing

Metal, IP30-rated

Fan

Fanless

Dimensions

127.5(H) x 30(D) x 83.6(W) mm

Weight

387g

PERFORMANCE

Switching Capacity

10Gbps

MAC Address

2K

Buffer Memory

2Mb

Jumbo Frame

9KB

Transmission Method

Store and Forward

Filtering / Forwarding Rates

Max. 7.44Mpps
?1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps

Advanced Feature

IEEE 802.1p Quality of Service (QoS)
Long Range Guaranteed 200 Meters at 10Mbps

OTHER

Protection

Reverse Polarity
Overload Current
6KV Surge per RJ45 Port

MTBF

>1,000,000 hours @25°C (Mean Time Between Failure)

Standards

IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.1p QoS (Quality of Service)
IEEE 802.3x Full-duplex and flow control
IEEE 802.3az Energy-efficient Ethernet

Environmental Condition

Operating Temperature: -20°C~70°C
Storage Temperature: -40°C~85°C
Operating Humidity: 10%~95% (NonCondensing)
Storage Humidity: 10%~95% (NonCondensing)

Certification

CE, FCC, BSMI

Manufacturer Part No:
IGS-1005
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.6 kg
PB Part No:
SWHEDM1054
Product Model:
IGS-1005
