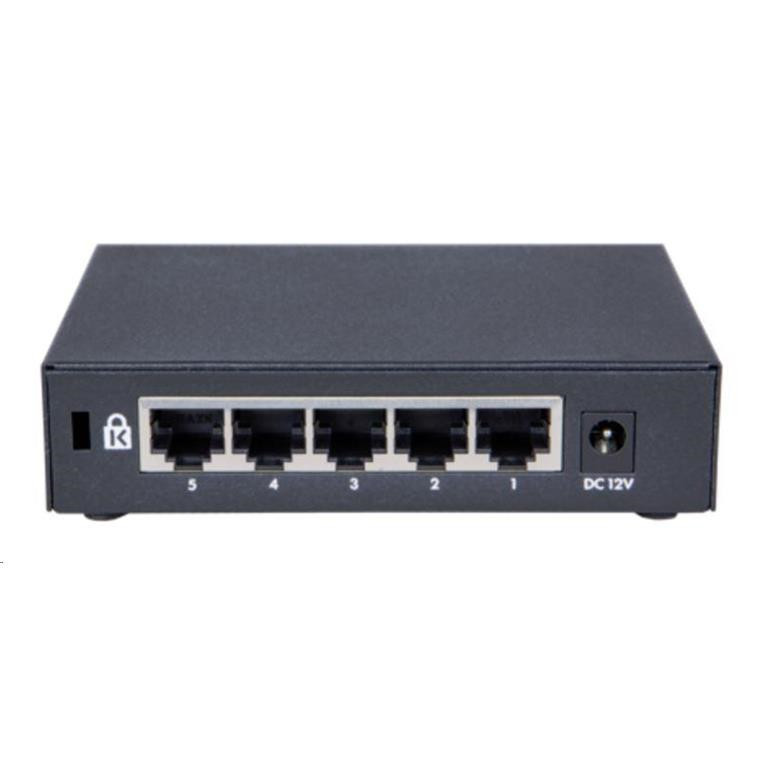

HP OfficeConnect 1420 5G PoE+ Unmanaged Ethernet Switch, 5 Port RJ-45 GbE (4 of 5 PoE+, 32W Total Budget), Lifetime Warranty

PB Tech price
PB Tech price
$ 138 .26
 +GST
$ 159 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

HP OfficeConnect 1420 5G PoE+ Unmanaged Ethernet Switch, 5 Port RJ-45 GbE (4 of 5 PoE+, 32W Total Budget), Lifetime Warranty

  • Brand: HP
  • MPN: JH328A
  • Part #: SWHHPE3317177
  • UPC: 889296966241
PB Tech price
$ 138 .26 $ 159 .00
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: HP
  • MPN: JH328A
  • Part #: SWHHPE3317177
  • UPC: 889296966241

Form Factor

N/A

10 Gigabit

No

Management Level

Unmanaged

Number of Ports

5 Ports

PoE

Yes

PoE Ports

4 Ports

PoE Budget

30 Watts

Stacking

No

Product is out of stock. View similar products in-stock at PB Tech

Features

Cost-effective, High-performance GbE Layer 2 Switching

The HPE OfficeConnect 1420 Switch Series features gigabit Ethernet (1GbE) connectivity offering small businesses 10 times the performance of Fast Ethernet with unmanaged plug-and-play simplicity. Unmanaged switches offer a cost-effective small business solution for locations needing only basic Layer 2 switching in a flat single tier network. Half-/full-duplex auto-negotiating capability on every port doubles the throughput of every port.


Flexible Choices To Meet Most Basic Layer 2 Networking Design Needs

The HPE OfficeConnect 1420 Switch Series includes nine models, all with gigabit performance and a choice of key features including PoE+, Fiber and 10G uplink options. The 1420-24G-2SFP model with SFP uplinks is ideal where gigabit fiber is required, while the 1420-24G-2SFP+ 10G Uplink model with SFP+ uplinks is available where 10GbE is needed. Power over Ethernet (PoE+) models deliver greater efficiency for powering IP phones, wireless access points, or video surveillance cameras without the cost of additional cabling. All HPE OfficeConnect 1420 Switch Series models are fanless for silent operation in office settings and include internal power supplies. Units can be deployed for desktop operation or can be rack mounted.


Automated Features for Hands-off Operation

All HPE OfficeConnect 1420 Switch Series models are plug-and-play with zero configuration and no required ongoing administration. This unmanaged PoE+ model delivers fully automated support for powering compatible IP phones, video surveillance cameras or wireless access points. The HPE 1420-24G-2SFP+ 10G Uplink Switch requires no configuration beyond installation of optional 10GbE transceivers to achieve 10GbE speeds. Alternatively, use today with gigabit SFP transceivers if higher performance is merely a future requirement. IEEE 802.1p prioritization and other QoS features automate the preferred handling of high priority traffic, including Differentiated Services Code Point (DSCP) set priorities. The OfficeConnect 1420 Switch Series supports jumbo packets to improve the performance of large data transfers.


Cost-effective Ownership for Now and into the Future

The HPE OfficeConnect 1420 Switch Series offers a cost-effective upgrade path to next-generation 10GbE networks to reduce performance bottlenecks The switch series includes PoE+ options to power IP devices without the cost of additional cabling for power. Green features include energy-efficient Ethernet IEEE 802.3az, auto-power down mode on idle ports, and power savings on short distance cables for low power consumption


PB Tech is a HP Gold Partner

Specifications

Ports :
(5) RJ-45 autosensing 10/100/1000 ports

Memory and processor :
Packet buffer size: 1 Mb

Latency :
100 Mb Latency: < 3 µs / 1000 Mb Latency: < 2.6 µs

Throughput :
up to 7.4 Mpps

Routing/switching capacity :
10 Gbps

PoE capability :
32 W PoE+
Manufacturer Part No:
JH328A
Brand:
HP
Product Type:
-
UPC
889296966241
Product Family:
OfficeConnect
Shipping Weight:
1.103 kg
PB Part No:
SWHHPE3317177
Product Model:
1420 5G PoE+
Warranty: 60 months *
