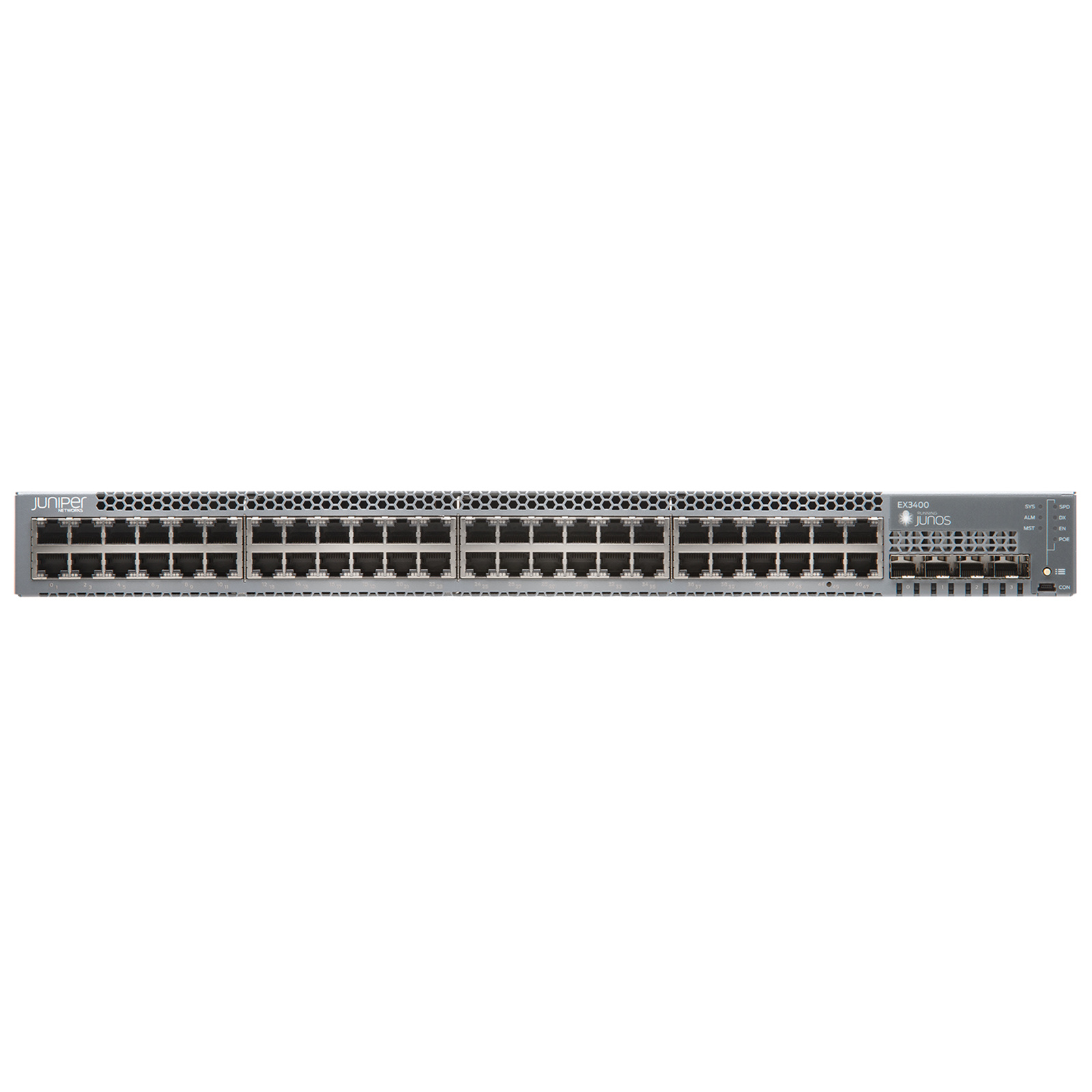

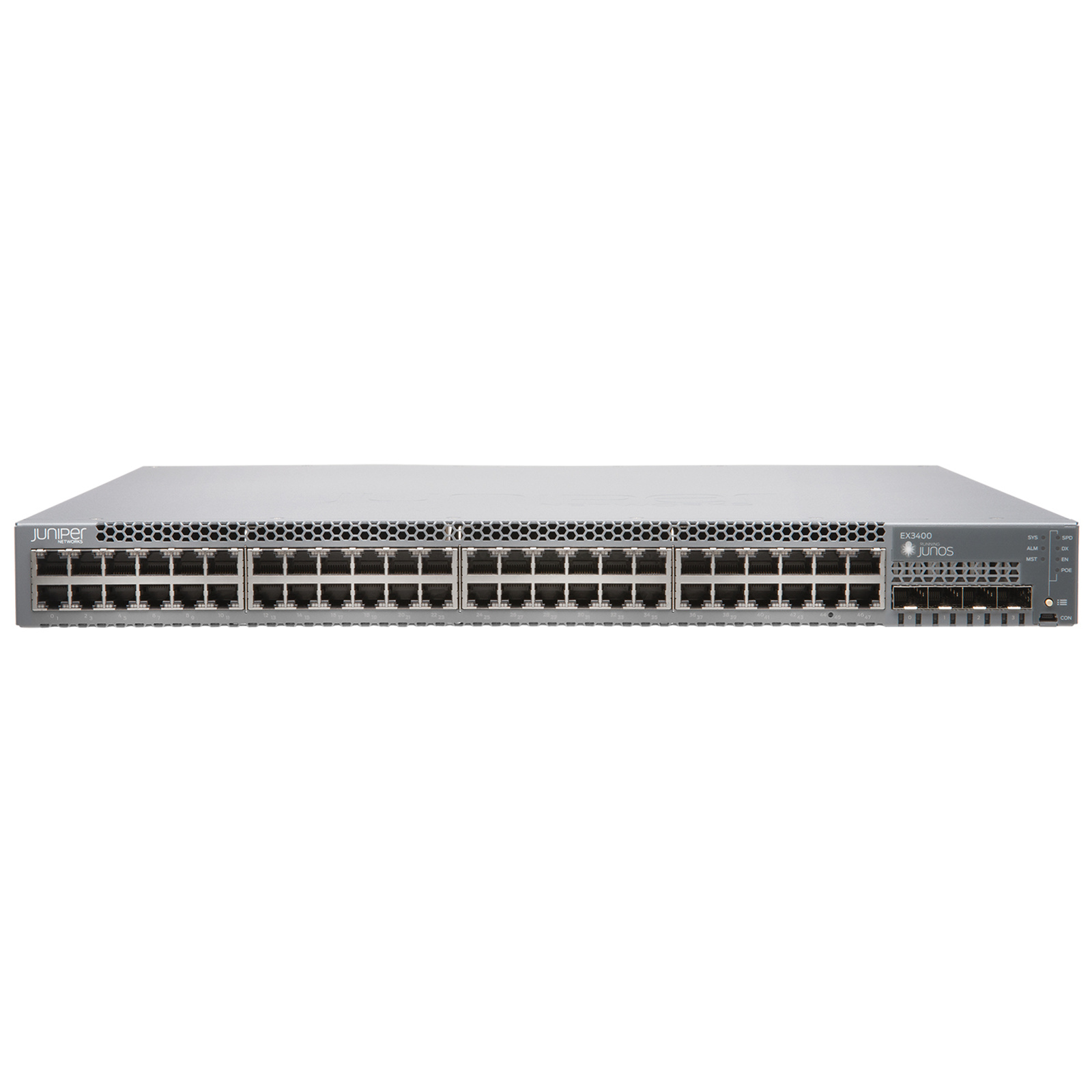

Juniper Networks EX3400-48P 48 port 10 100 1000BaseT PoE+ 4 x 1 10G SFP SFP+ 2 x 40G QSFP+ redundant fans front to back airflow 1 AC PSU JPSU 920 AC

PB Tech price
PB Tech price
$ 5,534 .78
 +GST
$ 6,365 .00
 inc GST

Out of stock

Juniper Networks EX3400-48P 48 port 10 100 1000BaseT PoE+ 4 x 1 10G SFP SFP+ 2 x 40G QSFP+ redundant fans front to back airflow 1 AC PSU JPSU 920 AC

PB Tech price
$ 5,534 .78 $ 6,365 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Form Factor

1U Rackmount

10 Gigabit

No

10 Gigabit Ports

0 Ports

Management Level

Managed

Number of Ports

48 Ports

PoE

No

PoE Ports

0 Ports

PoE Budget

N/A

Features

EX3400 Ethernet Switches are a cost-effective solution for today's most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches.

Featuring models offering either 24 or 48 10/100/1000BASE-T ports, the EX3400 switches also support IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering networked telephones, video cameras, wireless LAN access points, and other IP devices. Four front-panel dual-mode (GbE/10GbE) small form-factor pluggable transceiver (SFP/SFP+) uplink ports and two 40GbE quad SFP+ (QSFP+) ports are also available for connecting the switches to upstream devices. The EX3400 supports Juniper's unique Virtual Chassis technology for interconnecting up to 10 switches that can be managed as a single device. The EX3400 can also be configured as a satellite device in a Junos Fusion Enterprise deployment, which aggregates large numbers of access switches into a logical management platform.


Innovative Switch Design

Innovative switch design reduces cost and complexity, while unified management and automation tools consolidate system monitoring.


Virtual Chassis


With Virtual Chassis technology, multiple interconnected EX Series switches function as a single logical device, reducing operational expenses and simplifying management.


Centralized Management


When deployed as satellite devices in a Junos Fusion Enterprise environment, large numbers of EX3400 switches can be managed from a single interface.


Always-On Reliability


Based on a field-proven Juniper architecture and the Junos OS, EX Series switches deliver always-on reliability for every application.


Eight QoS Queues


Eight QoS queues per switch port ensure proper prioritization of voice, video, and multiple levels of data traffic, with room to converge other networks, such as building automation and video security systems.


High Port Densities and Wire-Speed Performance


High 1GbE and 10GbE port densities and wire-speed performance provide flexibility in creating network topologies.

Specifications

Form factor

Fixed platform
Virtual Chassis configuration consisting of up to 10 switches
Junos Fusion Enterprise Satellite device

Dimensions (W x H x D)

17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm)
1 rack unit

Backplane speed

160 Gbps

Data rate EX3400-24P/24T/24T-DC: 288 Gbps

EX3400-48P/48T: 336 Gbps

Throughput EX3400-24P/24T/24T-DC: 214 Mpps (wire speed)

EX3400-48P/48T: 250 Mpps (wire speed)

40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities

2

100GBASE C form-factor pluggable transceiver (CFP) port densities

N/A

Resiliency

Redundant, field-replaceable power supplies
Redundant trunk groups that provide port redundancy and simplify switch configuration

Operating system

Junos OS

Traffic monitoring

sFlow

Quality-of-service (QoS) queues/port

8 unicast/4 multicast

MAC addresses

32,000

Jumbo frames

9216 bytes

IPv4 unicast/multicast routes

36,000/4,000

IPv6 unicast/multicast routes

18,000/2,000

Number of VLANs

4,096

ARP entries

16,000

Manufacturer Part No:
EX3400-48P
Brand:
Product Type:
-
UPC
832938071001
Product Family:
-
Shipping Weight:
8.202 kg
PB Part No:
SWHJUN3400482
Product Model:
EX3400-48P
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
