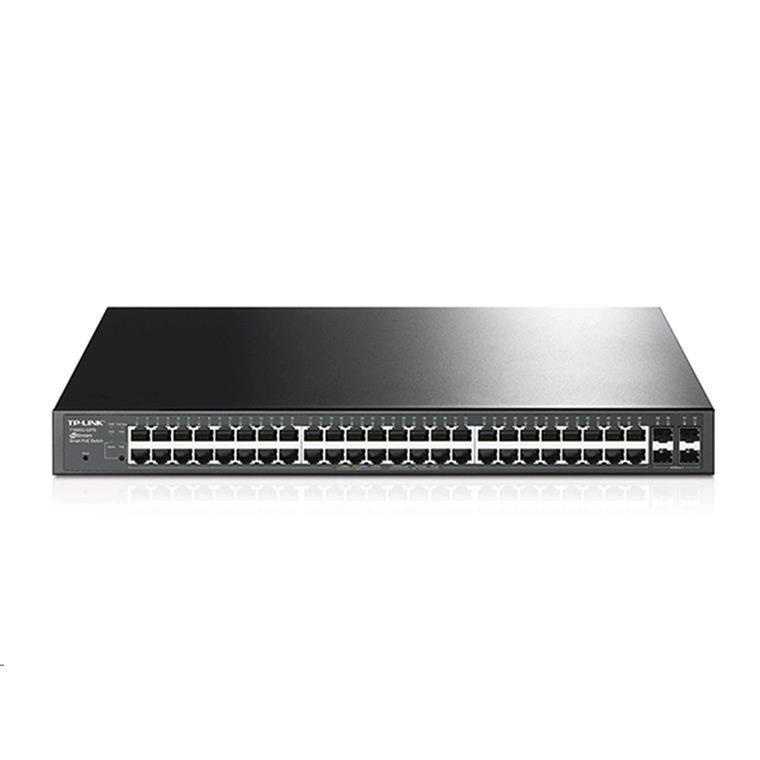

TP-Link T1600G-52PS 48-Port Gigabit Smart PoE+ Switch with 4 x SFP Slots (Max 384W)
Out of stock
TP-Link T1600G-52PS 48-Port Gigabit Smart PoE+ Switch with 4 x SFP Slots (Max 384W)
- Brand: TP-Link
- MPN: T1600G-52PS
- Part #: SWHTPL1016
- UPC:
- Brand: TP-Link
- MPN: T1600G-52PS
- Part #: SWHTPL1016
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
TP-Link TL-SG108 8-Port 10/100/1000Mbps Desktop Switch
TP-Link T1600G-52PS 48-Port Gigabit Smart PoE+ Switch with 4 x SFP Slots (Max 384W)
- Brand: TP-Link
- MPN: T1600G-52PS
- Part #: SWHTPL1016
Product URL: https://www.pbtech.co.nz/product/SWHTPL1016/TP-Link-T1600G-52PS-48-Port-Gigabit-Smart-PoE-Swit
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Overview
With 48 802.3at/af PoE compliant Gigabit Ethernet ports and a power supply of 384 W, the T1600G-52PS JetStream 48-Port Gigabit Smart PoE+ Switch with 4 SFP Slots from TP-Link is designed to support a variety of devices from IP cameras, to access points, and more. In addition to the numerous PoE Gigabit Ethernet ports, this TP-Link switch also comes equipped with 4 Gigabit SFP slots supporting a variety of small form factor pluggable devices and fibre channel applications. This T1600G-52PS also contains 3 built-in fans to keep everything cool when pushing the switch to it's limits. Once installed, this TP-Link switch offers a wealth of Layer 2 and Layer 2+ features, including static routing to help route internal traffic, 802.1Q VLAN tagging, port mirroring, link aggregation, 802.3x flow control, and more. For network maintainence TP-Link has included features such as loop back detection, cable diagnostics, and IGMP snooping. Securing the network has also been simplified thanks to IP-MAC-port binding, port security, storm control, and HDCP snooping, while 802.1X compliance offers an added level of authentication for users attempting to gain access to the network.
IEEE 802.3at/af-Compliant Power over Ethernet
The T1600G-52PS provides 48 10/100/1000Mbps RJ45 Ports that support 802.3at/af-compliant PoE, with a total PoE power supply up to 384W to power any 802.3at/af compliant power device. Compact and flexible, the T1600G-52PS is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.
L2 and L2+ Features
The T1600G-52PS supports rich L2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Besides, the switch provides advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T1600G-52PS supports L2+ feature-static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.
Secure Networking
The T1600G-52PS supports IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, and even VLAN ID. Moreover, the switch supports 802.1X, which allows network clients to be authenticated through external Radius servers. Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource.
Advanced QoS Features
To integrate voice, data, and video service on one network, the switch applies QoS policies. Administrators can designate the priority of the traffic based on a variety of means, including Port Priority, 802.1P Priority, and DSCP Priority, to ensure that voice and video are clear, smooth, and jitter free.
Enterprise Level Management Features
The T1600G-52PS supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI), SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And comprehensive IPv6 supporting management ensures a smooth migration to IPv6-based network. Besides, it also supports Dual Image, which provides reduced down-time for the switches, when the image is being upgraded / downgraded.
| Code | Model | Features | ||||||
| Speed | Total Ports | PoE | PoE+ | Power Budget | Management | SFP | ||
| SWHTPL1027 | TL-SF1005P | 100Mbps | 5 | 4 | - | 58W | No | N/A |
| SWHTPL1011 | TL-SF1008P | 100Mbps | 8 | 4 | - | 57W | No | N/A |
| SWHTPL1028 | TL-SG1005P | Gigabit | 5 | 4 | - | 56W | No | N/A |
| SWHTPL1020 | TL-SG1008P | Gigabit | 8 | 4 | - | 55W | No | N/A |
| SWHTPL1001 | TL-SG108PE | Gigabit | 8 | 4 | - | 55W | Yes | N/A |
| SWHTPL1012 | TL-SG1008PE | Gigabit | 8 | - | 8 | 126W | No | N/A |
| SWHTPL1021 | TL-SG1016PE | Gigabit | 16 | - | 8 | 110W | Yes | N/A |
| SWHTPL2210P | T1500G-10PS | Gigabit | 10 | 8 | - | 53W | Yes | 2 |
| SWHTPL1500 | T1500G-10MPS | Gigabit | 10 | - | 8 | 116W | Yes | 2 |
| NETTPL0028 | T2500G-10MPS | Gigabit | 10 | - | 8 | 116W | Yes | 2 |
| SWHTPL2425 | T1600G-28PS | Gigabit | 28 | - | 24 | 180W | Yes | 4 |
| SWHTPL3425 | T2600G-28MPS | Gigabit | 28 | - | 24 | 384W | Yes | 4 |
| SWHTPL1016 | T1600G-52PS | Gigabit | 52 | - | 48 | 384W | Yes | 4 |
Specifications
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interfaces
48 x 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 x Gigabit SFP Slots
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 328 ft / 100 m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 328 ft / 100 m)
1000BASE-X: MMF, SMF
Fan Quantity
3
Power Supply
100~240 VAC, 50/60 Hz
Power Consumption
Maximum (PoE on): 470.4 W (220 V / 50 Hz)
Maximum (PoE off): 46.5 W (220 V / 50 Hz)
PoE Ports
Standard: 802.3at/af compliant
PoE+ Ports: 48 Ports
Power Supply: 384 W
Bandwidth
104 Gbps
Packet Forwarding Rate
77.4 Mpps
MAC Address Table
16 K
Jumbo Frame
9 KB
Quality of Service
Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow-based Rate Limiting
Voice VLAN
L2 Features
Static Routing
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
LLDP, LLDP-MED
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
VLAN
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN
Access Control List
L2 - L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
Security
Port Security
IP-MAC-Port Binding
ARP Inspection
DHCP Snooping
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
IPv6
Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 Applications
DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
Management
Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image
Certifications
CE, FCC, RoHS
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista; Windows 7/8; Mac OS; NetWare; UNIX; or Linux
Temperature & Humidity
Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 10 to 90% non-condensing
Storage Humidity: 5 to 90% non-condensing
Dimensions
17.30 x 13.00 x 1.73" / 440 x 330 x 44 mm
