Features

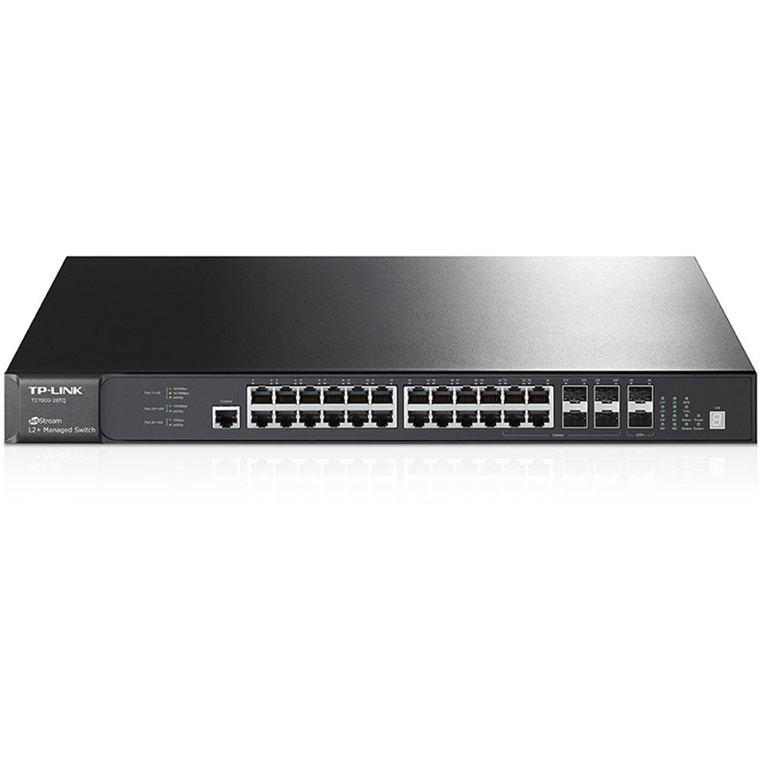

JetStream 28-Port Gigabit Stackable L2+ Managed Switch
TP-LINK's T2700G-28TQ is an L2+ managed switch designed to build a highly accessible, scalable, and robust network. The switch is equipped with 24 Gigabit RJ-45 ports, 4 Combo Gigabit SFP and up to 4 10Gbps SFP slots, giving network administrator great network flexibility. It supports basic Layer3 features like static routing and RIP v1/v2 by default and can be upgraded to support abundant Layer 3 features such OSPF/ECMP/PIM/VRRP with the addition of a Layer3 license. What's more, with physical stacking feature and optional redundant external power unit, T2700G-28TQ provides a robust network with efficient redundancy. T2700G-28TQ provides robust security to help secure your enterprise network. TP-LINK's T2700G-28TQ L2+ managed switch provides a reliable and cost-effective solution for enterprise, campus and ISP networks.
- Basic Layer3 features like static routing and RIP v1/v2 by default and abundant Layer 3 features including OSPF/ECMP/PIM/VRRP with a Layer 3 license upgrade(T2700G-28TQ-L1000) to save cost and protect investment
- True Physical Stacking technology supports up to 8 units and 320Gbps backplane bandwidth for high scalability and efficient redundancy
- 10 Gigabit Ethernet uplink provides high-bandwidth applications for congestion relief and smooth data delivery
- Removable power unit and redundant power supply functionality minimizes downtime
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface
24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 combo gigabit SFP Slots
Up to 4 10G SFP+ Slots (2 fixed and 2 optional 10G SFP+ Slots)
1 Console Port
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
10GBASE-LR
10GBASE-SR
Fan Quantity
4
Power Supply
100~240VAC, 50/60Hz
Dimensions ( W x D x H )
17.32*13*1.73 in.(440*330*44 mm)
PHYSICAL STACKING
Installable SFP+ Transceivers and Direct Attach Copper (DAC) Cables
TXM431-SR
TXM431-LR
TXC432-CU1M
TXC432-CU3M
Max Number of Stacking Ports Installable
2 SFP+
No. of Units Per Stack
8
Stacking Speed (Per Port)
20 Gbps (Full-Duplex)
PERFORMANCE
Switching Capacity
Up to 128Gbps for a standalone switch
Bandwidth/Backplane
Up to 320Gbps when 8 units in the stack
Packet Forwarding Rate
Up to 95.2Mpps for a standalone switch
MAC Address Table
32K
Packet Buffer Memory
16 Mbits
Jumbo Frame
10240 Bytes
Number of Routes
12K
Number of Static Routes
256
Number of IP Interfaces
128
OTHERS
Certification
CE, FCC, RoHS
Package Contents
Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux.
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
