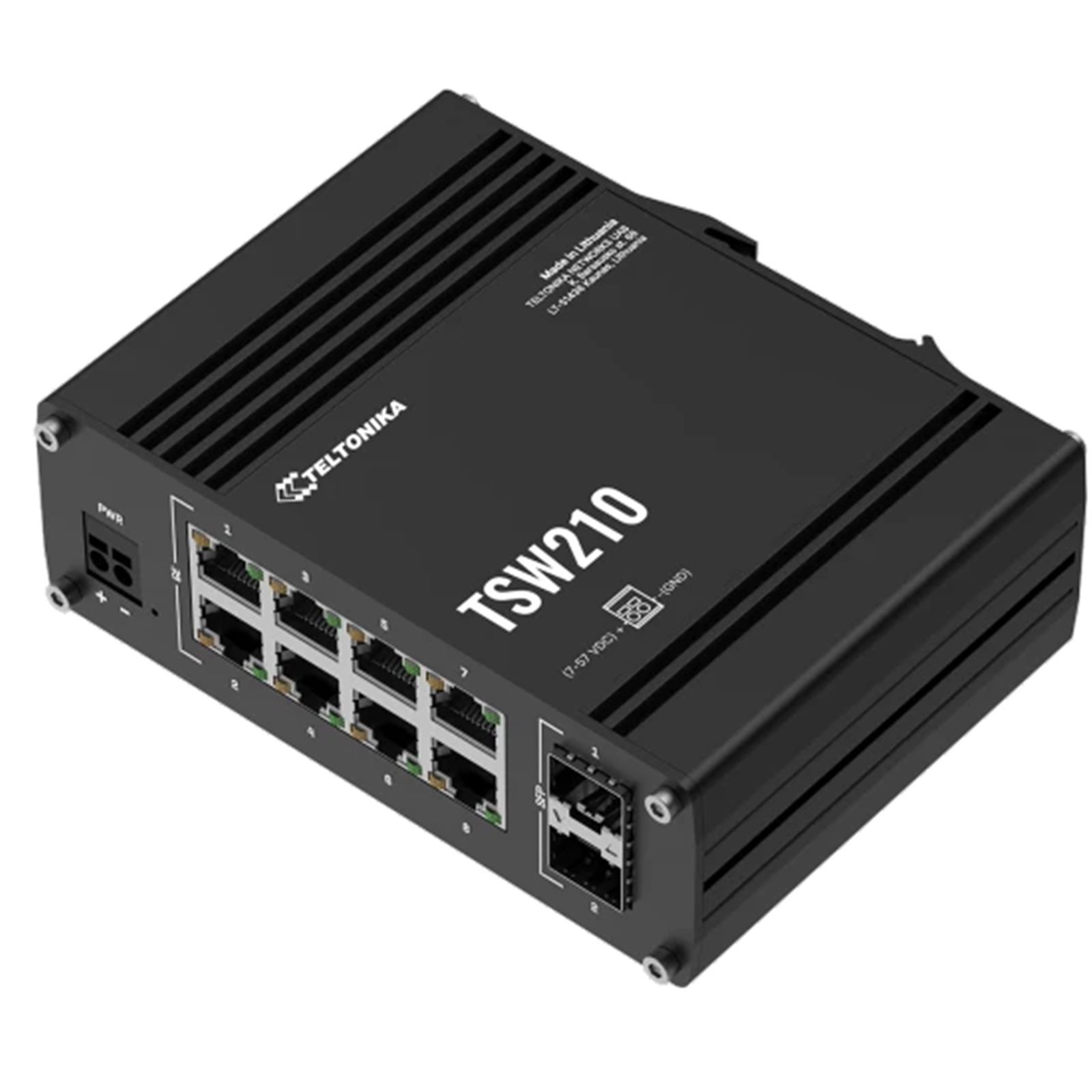

Teltonika TSW210 8 Port Unmanaged Industrial Gigabit Switch with 2 SFP Ports

PB Tech price
PB Tech price
$ 153 .61
 +GST
$ 176 .65
 inc GST
$153.61  +GST
$176.65

Teltonika TSW210 8 Port Unmanaged Industrial Gigabit Switch with 2 SFP Ports

  • Brand: Teltonika
  • MPN: TSW210
  • Part #: SWHTTK1210
  • UPC:
PB Tech price
$ 153 .61 $ 176 .65
 +GST  inc GST
Hurry, only 1 unit left!


Click & Collect: Available from 1 store.
Select your store to check availability
Delivery: Order now and it ships on 30 Sep When will I receive it?
$153.61  +GST
$176.65
  • Brand: Teltonika
  • MPN: TSW210
  • Part #: SWHTTK1210
  • UPC:

10 Gigabit

Yes

10 Gigabit Ports

8 Ports

Form Factor

Not Specified

Management Level

Unmanaged

Number of Ports

8 Ports

PoE

Not Specified

PoE Ports

Not Specified

PoE Budget

Not Specified

Features

TSW210 is an Ethernet switch that offers a great combination of Gigabit Ethernet and SFP. Eight Ethernet ports enable connecting multiple devices to the network quickly and easily without any further configuration. SFP allows including far apart devices while maintaining high-speed rates and reliability.

ETHERNET

8 x Gigabit Ethernet ports with speeds of up to 1000 Mbps

PLUG AND PLAY

No additional configuration needed

MOUNTING

DIN rail and surface mounting options

SFP

2 x SFP ports for long-range fiber-optic communication

Specifications

Ethernet

ETH

8 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

Fibre

2 x SFP ports

IEEE 802.3 series standards

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

INDUSTRIAL PROTOCOLS

Profinet

Profinet Class A conformance (available with optional order code)

Performance Specifications

Bandwidth (Non-blocking)

20 Gbps

Packer buffer

128 KB

MAC address table size

2K entries

Jumbo frame support

9216 bytes

Power

Connector

2-pin industrial DC power socket

Input voltage range

7 - 57 VDC

Power consumption

Idle: ~1.03 W / Max: 3.71 W

Physical Interfaces

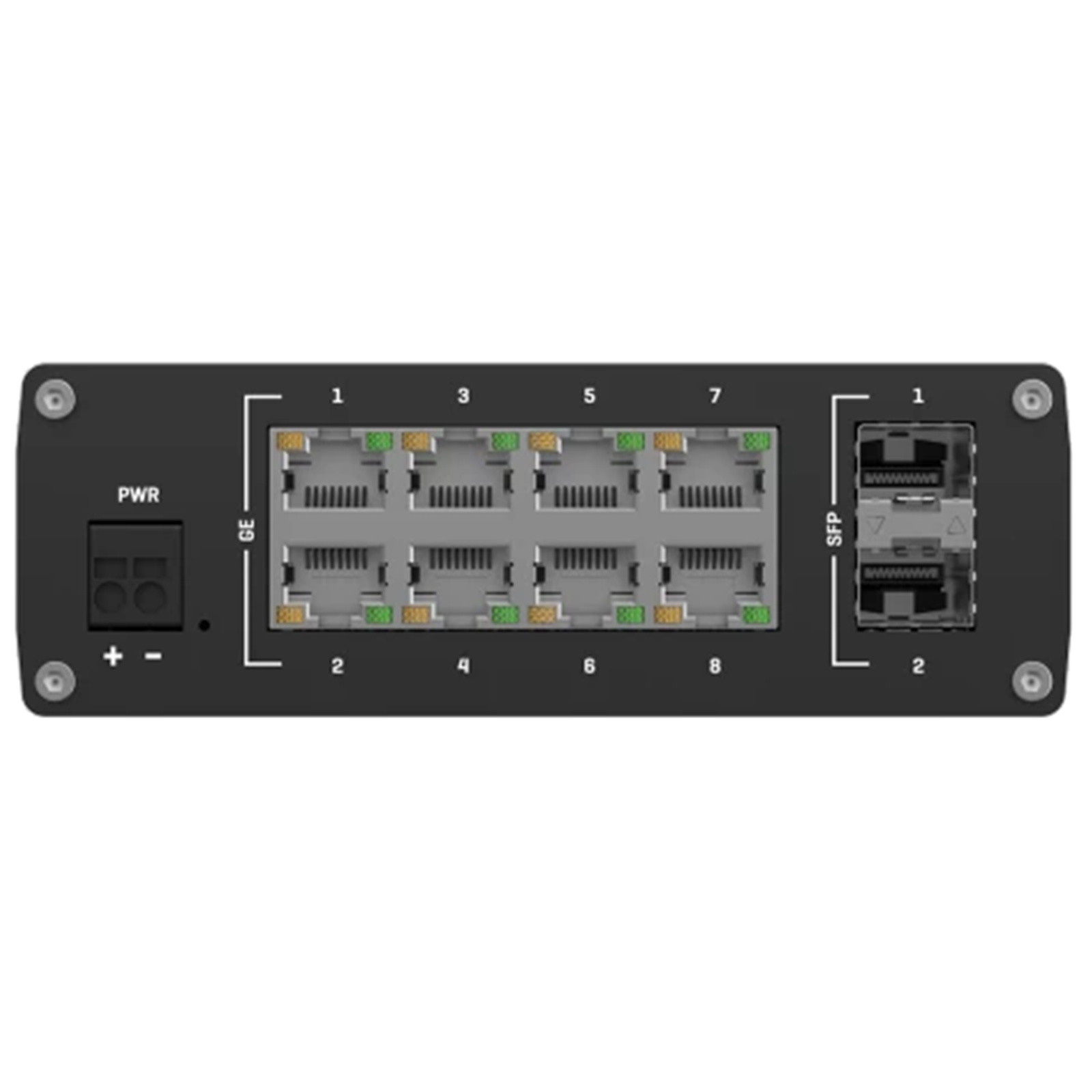

Ethernet

8 x RJ45 ports, 10/100/1000 Mbps

Fibre

2 x SFP ports

Status LEDs

1 x Power LED, 16 x ETH status LEDs 2 x SFP status LEDs

Power

1 x 2-pin industrial DC power socket

Other

1 x Grounding screw

Physical Specification

Casing material

Full aluminum housing

Dimensions (W x H x D)

132 x 44.2 x 95.1 mm

Weight

500 g

Mounting options

Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating Environment

Operating temperature

-40 °C to 75 °C

Operating humidity

10% to 90% non-condensing

Ingress Protection Rating

IP30

Manufacturer Part No:
TSW210
Brand:
Teltonika
Product Type:
8 Port Unmanaged Industrial Gigabit Switch
UPC
-
Product Family:
-
Shipping Weight:
3 kg
PB Part No:
SWHTTK1210
Product Model:
TSW210
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
