Features

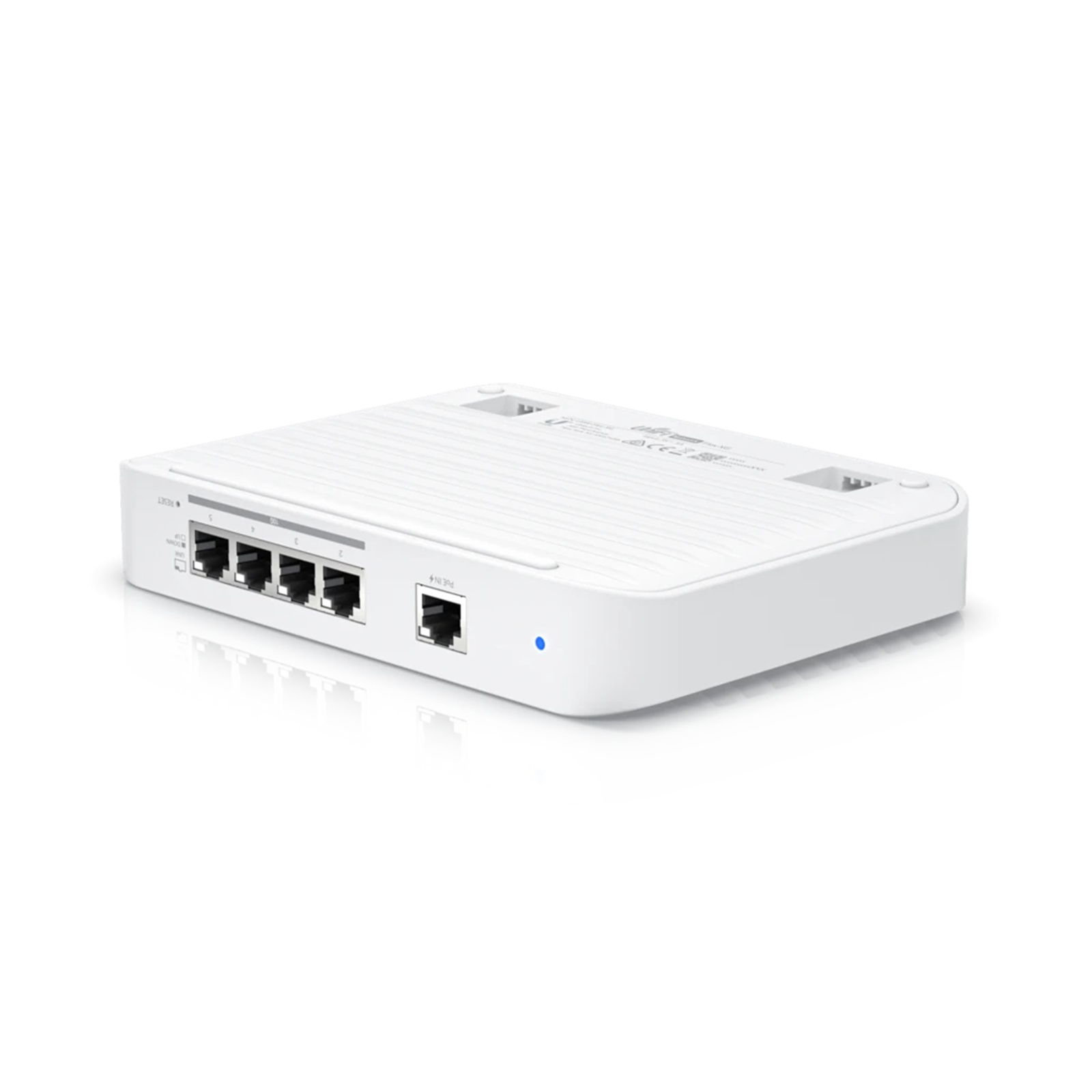

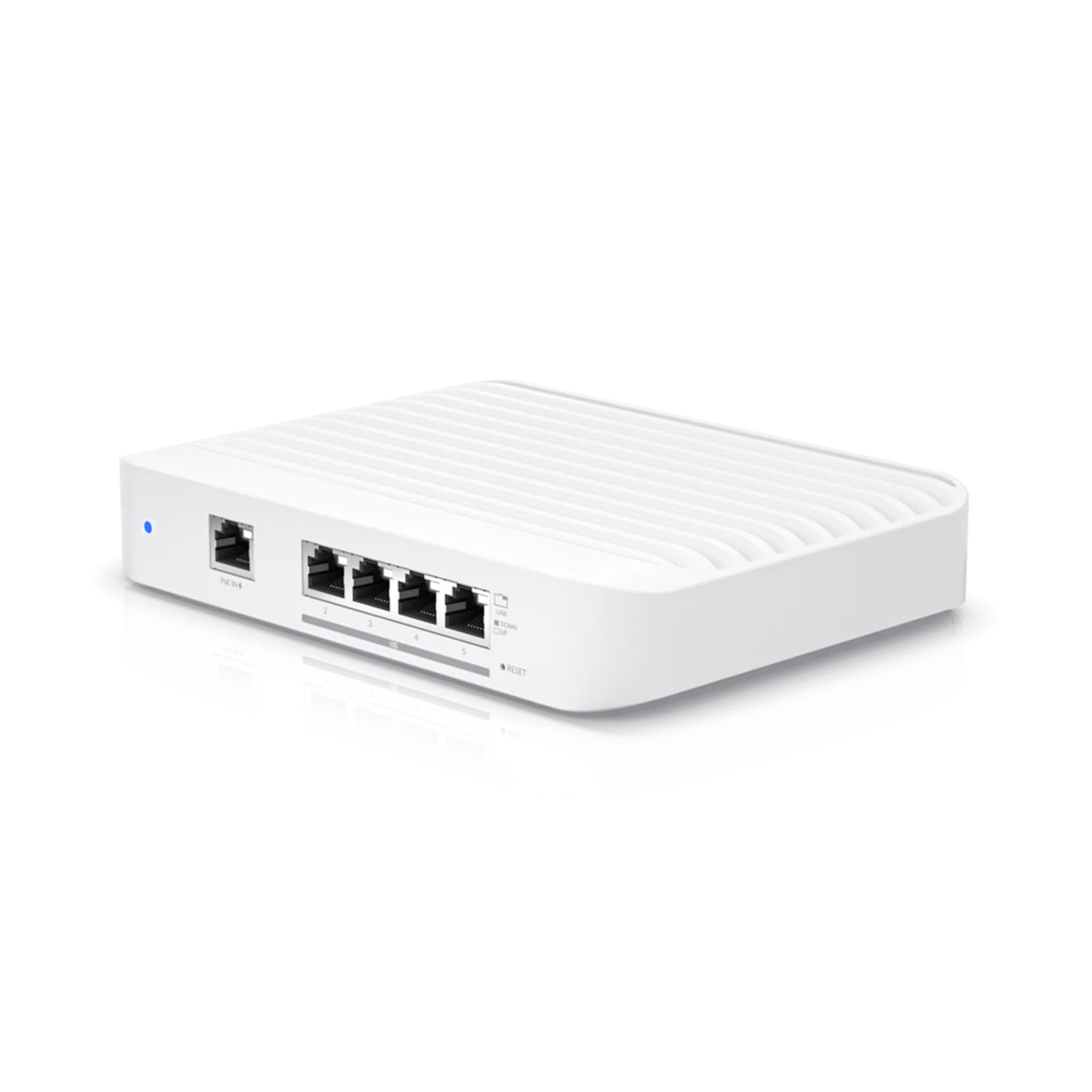

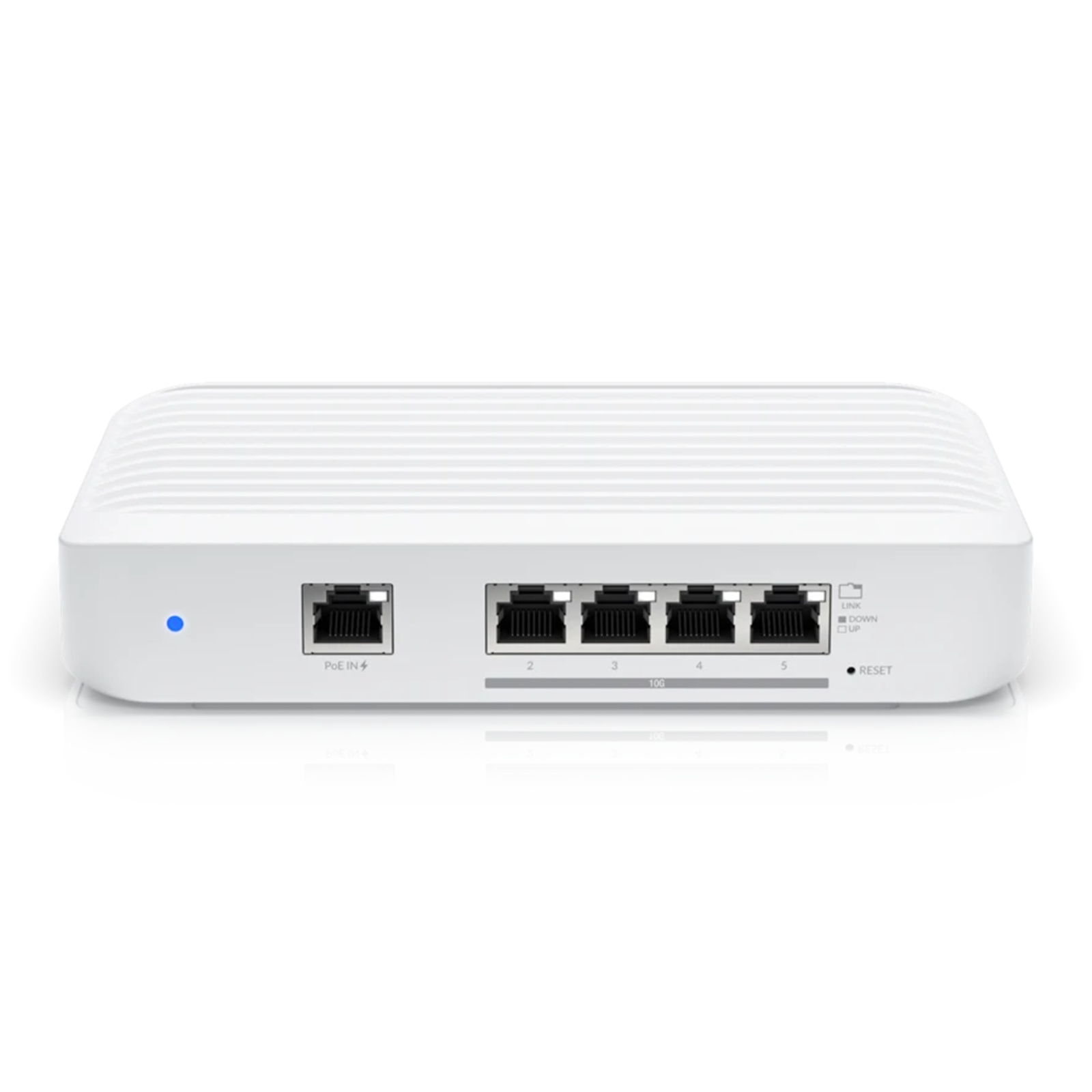

Switch Flex XG
Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE, 802.3at PoE+ RJ45 input.
The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
- (1) GbE, 802.3at PoE+ RJ45 input
- (4) 10GbE RJ45 ports
- Compact, slim housing

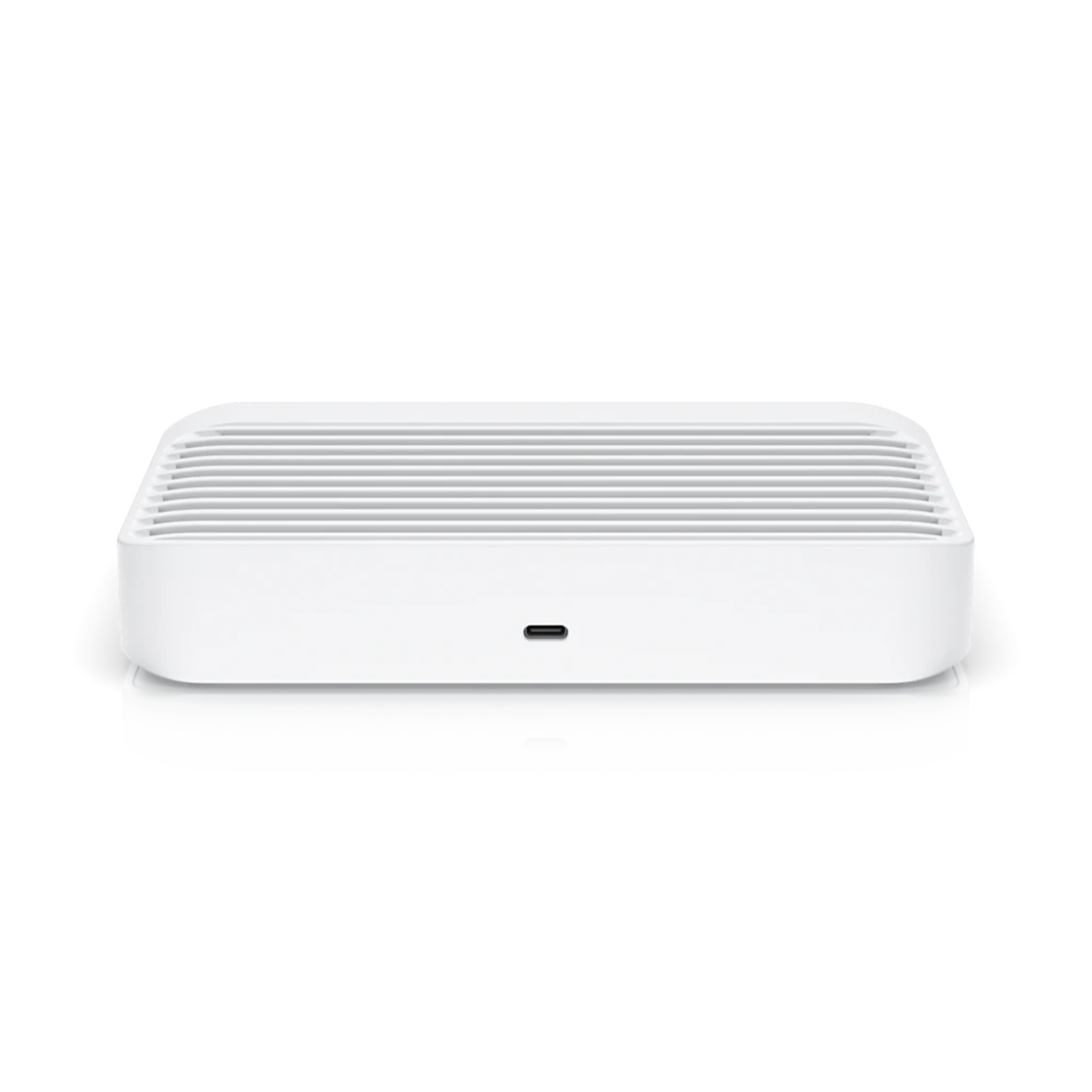

- Can be powered with a 5V, 5A USB-C adapter**
Managed with the UniFi Network application: Version 6.1.67 and later
*Do not stack other hardware on the USW Flex XG.
**Only single-unit packages include the 5V, 5A USB-C power adapter.
View datasheet here.
Specifications
Mechanical
Dimensions
135 x 185 x 32 mm (5.31 x 7.28 x 1.27")
Weight
1.2 kg (2.65 lb)
Enclosure Material
Polycarbonate
Hardware
Total Non-Blocking Throughput
41 Gbps
Switching Capacity
82 Gbps
Forwarding Rate
61.012 Mpps
Max Power Consumption
25W
Power Method
(1) 802.3at PoE, 50-57VDC, 25W
(1) USB Type-C, 5VDC, 5A
Power Supply
802.3at PoE (Pins 1, 2+/3, 6- or 4, 5+/7, 8-)
AC/DC Power Adapter, 5VDC, 5A, 1.5 m Cord (Included)
Supported Voltage Range
90 to 264VAC (Adapter)
Management Interface
Ethernet In-Band
Networking Interfaces
(1) 10/100/1000 Mbps RJ45 Ethernet
(4) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet
Services
SMB Layer 2 Gigabit Ethernet Switch
ESD/EMP Protection
Air: ± 16 kV, Contact: ± 12 kV
Button
Factory Reset
Operating Temperature
-5 to 45° C (23 to 113° F)
Operating Humidity
10 - 90% Noncondensing
Certifications
CE, FCC, IC
LEDs
System
(1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Ethernet
White: Link or Activity
