Ubiquiti UniFi USW-Enterprise-24-POE 26-Port 10G L3 Managed PoE Switch (400W) - SFP+ x2, 2.5GbE PoE+ x12, 1GbE PoE+ x12
Ubiquiti UniFi USW-Enterprise-24-POE 26-Port 10G L3 Managed PoE Switch (400W) - SFP+ x2, 2.5GbE PoE+ x12, 1GbE PoE+ x12
- Brand: Ubiquiti
- MPN: USW-Enterprise-24-POE
- Part #: SWHUBI824400
- UPC: 810010073044
Select your store to check availability
What PB Tech customers are saying about this product...
See More Reviews"I bought this for my home networking, and it has been a bit ...view more"
"This Ubiquiti switch provides a variety of options of POE su ...view more"
COMBO DEALS: Buy Together and SAVE!







Ubiquiti UniFi U6-Enterprise (AXE10200) Tri-Band 10-Stream Wi-Fi 6E Access Point with 2.5GbE x1 (PoE...
$461.62 +GST
$530.86


Ubiquiti UniFi (UDM-PRO) Dream Machine Pro 10G Cloud Gateway with NVR 10G SFP+ x2 / 1GbE x9 / 3.5"...
$784.10 +GST
$901.72


Ubiquiti 10Gbps SFP+ Direct Attach Copper (DAC) Cable - 1m Passive - Copper
$32.06 +GST
$36.87


Ubiquiti UACC-CM-RJ45-MG 10G SFP+ to 10/5/2.5GbE RJ45 Module Up to 100m over Cat6A
$132.64 +GST
$152.54
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches





Ubiquiti UniFi USW-Enterprise-24-POE 26-Port 10G L3 Managed PoE Switch (400W) - SFP+ x2, 2.5GbE PoE+ x12, 1GbE PoE+ x12
- Brand: Ubiquiti
- MPN: USW-Enterprise-24-POE
- Part #: SWHUBI824400
- UPC:810010073044

Product URL: https://www.pbtech.co.nz/product/SWHUBI824400/Ubiquiti-UniFi-USW-Enterprise-24-POE-26-Port-10G-L?srsltid=AfmBOorWHL42bBEXuWjecSFq3P5HayNemNxAjMsBQFOUVcfZ670x5SWF
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 1 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 1 | |
Wellington | 1 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 1 | |
Dunedin | 0 |
Features

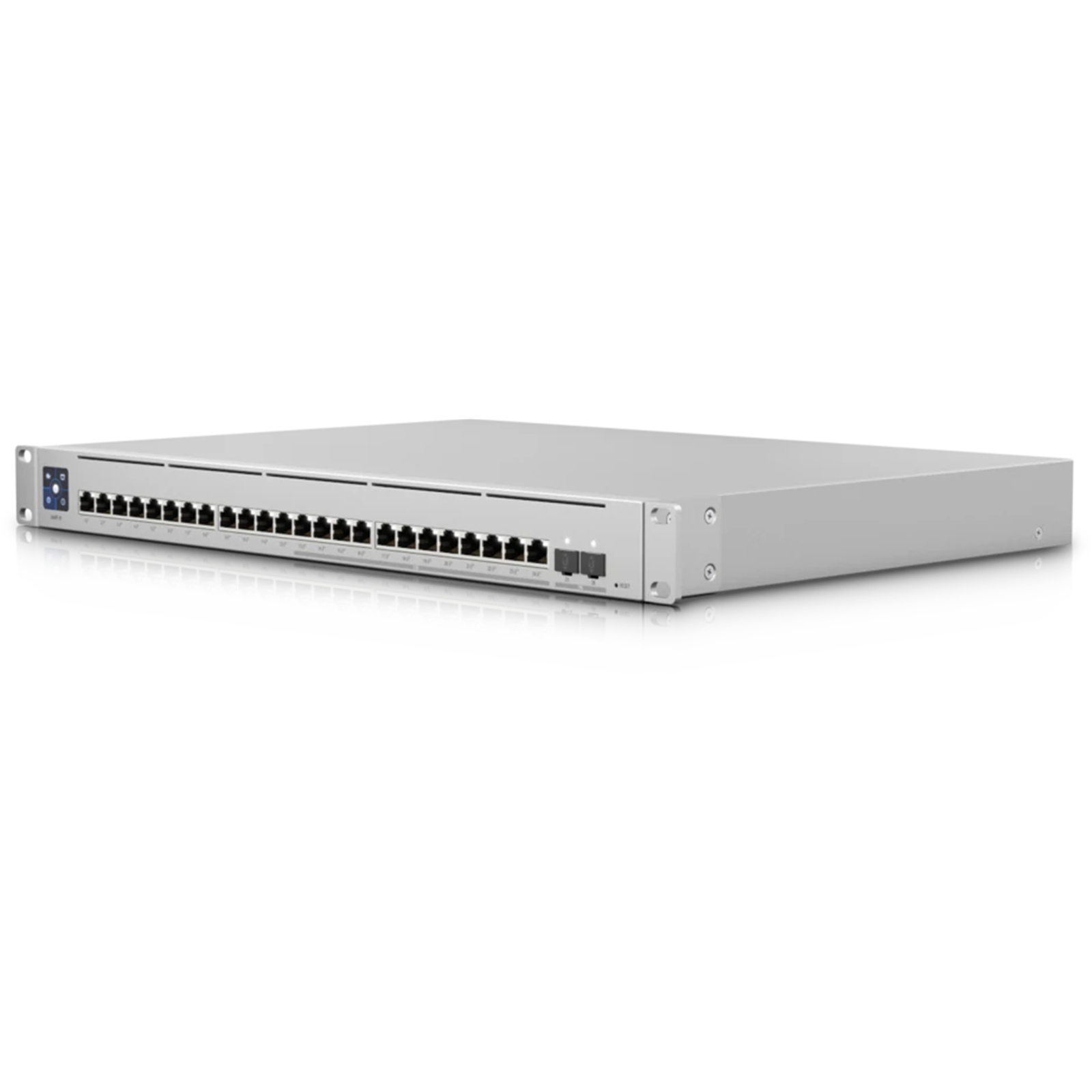

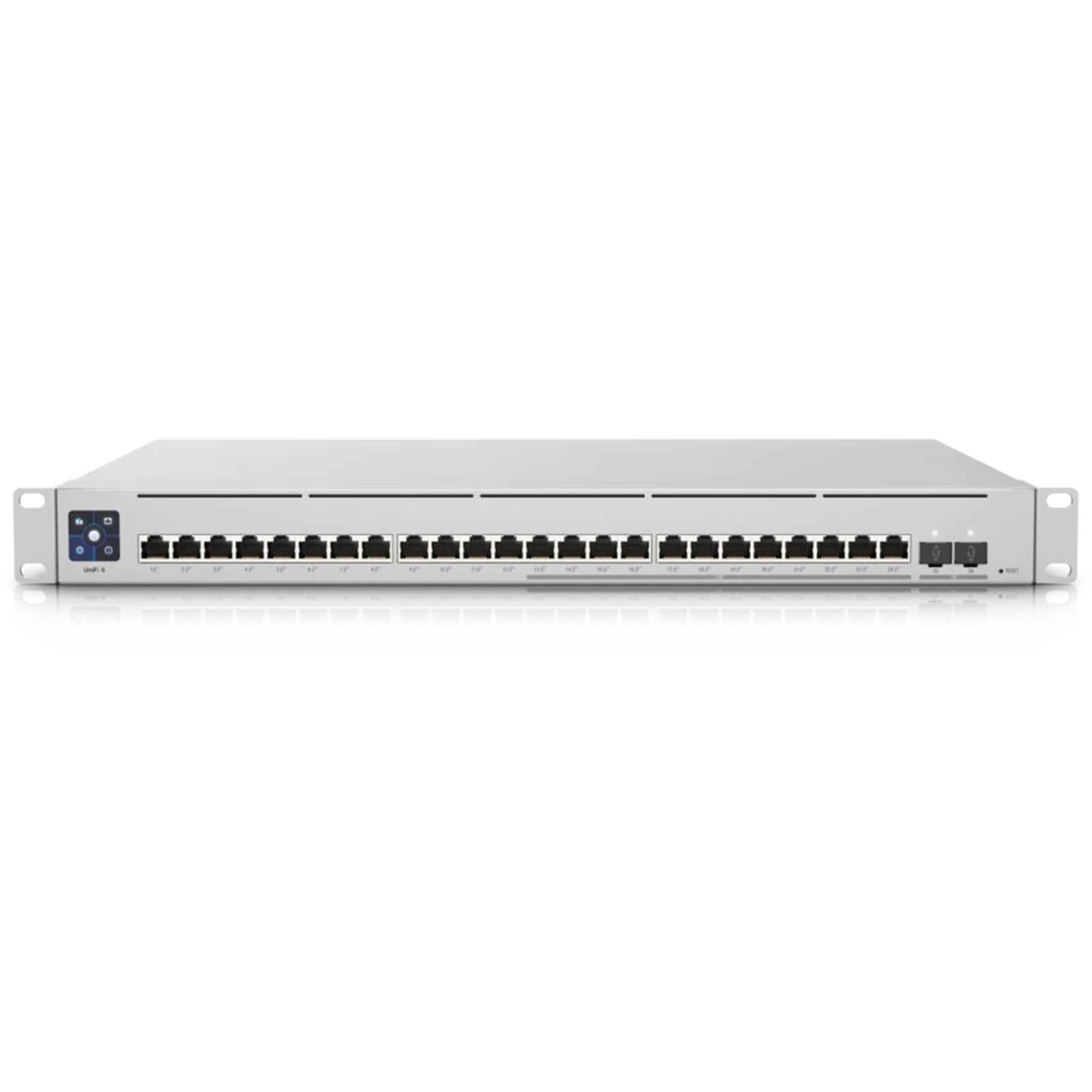

Switch Enterprise 24 PoE
Layer 3, PoE switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, and (2) 10G SFP+ ports.
The Switch Enterprise 24 PoE (USW Enterprise 24 PoE) is a fully managed, Layer 3 switch with (12) 2.5GbE, 802.3at PoE+ RJ45 ports, (12) GbE, 802.3at PoE+ RJ45 ports, (2) 10G SFP+ ports, and a 400W total PoE supply. The USW Enterprise 24 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise 24 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
- (1) 1.3" LCM color touchscreen with AR switch management
- (12) GbE, 802.3at PoE+ RJ45 ports
- (12) 2.5GbE, 802.3at PoE+ RJ45 ports
- (2) 10G SFP+ ports
- (1) USP RPS DC input
- 400W total PoE supply
- Layer 3 switching features
- Single-row RJ45 port layout for easy patch panel cable management
Managed with the UniFi Network application: Version 5.14.12 and later
View product datasheet HERE
Specifications
Mechanical
Dimensions
442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
Weight
Without Mount: 5.11 kg (11.27 lb)
With Mount: 5.2 kg (11.46 lb)
Enclosure Materials
SGCC Steel
Mount Material
SGCC Steel
Hardware
Total Non-Blocking Throughput
62 Gbps
Switching Capacity
124 Gbps
Forwarding Rate
92.25 Mpps
Max. Power Consumption
550W
Power Method
(1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz
(1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A
Power Supply
AC/DC, Internal, 550W
Management Interface
Ethernet In-Band
Networking Interfaces
(12) 10/100/1000 Mbps RJ45 Ethernet
(12) 100/1000/2500 Mbps RJ45 Ethernet
SFP+ Interfaces
(2) 1/10G SFP+
PoE Interfaces
(24) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage per Port by PSE
34.2W
Voltage Range 802.3af Mode
44 to 57V
Voltage Range 802.3at Mode
50 to 57V
Services
SMB Layer 3 PoE Gigabit Ethernet Switch
ESD/EMP Protection
Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity
10 - 95% Noncondensing
Certifications
CE, FCC, IC
LEDs
System
(1) Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Ethernet
White: Link or Activity
SFP+
White: Link or Activity
