Magewell MG-64050 Magewell Pro Convert HDMI TX

Magewell MG-64050 Magewell Pro Convert HDMI TX
PB Tech price: PB Tech price:
$606 96  +GST $698 00  inc GST
This product can only be sold to limited liability companies, local councils, government departments and schools. A limited liability company name or valid council, government department or school name must be entered during the checkout process.

Magewell MG-64050 Magewell Pro Convert HDMI TX

Part #: TAAMGW1014
PB Tech price: PB Tech price:
$606 96 $698 00
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 25/01/2022 When will I receive it?

Six easy payments of $119.82 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $143.79 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Finance from $6.68 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

No payments or interest for 12 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*An Establishment fee of $55 applies to your first LTF transaction, a $35 Advance Fee applies to all subsequent LTF transactions. Standard Interest Rate, currently 25.99% p.a. applies to any outstanding balance at end of the interest free period. Lending criteria, $50 annual account fee, fees, terms and conditions apply.
Learn more about Q Card

  • Brand: Magewell
  • MPN: MG-64050
  • Part #: TAAMGW1014
  • UPC:

Features

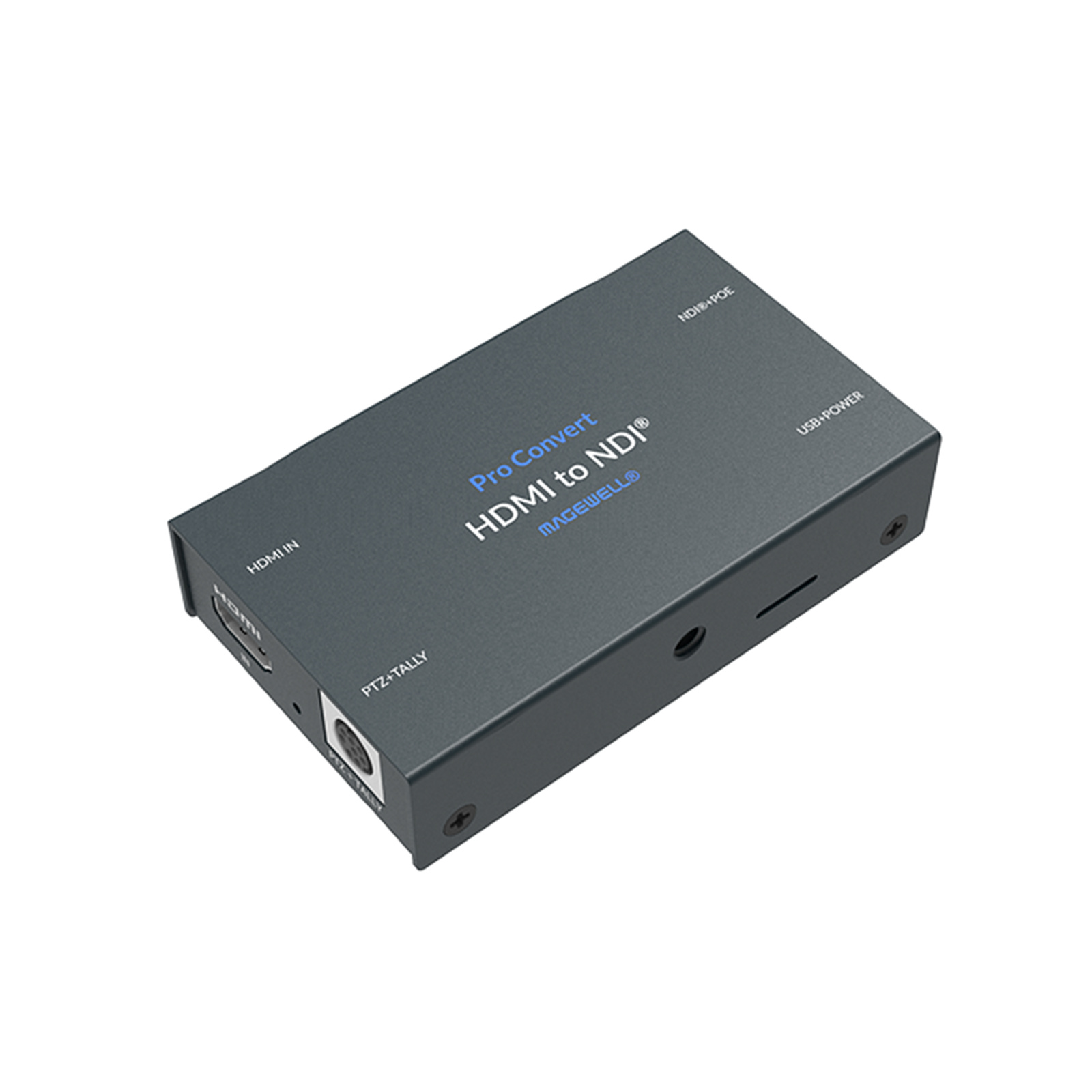

The Pro Convert HDMI TX 1-Channel NDI Encoder from Magewell allows you to convert an HDMI signal with embedded audio to an NDI stream. It supports resolutions up to 2048 x 1200 at 60p on both input and NDI output. The device can be powered via an included power adapter or over PoE using the NDI port. It features a 1/4"-20 thread for camera mounting and can be used in the studio or in the field thanks to a compact and robust design. There's also a PTZ+tally shared mini-DIN port for connecting tally lights or setting up NDI-based PTZ camera control. A tally light accessory comes included.

A companion Web UI allows assigning the device name, source name, and other settings. The encoder also has an on-board SD card slot but it is not functional at the time of this writing. Any future firmware updates will also be accessible via the Web UI.

The Pro Convert HDMI TX Encoder additionally features an adaptive HDMI equalizer that allows for HDMI cables lengths up to 98'.

HDMI Specific Features

- 165 MHz HDMI receiver
- Adaptive HDMI equalizer support for cables lengths up to 98'
- Customized EDID support
- Extraction of AVI/Audio InfoFrames
- Full colorimetry support
- Up to 2048 x 1200 4:4:4/4:2:2 60 fps input signals
- Support for 8-input and 2-output IEC60958 audio streams
- Extraction of audio formation information and channel status data
- Extraction of video timing information
- Extraction of 3D format information
- Side-by-side half, top-and-bottom, and frame packing 3D modes

NDI Output Format

- 4:2:2 8-bit output
- Up to 2048 x 1200 at 60 fps
- Support for NDI 3.x

Supported Web Browsers

- Microsoft Internet Explorer 11
- Microsoft Edge
- Mozilla Firefox version 61 and above
- Google Chrome version 49 and above
- Apple Safari 11.1 and above
- Opera 55.0.2994.44 and above

Supported Software

- OBS
- XSplit
- vMix
- VidBlasterX
- Wirecast
- streamstar SW
- mimoLive
- Any other NewTek NDI-enabled encoding or streaming software

Video Processing Features

- Video processing pipelines with 160 megapixels per second
- Video brightness, contrast, saturation, hue adjustment
- Video de-interlacing: top field only; bottom field only
- Auto or manual selection of output aspect ratio
- Auto or manual selection of input color format and quantization range
- Auto or manual selection of output color format, quantization range, and saturation range
- Support for RGB, YUV BT.601, YUV BT.709, and YUV BT.2020 input color formats
- Support for YUV BT.601, YUV BT.709, and YUV BT.2020 output color formats
- Support for limited or full quantization range
- Support for limited, full, and extended gamut saturation range
- Video frame rate conversion
- Video mirror flip

NDI Source Name

- Set the device name and source name shown in the system using Web UI
- Set board-index, from 0 to F, through an on-board rotary switch

Specifications

Supported Web Browser (tested)

Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above

Supported Software (tested)

OBS
XSplit
vMix
VidBlasterX
Wirecast
streamstar SW
mimoLive
Any other NewTek NDI-enabled encoding or streaming software

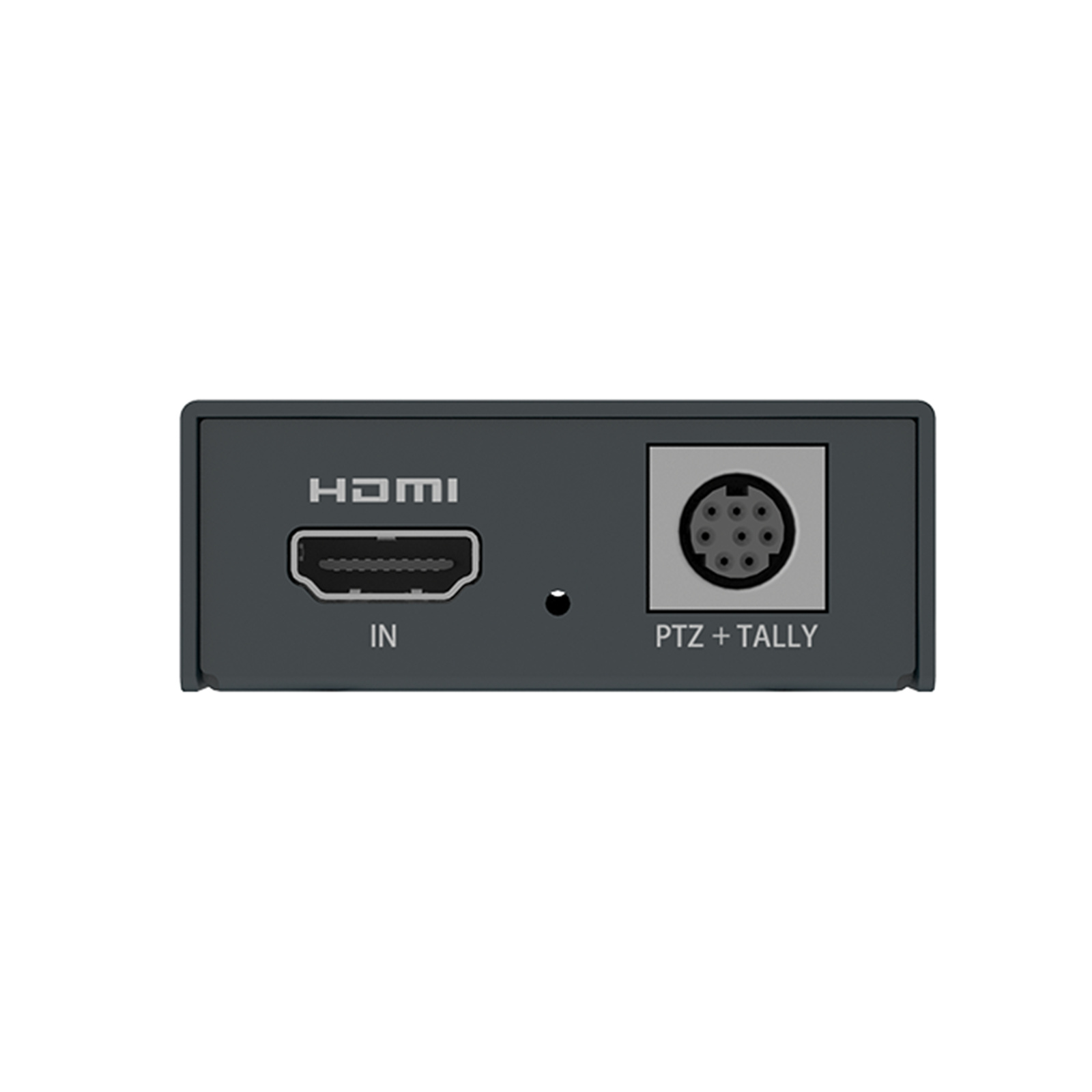

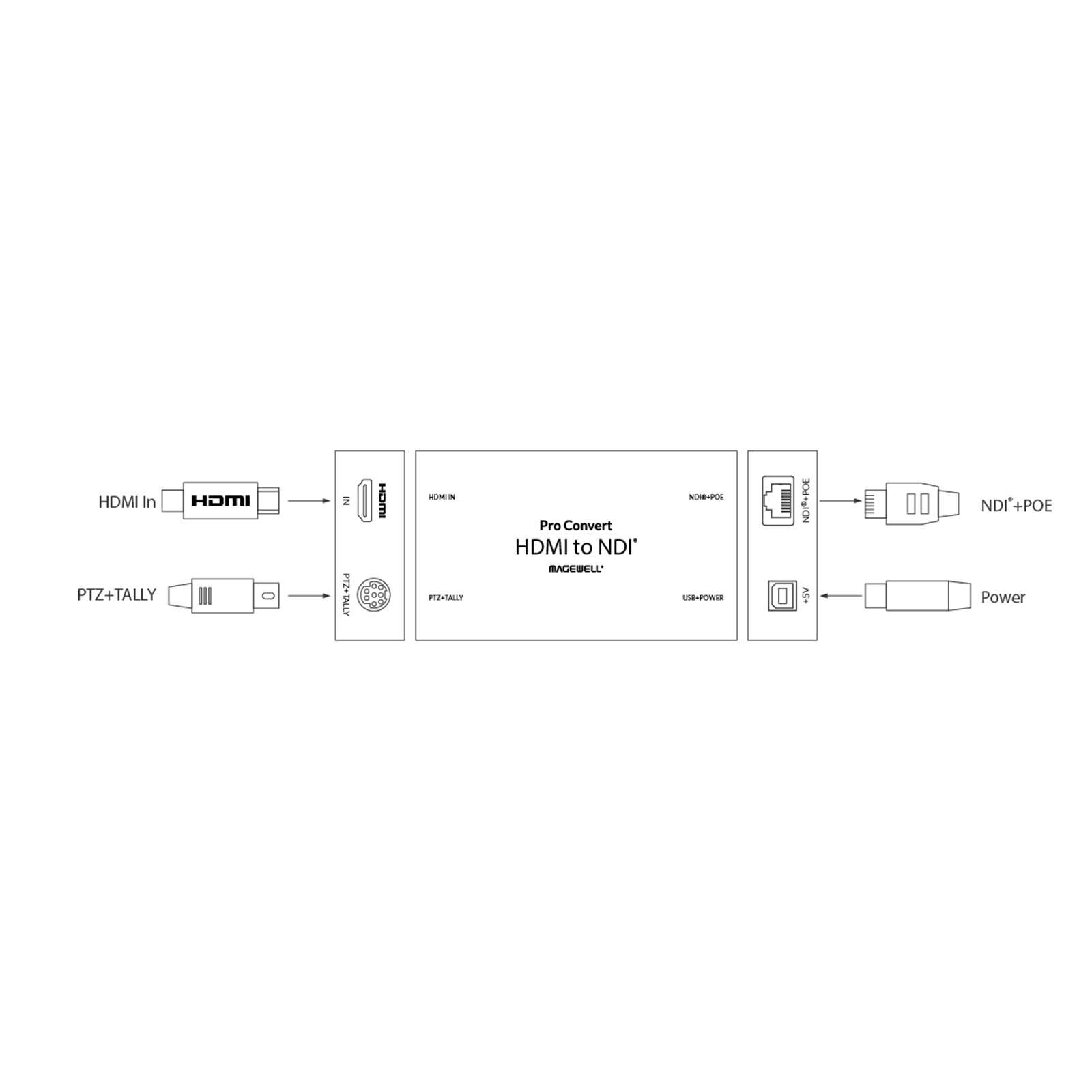

Input Interface

HDMI
- DVI-D 1.0
- HDMI 1.4

Storage Interface

SD Card (functions to be developed)

PTZ + TALLY Control

Mini-DIN-8 jack

Mounting Hole

¼-20 mounting hole

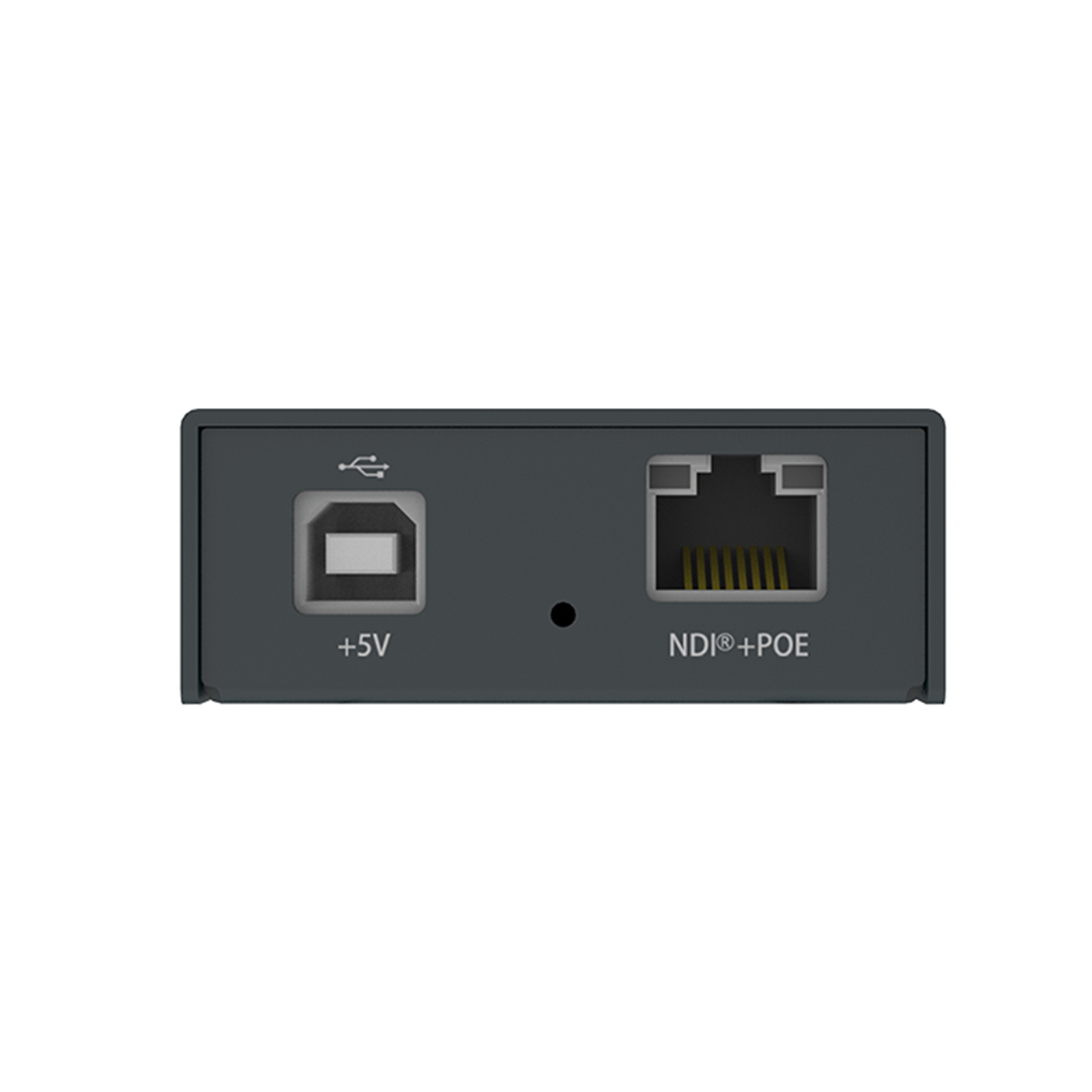

Network Interface

10/100/1000Mbps Ethernet
IEEE 802.3af PoE

USB Interface

USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM

Input feature

Support input video resolutions at up to 2048x1200

HDMI Specific Features

165MHz HDMI receiver
Adaptive HDMI equalizer support for cables lengths up to 30M
Support for customized EDID
Support for extraction of AVI/Audio InfoFrames
Full colorimetry support
Support up to 2048x1200 4:4:4/4:2:2 60fps input signals
Support 8 input and 2 output IEC60958 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.

NDI® Output Format

Support for 4:2:2 8-bit output
Support for up to 2048x1200 60fps
Support for NDI 4.1

Video Processing Features

Video processing pipelines with 160 Mpixels/s
Video brightness, contrast, saturation, hue adjustment
Video de-interlacing
- Top field only
- Bottom field only
Video aspect ratio conversion
- Auto or manual selection of output aspect ratio
Video color format conversion
- Auto or manual selection of input color format & quantization range
- Auto or manual selection of output color format, quantization range & saturation range
- Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
- Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
- Support for Limited or Full quantization range
- Support for Limited, Full & 'Extended gamut' saturation range
Video frame rate conversion
Video mirror flip

NDI® Source Name

Support for setting the device name shown in the system using Web UI. By default, the device name is 'Pro Convert'.
Support for setting the source name shown in the system using Web UI. By default, the source name is 'board-index + serial number'.

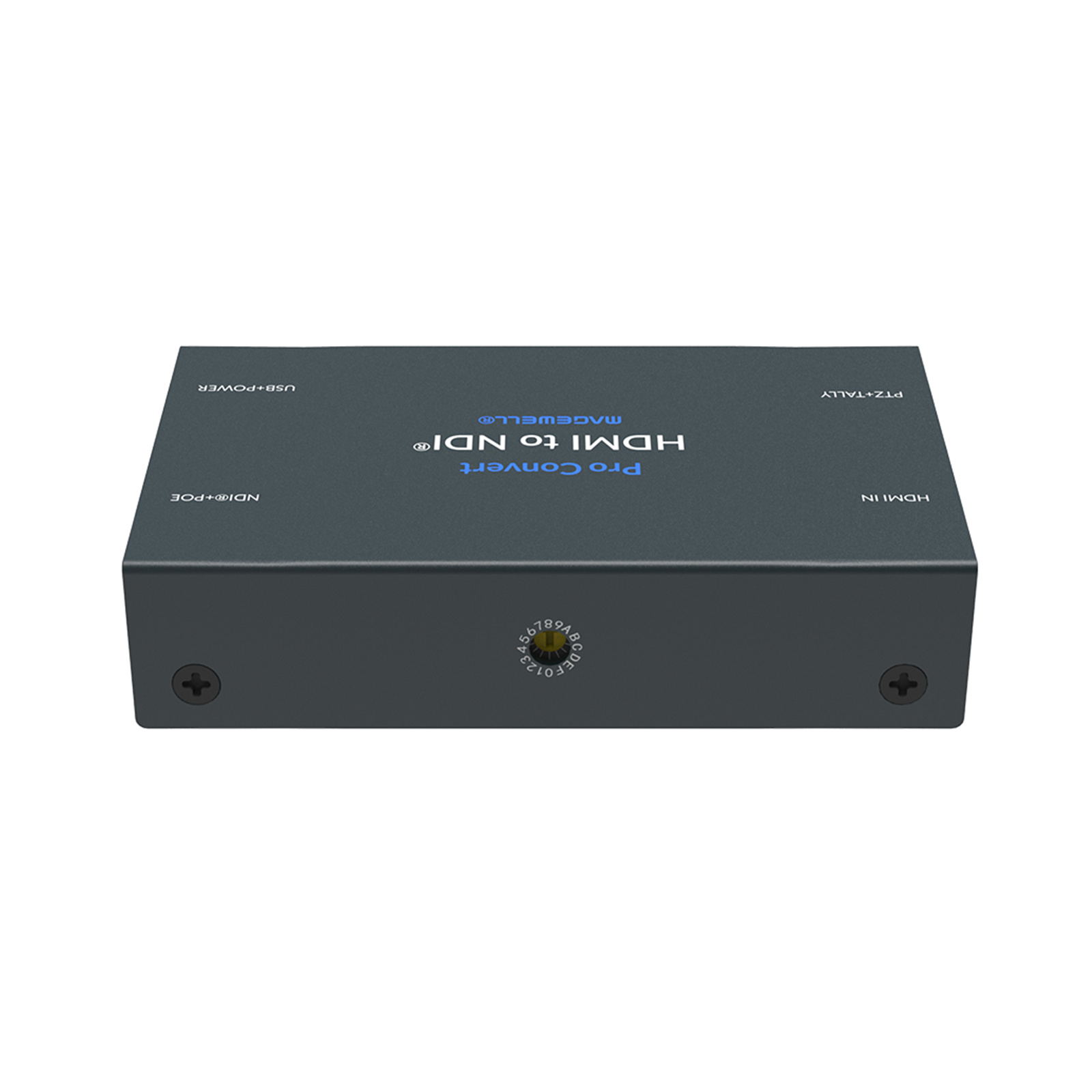

Support for setting board-index, from 0 to F, through on-board rotary switch

Firmware Upgrade

Support for manual update using Web UI

LED Indicator

Status LEDs indicate:
- Power supply indicator: on/off
- Input signal indicator: locked/unlocked

Form Factor

100.9smm (L) x 60.2mm (W) x 23.3mm (H)

Accessories

USB 2.0 A to B Cable
5V/2.1A power adaptor
Mini-DIN-8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN-8 (TALLY)
Tally lights
L-bracket
LED matrix panel (optional)

Power Consumption

5V max current: ~1.5A
Max power consumption: ~6W

Working Environment

Operating temperature: 0 to 45 deg C
Storage temperature: -20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

Manufacturer Part No:
MG-64050
Brand:
Magewell
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.2 kg
PB Part No:
TAAMGW1014
Product Model:
-
Warranty: 12 months *
