Winmate Rugged Tablet 8 inch Windows Intel N6211, 4G, 128G, PCAP, Win IoT WiFi/BT/GPS 5900 mAh Li-Polymer Battery (2S1P), Front and Rear camera

PB Tech price
PB Tech price
$ 3,700 .00
 +GST
$ 4,255 .00
 inc GST

Out of stock

Winmate Rugged Tablet 8 inch Windows Intel N6211, 4G, 128G, PCAP, Win IoT WiFi/BT/GPS 5900 mAh Li-Polymer Battery (2S1P), Front and Rear camera

  • Brand: Winmate
  • MPN: M101EKB
  • Part #: TABWMAM101EKB
  • UPC:
NEW ARRIVAL
PB Tech price
$ 3,700 .00 $ 4,255 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

Winmate 8inch Windows Rugged Tablet PC with Intel® Celeron® N6211

- Intel® Elkhart Lake Celeron® N6211 Processor
- 8" 1280x800 wide viewing angle with PCAP touch
- ISO/IEC 9995­3 QWERTY Keypad
- USB Type­-C port supports power delivery 20V In
- IP65 water and dust proof with MIL-STD-810H rugged housing
- Low power consumption with fanless design
- Removable battery with hot­swap function for all day productivity
- Integrated 4G/5G Wireless WWAN (Optional)

Stable Performance with Intel's CPU

The M101EKB uses Intel® Celeron® N6211 processor with a fanless cooling system to provide stable performance and low power consumption. The M101EKB supports the latest Windows® operating system to fulfill increasing industrial application requirements and provides an alternative solution for those between general consumer and extremely rugged applications.



Multi-touch Projected Capacitive Touch

Designed for versatile use in applications such as warehouse logistics, direct store delivery, and law enforcement vehicles, the M101EKB is perfect for those that require vehicle-mount computer capabilities with the portability of a tablet. The minimum 10-point Multi-touch Projected Capacitive Touch technology allows users to switch windows, take snapshots, zoom in, and rotate easily to take full advance of the tablet's interface.

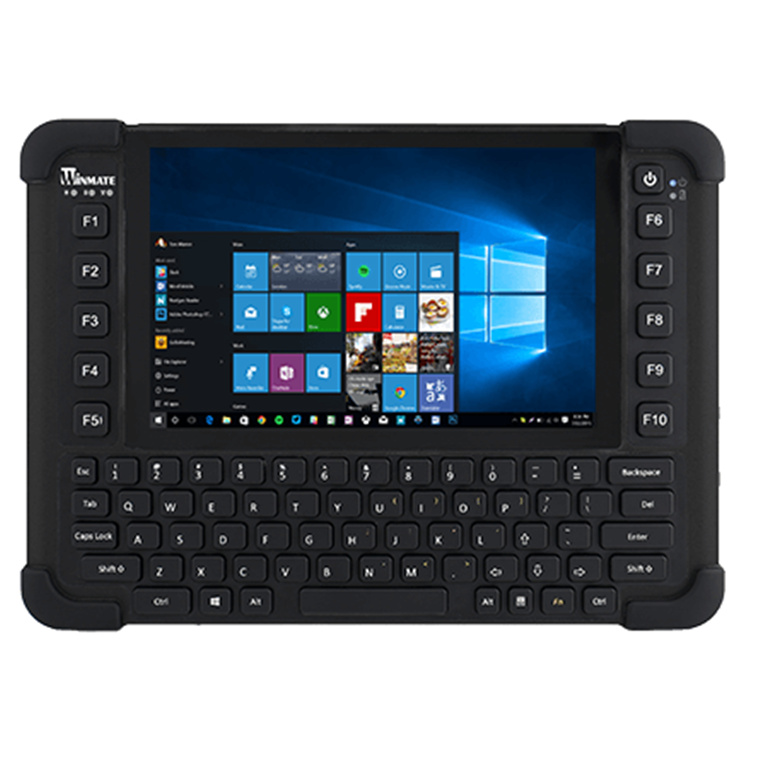

8" Touch Screen and QWERTY Keypad

Along with the 8" projected capacitive (PCAP) multi-touch screen, the M101EKB Rugged Tablet features a waterproof ISO/IEC 9995-3 QWERTY keypad with LED backlight and 10 programmable function keys for easy data input in the field when touch is not convenient to use. The keypad adds a lot of practicality, particularly to those who have to type a lot. Add extra convenience for workers wearing thick gloves.



Real-Time Data and Wireless Connectivity

Real-time data access to the right information is crucial for mobile workers. The M101EKB offers GPS, Wi-Fi 802.11 a/b/g/n/ac, BT 4.0, and optional LTE to enable robust communications anytime and anywhere. With a built-in 5.0 MP camera on the rear side, users can instantly capture photos, videos, and documents.



Rugged Durable Design

The M101EKB is designed to be tough and rugged, withstanding shock, vibration, and drop up to 4 ft. to concrete according to Defence standard MIL-STD-810H for operations in some of the harshest environments. With all-around rubber edges and covered I/O ports, the M101EKB rugged tablet features a dust-tight and waterproof enclosure that makes the M101EKB ideal for use in wet and dusty conditions.

Specifications

Display

Size

8.0 inches

Resolution

1280x800

Type

Projected Capacitive Multi Touch

Panel Brightness

800.0 nits

Contrast Ratio

1500:1

View Angles

80,80,80,80

Bonding

Optical Bonding for Sunlight Viewability

Viewability

Anti-Glare touch treatment

Touch Mode

Support Hand / Gloves and Rain Mode

System Specification

Processor

Intel Celeron N6211 @1.20 GHz (up to 3.00 GHz)
Intel Pentium N6415 @1.20 GHz (up to 3.00 GHz) (Optional)

Memory

4GB LPDDR4
8GB LPDDR4 (Optional)

Storage

128GB SSD
Additional storage available with micro SDXC card slot
256GB SSD (Optional)
512GB SSD (Optional)

Smart Card Reader

Add-on Smart Card Reader (Optional)

Security

Trusted Platform Module (TPM) 2.0
Kensington Lock

Operating System

Windows 10 IoT Enterprise LTSC (64 bit)
Windows 11 IoT Enterprise LTSC (64 bit) (Optional)

WLAN

Support

BT

Support

WWAN

4G (Optional)
5G (Optional)

GNSS

GPS, GLONASS, Galileo, BeiDou

RFID

HF RFID 13.56 MHz reader (Optional)
add-on UHF RFID Reader (Optional)

Sensors

Light sensor/ G-sensor / Gyro

Environment

Operating Humidity

10% to 90% RH, non-condensing

Operating Temperature

-20°C to 60°C

Storage Temperature

-30°C to 70°C (-22°F to 158°F)

Shock

MIL-STD-810H Method 516.8 Procedure I

Vibration

MIL-STD-810H Method 514.8 Procedure I

Drop

MIL-STD-810H Method 516.8, 4 ft

IP rating

IP65

Certification

Certification

CE, FCC

Mechanical

Dimension

271.8 x 198.2 x 22 mm

Weight

1.35 kg (3 lbs)

Cooling System

Fanless Design

Accessory

Accessory

Adapter and Power Cord
Capacitive Stylus
Standard Battery

Optional Accessory

Desk Dock (Optional)
Vehicle Dock (without VGA output) (Optional)
Vehicle Cradle (Optional)
Battery Charger (Optional)
Smart Card Reader (Optional)
High Capacity Battery (Optional)
Hand Strap (Optional)
VESA Mount Kit (Optional)
Shoulder Strap (Optional)
Carry Bag (Optional)
Vehicle Charger (Optional)

IO Ports

USB Port

1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In)

Video

1 x Micro HDMI Output (Optional)

Audio

1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out)
Dual Digital Mic With Noise Cancellation
Dual Speaker

SD Card Slot

1 x Micro SD Card slot (Support SDXC)

SIM Card Slot

1 x SIM card slot

Expansion Port

1 x Expansion connector (Optional)

Indicator

4x LED Indicator for Power, Battery, HDD, RF status

Docking Connector

1 x 19-pin docking connector

Power

Battery

Hot-swappable 7.7V, typ. 5900 mAh Li-Polymer Battery (2S1P)
7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, optional)

Battery Operating Time

Standard. Battery: 8 hours
High Capacity Battery: 13 hours

Power Rating

19V DC

Adapter

100-240V, 50-60Hz / 19V DC

Camera

Rear Camera

8MP Rear Camera with auto-focus and LED light

Barcode Scanner

Barcode Scanner

1D/2D Barcode Reader (Optional)

Control

Button

Physical Buttons:
ISO/IEC 9995-3 QWERTY Keypad , IP65 water and dust proof, with LED backlight (keypad dimensions : min. 10x10mm)
1 x Power, 10 x Function Keys (programmable by Hottab)

Security Function

SOTI MobiControl

SOTI MobiControl Compliance

Kensington Lock

Kensington Lock

Manufacturer Part No:
M101EKB
Brand:
Product Type:
Intel N6211, 4G, 128G, PCAP, Win IoT
UPC
-
Product Family:
Rugged Tablet
Shipping Weight:
2.3 kg
PB Part No:
TABWMAM101EKB
Product Model:
8 inch Windows
Warranty: 12 months *
