Winmate M101P 4GB 128GB Win10 IoT 10.1" Rugged Tablet LTE , Long battery life with Intel Pentium N4200 Apollo Lake pro,1920x1200 IPS Panel with P-Cap Touch, With 1D/2D Barcode Reader, Dual Camera Design: 8MP Main camera with LED flash/2MP W

Winmate M101P 4GB 128GB Win10 IoT 10.1" Rugged Tablet LTE , Long battery life with Intel Pentium N4200 Apollo Lake pro,1920x1200 IPS Panel with P-Cap Touch, With 1D/2D Barcode Reader, Dual Camera Design: 8MP Main camera with LED flash/2MP W
PB Tech price: PB Tech price:
$3,300 00  +GST $3,795 00  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews

Generating Print Page

Winmate M101P 4GB 128GB Win10 IoT 10.1" Rugged Tablet LTE , Long battery life with Intel Pentium N4200 Apollo Lake pro,1920x1200 IPS Panel with P-Cap Touch, With 1D/2D Barcode Reader, Dual Camera Design: 8MP Main camera with LED flash/2MP W

Winmate M101P 4GB 128GB Win10 IoT 10.1" Rugged Tablet LTE , Long battery life with Intel Pentium...

PB Tech price: PB Tech price:
$3,300 00 $3,795 00
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 15/09/2021 When will I receive it?

Pay only $801.77 and then 25 easy payments of $127.59 per fortnight*

humm lets you spread the cost of your purchase over 26 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Finance from $33.21 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

No payments or interest for 12 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email finance@pbtech.co.nz to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

Features

- 10.1" 1920x1200 IPS LED Panel with P-Cap Touch
- Long battery life with Intel® Pentium N4200 Apollo Lake processor
- IP65 water and dust proof
- Integrated Barcode
- Dual Camera Design: 8MP Main camera / 2MP Webcam
- Optional Expansion port for USB / RS232 connection
- Hot-Swappable Battery Design / Optional high capacity battery pack
- 2 Programmable function keys
- With optical bonding and anti-glare solution for sunlight readability

Specifications

Display Specifications

Size

10.1"

Brightness

800 nits(typ.)

Resolution

1920x1200 WUXGA

Contrast Ratio

800:1

Touch

Multi-Touch Projected Capacitive Touchscreen
(supports Rain, Glove, Stylus Modes)

Viewing Angle

85/85/85/85

Panel Viewability

Optical Bonding for Sunlight Viewability
Default anti-glare solution

System Specification

Processor

Intel Pentium N4200 Apollo Lake Processor 1.10 GHz, up to 2.50 GHz with turbo boost technology

Chipset

Intel® HD Graphics 504

Memory

4GB SODIMM LPDDR4 (up to 8GB)

Storage

128GB SSD (Options up to 512GB)
Additional storage available with micro SDXC card slot

Audio

1 x Built-in Mic with Noise Cancellation, 2 x 1W Speaker

Wireless Communication

WLAN

802.11 a/b/g/n/ac WiFi

Bluetooth

Bluetooth 5.0

WWAN

4G/ LTE

GPS

GPS, GLONASS

I/O Connectors

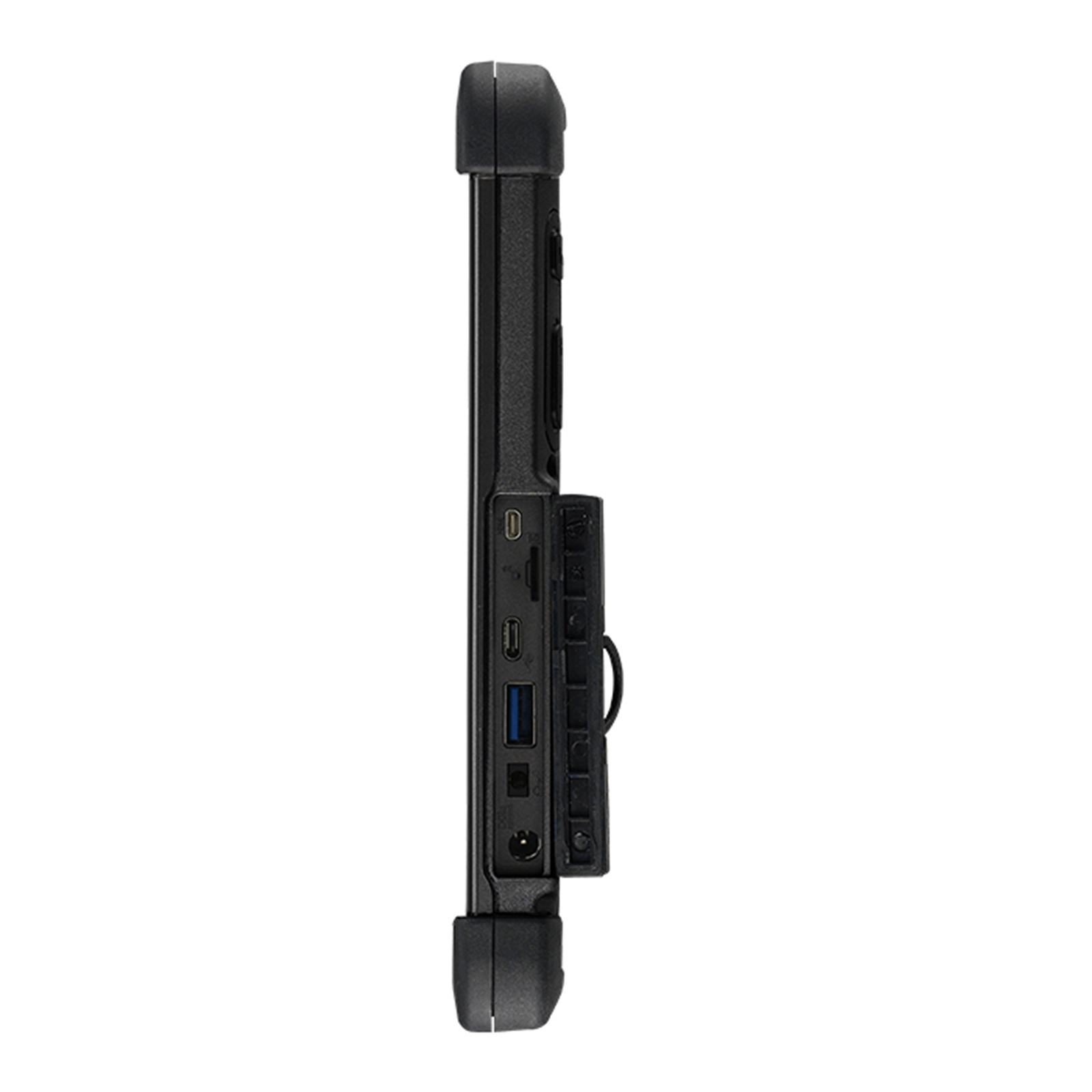

Right I/O Connectors

1 x Micro HDMI
1 x USB 3.0(Type A)
1 x USB3.0 (Type C)
1 x Audio Combo connector (Mic in or Line Out)
1 x DC jack
1 x Micro SDXC Slot

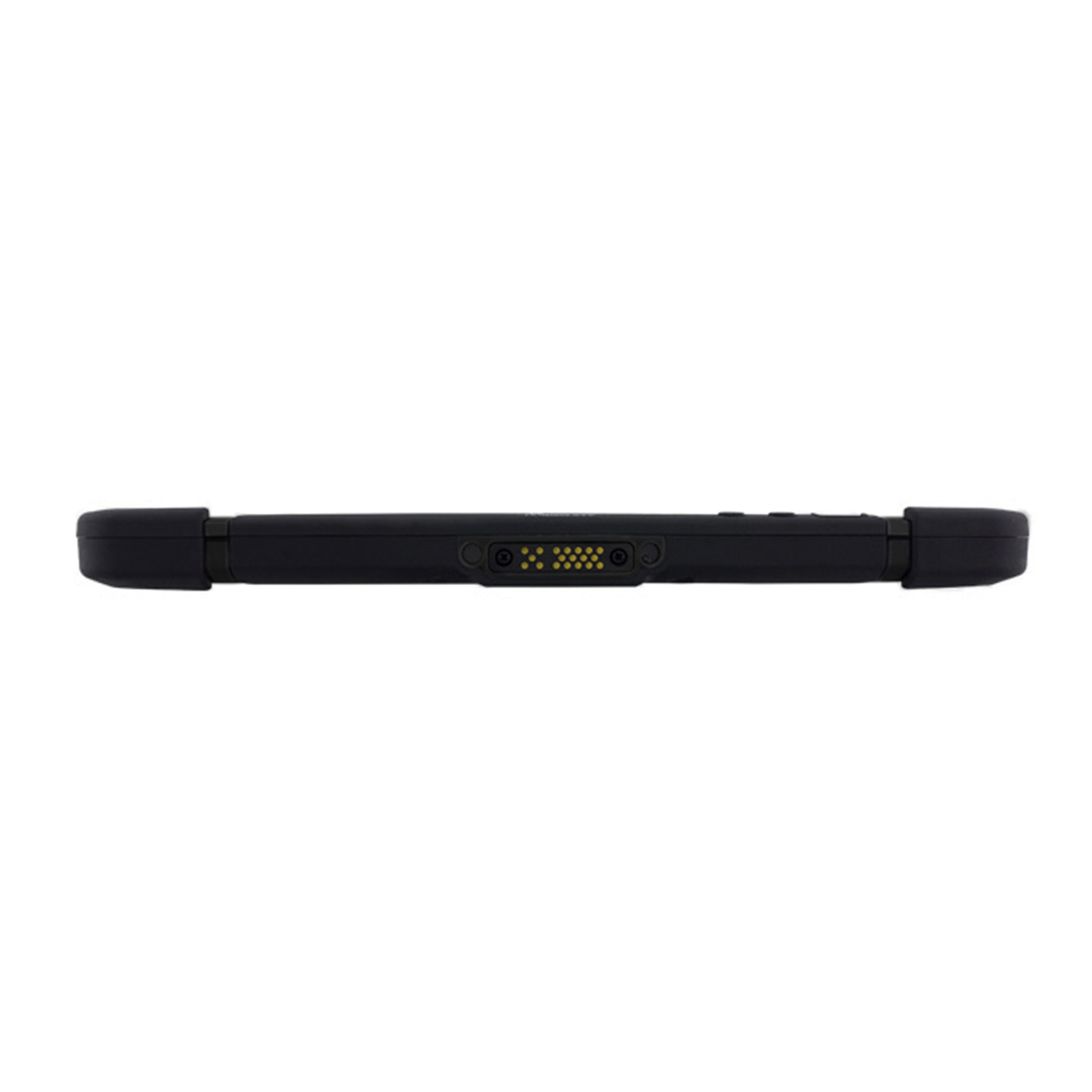

Downside I/O Connectors

1 x Docking Connector

I/O

1 x Micro SIM card slot
1 x Mini PCIe for WWAN Module

External I/O

1 x Extension Port (Optional)

In front Control

Control Button

1 x Power,
1 x Home (Win-set application),
2 x Programmable Function Key (Programmable function key configured by Hottab Utility)
(One for Barcode trigger key when with Barcode),
2 x Adjusting keys for Volume or Brightness

LED indicator

Power, Battery, HDD Access, RF

Mechanical and Environment

Dimensions (W x L x H)

271.9 x 198.3 x 19.5 mm (10.7 x 7.76 x 0.77 inches)

Net Weight (kg)

1.2 kg (2.65 lbs) with standard battery
1.4 kg (3.1 lbs) with optional high capacity battery

Operating Temperature

-20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)

Storage Temperature

-30°C to 70°C (-22°F to 158°F)

IP Proof

IP65

Operating Humidity

10% to 90% RH, non-condensing

Shock

MIL-STD-810G Method 516.6 Procedure I

Vibration

MIL-STD-810G Method 514.6 Procedure I

Drop

MIL-STD-810G Method 516.6, 4 ft to concrete*

Power Management

Power Input

12~19V DC

Battery

Hot-swappable 7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P)
7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, Optional)

Adapter

100-240V, 50-60Hz, 19V DC

Battery Operating Time

Std. Battery: 8 hours***
High Capacity Battery: 16 hours***

Product Specification

OS

Windows 10 IoT Enterprise (64 bit)

Camera

8MP Auto-Focus Camera with LED Light at rear / 2MP Camera at front side

Data Capture

1D/2D Barcode Reader

Security

Security

Trusted platform module (TPM) V2
Kensington Lock

Mobile Device Management

SOTI Mobicontrol compatible

Manufacturer Part No: M101LPTEB Brand: Winmate Product Type: 10.1" Rugged Tablet LTE
UPC - Product Family: M101P Shipping Weight: 1 kg
PB Part No: TABWMAM101PLTEB Product Model: 4GB 128GB Win10 IoT

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product
