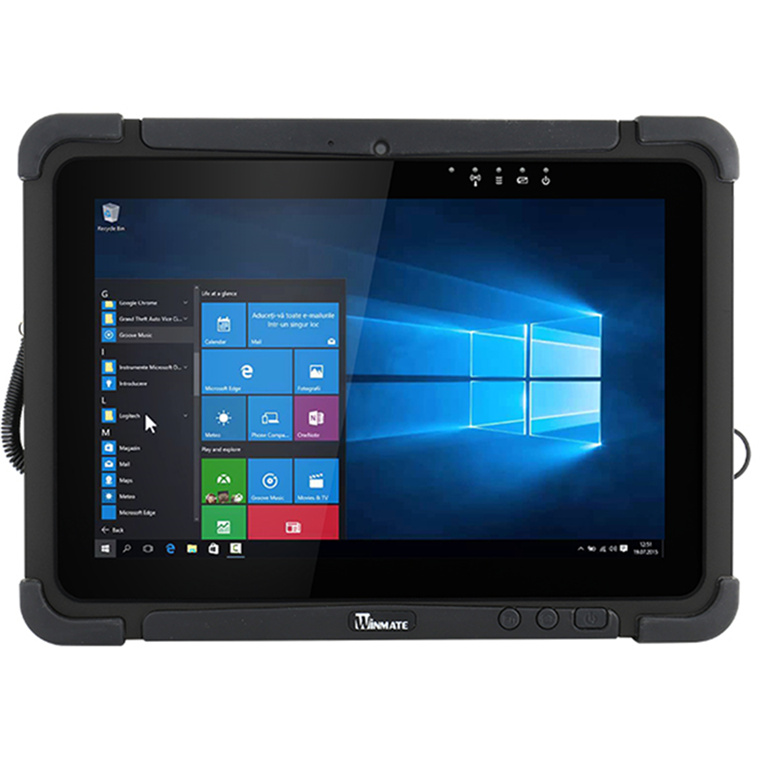

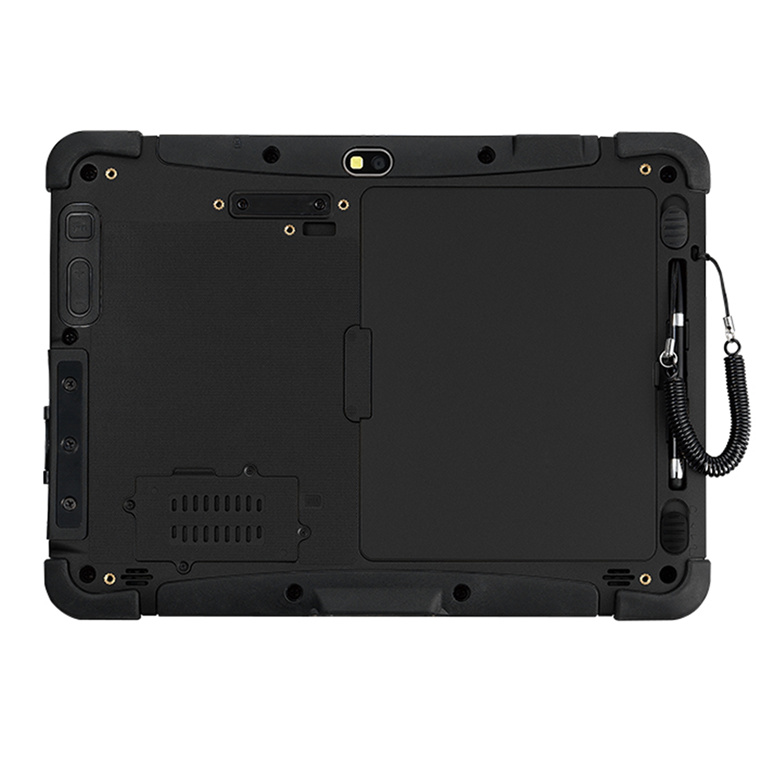

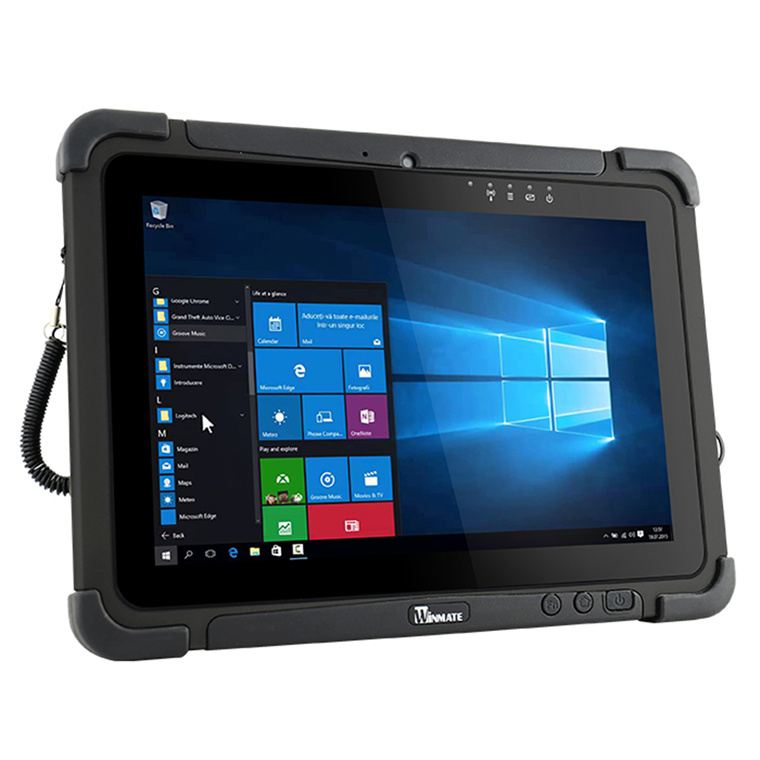

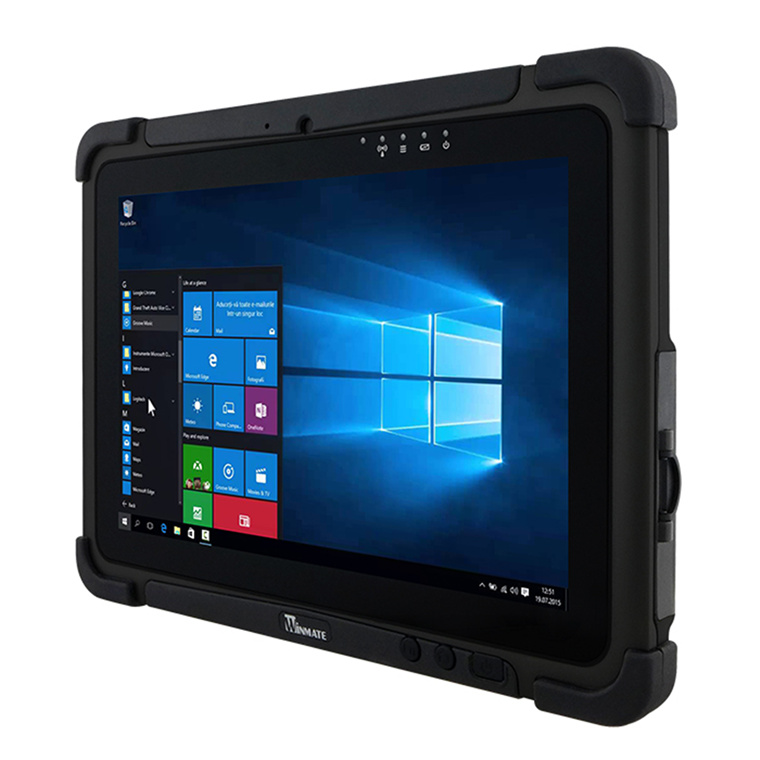

Winmate M101P 8GB 512GB Win10 IoT 10.1" Rugged Tablet LTE - Long battery life with Intel Pentium N4200,1920x1200 IPS Panel with P-Cap Touch, 2D Barcode Reader, Dual Camera Design: 8MP Main camera with LED flash/2MP Webcam
Out of stock
Winmate M101P 8GB 512GB Win10 IoT 10.1" Rugged Tablet LTE - Long battery life with Intel Pentium N4200,1920x1200 IPS Panel with P-Cap Touch, 2D Barcode Reader, Dual Camera Design: 8MP Main camera with LED flash/2MP Webcam
- Brand: Winmate
- MPN: 98TA10I000N0
- Part #: TABWMAM101PX
- UPC:
- Brand: Winmate
- MPN: 98TA10I000N0
- Part #: TABWMAM101PX
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





Winmate M101P 8GB 512GB Win10 IoT 10.1" Rugged Tablet LTE - Long battery life with Intel Pentium N4200,1920x1200 IPS Panel with P-Cap Touch, 2D Barcode Reader, Dual Camera Design: 8MP Main camera with LED flash/2MP Webcam
- Brand: Winmate
- MPN: 98TA10I000N0
- Part #: TABWMAM101PX

Product URL: https://www.pbtech.co.nz/product/TABWMAM101PX/Winmate-M101P-8GB-512GB-Win10-IoT-101-Rugged-Table
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Winmate M101P 8GB 512GB
- 10.1" 1920x1200 IPS LED Panel with P-Cap Touch
- Long battery life with Intel® Pentium N4200 Apollo Lake processor
- IP65 water and dust proof
- Integrated Barcode
- Dual Camera Design: 8MP Main camera / 2MP Webcam
- Optional Expansion port for USB / RS232 connection
- Hot-Swappable Battery Design / Optional high capacity battery pack
- 2 Programmable function keys
- With optical bonding and anti-glare solution for sunlight readability
Stable Performance with Intel's CPU
The M101P uses Intel® Pentium® N4200 Processor 1.10 GHz, up to 2.50 GHz with turbo boost technology with a fanless cooling system to provide stable performance and low power consumption. The M101P supports the latest Windows® 10 IoT Enterprise operating system fulfill increasing industrial applications requirements and providing an alternative solution for those between general consumer-grade and extremely rugged solution.
Real-Time Data and Wireless Connectivity
Real-time data access to the right information is crucial for mobile workers. The M101P offers GPS, GLONASS, Wi-Fi 802.11 a/b/g/n/ac, BT 5.0, and optional 4G LTE to enable robust communications anytime and anywhere.
Rugged Design in Mobile Form Factor
The M101P rugged tablet is designed to be tough and rugged, withstanding shock, vibration, and drop up to 4 ft. to concrete according to military standard MIL-STD-810G for operations in some of the harshest environments. With all-around rubber edges and covered I/O ports, the M101P is dust-tight and waterproof. Ready for use in wet and dusty environments.
Brilliant 10.1" Display with Ultimate Touch Capability
The 10.1" screen of M101P features projected capacitive (PCAP) multi-touch technology for the best user experience and allows switching windows, taking snapshots, zooming in, and rotating objects easily to take the full advantages of the touch interface. Supports Rain, Glove, Stylus modes.
Data Collection Tools for Mobile Workforce
With optional tools for data collection, the M101P offers ultimate productivity for field workers. Options include built-in 1D/2D Barcode Reader, HF RFID Reader, or add-on modules UHF RFID Reader or Smart Card Reader. Built-in 8.0 MP camera on the rear side allows capturing photos, videos, documents instantly, and the front 2.0 MP camera is suitable for self-video recording or video communications.
Specifications
Display Specifications
Size
10.1"
Brightness
800 nits(typ.)
Resolution
1920x1200 WUXGA
Contrast Ratio
800:1
Touch
Multi-Touch Projected Capacitive Touchscreen
(supports Rain, Glove, Stylus Modes)
Viewing Angle
85/85/85/85
Panel Viewability
Optical Bonding for Sunlight Viewability
Default anti-glare solution
System Specification
Processor
Intel Pentium N4200 Apollo Lake Processor 1.10 GHz, up to 2.50 GHz with turbo boost technology
Chipset
Intel® HD Graphics 504
Memory
8GB SODIMM LPDDR4
Storage
512GB SSD
Additional storage available with micro SDXC card slot
Audio
1 x Built-in Mic with Noise Cancellation, 2 x 1W Speaker
Wireless Communication
WLAN
802.11 a/b/g/n/ac WiFi
Bluetooth
Bluetooth 5.0
WWAN
4G/ LTE
GPS
GPS, GLONASS
I/O Connectors

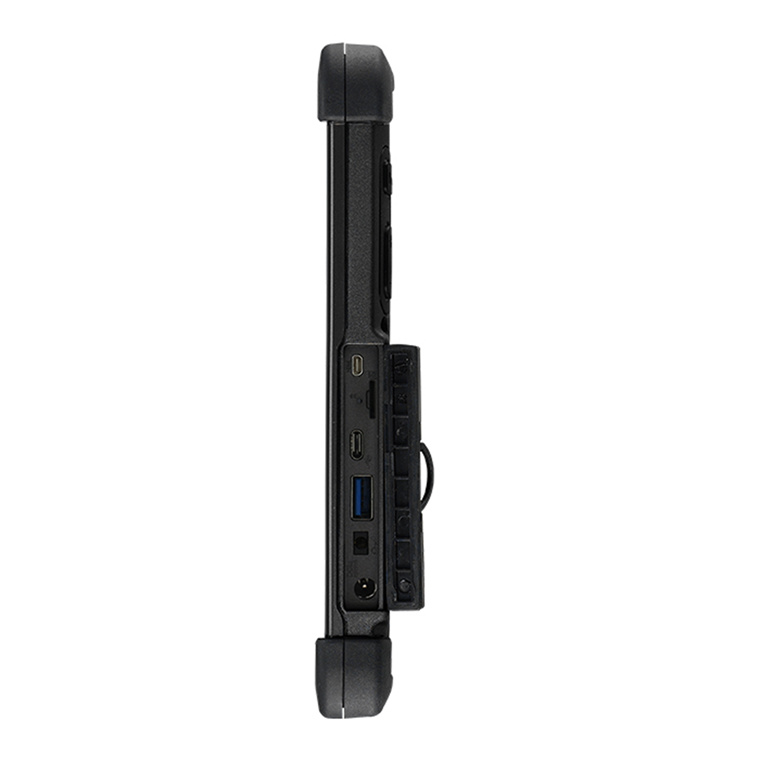

Right I/O Connectors
1 x Micro HDMI
1 x USB 3.0(Type A)
1 x USB3.0 (Type C)
1 x Audio Combo connector (Mic in or Line Out)
1 x DC jack
1 x Micro SDXC Slot

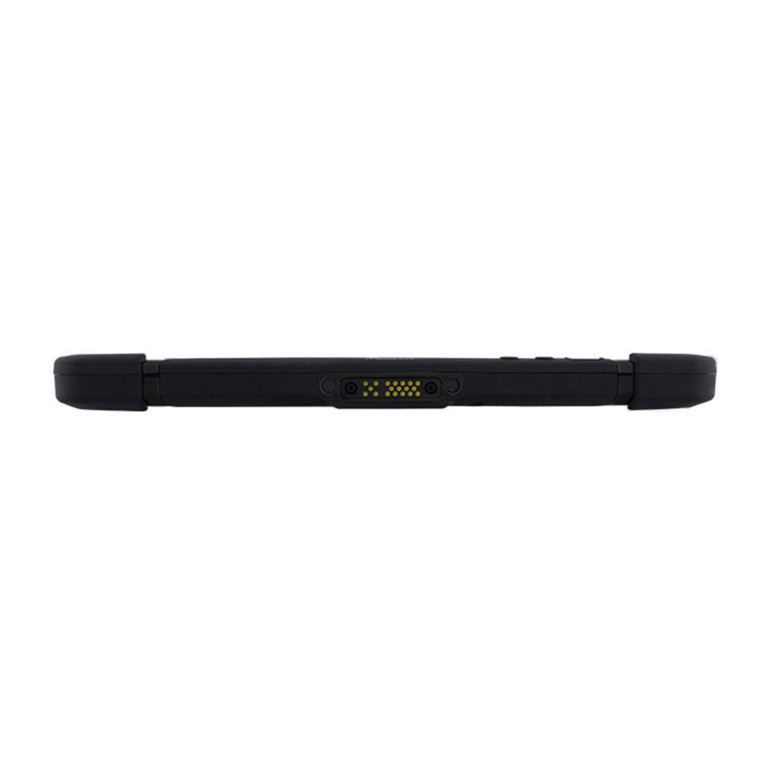

Downside I/O Connectors
1 x Docking Connector
I/O
1 x Micro SIM card slot
1 x Mini PCIe for WWAN Module
External I/O
1 x Extension Port (Optional)
In front Control
Control Button
1 x Power,
1 x Home (Win-set application),
2 x Programmable Function Key (Programmable function key configured by Hottab Utility)
(One for Barcode trigger key when with Barcode),
2 x Adjusting keys for Volume or Brightness
LED indicator
Power, Battery, HDD Access, RF
Mechanical and Environment
Dimensions (W x L x H)
271.9 x 198.3 x 19.5 mm (10.7 x 7.76 x 0.77 inches)
Net Weight (kg)
1.2 kg (2.65 lbs) with standard battery
1.4 kg (3.1 lbs) with optional high capacity battery
Operating Temperature
-20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
IP Proof
IP65
Operating Humidity
10% to 90% RH, non-condensing
Shock
MIL-STD-810G Method 516.6 Procedure I
Vibration
MIL-STD-810G Method 514.6 Procedure I
Drop
MIL-STD-810G Method 516.6, 4 ft to concrete*
Power Management
Power Input
12~19V DC
Battery
Hot-swappable 7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P)
7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, Optional)
Adapter
100-240V, 50-60Hz, 19V DC
Battery Operating Time
Std. Battery: 8 hours***
High Capacity Battery: 16 hours***
Product Specification
OS
Windows 10 IoT Enterprise (64 bit)
Camera
8MP Auto-Focus Camera with LED Light at rear / 2MP Camera at front side
Data Capture
1D/2D Barcode Reader
Security
Security
Trusted platform module (TPM) V2
Kensington Lock
Mobile Device Management
SOTI Mobicontrol compatible
