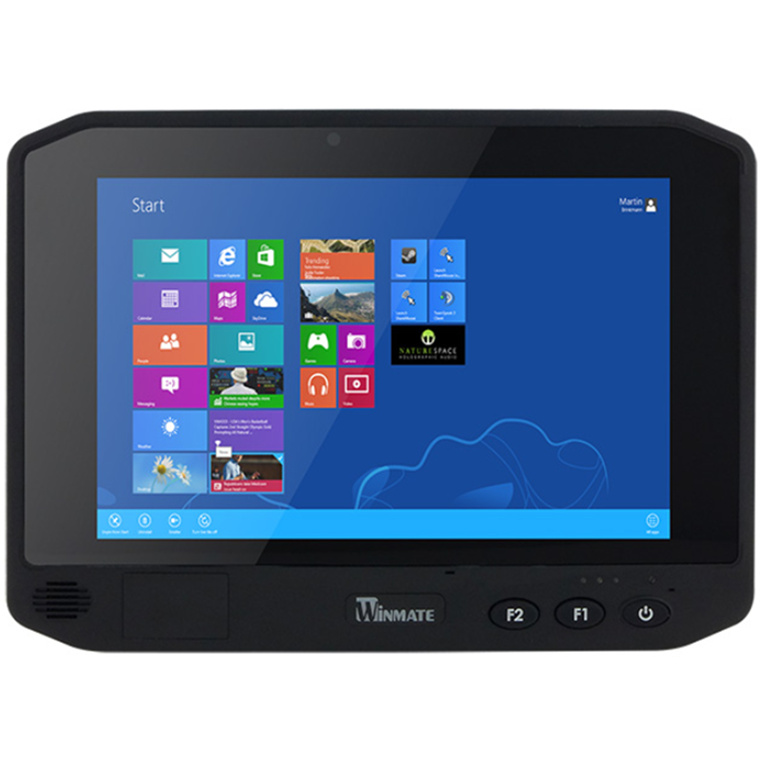

Winmate M800BW 4GB, 64GB Win 10 IoT 8" Rugged Table Intel Braswell, 1280x800 Panel with P- Cap Multi-touch, Built-in Wi-Fi/ Bluetooth 4.0 GPS,Water and dust proof IP65 design

Special price
Special price
$ 1,354 .70
 +GST
$ 1,557 .90
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Winmate M800BW 4GB, 64GB Win 10 IoT 8" Rugged Table Intel Braswell, 1280x800 Panel with P- Cap Multi-touch, Built-in Wi-Fi/ Bluetooth 4.0 GPS,Water and dust proof IP65 design

  • Brand: Winmate
  • MPN: M800BW
  • Part #: TABWMAM800BW
  • UPC:
CLEARANCE
Special price
$ 1,354 .70 $ 1,557 .90
 +GST  inc GST

Ends in --, while stocks last!

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
The item you're looking at is currently unavailable or has limited stock, how about this one instead?

Looking for a bargain? Shop Ex-demo stock for this item

Features



M800 Series

8" Winmate M800 Series Rugged Computer designed for the demands of public safety. Powered by Intel Pentium N3160 Processor this Window-based Rugged Tablet PC offers wide tools for data collection : 1D/2D Barcode Reader, HF RFID Reader and Fingerprint scanner. With custom-tailored bracket for VESA mounting, the M800 Series can be mounted inside a vehicle, police car or fire engine. Optional M12 Connector and CPM800 Expansion box extend the functionality for vehicle applications by adding 9-36V DC power input, Serial Port, CAN Bus with isolation and two USB 2.0 ports. In addition, external WWAN and GPS antennas provide great connectivity options even in remote locations.

- Intel® Celeron® N3160, 1.6 GHz, up to 2.24 GHz
- Multi-Touch Projective Capacitive, with optical bonding
- Fan-Less & Robust Design
- Default with 4GB RAM/ 64GB SSD / GPS, WLAN, Bluetooth
- Optional LTE Module
- Optional VESA Fix Plate
- Optional 1D/ 2D Barcode Reader, Fingerprint Scanner, RFID Reader, Smart Card Reader



Mobile and Durable

M800B Series protected against outer dust and water splash with IP65 degree of protection and meets the requirements of MIL-STD-810G standard for protection against shock, vibration and drop.



Designed for Public Safety Applications

M800B Series support Fingerprint Scanner, Smart Card or Barcode Reader for extended data collection options on the field and identification purposes. Front 2MP and rear 8MP cameras allows capturing images on the go.



Solution for a Public Safety Vehicle

Portable Tablet can easily become vehicle mounted computer with optional M12 connector and CMP800 Expansion Box. Custom-tailored VESA Plate allows easy mounting inside the public safety vehicle, police car, fire truck etc.

8-inch Rugged Tablet M800 for Vehicle Mount



Expand Connectivity to Serial Interface, CANBUS, USB

With CPM800 Expansion Box you can expand power input to 9~36V and increase connectivity options to serial interface, CANBUS and USB 2.0 to attach keyboard, printer and more.



Wireless Data Transmission

With external RF pass-through antenna placed on the roof of the vehicle you can simultaneously connect high-gain GPS and WWAN for data transmission even in remote locations.

8-inch Rugged Tablet M800 for Vehicle Mount with 3G, GPS, Wi-Fi

Specifications

Display Specifications

Brightness

550 nits (With Optical Bonding)

Resolution

1280 x 800

Contrast Ratio

800:1

Touch

Multi-Touch Projective Capacitive with Glove/ Rain/ Stylus modes (Supports active stylus)

Viewing Angle

85/85/85/85

System Specification

Processor

Intel® Celeron® N3160, 1.6 GHz, up to 2.24 GHz

Memory

4GB SODIMM DDR3L-1600 (up to 8GB)

Storage

64GB M.2 SSD (up to 512GB)

Wireless Communication

WLAN

Intel® 802.11 a/b/g/n/ac + Bluetooth 4.0 Dual Mode Combo module

Bluetooth

Intel® 802.11 a/b/g/n/ac + Bluetooth 4.0 Dual Mode Combo module

WWAN

Optional 4G/LTE or 3G

GPS

u-Blox NEO-M8N (Optional Glonass)

I/O Connectors

Audio

2 x Built-in Digital Mic, 1 x Speaker

External I/O

2 x USB 3.0
1 x Micro HDMI

Other

Service Window for WWAN Module
Micro SD, Micro SIM: Located in the battery compartment
1 x M12 Connector - USB signal & power (Optional)

In front Control

Control Button

1 x Power, 2 x Programmable Function Keys

LED indicator

4 x LED indicators (Power, Battery status, SSD status, RF status)

Mechanical and Environment

Dimensions (W x L x H)

228.8 x 165.8 x 34 mm

Net Weight (kg)

1.1 Kg

Operating Temperature

-20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)

Storage Temperature

-30°C to 60°C

IP Proof

IP65

Operating Humidity

10% to 95% RH, non-condensing

Certifications

CE, FCC

Vibration

MIL-STD-810G Method 514.6 Procedure I

Housing

Plastic housing with fanless design

Power Management

Power Input

12V DC or 19V DC

Battery

7.6V typ. 5200mAh Li-ion Battery (2S2P)
Battery Mark Ver. 4.0.1 Result 7 hours

Charging time

2.5 hours

Product Specification

OS

Windows 10 IoT Enterprise

Smart Card Reader

Optional

Barcode

Optional

Fingerprint Reader

Optional

Notes

*The weight information is for reference purpose.The actual weight will vary according to then options you choose,for example,the touch/glass option.
*Measured at dimming LCD brightness. Varies depending on the usage conditions, or when an external device is attached.
** Please contact our sales representative if you need further product information.
***All Specifications are subject to change without prior notice.

Manufacturer Part No:
M800BW
Brand:
Product Type:
8" Rugged Table
UPC
-
Product Family:
M800BW
Shipping Weight:
1.996 kg
PB Part No:
TABWMAM800BW
Product Model:
4GB, 64GB Win 10 IoT
Warranty: 12 months *
