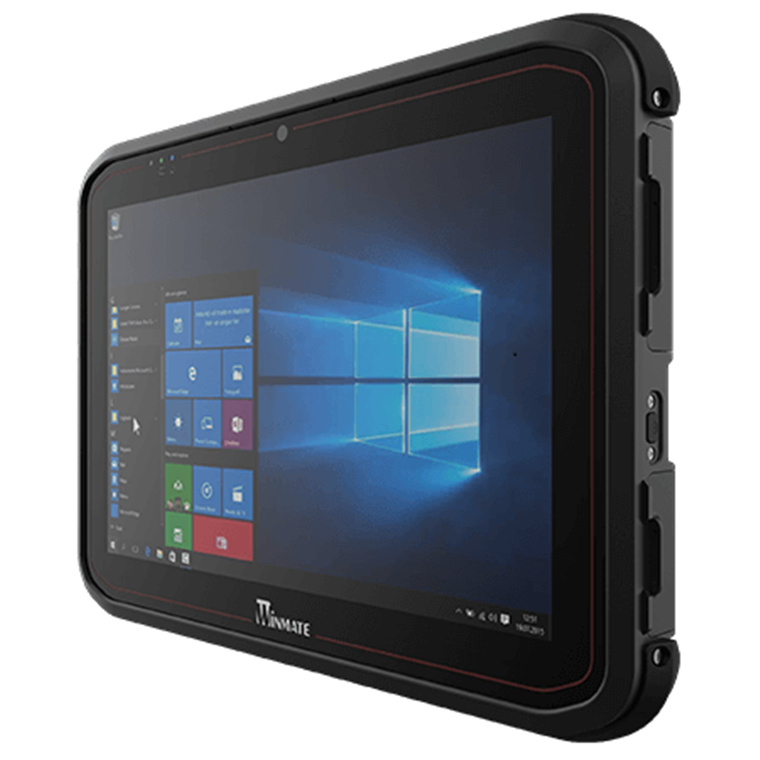

Winmate S101EK 4G, 128GB Win 10 IoT 10.1" Rugged Tablet WIFI 1920x1200 WUXGA, P-Cap Touch, Intel Celeron N6211, IP65, Dual Camera Design: 8MP rear camera/2MP Webcam
Out of stock
Winmate S101EK 4G, 128GB Win 10 IoT 10.1" Rugged Tablet WIFI 1920x1200 WUXGA, P-Cap Touch, Intel Celeron N6211, IP65, Dual Camera Design: 8MP rear camera/2MP Webcam
- Brand: Winmate
- MPN: S101EK
- Part #: TABWMAS101EK
- UPC:
- Brand: Winmate
- MPN: S101EK
- Part #: TABWMAS101EK
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT
Winmate S101EK 4G, 128GB Win 10 IoT 10.1" Rugged Tablet WIFI 1920x1200 WUXGA, P-Cap Touch, Intel Celeron N6211, IP65, Dual Camera Design: 8MP rear camera/2MP Webcam
- Brand: Winmate
- MPN: S101EK
- Part #: TABWMAS101EK
Product URL: https://www.pbtech.co.nz/product/TABWMAS101EK/Winmate-S101EK-4G-128GB-Win-10-IoT-101-Rugged-Tabl
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
10.1" Rugged Tablet with Intel® Celeron® N6211
- Intel® Celeron® N6211 @1.20GHz (up to 3.00GHz), Windows Rugged Tablet PC
- 1920 x 1200 WUXGA with PCAP touch rugged tablet
- 2MP Webcam , 8MP AutoFocus Rear Camera
- Sunlight readable with anti-glare solution
- IP65 water and dust proof with MIL-STD-810H rugged housing
- Optional 1D/2D Barcode Reader
- Removable battery with hot-swap function for all day productivity
- Ethernet thru Giga LAN (RJ45)
Powerful Computing Performance
With a fanless cooling system powered by an Intel® processor, S101EK offers stable performance for multi-tasks in rigorous conditions. It supports Windows® IoT Enterprise operating system to fulfill increasing industrial applications requirements and provide an alternative solution for those between general consumer-grade and extremely rugged solutions.

On Field Communication Reliability
The S101EK lightweight tablet offers the latest wired and wireless connection options for faster and improved reliability in dense deployments. Bring a level-up communication with no delay.

Compact, Slim, Yet Rugged
S101EK rugged tablet is designed sleek, lightweight, IP65 waterproof sealed, and passed the Defence-standard protection to survive all challenging environmental conditions. S101EK is designed genuinely for mobile workers and keepers who always worry about accidental damage.

Optimal Screen Interactivity in the Field
S101EK has 10.1 inches screen supported with the stylus, glove, and wet-touch modes, also integrated with an IPS 800-nits screen for clear visibility and operation comfort whatever the weather and locations are.

Specifications
Display
Size
10.1 inches
Resolution
1920x1200
Type
Projected Capacitive Multi Touch
Panel Brightness
800.0 nits
Contrast Ratio
800:1
View Angles
85,85,85,85
Bonding
Optical Bonding for Sunlight Viewability
Viewability
Anti-Glare touch treatment
Touch Mode
Support Hand / Gloves and Rain Mode
System Specification
Processor
Intel Celeron N6211 @1.20 GHz (up to 3.00 GHz)
Memory
4GB DDR4 SDRAM
Storage
128GB SSD
Security
Trusted Platform Module (TPM) 2.0
Kensington Lock
Operating System
Windows 10 IoT
WLAN
Support
BT
Support
WWAN
4G LTE
GNSS
GPS, GLONASS
Sensors
Light sensor/ G-sensor / Gyro
Camera
Front Camera
2MP Front Camera
Rear Camera
8MP Rear Camera with auto-focus and LED light
Mechanical
Dimension
272 x 192 x 25 mm
Weight
1.1 kg
Cooling System
Fanless design
IO Ports
USB Port
1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In)
LAN
1 x RJ45-10/100/1000 GigaLAN port
Video
1 x Micro HDMI (Optional)
Audio
1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out)
Dual Mic Built-in Microphone
Single Speaker
SD Card Slot
1 x Micro SDXC slot
SIM Card Slot
1 x Nano SIM card slot
Expansion Port
1 x Expansion Connector for USB2.0 / UART (Optional)
Indicator
2x LED Indicator for Power, Battery
Docking Connector
1 x 19-pin docking connector
Environment
Operating Humidity
10% to 90% RH, non-condensing
Operating Temperature
-20°C to 60°C
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Shock
MIL-STD-810H Method 516.8 Procedure I
Vibration
MIL-STD-810H Method 514.8 Procedure I
Drop
MIL-STD-810H Method 516.8, 4 ft
IP rating
IP65
Security Function
SOTI MobiControl
SOTI MobiControl Compliance
Kensington Lock
Kensington Lock Support
Control
Button
1 x Power
2 x Programmable function Keys
Power
Battery
11.4V, typ. 3500 mAh Li-Ion Re-chargeable Battery (3S1P)
Battery Operating Time
Standard. Battery: 6 hours
Power Rating
19V DC
Adapter
100-240V, 50-60Hz / 19V DC
