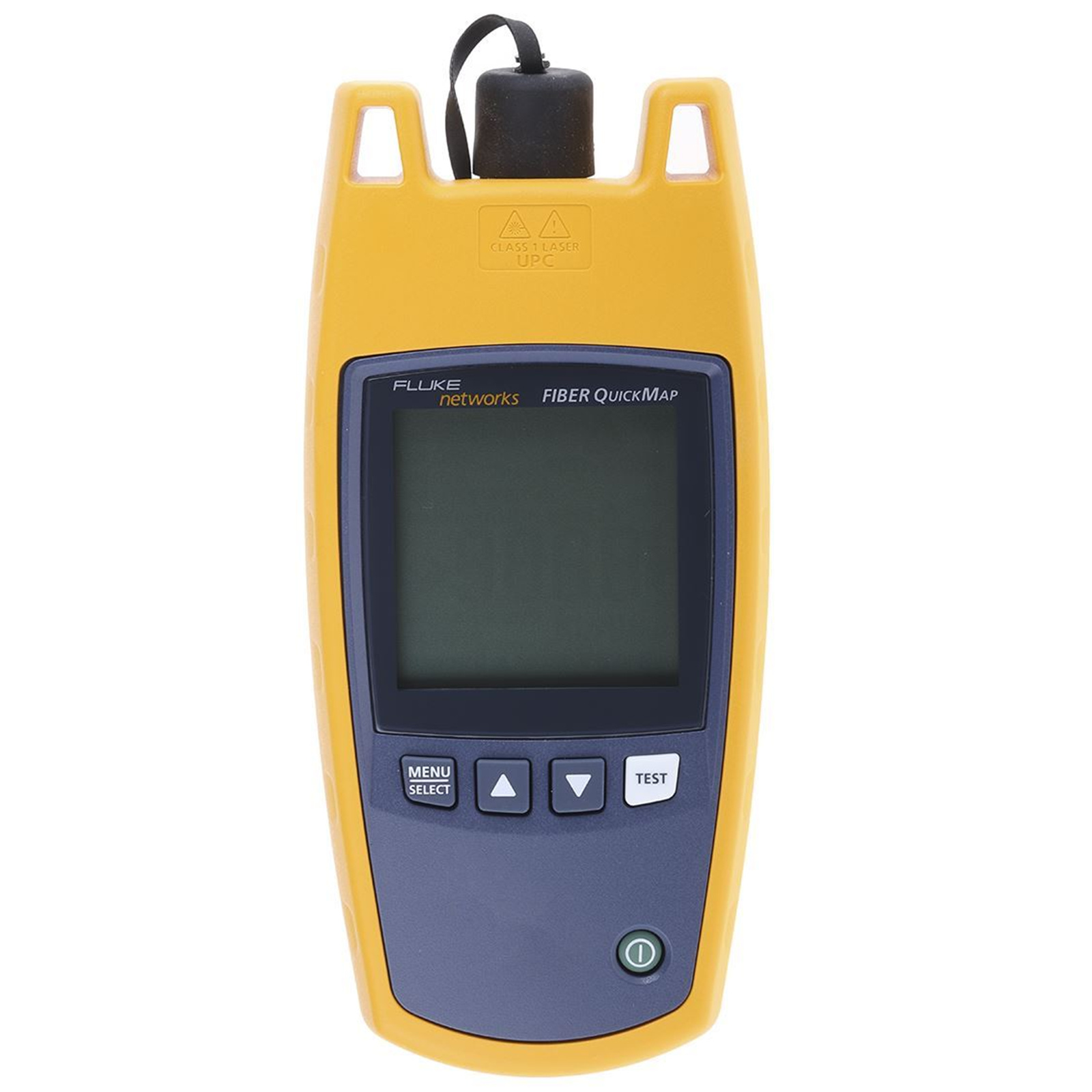

FLUKE FQM-100M FLUKE NETWORKS Fiber Quickmap Multimode Distance and Fault Finder Kit. Inlcudes SC Adapter and 2m Patch Cord (UPC-UPC).

PB Tech price
PB Tech price
$ 5,637 .80
 +GST
$ 6,483 .47
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

FLUKE FQM-100M FLUKE NETWORKS Fiber Quickmap Multimode Distance and Fault Finder Kit. Inlcudes SC Adapter and 2m Patch Cord (UPC-UPC).

  • Brand: FLUKE
  • MPN: FQM-100M
  • Part #: TOLFLN21168
  • UPC:
FREE SHIPPING
PB Tech price
$ 5,637 .80 $ 6,483 .47
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

Fiber Quickmap Multimode Distance and Fault Finder Kit. Inlcudes SC Adapter and 2m Patch Cord (UPC-UPC)

- Fiber QuickMap™ Kit
- Works on multimode fiber, 50/125µm and 62.5/125µm
- 850 nm output wavelength. Measure up to 1,500m of fibre in seconds
- Locate severe bends, high-loss splices, breaks and dirty connectors in single-mode fibre
- Measure and locate high-loss splices
- Locate the end of a fibre
- Find potential sources of high bit error rates caused by reflectance from dirty or poor connections
- Detects live optical signals before it begins testing
- Quick set-up. Connect your fibre and press the Test button. No lengthy set-up is necessary
- Find problems quickly. Six-second test time-no more blind troubleshooting that can waste hours
- Change the Index of Refraction (IOR) to improve fibre length accuracy
- Visible in dark areas. The backlit display turns off automatically

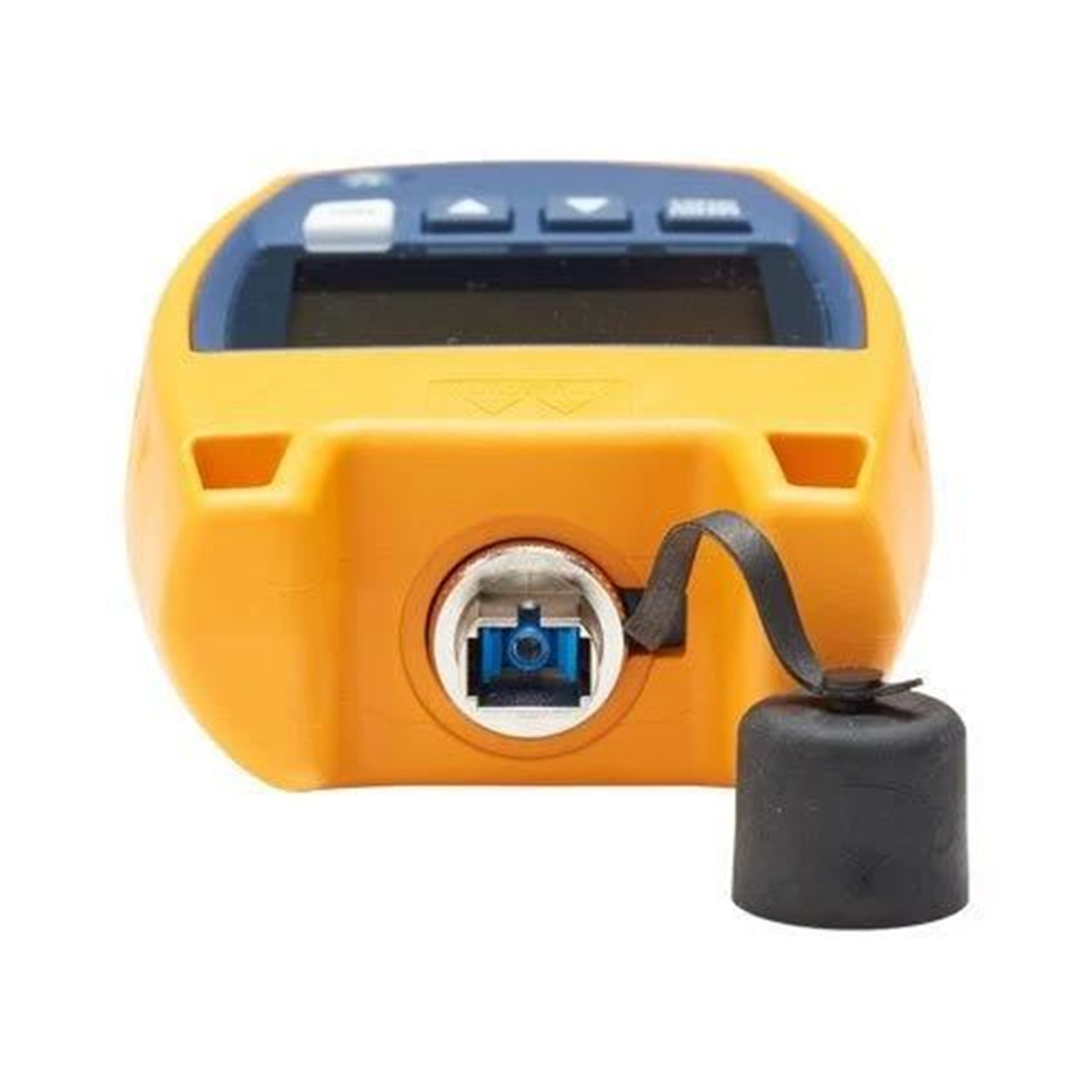

- The removable SC adapter is easily cleaned
- Optional LC, ST and FT interchangeable adapters are available
- Long battery life, 1,500 tests (typical) from 2x AA alkaline batteries

Limitations of Visual Fault Locators (VFLs)

Visual Fault Locators (VFLs) are effective tools for identifying issues in exposed sections of fiber near patch panels. They work by emitting visible light to highlight bad connections, breaks, or bends. However, their usefulness diminishes for cable runs extending beyond a few meters or when cables are hidden, armored, or have opaque jackets that prevent the laser light from shining through.

Advanced Analysis with OTDRs

Optical Time Domain Reflectometers (OTDRs) go far beyond the capabilities of VFLs by providing detailed graphical analysis along the entire length of a fiber cable. These devices can detect losses, breaks, and reflections at any point in the cable. Despite their precision, OTDRs are often costly, require more expertise to operate, and take longer to perform full diagnostics.

Bridging the Gap with Fiber QuickMap

Fiber QuickMap serves as a practical middle ground between a simple VFL and a complex OTDR. It maintains the ease of use of a VFL while adding the ability to display distance and power information for high losses, breaks, and fiber terminations. Additionally, Fiber QuickMap can identify live fibers, making it a fast and convenient tool for quick troubleshooting and verification in the field.

Specifications

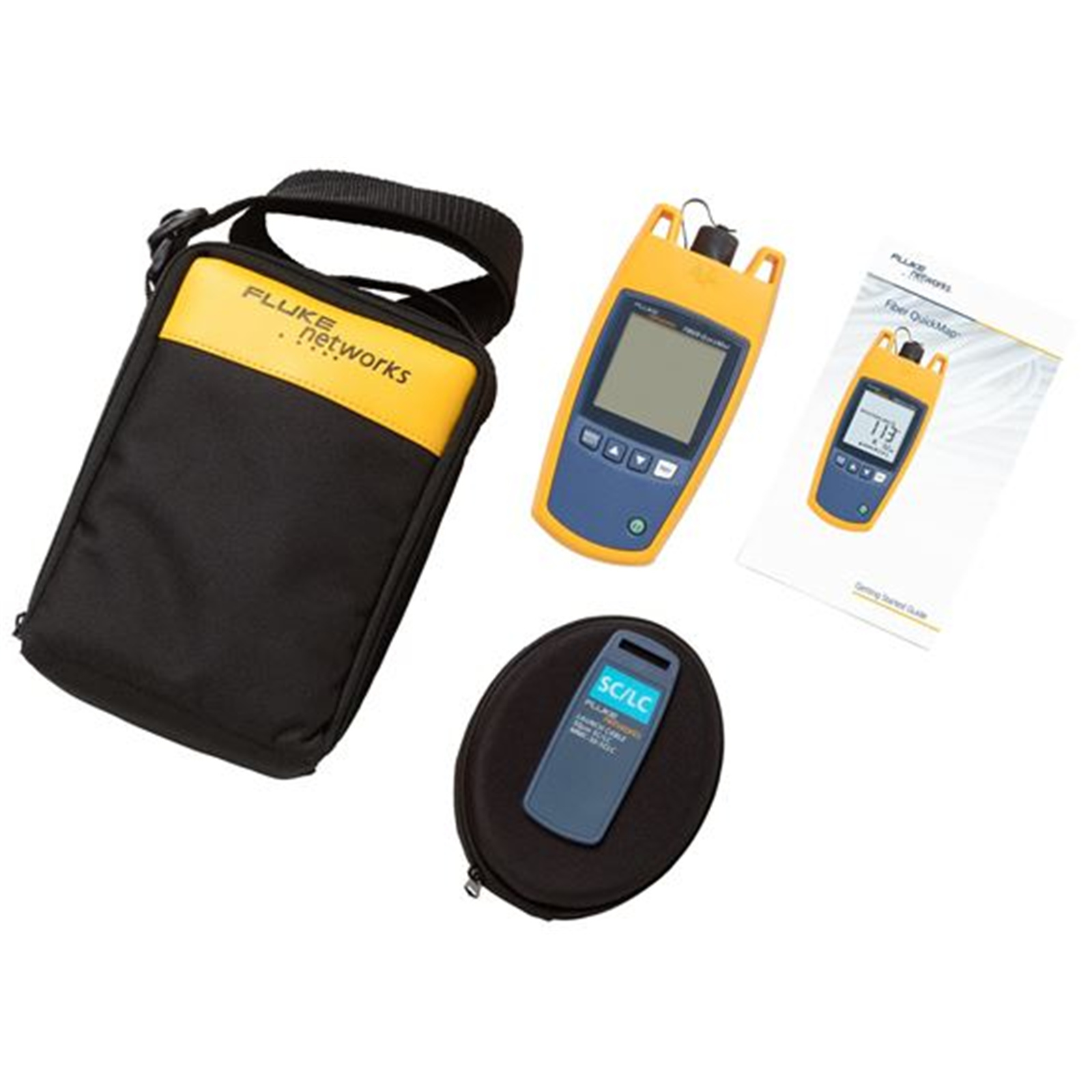

In The Box

Includes multimode fibre fault locator unit
Screw on interchangeable SC adapter
50 µm SC/LC Multimode Launch Fiber
Carrying case
4-language Quick Reference Guide (manuals in 9 languages available online)
Safety instruction manual
Batteries

Manufacturer Part No:
FQM-100M
Brand:
FLUKE
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
