FLUKE 11290000 TS30 Test Set Electrical Contractor Kit. Includes: D814, 66/110 Cut Blade, D-snips,Cable Stripper, Probe Pic and Standard 4-Wire Modular 919

PB Tech price
PB Tech price
$ 1,120 .00
 +GST
$ 1,288 .00
 inc GST

Out of stock

FLUKE 11290000 TS30 Test Set Electrical Contractor Kit. Includes: D814, 66/110 Cut Blade, D-snips,Cable Stripper, Probe Pic and Standard 4-Wire Modular 919

  • Brand: FLUKE
  • MPN: 11290000
  • Part #: TOLFLN38177
  • UPC: 754082038177
PB Tech price
$ 1,120 .00 $ 1,288 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: FLUKE
  • MPN: 11290000
  • Part #: TOLFLN38177
  • UPC: 754082038177

Features

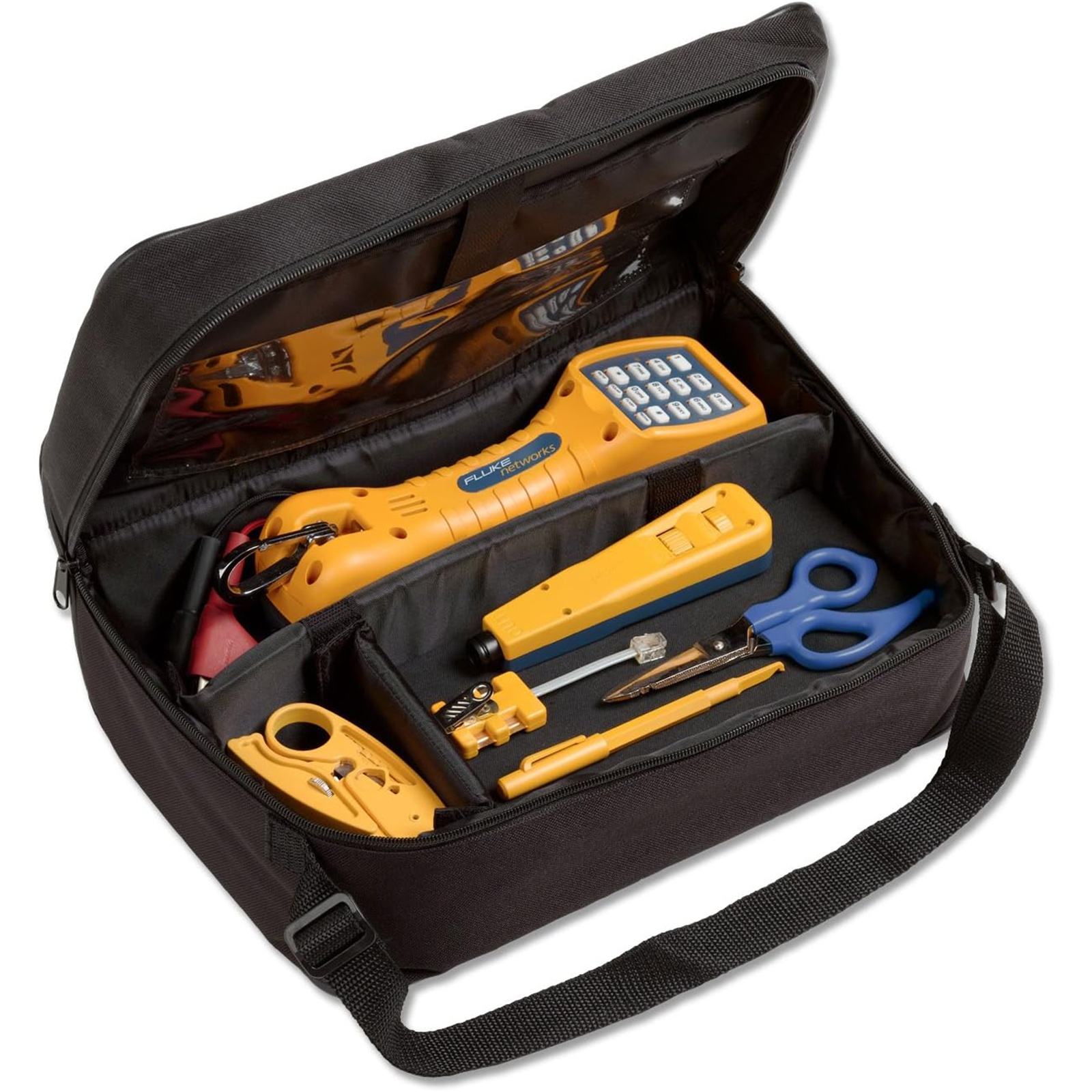

Fluke Networks Electrical Contractor Telecom Kits are comprised of industry-standard telecommunications tools and test equipment, in a durable Cordura case. The kits are designed for technicians who install, test and troubleshoot phone and data lines.

Electrical Contractor Telecom Kit I includes a TS®30 Test Set w/ Angled Bed-of-Nails Cord, D814 Impact Tool, EverSharp 66/110 Cut Blade, Electrician's D-Snips, Cable Stripper, Standard 4-Wire Modular Adapter and Probe Pic.

Electrical Contractor Telecom Kit II includes the same items but offers the Pro3000 Analog Tone & Probe in place of the TS30 Test Set.

- 11290000 Electrical Contractor Telecom Kit Is with TS30 Test Set
- Choose either kit I with TS30 Test Set or kit II with Pro3000 Analog Tone & Probe
- D814 industry-standard punch-down tool for reliable terminations
- EverSharp 66/110 Cut Blade provides flexibility for different block and jack terminations
- Cable Stripper quickly rings and slits many types of cable
- Use the Probe Pic to check for loose or damaged connections
- Cut and strip wire cleaner and faster with the Electricians D-Snips
- Connect to jacks for testing with the Standard 4-Wire Modular Adapter
- A soft zippered pouch keeps your tools all in one convenient place



Specifications

Electrical

Return Loss

>14 dB (ref 600 O)

Line Current Range

15 mA to 120 mA

Resistance to Continuous Current (Talk Mode)

275 O typical at 20 mA

Monitor Mode Impedance

>120,000 O 300 Hz to 3400 Hz

Pulse Dial Output

Pulsing Rate

10 pps pps

Open/Close Ratio

60/40

Inter-digit Interval

800 ms %, -10%

Resistance During Pulse Open

> 200,000 O

Protection Against Alternating Current Overvoltage

The TS30 survives up to 250 Vrms across its test leads.

Peak Acoustic Output of the Receiver

<120 dBspl

DTMF Output Tone Frequencies Tone Frequency Error

per ITU-T Q.23 ±1.5% Maximum

Tone Level

High Group Low Group

-4 dBm (into 600 O) -6 dBm (into 600 O)

High vs Low Tone Difference

2dB +1db

Last Number Redial (Tone/Pulse)

Memory Capacity Memory Retention

23 digits 8-minutes nominal

Flash Duration

600 ms ±100 ms

Ringer Loudness

> 70 dBA at 1 meter

Ringer Equivalent (REN)

0.14

Measurements

10 in x 2.83 in x 3.34 in (25.5 cm x 7.2 cm x 8.5 cm)

Weight

16.8 ounces (0.476 kg)

Environmental

Temperature Operating Storage

-4 °F to +140 °F (-20°C to +60°C)
-40 °F to +151 °F (-40°C to +66°C)

Relative Humidity

5% to 95%

Safety

Telecom Electrical

TNV-3

Safety Classification

IP54

In The Box

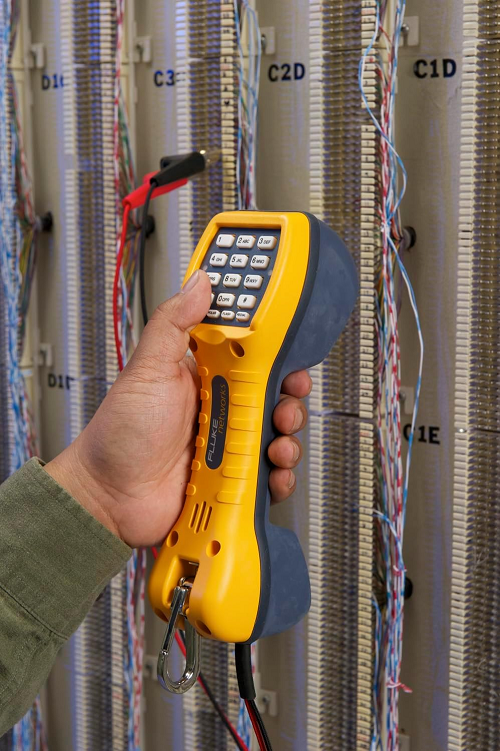

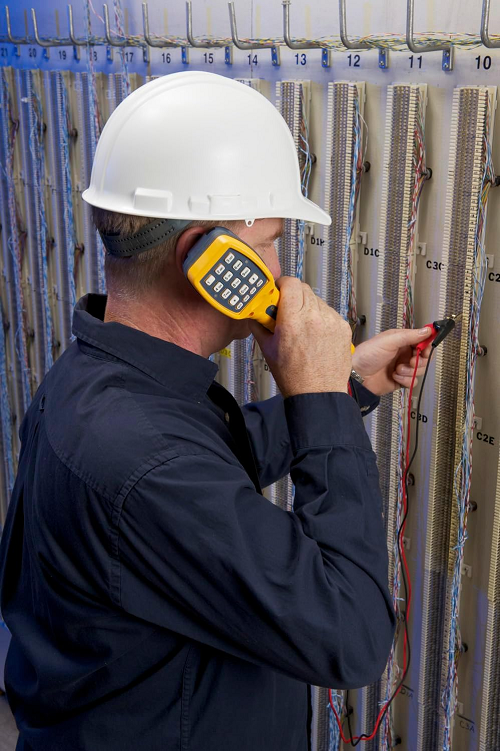

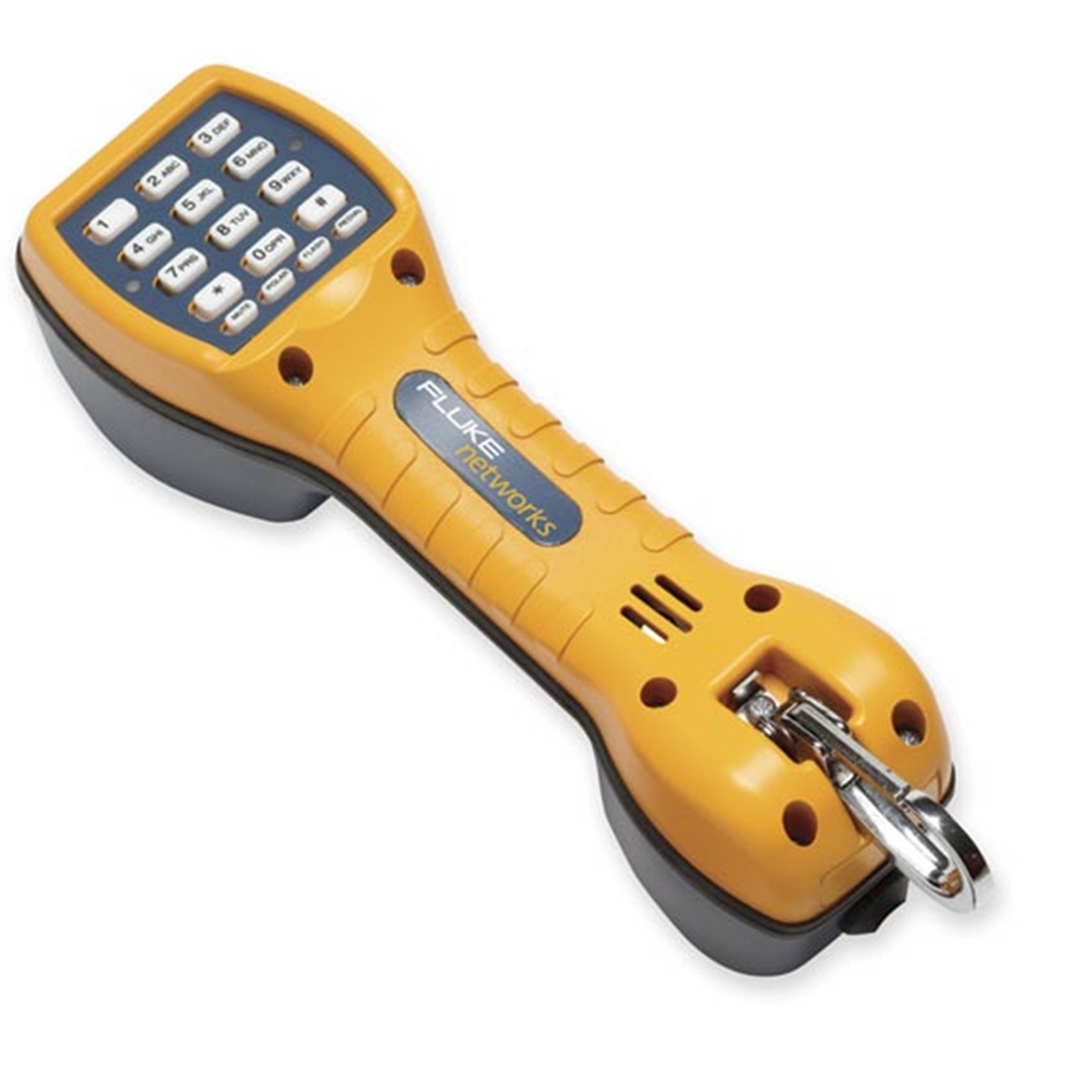

TS®30 Test Set
Angled Bed-of-Nails Cord

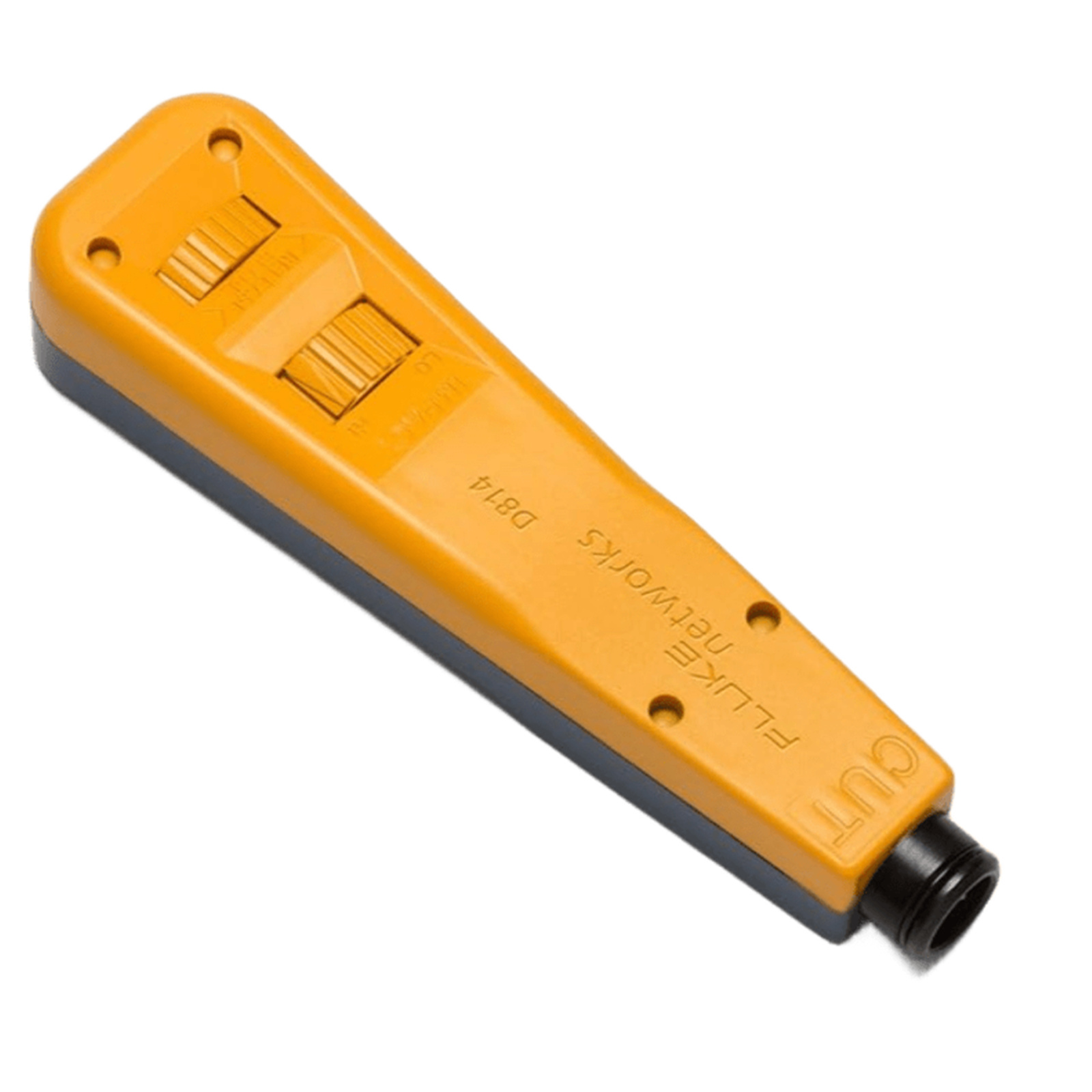

D814 Impact Tool
EverSharp 66/110 Cut Blade
Electrician's D-Snips

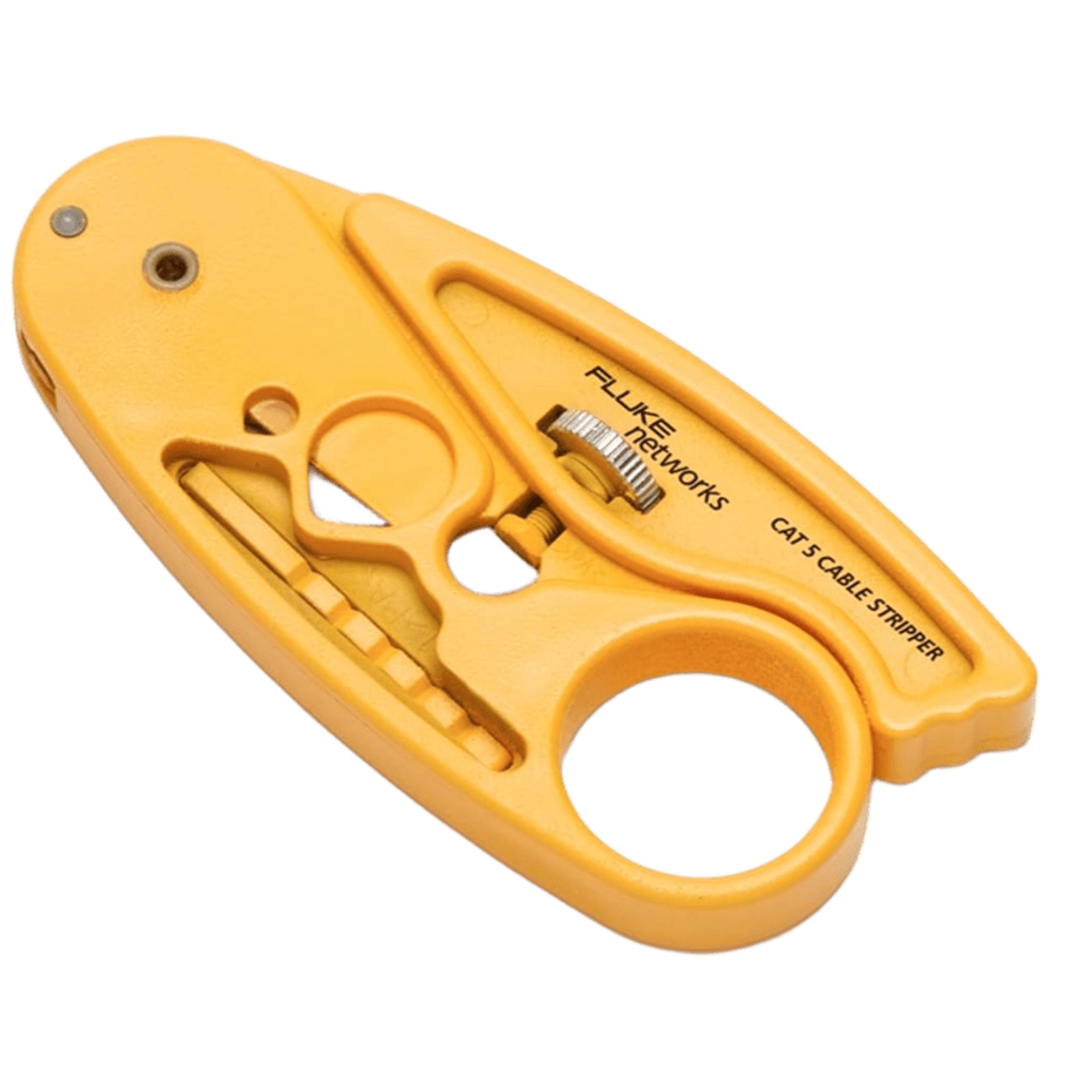

Cable Stripper

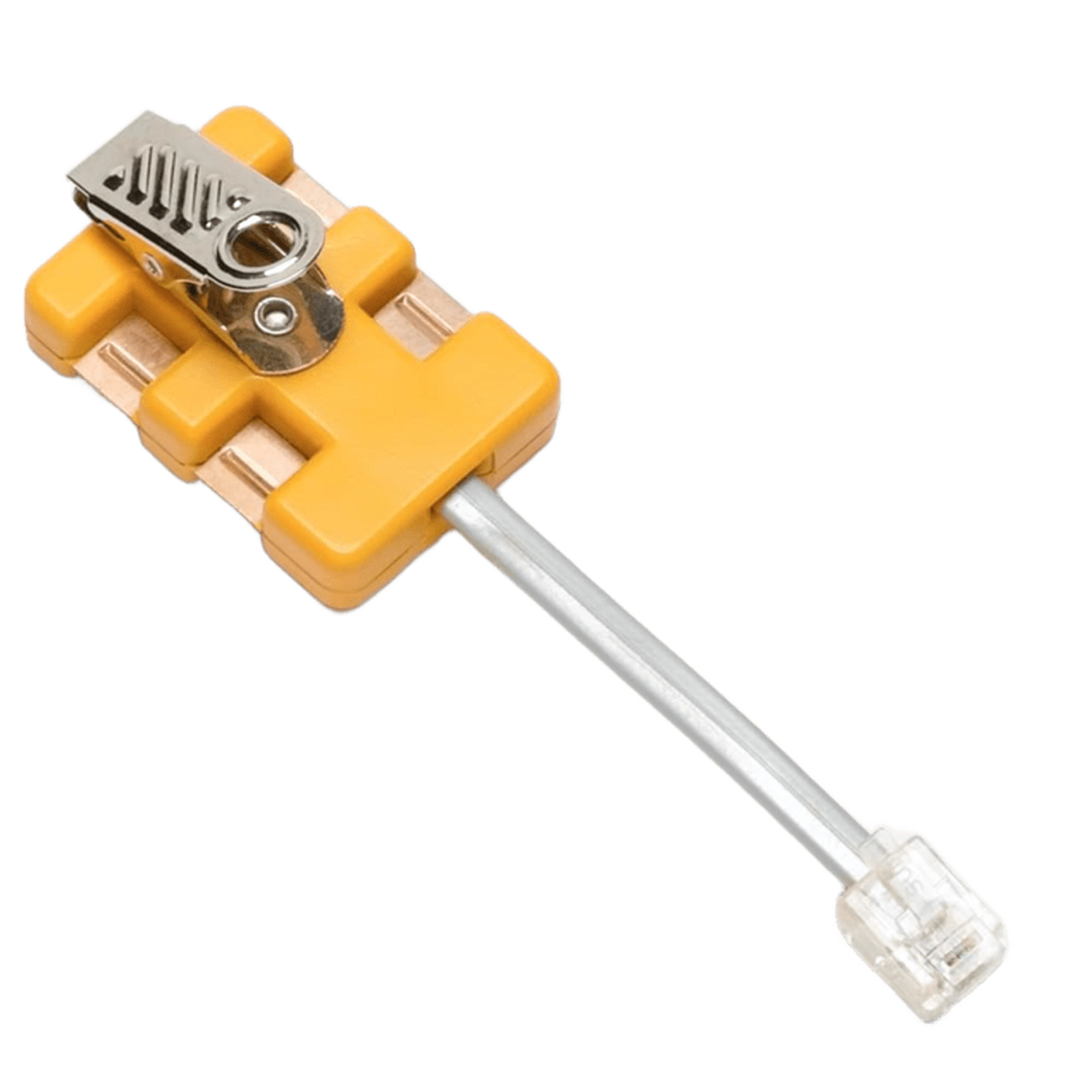

Standard 4-Wire Modular Adapter

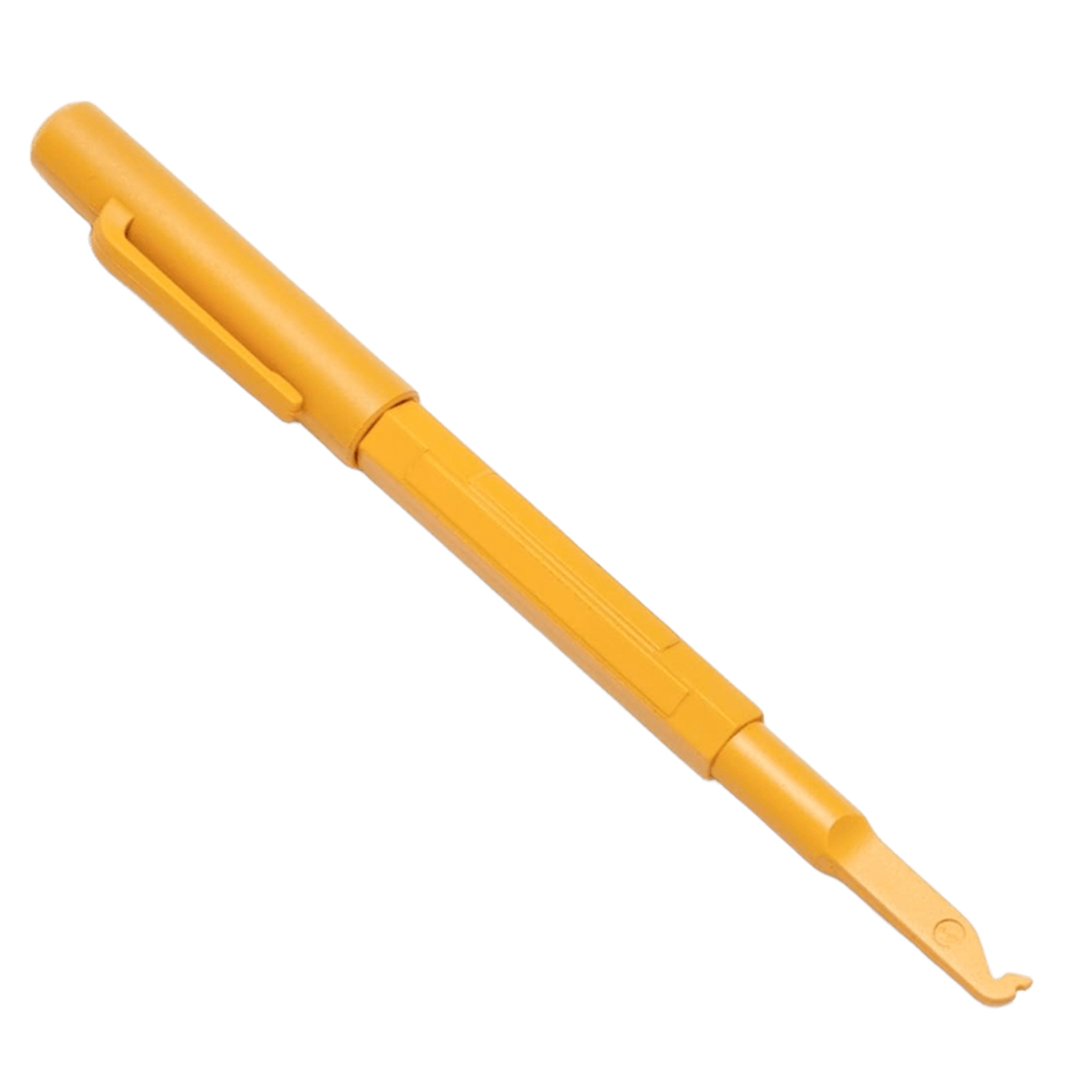

Probe Pic

Manufacturer Part No:
11290000
Brand:
FLUKE
Product Type:
-
UPC
754082038177
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
TOLFLN38177
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
