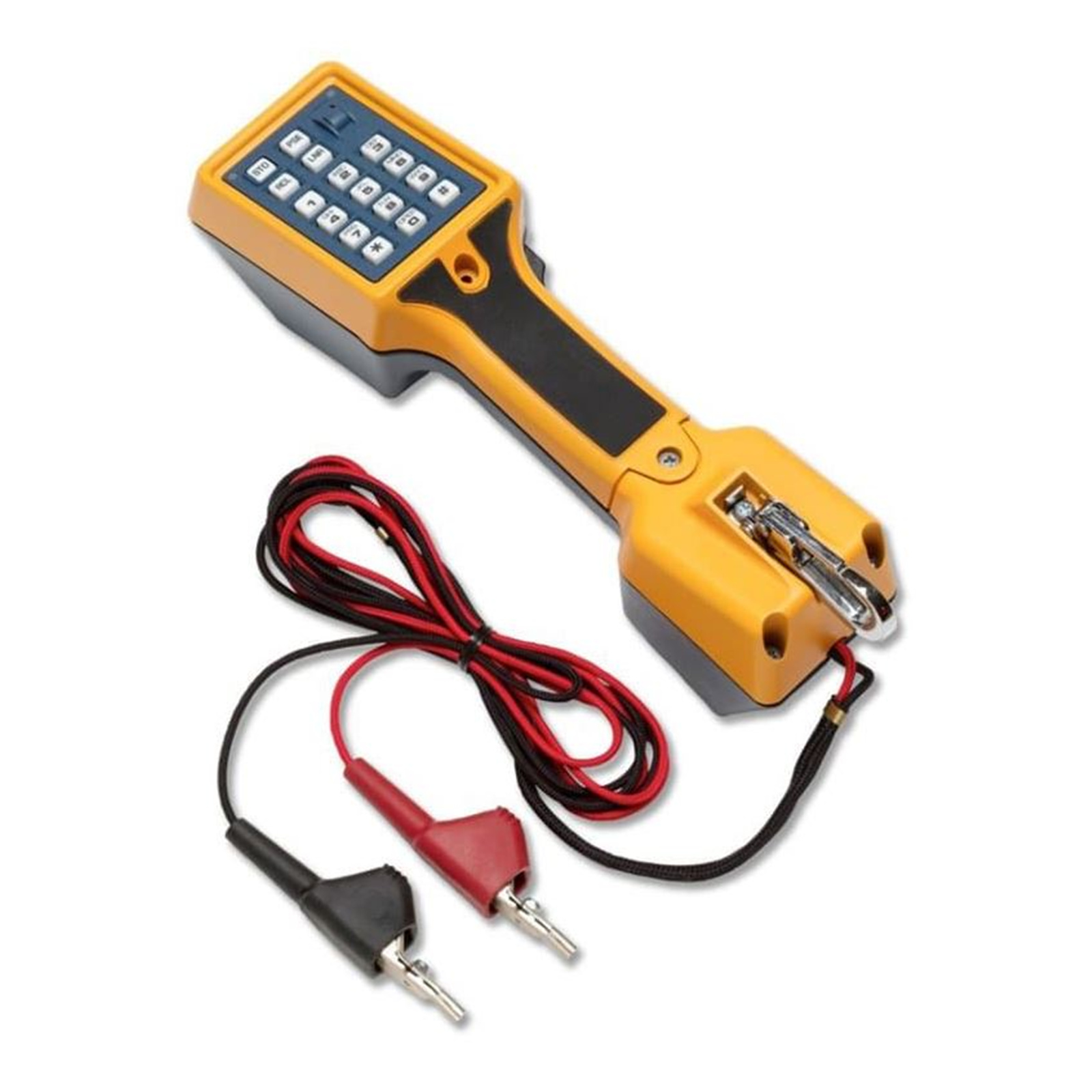

FLUKE 22801009 TS22A with ABN Analog POTS Test Set.
Out of stock
FLUKE 22801009 TS22A with ABN Analog POTS Test Set.
- Brand: FLUKE
- MPN: 22801009
- Part #: TOLFLN38498
- UPC: 754082038498
- Brand: FLUKE
- MPN: 22801009
- Part #: TOLFLN38498
- UPC: 754082038498
Features
The TS22A Test Set is equipped with all the features of the TS22 Test Set with the addition of a built-in two-way speakerphone. The two-way speakerphone enables the user to operate hands-free. The effect of ambient noise can be eliminated with the Mute switch, allowing the technician to monitor a line uninterrupted while in Talk mode. A standard among field professionals, the TS22A model is a reliable and durable test set that is ready for any job.
The TS22 Test Set is a unique built-in one-way amplified speaker that provides three audio levels for hands-free listening and use with automated voice response systems. Multiple memories enable storage of nine 18-digit telephone numbers in a repertory dialer (speed dialling) for easy access to test boards, the central office and other frequently called numbers. The last number redial feature eliminates the need to re-key your last entry. The TS22 Test Set offers an unbeatable combination of reliability, durability and expanded utility.
- The TS22 Series Test Set contains an embedded 3-volt lithium battery. The 9-volt battery in the Test Set should be changed when low, or once a year if not in use, to prevent the 3-volt battery from draining. A 3-volt battery that drains after its 42-month warranty will need to be replaced by an authorized service facility at a charge to you.
- Note also that your speakerphone will no longer work when your 9-volt battery is low or dead. You should replace the 9-volt battery whenever it is low.
- 22801009 TS22A Test Set with ABN
- TS®22 Test Set has an amplified speaker for hands-free monitoring
- TS®22A Test Set has a two-way speakerphone for true hands-free conversation
- DropSafe™ reliability passes 20-foot drop test
- RainSafe™ protection in severe weather conditions
- Stores nine 18-digit numbers in a repertory dialer (speed dialling)
- Tone (DTMF) and pulse operation
- Last number redial
- DTMF signal levels compensated for loop length
- DropSafe™ unit up to 20 feet
- Audible electronic ringer
- Locking mute switch
- 3-year redial storage time
- Over-voltage and current protection
- PBX pause button
- Field replaceable belt clip
- Continuous polarity LED indications
- For use with computerized voice response systems
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Testing & Measurement Tools
USB Inspection Camera EndoScope 2MP, Lens Diameter: 8.5mm, Cable...
Leica Disto D2 Bluetooth ISO certified measuring engine high...
ProsKit MT-4612 Dual Infrared Laser Point Thermometer Range -50...
UGREEN UG-10950 Network & Telephone Cable Tester
ProsKit MT-7058 Wire Tester Mini Lan Ethernet Cable Tester...
FLUKE 22801009 TS22A with ABN Analog POTS Test Set.
- Brand: FLUKE
- MPN: 22801009
- Part #: TOLFLN38498
- UPC:754082038498
Product URL: https://www.pbtech.co.nz/product/TOLFLN38498/FLUKE-22801009-TS22A-with-ABN-Analog-POTS-Test-Set
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
The TS22A Test Set is equipped with all the features of the TS22 Test Set with the addition of a built-in two-way speakerphone. The two-way speakerphone enables the user to operate hands-free. The effect of ambient noise can be eliminated with the Mute switch, allowing the technician to monitor a line uninterrupted while in Talk mode. A standard among field professionals, the TS22A model is a reliable and durable test set that is ready for any job.
The TS22 Test Set is a unique built-in one-way amplified speaker that provides three audio levels for hands-free listening and use with automated voice response systems. Multiple memories enable storage of nine 18-digit telephone numbers in a repertory dialer (speed dialling) for easy access to test boards, the central office and other frequently called numbers. The last number redial feature eliminates the need to re-key your last entry. The TS22 Test Set offers an unbeatable combination of reliability, durability and expanded utility.
- The TS22 Series Test Set contains an embedded 3-volt lithium battery. The 9-volt battery in the Test Set should be changed when low, or once a year if not in use, to prevent the 3-volt battery from draining. A 3-volt battery that drains after its 42-month warranty will need to be replaced by an authorized service facility at a charge to you.
- Note also that your speakerphone will no longer work when your 9-volt battery is low or dead. You should replace the 9-volt battery whenever it is low.
- 22801009 TS22A Test Set with ABN
- TS®22 Test Set has an amplified speaker for hands-free monitoring
- TS®22A Test Set has a two-way speakerphone for true hands-free conversation
- DropSafe™ reliability passes 20-foot drop test
- RainSafe™ protection in severe weather conditions
- Stores nine 18-digit numbers in a repertory dialer (speed dialling)
- Tone (DTMF) and pulse operation
- Last number redial
- DTMF signal levels compensated for loop length
- DropSafe™ unit up to 20 feet
- Audible electronic ringer
- Locking mute switch
- 3-year redial storage time
- Over-voltage and current protection
- PBX pause button
- Field replaceable belt clip
- Continuous polarity LED indications
- For use with computerized voice response systems
Specifications
Electrical
Loop Limit
2 kO maximum at 48 VDC (nominal 20 mA minimum loop current)
DC Resistance (Talk Mode)
300 O typical
Monitor Impedance
TS22
5 kO nominal at 1 kHz
TS22A
120 kO nominal at 1 kHz
Rotary Dial Output
Pulsing Rate
10 pps ±5 pps
Percent Break
61 % ± 2 %
Interdigit Interval
1000 ms typical
Leakage During Break
>50 kO
DTMF Output
Tone
±1% maximum
Frequency Error Tone Level
-3 dBm combined (typical)
High versus Low Tone Difference
4 dB maximum
Monitor Amplifier
9 V battery; provides 25 hours
Power Source
continuous use, typical
Speaker Levels for TS22
Low, medium, high and off
Automatic Power Shut Off
After 5 min. of no audio signal
Speakerphone Levels TS22A
Low, medium, high and off
Power Source
Shared line and battery power
Physical
Physical Measurement
10.25 in x 2.69 in x 3.38 in (26 cm x 6.83 cm x 8.57 cm)
Weight
TS22
21 ounces (.595 kg)
TS22A
22 ounces (.624 kg) typical
Environmental
Temperature Operating
29 °F to 140 °F (-34 °C to 60 °C)
Storage
-40 °F to 150 °F (-40°C to 66 °C)
Altitude
To 10,000 feet (3,000 meters)
Relative Humidity
5 % to 95 %
