FLUKE 25501109 TS25D with ABN Analog POTS Test Set with Earpiece and Pouch
Out of stock
FLUKE 25501109 TS25D with ABN Analog POTS Test Set with Earpiece and Pouch
- Brand: FLUKE
- MPN: 25501109
- Part #: TOLFLN38801
- UPC: 754082038801
- Brand: FLUKE
- MPN: 25501109
- Part #: TOLFLN38801
- UPC: 754082038801
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Testing & Measurement Tools





FLUKE 25501109 TS25D with ABN Analog POTS Test Set with Earpiece and Pouch
- Brand: FLUKE
- MPN: 25501109
- Part #: TOLFLN38801
- UPC:754082038801

Product URL: https://www.pbtech.co.nz/product/TOLFLN38801/FLUKE-25501109-TS25D-with-ABN-Analog-POTS-Test-Set
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

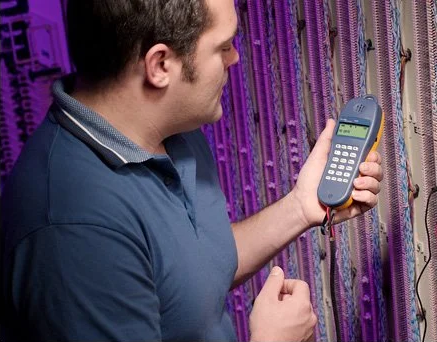

This new, feature-rich test set is a necessity for all central office technicians. The TS25D Test Set features data lockout and lockout override, making you completely safe in talk or monitor mode. The DSL/POTS filtering technology allows you to safely draw dial tones without downing DSL.
A built-in tone generator simplifies wire identification with a probe. An amplified speaker makes monitoring the line hands-free, so you can keep working. The Talk Battery function provides voltage to carry voice conversation on non-powered pairs.
All in a compact unit with an oversized robust liquid crystal display (LCD) that makes the intuitive, common-sense menus easy to read and use.

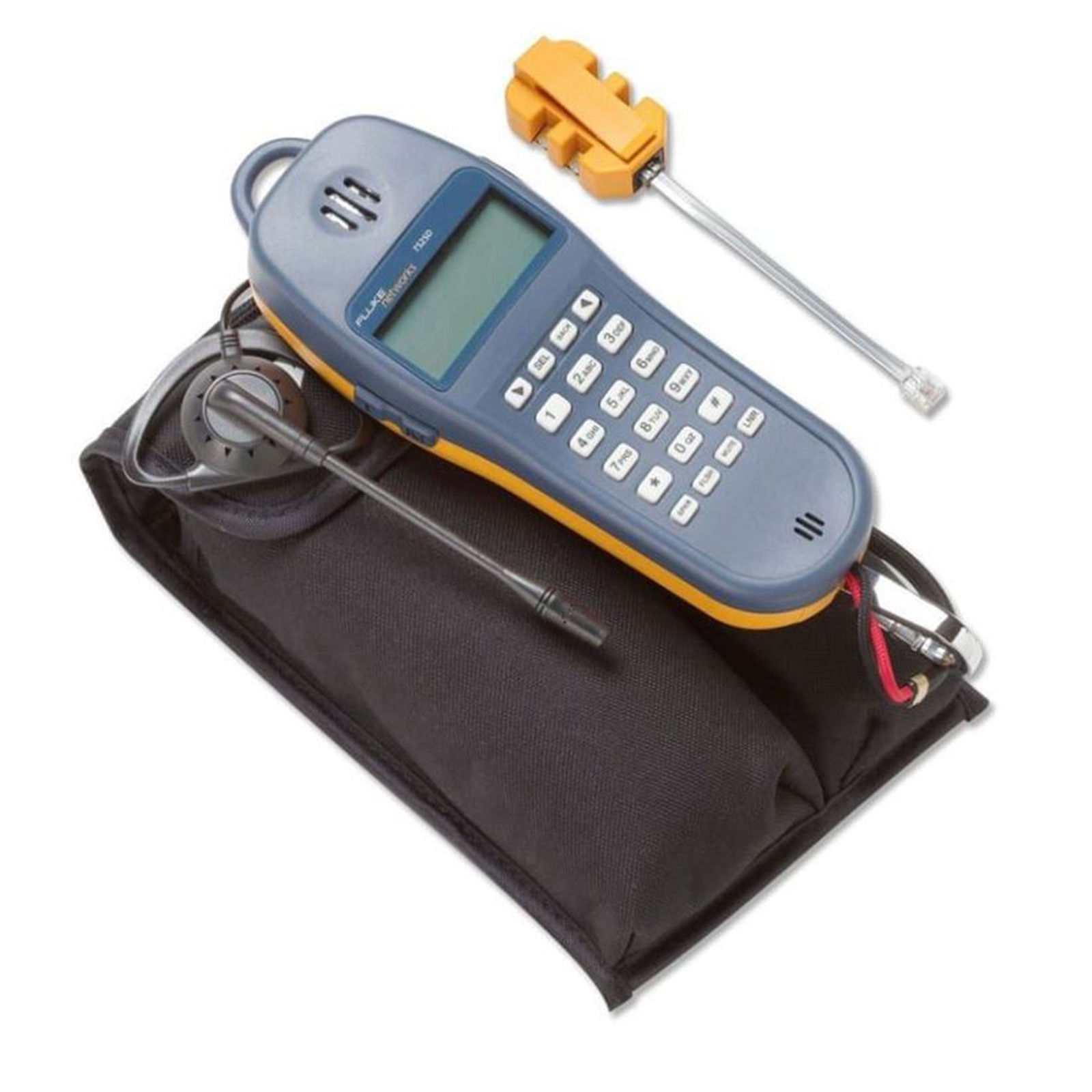

- TS25D Test Set with Earpiece and Pouch
- Caller ID and call-waiting caller ID (on N. American phone systems)
- Data lockout and data lockout override
- DSL/POTS filtering technology lets you safely draw dial tone from a pair that is carrying voice and ADSL without downing the ADSL service
- Built-in analog tone generator for tracing and identifying wires with a probe
- DTMF digit-grabbing capability
- Talk battery to supply power to non-powered (dry) pairs to carry voice conversation
- Row/column tones for single-tone dialing
- High voltage Lockout/Low voltage Lockout
- Continual data detection in monitor mode
- Over-voltage and current protection
- Amplified speaker for hands-free monitoring
- Programmable phonebook stored in non-volatile memory
- Speed dial (10 memories, 23 digits each)
- Selectable flash and pause duration
- Battery level indicator
- Battery included
Specifications
Electrical
Return Loss
>14 dB (ref 600 O)
DC Resistance
Off-Hook
150 O nominal
On-Hook
>1 MO
AC Impedance
Off-Hook
600 O nominal; 300 Hz to 3400 Hz
On-Hook
>120 kO; 300 Hz to 3400 Hz
Rotary Dial Output
Pulsing Rate
10 pps ±1 pps
Break/Make Ratio
60/40
Interdigit Interval
>300 ms
Resistance During Break
>100 kO
DTMF Output
Tone Frequency Error
±1.5 % maximum
Tone Level
-1 dBm combined (typical)
High versus Low Tone difference
2 dB ± 2 dB
Memory Dialing
Memory Capacity
10 speed dial memories plus one last number redial memory
Digit Capacity
23 digits per memory
Pause Duration
User programmable Default: 4 seconds
Hook Flash Duration
User programmable Default: 600 ms
Automatic Speaker Shut Off Duration
User programmable TS25D default: 5 minutes TS25D CO default: 2 minutes
Battery
9 V alkaline or lithium battery
Physical
Measurement
7.8 in x 2.7 in x 1.6 in (20 cm x 6.8 cm x 4 cm)
Weight
10 ounces (284 g)
Environmental
Temperature Range Operating
32°F to 122 °F (0 °C to 50 °C)
Storage
-40 °F to 150 °F (-40 °C to 65 °C)
Altitude
Up to 10,000 ft (3,000 m)
Relative Humidity
5 % to 95 %
