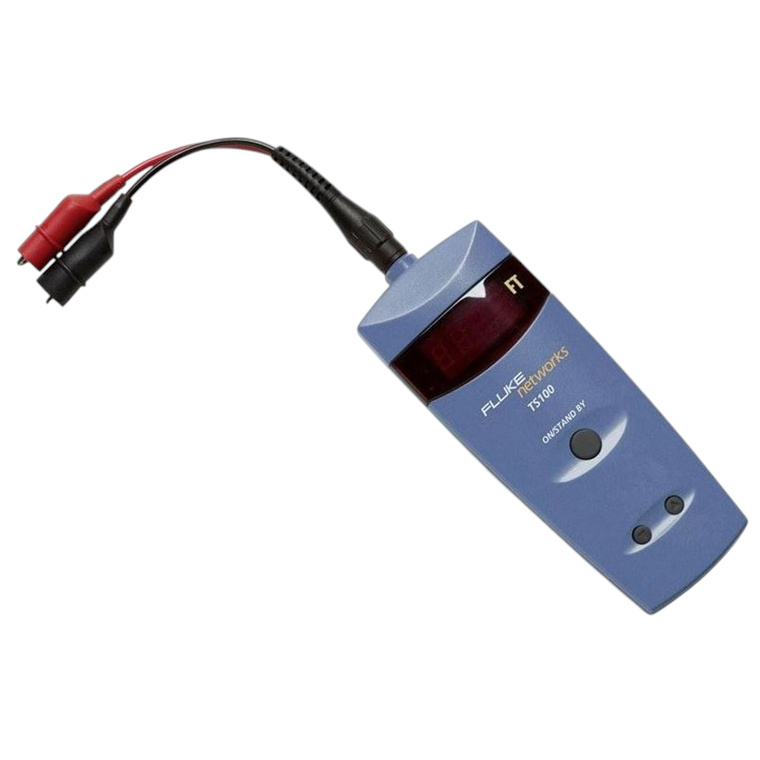

FLUKE 26500610 TS100 Metric Cable F Finder TDR, BNC To Alligator Clips.

PB Tech price
PB Tech price
$ 1,056 .52
 +GST
$ 1,215 .00
 inc GST

Out of stock

FLUKE 26500610 TS100 Metric Cable F Finder TDR, BNC To Alligator Clips.

  • Brand: FLUKE
  • MPN: 26500610
  • Part #: TOLFLN39242
  • UPC: 754082039242
PB Tech price
$ 1,056 .52 $ 1,215 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: FLUKE
  • MPN: 26500610
  • Part #: TOLFLN39242
  • UPC: 754082039242

Features

FLUKE NETWORKS TS100 Metric Cable F Finder TDR, BNC To Alligator Clips

From just ONE END of any two or more conductor cables, you can measure up to 915 meters. The TS 100 cable fault locator lets you easily find the distance to opens or shorts on electrical wires, telephone wires, security wires and coax. Results appear as a distance reading rather than a waveform, so it's perfect for technicians unfamiliar with Time Domain Reflectometry (TDR).

Locate and fix cable problems without pulling new wires or blindly cutting into walls. Intermittent faults are easier to find because the unit constantly measures while "On".

The TS 100 cable fault locator is perfect for inventory management of cable stock in trucks and warehouses and it can help you generate more accurate bids for jobs by quickly assessing needs and managing the cable stock with greater accuracy.

Patented SmartTone technology gives you 5 distinct tones to use for exact wire and pair identification, even in proximity to current-bearing cable.

When touching the wires together and momentarily shorting the far end of a cable pair, the SmartTone technology will change the cadence of the tone generated. This tone change you hear through the probe positively verifies the correct wire pair.

Voltage detection in the unit will immediately sound an alarm if you accidentally clip onto an energized pair, up to 250VAC.

- 26500610 TS100 Metric Cable Fault Finder
- Works on any two or more conductor cables up to 915 meters
- Instantly measures the distance to open or any fault from one end of any cable pair
- Patented SmartTone tone generator positively identifies pair
- Measures cable distance on a spool
- Measures constantly while "On"
- Displays distance reading rather than waveform
- Large bright LED screen
- One button operation
- High voltage detection
- Moisture-proof
- Additional line cord options available for coaxial cable (F-connectors) and other applications

Specifications

General Speciffications

Power

4 AA alkaline batteries, provide 50 hours of operation.

Reverse Battery Protection

No damage to the tester will occur if the batteries are installed backwards.

Input Protection

250 V rms ac, continuous or intermittent

Moisture

If the tester is exposed to water, some may get inside, but it will suffer NO DAMAGE. See the information on moisture under "Maintenance".

Impedance Range

35 Ohm to 330 Ohm with auto-compensation within this range. Cables with an impedance outside this range will not be properly tested and may produce erratic or incorrect readings.

Maximum Length

2500 feet on certain cable types, 2000 feet on most cable types, and 500 feet on very lossy cables. The tester will display -Err if the cable is too long to be correctly measured.

Representative Maximum Cable Length

2500 feet: CAT-5 Twisted Pair 2000 feet: 12/2 ac Wire 1000 feet: RG-6/U TV Coax 500 feet: RG-174/U Coax

Minimum Length

No minimum length Minimum non-zero reading is 2 feet

Length Accuracy

±2 feet for cables less than 10 feet ±5 feet for cables longer than 10 feet and shorter than 200 feet ±3 % and ±5 feet for cables longer than 200 feet

High Voltage Detection

An ac voltage of more than 5 V rms will trigger the High Voltage Warning.

Measurement Rate

Maximum of 4 complete measurements per second, decreasing to 2 seconds per measurement based on cable size and uniformity.

VOP

Adjustable from -20- to -99-, retained during power off. Default to -66- when batteries are changed

Measurement Technology

Time Domain Reflectometry (TDR) with 50 O drive impedance, 6 V maximum pulse height

Low Battery

Indicator flashes when battery voltage falls below 4.1 V

Tone Injection

Approximately 1 kHz at an amplitude of 80 % of battery voltage. Variable frequency and cadence. Tone characteristic is changed as cable condition changes to "normal-open" from any other condition.

Cable Type

Virtually all two or more conductor cables

Temperature Range

Operating Storage

32 °F to 131 °F (0 °C to 55 °C) -40 °F to 158 °F (-40 °C to 70°C)

Humidity

Operating

0 % to 80 %

Storage

0 % to 100 %

Weight

1 lb

Certifications and Compliance

CAN/CSA-C22.2 No. 60950-1-03 CAN/CSA-C22.2 No. 1010.1-92 CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1
