FLUKE LIQ-KIT-IE LinkIQ Cable Network Tester with Industrial Ethernet Adapter Kit and Probe.IncludesRemote IDs 1-7, Cat6a Patch Cord, R45/11 Modular Adapter and Strap with Remote ID Holder.
Out of stock
FLUKE LIQ-KIT-IE LinkIQ Cable Network Tester with Industrial Ethernet Adapter Kit and Probe.IncludesRemote IDs 1-7, Cat6a Patch Cord, R45/11 Modular Adapter and Strap with Remote ID Holder.
- Brand: FLUKE
- MPN: LIQ-KIT-IE
- Part #: TOLFLN52194
- UPC: 754082152194
- Brand: FLUKE
- MPN: LIQ-KIT-IE
- Part #: TOLFLN52194
- UPC: 754082152194
Features

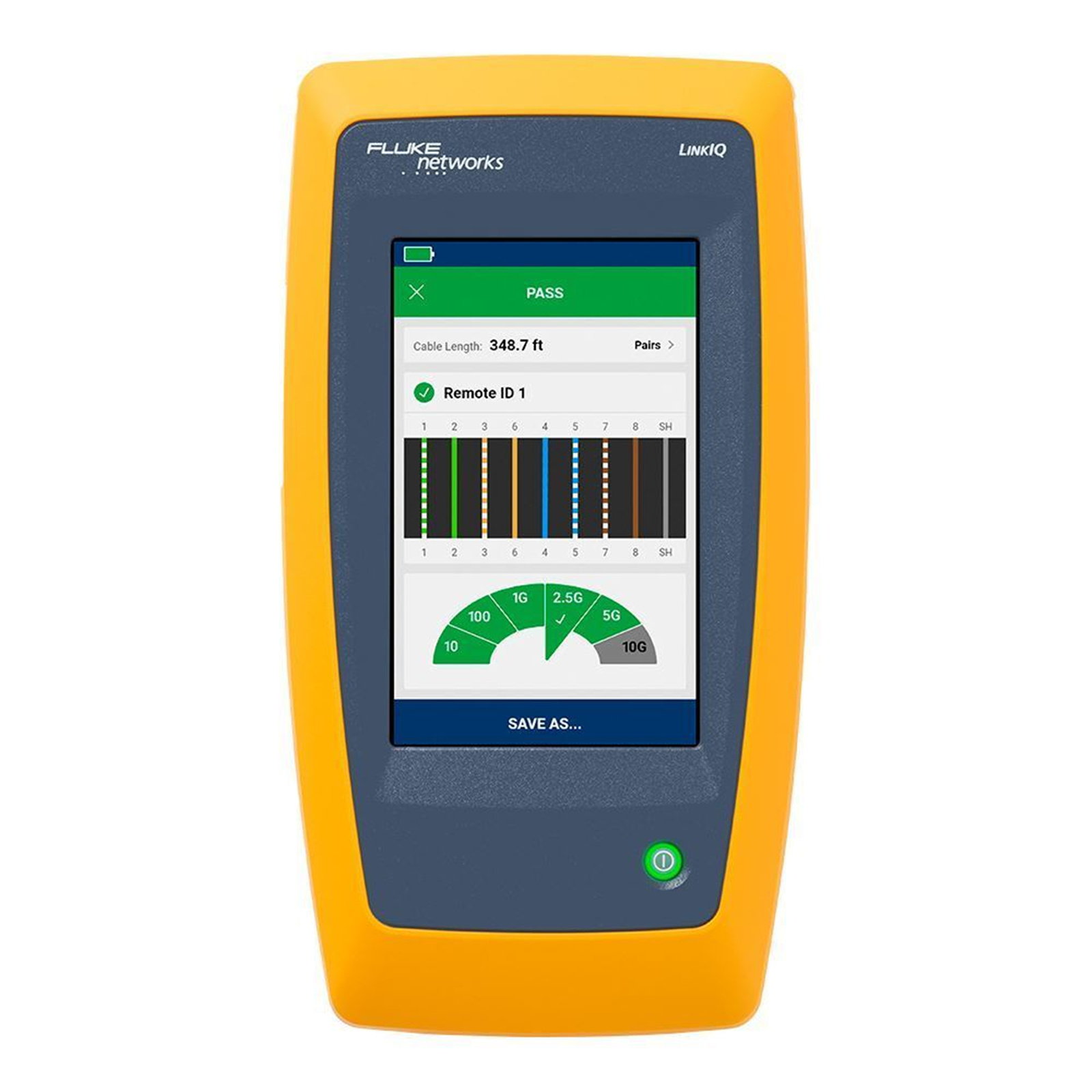

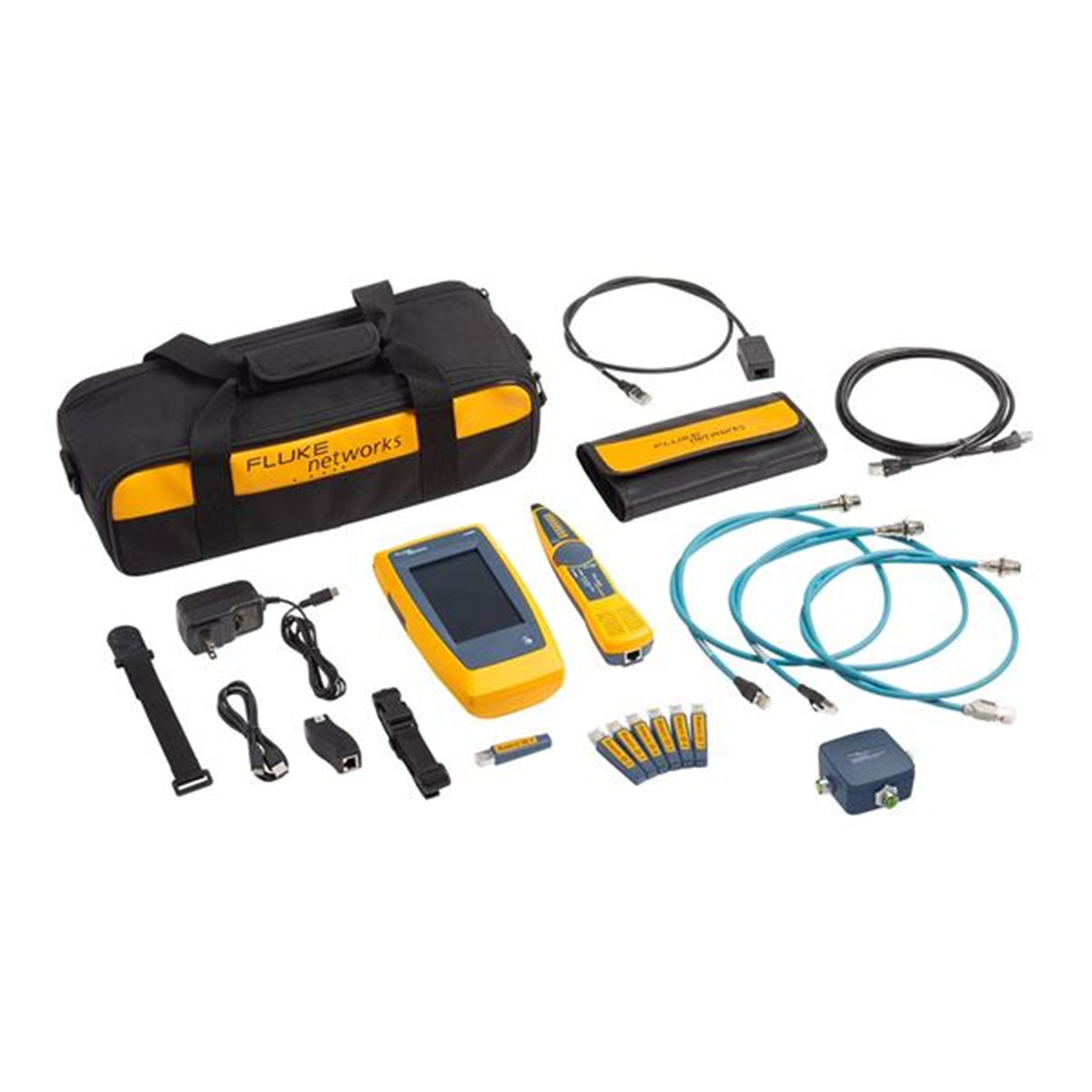

The Fluke Networks LIQ-KIT-IE LinkIQ™ Cable+Network Tester Kit comes with industrial Ethernet adapter kit, remote IDs 1-7, Intellitone probe, quick reference guide, USB-C to USB-A cable, charging cable (with international adapters), Cat6A patch cord, RJ45/11 modular adapter, hanging strap with remote ID holder, and duffle bag.
The LinkIQ™ Cable+Network Tester is the testing solution to verify cable performance up to 10Gb/s and solve network connectivity problems. LinkIQ™validates cable performance using frequency-based measurements and provides distance to fault information along with a wire map of the cable under test. TheLinkIQ™ also performs nearest switch diagnostics to identify key network issues and validate switch configuration eliminating the need of using another device. Additional features include Analog and Digital Toning, Port Blink, 802.1x authentication, Remote Office Locators, and the ability to manage results viaLinkWare™ PC.
- Find maximum cabling speed (up to 10Gb/s)
- Install and troubleshoot PoE devices via Switch Negotiation and PoE Load test
- Identify connected switch information (Switch Name, Port Number, and VLAN)
- Document your work through LinkWare™ PC

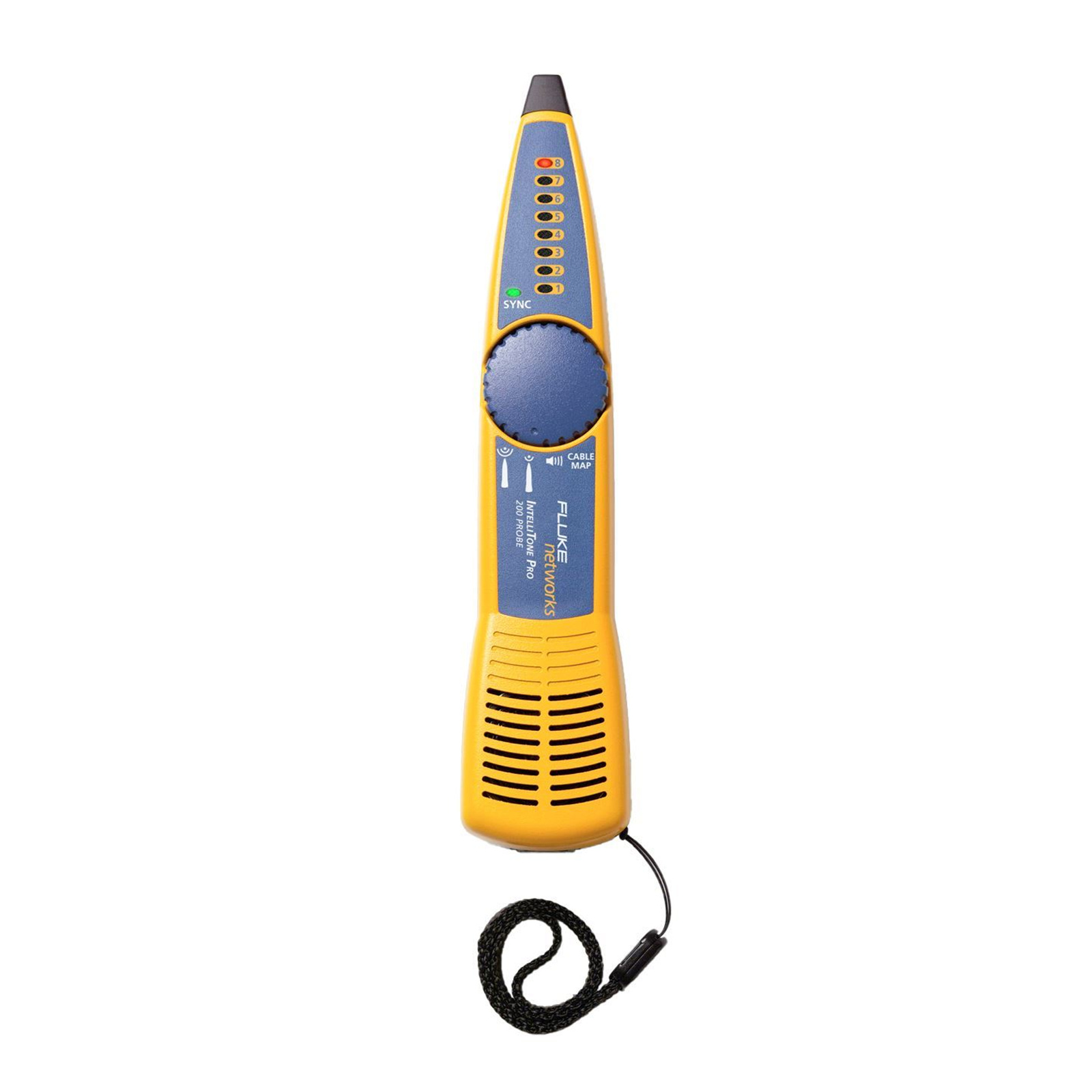

- Generate analog or digital tones compatible with IntelliTone Probe or Pro3000 for cable location
- Blink port light on switch to identify the connected switch port
- Perform cable performance testing up to 10GBASE-T with distance-to-fault and wire map analysis
- Conduct IPv4/IPv6 ping tests and nearest switch diagnostics (IP address, port, VLAN)
- Verify PoE classes 1-8 with Ethernet Alliance-certified PoE load testing
- Analyze Wi-Fi networks on 2.4 GHz, 5 GHz, and 6 GHz frequencies
- Rechargeable Li-Ion battery with USB-C charging
- Manage results and print reports via LinkWare™ PC
Cable Testing You Trust
The LinkIQ™ is capable of measuring lengths up to 305m and provides distance to faults such as opened shorts, and unterminated cable. Using the remote ID allows for a complete wire map of the cable pairs which helps identify miswired and split pairs. The primary cable testing feature of LinkIQ™ is the cable performance test which qualifies the cabling bandwidth from 10BASE-T to 10GBASE-T (10Mb/s up to 10Gb/s). It performs these tests via frequency-based measurements. Using IEEE-standards-based measurements ensures that tested links meet performance requirements as opposed to transmission testers which only prove that the specific test devices can communicate over the link.
Operators may set performance requirements from 10Mb/s to 10Gb/s for a simple pass/fail indication.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Testing & Measurement Tools
USB Inspection Camera EndoScope 2MP, Lens Diameter: 8.5mm, Cable...
Leica Disto D2 Bluetooth ISO certified measuring engine high...
ProsKit MT-4612 Dual Infrared Laser Point Thermometer Range -50...
UGREEN UG-10950 Network & Telephone Cable Tester
ProsKit MT-7058 Wire Tester Mini Lan Ethernet Cable Tester...
FLUKE LIQ-KIT-IE LinkIQ Cable Network Tester with Industrial Ethernet Adapter Kit and Probe.IncludesRemote IDs 1-7, Cat6a Patch Cord, R45/11 Modular Adapter and Strap with Remote ID Holder.
- Brand: FLUKE
- MPN: LIQ-KIT-IE
- Part #: TOLFLN52194
- UPC:754082152194
Product URL: https://www.pbtech.co.nz/product/TOLFLN52194/FLUKE-LIQ-KIT-IE-LinkIQ-Cable-Network-Tester-with
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
The Fluke Networks LIQ-KIT-IE LinkIQ™ Cable+Network Tester Kit comes with industrial Ethernet adapter kit, remote IDs 1-7, Intellitone probe, quick reference guide, USB-C to USB-A cable, charging cable (with international adapters), Cat6A patch cord, RJ45/11 modular adapter, hanging strap with remote ID holder, and duffle bag.
The LinkIQ™ Cable+Network Tester is the testing solution to verify cable performance up to 10Gb/s and solve network connectivity problems. LinkIQ™validates cable performance using frequency-based measurements and provides distance to fault information along with a wire map of the cable under test. TheLinkIQ™ also performs nearest switch diagnostics to identify key network issues and validate switch configuration eliminating the need of using another device. Additional features include Analog and Digital Toning, Port Blink, 802.1x authentication, Remote Office Locators, and the ability to manage results viaLinkWare™ PC.
- Find maximum cabling speed (up to 10Gb/s)
- Install and troubleshoot PoE devices via Switch Negotiation and PoE Load test
- Identify connected switch information (Switch Name, Port Number, and VLAN)
- Document your work through LinkWare™ PC
- Generate analog or digital tones compatible with IntelliTone Probe or Pro3000 for cable location
- Blink port light on switch to identify the connected switch port
- Perform cable performance testing up to 10GBASE-T with distance-to-fault and wire map analysis
- Conduct IPv4/IPv6 ping tests and nearest switch diagnostics (IP address, port, VLAN)
- Verify PoE classes 1-8 with Ethernet Alliance-certified PoE load testing
- Analyze Wi-Fi networks on 2.4 GHz, 5 GHz, and 6 GHz frequencies
- Rechargeable Li-Ion battery with USB-C charging
- Manage results and print reports via LinkWare™ PC
Cable Testing You Trust
The LinkIQ™ is capable of measuring lengths up to 305m and provides distance to faults such as opened shorts, and unterminated cable. Using the remote ID allows for a complete wire map of the cable pairs which helps identify miswired and split pairs. The primary cable testing feature of LinkIQ™ is the cable performance test which qualifies the cabling bandwidth from 10BASE-T to 10GBASE-T (10Mb/s up to 10Gb/s). It performs these tests via frequency-based measurements. Using IEEE-standards-based measurements ensures that tested links meet performance requirements as opposed to transmission testers which only prove that the specific test devices can communicate over the link.
Operators may set performance requirements from 10Mb/s to 10Gb/s for a simple pass/fail indication.
Specifications
Languages supported in UI
English, German, French, Japanese, Spanish, Thai, Traditional Chinese, Simplified Chinese, Korean, Russian, Italian, Portuguese, Czech, Danish, Dutch, Finnish, Norwegian, Polish, Swedish, and Turkish
Weight
1 lbs 6 oz (624g)
Battery
Type: Lithium-ion, 3.6 V, 6400 mAh;
Life: 8 hours typical;
Charge time: 4.5 hours;
Charging temperature range: 0 °C to 40 °C
Power Adapter
Input: 100 to 240 V ac ±10%, 50/60Hz;
Output: 15 V dc, 2 A maximum;
Class II
Host Interface
USB type C
Display
800 x 480 pixels color capacitive multi-touch
Dimensions
22 cm x 11 cm (8.5 in x 4.5 in)
Operating Temperature
0 °C to 45 °C (32 °F to 113 °F)
Storage Temperature
-10 °C to 60 °C (-14 °F to 140 °F)
Operating Relative Humidity
0 % to 90 %, 0 °C to 35 °C
0 % to 70 %, 35 °C to 45 °C
Operating Altitude
4,000 m
3,200 m with ac adapter
Vibration
Random, 2 g, 5 Hz-500 Hz
Drop
1 m drop, 6 sides
Diagnostic Protocols
Link Layer Discovery Protocol (LLDP),
Cisco Discovery Protocol (CDP),
Fast Link Pulses (FLP),
Internet Control Messaging Protocol (ICMP),
Dynamic Host Configuration Protocol (DHCP)
IP Address Setup
LinkIQ address, DNS Server, Gateway for IPv4 or v6 either manually or via DHCP
IP Ping Test Results
Four response time results for target, DNS Server(s), Gateway, plus average and number lost
Nearest Device Diagnostics (If available through diagnostic protocols)
Switch Name / IP + MAC Address,
Port Number,
VLAN Name,
Advertised Data Rates,
Advertised Duplex
Power Over Ethernet Compatibility
Ethernet Alliance Certified to IEEE 802.3af/at/bt,
Hardware negotiation with signature resistance,
Software negotiation with LLDP/CDP
Power Over Ethernet Diagnostics
Advertised Power Class (0-8),
Advertised Available Power,
Powered Pairs,
Diagnostics for both Single and Dual signatures
Power Over Ethernet Measurements
Loaded Voltage (V),
Loaded Power (W)
Port Blink
Blink the light of the connected port
Test Port
Shielded 8-pin modular jack accepts 8-pin modular (RJ45) plugs
Commissioning Autotests
10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T, Wire map Only.
Test Speed: 6 seconds for lengths < 70 m
Cable Types
Balanced twisted-pair cabling;
Unshielded twisted-pair;
Screened twisted-pair;
2-pair and/or 4-pair;
Adapter cables for M8D, M12D, M12X
Wire Map-Only Tests
Document wire map,
Length of each pair,
Diagnose split pairs,
User selectable T568A or T568B,
User selectable crossover settings (Straight through, Half-crossover, Full-crossover).
Test speed: 1 second for lengths < 120 m
Length (Maximum)
305 m (1000 ft)
Nominal Velocity of Propagation (NVP)
User settable
Tone Generator
Generates digital tones compatible with Fluke Networks IntelliTone probe.
Generates analog tones compatible with general analog probes.
Remote ID
Locators Includes on remote identifier with RJ-45, M8D, M12D, and M12X connectors. Optional RJ terminations identify up to 6 additional unique ports or office outlets.
Supported Wireless Standards
802.11b, 802.11a, 802.11g, 802.11n (Wi-Fi 4), 802.11ac (Wi-Fi 5), and 802.11ax (Wi-Fi 6/6E).
Additionally, the tester will report the presence of future standards, such as 802.11be, if the standard's presence can be decoded in a supported beacon.
Frequencies Supported
Frequencies of channels received and transmitted (where allowed by country regulations): 2.4 GHz band: 2.402 to 2.482 GHz (channel 1 to channel 13); 5 GHz band: 5.170 to 5.330 GHz, 5.490 to 5.730 GHz, 5.735 to 5.835 GHz (channel 36 to channel 165); 6 GHz band: 5.945 to 7.125 GHz (channel 1 to channel 233).
NOTE: The tester transmits only on the frequencies allowed in the country where it is sold.
Country certifications
AE, AU, AR, BR, CA, CL, CN, IN, JP, KR, KW, MY, MX, NZ, PH, SG, TH, TW, UK, US, ZA, plus the European Union
(Completed or in process. Contact your local Fluke representative for details.)
Network Tests
Number and name (BSSID) of available access points, signal strength, security type, IEEE 802.11 standard supported
Access Point Tests
Networks supported / country code, BSSID, signal strength, band/channel/bandwidth, IEEE 802.11 standards supported, security types, TX/RX rates
Channel Tests
Utilization, Number / signal strength of access points, overlap
