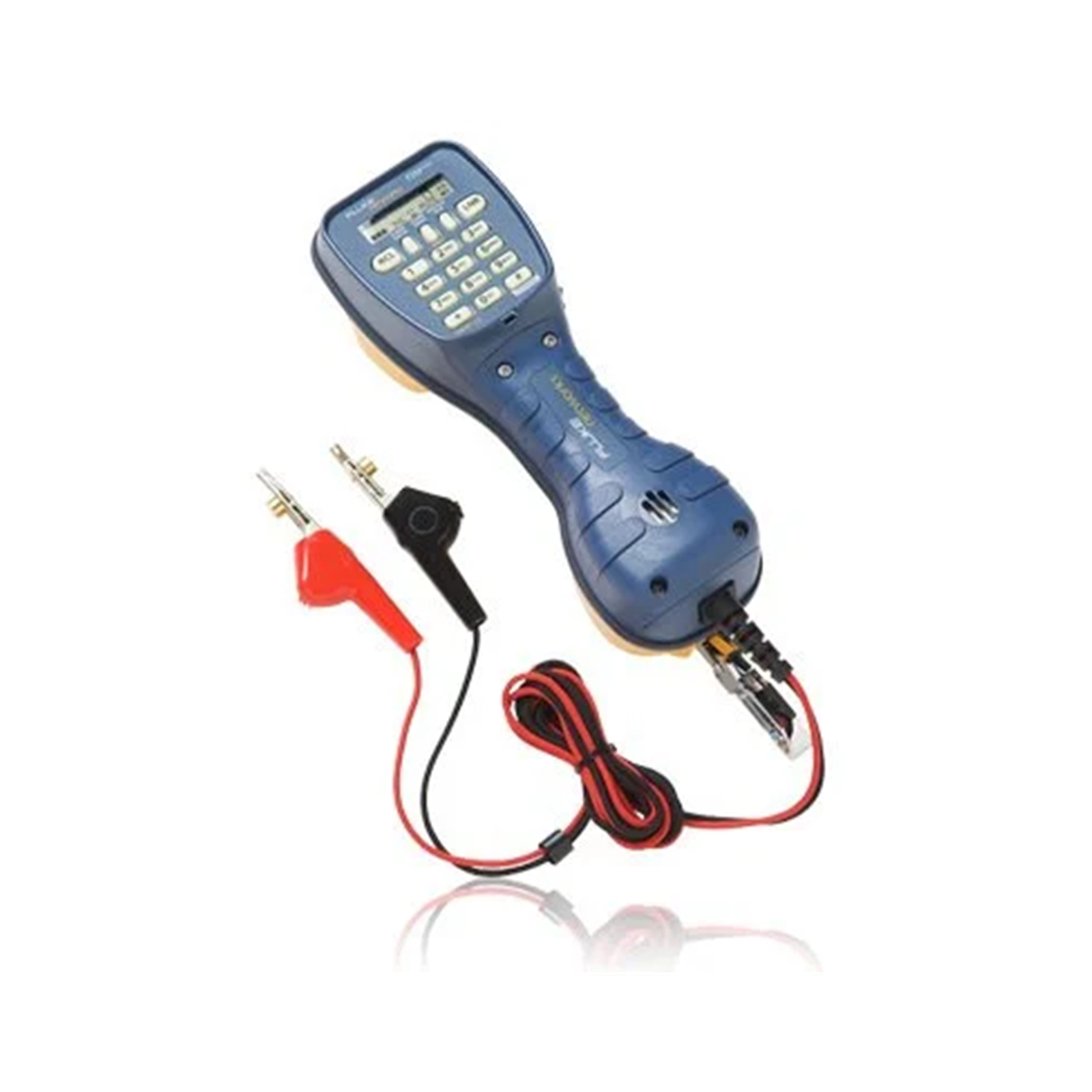

FLUKE 52801009 TS52 Pro Test Set with ABN/PP Clips.

PB Tech price
PB Tech price
$ 1,480 .00
 +GST
$ 1,702 .00
 inc GST

Out of stock

FLUKE 52801009 TS52 Pro Test Set with ABN/PP Clips.

  • Brand: FLUKE
  • MPN: 52801009
  • Part #: TOLFLN63193
  • UPC: 754082063193
PB Tech price
$ 1,480 .00 $ 1,702 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: FLUKE
  • MPN: 52801009
  • Part #: TOLFLN63193
  • UPC: 754082063193

Features

Fluke Networks' new TS®52 PRO Test Set features the latest in test set technology. Designed with a superior, radiant liquid crystal display (LCD) user interface, it allows you to see what cannot be heard in any outside plant environment.

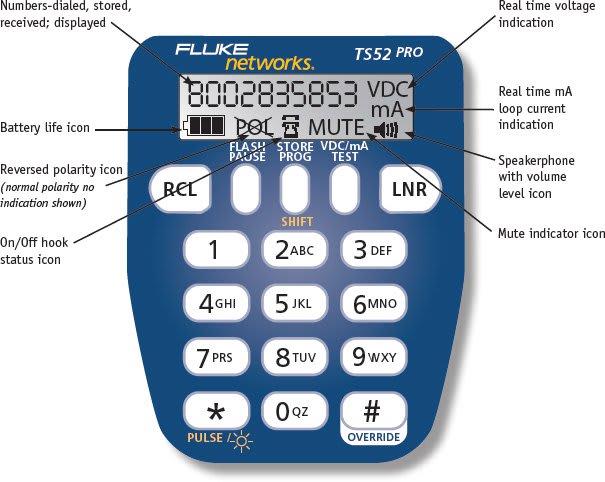

The backlit LCD and phosphorescent (glow-in-the-dark) keypad bring light to even the darkest of work environments, providing perfect line diagnostic clarity.

The TS®52 PRO Test Set is also equipped with a 2-Way Speakerphone and DataSafe™ Pro data protection technology featuring superior high-impedance monitoring, Data Lockout and Lockout Override, making you completely safe.

- 52801009 TS52 PRO Test Set with ABN
- Data lockout with data lockout override
- 2-Way hands-free speakerphone: for true hands-free conversation
- Line and battery powered: shares power from the telephone line and the 9V internal battery, increasing the life of the battery
- Replaceable heavy-duty braided cord and locking spring loaded belt clip
- Low battery indication
- Mute indication
- Polarity indication
- Tone & pulse dialling
- (Optional) 1-Way amplified speakerphone mode
- Amplified speaker
- Last number redial
- Over-voltage protection
- Over current protection
- High voltage lockout
- Mute
- PBX pause button
- Speed dialing
- Volume control levels
- Hearing aid compatible
- DropSafe

Testing Functions

- Data indication - warns when data is present.
- Voltage indication - troubleshooting feature to identify potential line problems
- Current (mA) indication - verifies sufficient line current
- Caller-ID - verifies service is functional
- DTMF Digit Grabbing - Isolate faulty customer premise equipment

Specifications

Electrical

Current Range (Off-Hook)

10 mA to 100 mA

DC Resistance

Off-Hook

150 ??nominal

On-Hook

>3 M ?

AC Impedance

Off-Hook

600 ??nominal; 300 Hz to 3400 Hz

On-Hook

>120 k? 300 Hz to 3400 Hz

Rotary Dial Output

Pulsing Rate

10 pps ±1 pps

Break/Make Ratio

60/40

Interdigit Interval

>300 ms

Resistance During Break

>100 k?

DTMF Output

Tone Frequency Error

±1.5 % maximum

Tone Level

-3 dBm combined (typical)

High versus Low Tone Difference

2 dB ± 2 dB

Memory Dialing

Memory Capacity

10 speed dial memories plus one last number redial memory

Digit Capacity

23 digits per memory

PBX Pause Duration

4 seconds

Hook Flash Duration

User programmable; default of 600 ms

Automatic Speaker Shut Off Duration

User programmable; default of 2 minutes

Battery

9 V alkaline battery

Physical

Measurement

10 in x 3.75 in x 4.25 in (254 mm x 96 mm x 107 mm)

Weight

Less than 1.5 pounds (0.68 kg) with one belt clip

Water Resistance

Designed to be rain and moisture resistant.

Drop Test

Passes 20 foot drop test

Temperature Range

Handset speech and dialing functions

-22°F to 140 °F (-30°C to 60°C)

LCD function

-13°F to 140°F (-25°C to 60°C)

Storage

-22°F to 150°F (-30°C to 66°C)

Altitude

To 10,000 ft. (3,000 m) max

Relative Humidity

95% to 30°C
75% to 40°C
45% to 50°C
30% to 60°C

Safety

Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, UL 61010-1 (2004) and IEC/EN 61010-1 2nd Edition for measurement Category I, 300 Vdc Max, Pollution Degree 2

EMC

Complies with EMC EN61326-1

Manufacturer Part No:
52801009
Brand:
FLUKE
Product Type:
-
UPC
754082063193
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
TOLFLN63193
Product Model:
-
Warranty: 12 months *
