FLUKE 52801RJ9 TS52 Pro Test Set with ABN/PP Clips and RJ11 Plug.
Out of stock
FLUKE 52801RJ9 TS52 Pro Test Set with ABN/PP Clips and RJ11 Plug.
- Brand: FLUKE
- MPN: 52801RJ9
- Part #: TOLFLN63216
- UPC: 754082063216
- Brand: FLUKE
- MPN: 52801RJ9
- Part #: TOLFLN63216
- UPC: 754082063216
Features

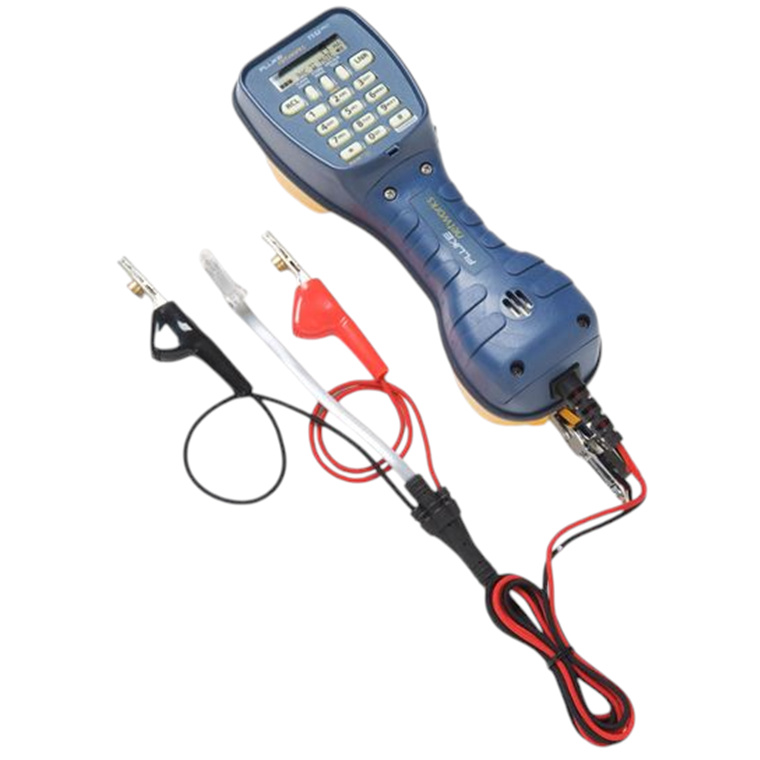

FLUKE NETWORKS TS52 Pro Test Set with ABN/PP Clips and RJ11 Plug
Fluke Networks' new TS®52 PRO Test Set features the latest in test set technology. Designed with a superior, radiant liquid crystal display (LCD) user interface, it allows you to see what cannot be heard in any outside plant environment.
The backlit LCD and phosphorescent (glow-in-the-dark) keypad bring light to even the darkest of work environments, providing perfect line diagnostic clarity.
The TS®52 PRO Test Set is also equipped with 2a -Way Speakerphone and DataSafe™ Pro data protection technology featuring superior high-impedance monitoring, Data Lockout and Lockout Override, making you completely safe.
Five Testing Functions
Data indication - warns when data is present.
Voltage indication - troubleshooting feature to identify potential line problems
Current (mA) indication - verifies sufficient line current
Caller-ID - verifies service is functional
DTMF Digit Grabbing - Isolate faulty customer premise equipment
Other Features
- Data lockout with data lockout override
- 2-Way hands-free speakerphone: for true hands-free conversation
- Line and battery powered: shares power from the telephone line and the 9v internal battery, increasing the life of the battery
- Replaceable heavy-duty braided cord and locking spring loaded belt clip
- Low battery indication
- Mute indication
- Polarity indication
- Tone & pulse dialing
- (Optional) 1-Way amplified speakerphone mode
- Amplified speaker
- Last number redial
- Over voltage protection
- Over current protection
- High voltage lockout
- Mute
- PBX pause button
- Speed dialing
- Volume control levels
- Hearing aid compatible
- Visual ANAC mode
*visual ANAC (automatic number announcement circuit) for service provider use only, not available in all regions
Durability & Exterior
- Rainsafe and Weatherproof case design for severe weather conditions
- DropSafe™ 20ft onto concrete
- Mountable, top or bottom, extra large metal locking belt clip
- Line cord strain relief

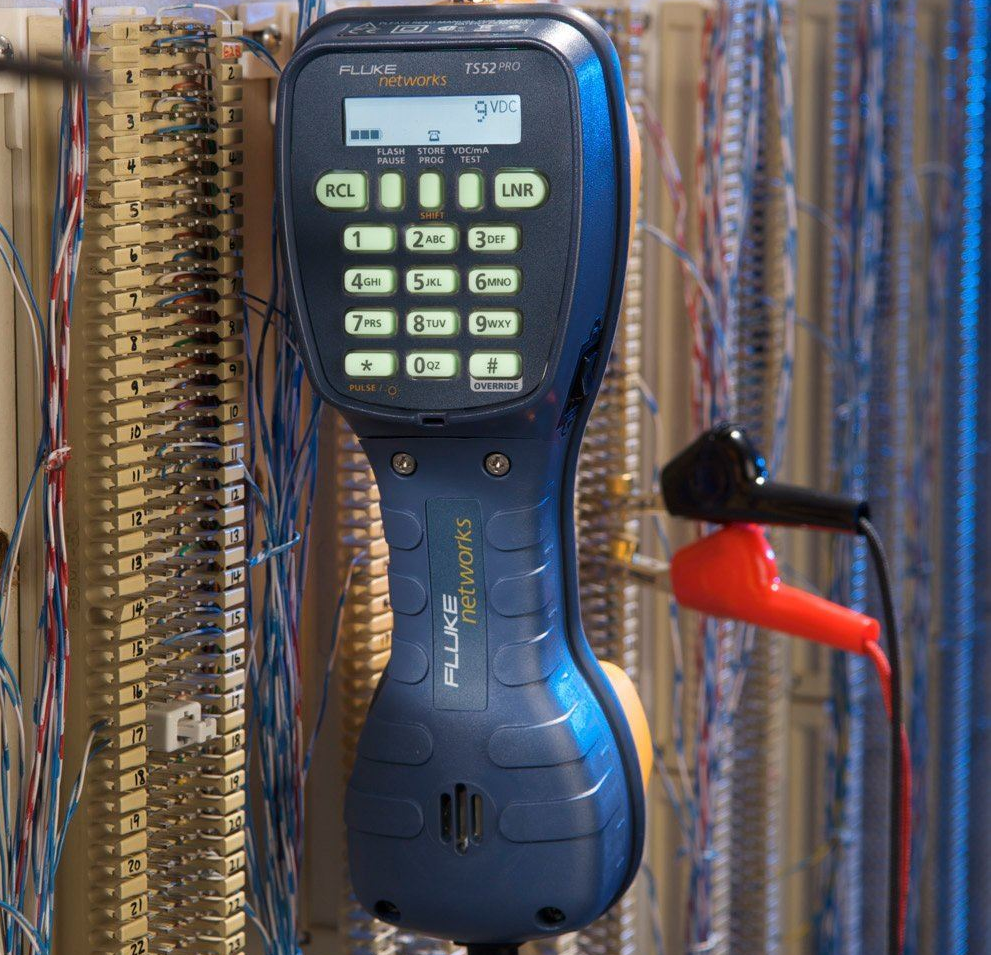

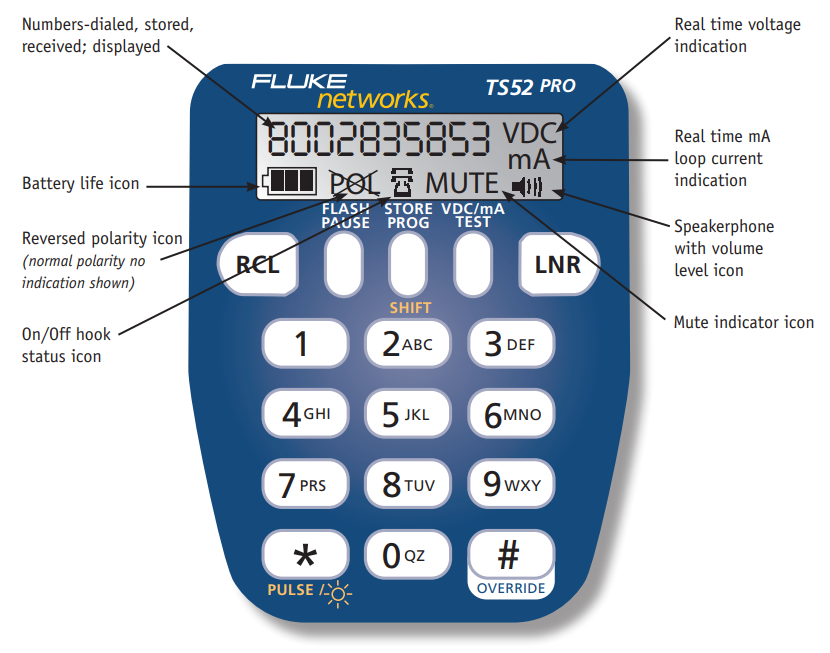

Display: Easy-to-read visual indicator icons
Applications

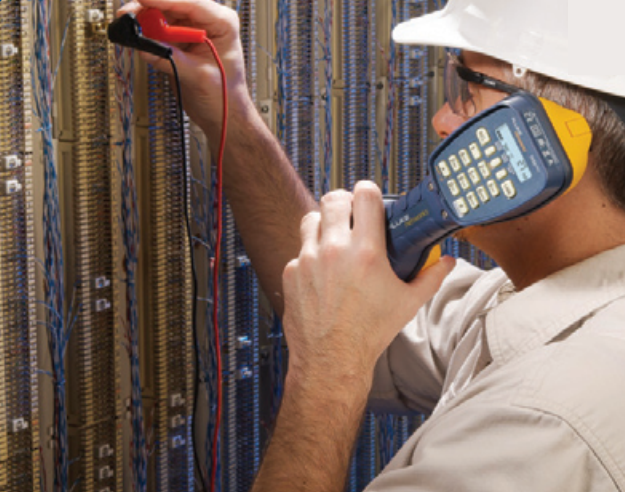

Telephone/Data Room or Central Office

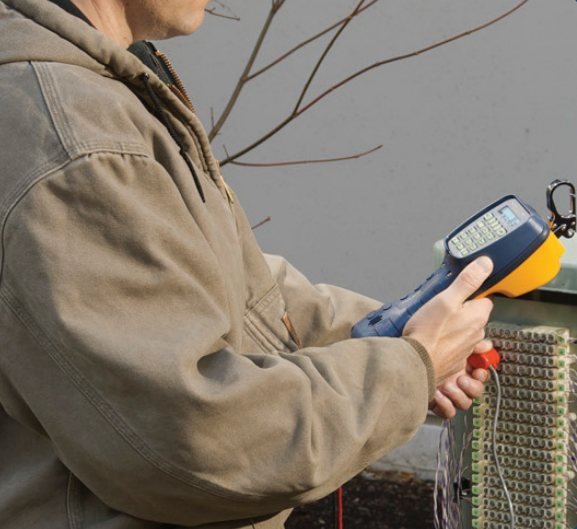

Cross Box or Serving Terminal

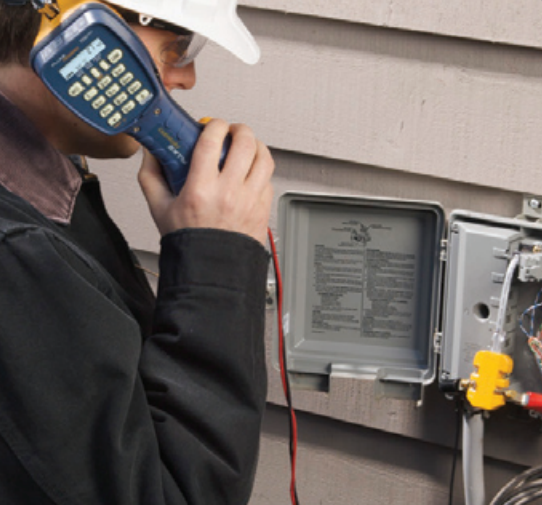

Inside or Outside the Customer Premise
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Testing & Measurement Tools
USB Inspection Camera EndoScope 2MP, Lens Diameter: 8.5mm, Cable...
Leica Disto D2 Bluetooth ISO certified measuring engine high...
UGREEN UG-10950 Network & Telephone Cable Tester
ProsKit MT-4612 Dual Infrared Laser Point Thermometer Range -50...
ProsKit MT-7029N Noise-Filtering Network PoE Toner & Probe Kit
FLUKE 52801RJ9 TS52 Pro Test Set with ABN/PP Clips and RJ11 Plug.
- Brand: FLUKE
- MPN: 52801RJ9
- Part #: TOLFLN63216
- UPC:754082063216
Product URL: https://www.pbtech.co.nz/product/TOLFLN63216/FLUKE-52801RJ9-TS52-Pro-Test-Set-with-ABNPP-Clips
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
FLUKE NETWORKS TS52 Pro Test Set with ABN/PP Clips and RJ11 Plug
Fluke Networks' new TS®52 PRO Test Set features the latest in test set technology. Designed with a superior, radiant liquid crystal display (LCD) user interface, it allows you to see what cannot be heard in any outside plant environment.
The backlit LCD and phosphorescent (glow-in-the-dark) keypad bring light to even the darkest of work environments, providing perfect line diagnostic clarity.
The TS®52 PRO Test Set is also equipped with 2a -Way Speakerphone and DataSafe™ Pro data protection technology featuring superior high-impedance monitoring, Data Lockout and Lockout Override, making you completely safe.
Five Testing Functions
Data indication - warns when data is present.
Voltage indication - troubleshooting feature to identify potential line problems
Current (mA) indication - verifies sufficient line current
Caller-ID - verifies service is functional
DTMF Digit Grabbing - Isolate faulty customer premise equipment
Other Features
- Data lockout with data lockout override
- 2-Way hands-free speakerphone: for true hands-free conversation
- Line and battery powered: shares power from the telephone line and the 9v internal battery, increasing the life of the battery
- Replaceable heavy-duty braided cord and locking spring loaded belt clip
- Low battery indication
- Mute indication
- Polarity indication
- Tone & pulse dialing
- (Optional) 1-Way amplified speakerphone mode
- Amplified speaker
- Last number redial
- Over voltage protection
- Over current protection
- High voltage lockout
- Mute
- PBX pause button
- Speed dialing
- Volume control levels
- Hearing aid compatible
- Visual ANAC mode
*visual ANAC (automatic number announcement circuit) for service provider use only, not available in all regions
Durability & Exterior
- Rainsafe and Weatherproof case design for severe weather conditions
- DropSafe™ 20ft onto concrete
- Mountable, top or bottom, extra large metal locking belt clip
- Line cord strain relief
Display: Easy-to-read visual indicator icons
Applications
Telephone/Data Room or Central Office
Cross Box or Serving Terminal
Inside or Outside the Customer Premise
Specifications
Electrical
Current Range (Off-Hook)
10 mA to 100 mA
DC Resistance
Off-Hook
150 Ohm?nominal
On-Hook
>3 M Ohm
AC Impedance
Off-Hook
600 Ohm?nominal; 300 Hz to 3400 Hz
On-Hook
>120 kOhm 300 Hz to 3400 Hz
Rotary Dial Output
Pulsing Rate
10 pps ±1 pps
Break/Make Ratio
60/40
Interdigit Interval
>300 ms
Resistance During Break
>100 kOhm
DTMF Output
Tone Frequency Error
±1.5 % maximum
Tone Level
-3 dBm combined (typical)
High versus Low Tone Difference
2 dB ± 2 dB
Memory Dialing
Memory Capacity
10 speed dial memories plus one last number redial memory
Digit Capacity
23 digits per memory
PBX Pause Duration
4 seconds
Hook Flash Duration
User programmable; default of 600 ms
Automatic Speaker Shut Off Duration
User programmable; default of 2 minutes
Battery
9 V alkaline battery
Physical
Measurement
10 in x 3.75 in x 4.25 in (254 mm x 96 mm x 107 mm)
Weight
Less than 1.5 pounds (0.68 kg) with one belt clip
Water Resistance
Designed to be rain and moisture resistant.
Drop Test
Passes 20 foot drop test
Temperature Range
Handset speech and dialing functions
-22°F to 140 °F (-30°C to 60°C)
LCD function
-13°F to 140°F (-25°C to 60°C)
Storage
-22°F to 150°F (-30°C to 66°C)
Altitude
To 10,000 ft. (3,000 m) max
Relative Humidity
95% to 30°C
75% to 40°C
45% to 50°C
30% to 60°C
Safety
Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, UL 61010-1 (2004) and IEC/EN 61010-1 2nd Edition for measurement Category I, 300 Vdc Max, Pollution Degree 2
EMC
Complies with EMC EN61326-1
