FLUKE TS54A09TDR ts54 Prem LCd Butt-In Test Set TDR, ABN with P/Pin

PB Tech price
PB Tech price
$ 1,920 .00
 +GST
$ 2,208 .00
 inc GST

Out of stock

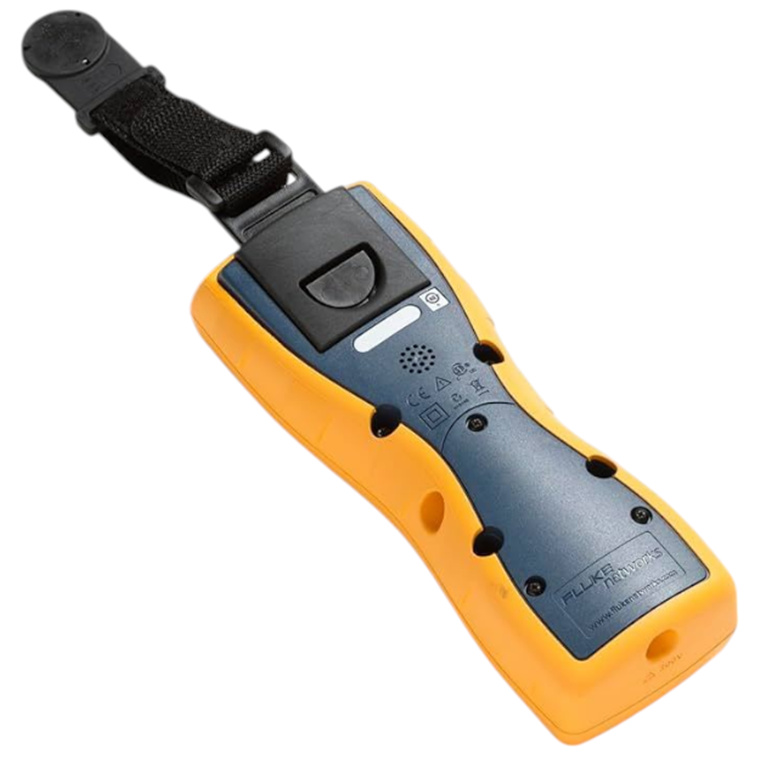

FLUKE TS54A09TDR ts54 Prem LCd Butt-In Test Set TDR, ABN with P/Pin

  • Brand: FLUKE
  • MPN: TS54A09TDR
  • Part #: TOLFLN81654
  • UPC: 754082081654
PB Tech price
$ 1,920 .00 $ 2,208 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: FLUKE
  • MPN: TS54A09TDR
  • Part #: TOLFLN81654
  • UPC: 754082081654

Features

FLUKE ts54 Prem LCd Butt-In Test Set TDR, ABN with P/Pin

Fluke Networks' new TS52 PRO Test Set features the latest in test set technology. Designed with a superior, radiant liquid crystal display (LCD) user interface, it allows you to see what cannot be heard in any outside plant environment.

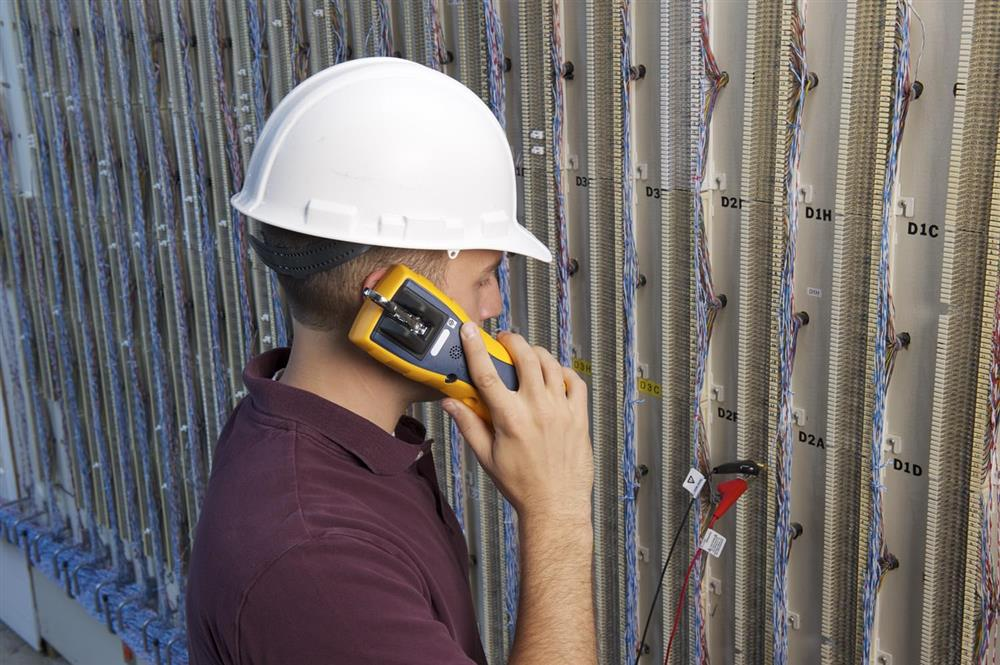

The innovative TS54 TDR (Time Domain Reflector) is perfect for voice, data and video technicians and communication service provider technicians who need a best-in-class test set combined with a powerful TDR and toner. Fluke Networks took the best telephone test set features and designs and combined them into one. There's nothing else like the TS54 TDR on the market today. No longer will you need to carry a separate TDR, toner, pair identifier and butt-in test set-everything you need is in one newly redesigned and compact package.

The TS54 delivers 20% more extreme weather protection with the latest advancements to our patented RainSafe™, DropSafe™ and DataSafe™ technology. This means the TS54 is weatherproof and rugged and able to butt in on live DSL lines to test POTS quality without crashing data service.

- Quick One-Button TDR Test
- Opens and Shorts to 914 meters
- Integrated Toner
- SmartTone (5 different tones) for Exact Pair Identification
- Extra Large LCD w/ Glow-in-Dark Keys
- Caller ID w/ Call Waiting
- Highly Portable
- Familiar Cell Phone Menu (Contacts, etc)
- No-Reverse Battery Design
- Improved Durability: IP64

Specifications

Electrical

Current range (Off-hook)

10 mA to 100 mA

DC Resistance

Off-hook

150 Ohm nominal

On-hook

>3 M Ohm

AC Impedance

Off-hook

600 Ohm nominal; 300 Hz to 3400 Hz

On-hook

>120 kOhm 300 Hz to 3400 Hz

Headset impedance

32 Ohm

Rotary Dial Output

Pulsing Rate

10 pps ±1 pps

Break/make ratio

60/40

Interdigit interval

>300 ms

Resistance during break

>100 kOhm

DTMF Output

Tone frequency error

±1.5 % maximum

Tone Level

-3 dBm combined (typical)

High versus low tone difference

2 dB ± 2 dB

Speed Dialing

Memory capacity

9 speed dial memoriesof 23 digits, plus one last number redial memory

PBX pause duration

User programmable; default of 4 seconds

Hook flash duration

User programmable; default of 500 ms

Automatic shut-off duration

User programmable; default of 2 minutes

Voltage measurement

Range

4 V dc to 140 V dc

Current measurement

Range

0 mA to 100 mA

TDR

Range

3,000 feet (914 m)

Accuracy

±2 m ±5 %

SmartTone toner

Frequencies

Steady tone: 950 Hz

Power

Battery type

9 V alkaline battery

Physical

Measurement

8.3 in x 3.2 in x 2.6 in (211 mm x 81 mm x 66 mm) (without belt)

Weight

1.16 lb (0.53 kg) (without belt clip)

Water resistance

The test set is rain and moisture resistant and IP64 rated

Environmental Temperature Range

Handset speech and dialing functions

-22°F to 140 °F (-30°C to 60°C)

LCD function

-13°F to 140°F (-25°C to 60°C)

Storage

-22°F to 150°F (-30°C to 66°C)

Altitude

To 10,000 ft. (3,000 m) max

Relative Humidity

95% to 30°C
75% to 40°C
45% to 50°C
30% to 60°C

Safety

Regulatory compliance

Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, UL 61010-1 (2004) and IEC 61010-1:2010 for measurement category I, 300 V dc maximum, pollution degree 2

Maximum transient voltage

1500 V

EMC

Complies with EMC EN61326-1

Manufacturer Part No:
TS54A09TDR
Brand:
FLUKE
Product Type:
-
UPC
754082081654
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
TOLFLN81654
Product Model:
-
Warranty: 12 months *
