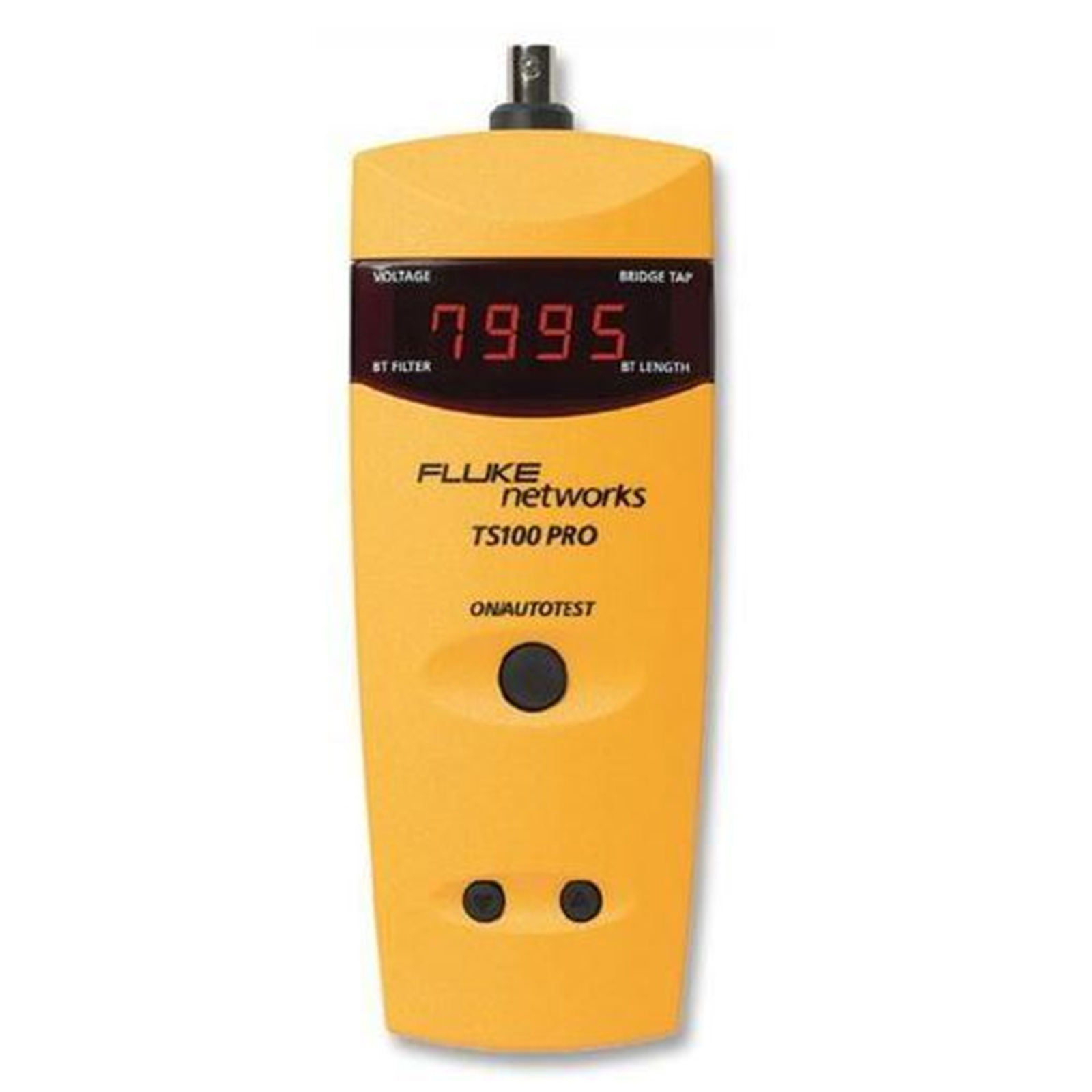

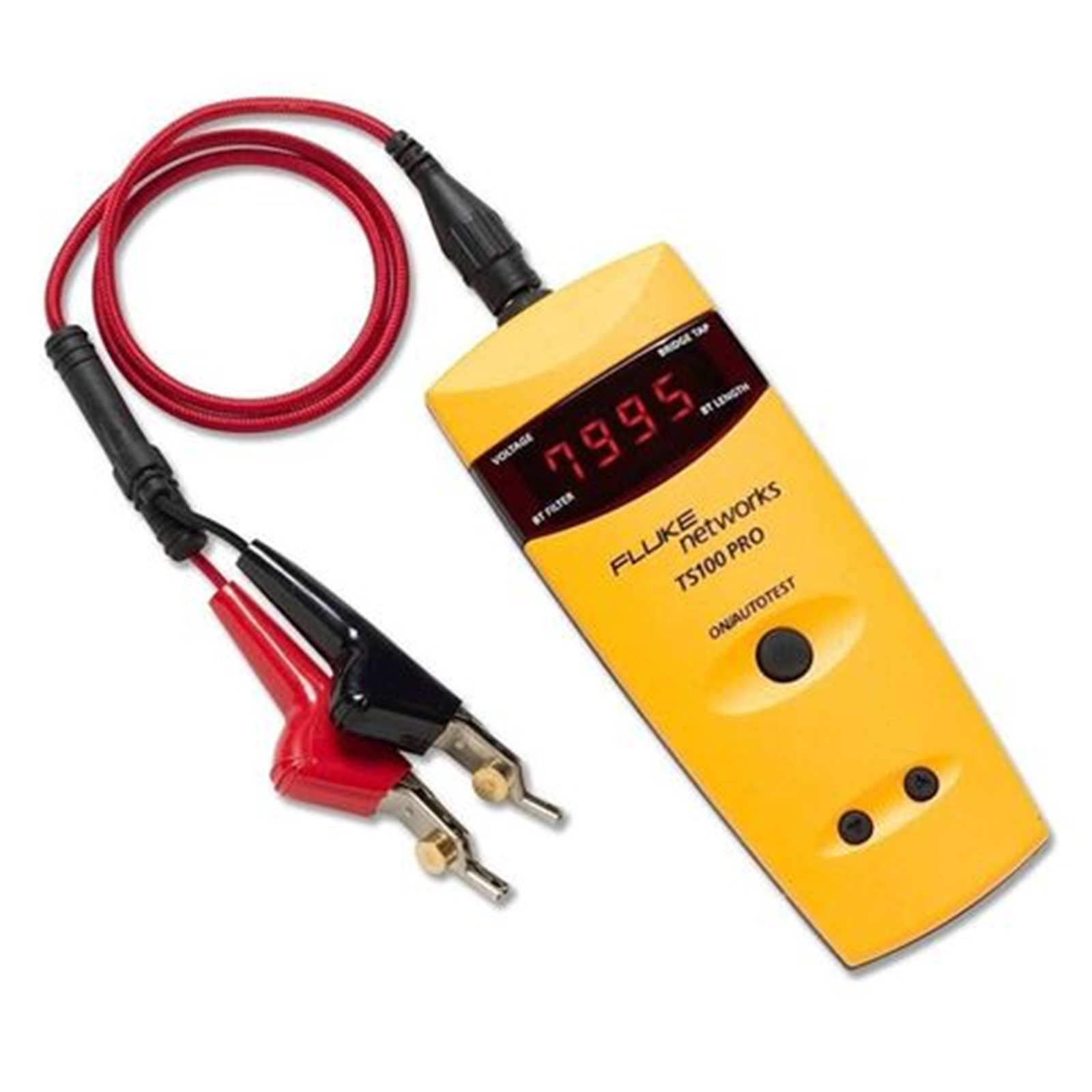

FLUKE TS100PRO-BT-TDR ts100 Pro Cable Fault Finder TDR Kit W/ Bridge Tap Detect
Out of stock
FLUKE TS100PRO-BT-TDR ts100 Pro Cable Fault Finder TDR Kit W/ Bridge Tap Detect
- Brand: FLUKE
- MPN: TS100PRO-BT-TDR
- Part #: TOLFLN84037
- UPC: 754082084037
- Brand: FLUKE
- MPN: TS100PRO-BT-TDR
- Part #: TOLFLN84037
- UPC: 754082084037
Features
The new TS®100 PRO Cable Fault Finder with PowerBT™ Bridge Tap Detect not only provides open/short circuit detection - to 2.4km - but is also a telecom technician's first line of defence against bridge taps.
Because bridge taps are a significant source of DSL network performance problems, they need to be identified and fixed quickly before causing customer attrition. The TS100 PRO can accurately locate multiple bridge taps in seconds on up to 975m of cable with the touch of a button.
An essential five-in-one tool, the TS100 PRO also gives users a built-in toner with five different tones and patented SmartTone® for exact pair identification and reports AC/DC voltage from just one end of any two conductor wires, telephone wires, security wires or coax cables. This time-saving multi-tool is so affordable every technician can have one.
- TS 100 PRO Cable Fault Finder with PowerBT Bridge Tap
- Bridge tap detection for xDSL pre-qualification
Reports distance to multiple bridges taps up to 975 metres
Sees past bridge taps to the end of the cable
- Long-distance tester-tests opens and shorts up to 2.4 kilometres
- Patented SmartTone tone generator with five different tones for exact pair identification
- Built-in TDR (Time Domain Reflector)
- AC/DC voltage detection
- One-button testing
- Built-in toner
Benefits
- Affordable bridge tap detection
- Improved DSL network performance
- Five-in-one tool; bridge tap detector, open and short detector, voltage detector,
- SmartTone with five different tones
- No complicated set up or expertise required
- No interpretation or analyses of complex graphs
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Testing & Measurement Tools
USB Inspection Camera EndoScope 2MP, Lens Diameter: 8.5mm, Cable...
Leica Disto D2 Bluetooth ISO certified measuring engine high...
ProsKit MT-4612 Dual Infrared Laser Point Thermometer Range -50...
UGREEN UG-10950 Network & Telephone Cable Tester
ProsKit MT-7058 Wire Tester Mini Lan Ethernet Cable Tester...
FLUKE TS100PRO-BT-TDR ts100 Pro Cable Fault Finder TDR Kit W/ Bridge Tap Detect
- Brand: FLUKE
- MPN: TS100PRO-BT-TDR
- Part #: TOLFLN84037
- UPC:754082084037
Product URL: https://www.pbtech.co.nz/product/TOLFLN84037/FLUKE-TS100PRO-BT-TDR-ts100-Pro-Cable-Fault-Finder
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
The new TS®100 PRO Cable Fault Finder with PowerBT™ Bridge Tap Detect not only provides open/short circuit detection - to 2.4km - but is also a telecom technician's first line of defence against bridge taps.
Because bridge taps are a significant source of DSL network performance problems, they need to be identified and fixed quickly before causing customer attrition. The TS100 PRO can accurately locate multiple bridge taps in seconds on up to 975m of cable with the touch of a button.
An essential five-in-one tool, the TS100 PRO also gives users a built-in toner with five different tones and patented SmartTone® for exact pair identification and reports AC/DC voltage from just one end of any two conductor wires, telephone wires, security wires or coax cables. This time-saving multi-tool is so affordable every technician can have one.
- TS 100 PRO Cable Fault Finder with PowerBT Bridge Tap
- Bridge tap detection for xDSL pre-qualification
Reports distance to multiple bridges taps up to 975 metres
Sees past bridge taps to the end of the cable
- Long-distance tester-tests opens and shorts up to 2.4 kilometres
- Patented SmartTone tone generator with five different tones for exact pair identification
- Built-in TDR (Time Domain Reflector)
- AC/DC voltage detection
- One-button testing
- Built-in toner
Benefits
- Affordable bridge tap detection
- Improved DSL network performance
- Five-in-one tool; bridge tap detector, open and short detector, voltage detector,
- SmartTone with five different tones
- No complicated set up or expertise required
- No interpretation or analyses of complex graphs
Specifications
Tool type
Cable Fault Finder / TDR Tester
Manufacturer
Fluke Networks
Model No.
TS100PRO-BT-TDR
Maximum Length
8,000 feet (2,438 meters) on certain cable types, 4,000 feet (1,220 meters) on most cable types, and 500 feet (152 meters) on cables with high loss. The tester shows -Err if the cable is too long to be correctly measured.
Representative Maximum Cable Length
8,000 feet (2,438 meters): CAT-3 Twisted Pair
8,000 feet (2,438 meters): CAT-5 Twisted Pair
6,000 feet (1,830 meters): 12/2 AC Wire
3,000 feet (900 meters): RG-6/U TV Coax
1,500 feet (457 meters): RG-174/U Coax
Minimum Length
No minimum length (can read a bridge tap at 0 feet/meters). Minimum non-zero reading is 2 feet or 1 meter.
Length Accuracy
"±2 feet (±0.6 m) for cables less than 10 feet (3 m)
±5 feet (±2 m) for cables longer than 10 feet (3 m) and shorter than 200 feet (60 m)
+/-3%+/-5 feet (±2 m) for cables longer than 200 feet (60 m)"
Distance to Bridge Tap
0 feet to 3,200 feet (975 meters)
Minimum Length of Bridge Tap
10% of the distance to the bridge tap. Dependent on the cable characteristics.
Measurement Rate
Maximum of 4 complete measurements per second, decreasing to 2 seconds per measurement based on cable size and uniformity.
VOP
Adjustable from 20 to 99, saved in ?ash memory.
Test Technology
Time Domain Re?ectometry (TDR) with 100 O drive impedance, 6v maximum pulse height.
Cable Type
Virtually all two or more conductor cables.
Power
4 AA alkaline batteries.
Reverse Battery Protection
No damage to the tester will occur if the batteries are installed backwards.
Battery Life
35 hours (typical)
Low Battery Indication
LED display alternates between LO and bAtt when the battery voltage falls below 4.5v.
Maximum Output Voltage
4 voltage peak
Maximum Isolation Voltage
250 volts RMS
Voltage Measurements
Range: 0 volts AC to 115 volts AC; 0 volts DC to ±150 volts DC
Accuracy: AC: +/-1%+/-2 volts (45 Hz to 65 Hz); DC: +/-1%+/-2 volts DC
High Voltage Detection
AC voltage detected to 115 volts; DC voltage detected to ±150 volts.
AC voltage =90 volts or DC voltage =100 volts causes high voltage warnings to show on the display
SmartTone® (5-tones) Range
7,000 feet (2,134 meters)
Toner Range
52,800 feet (16,093 meters)
Tone Injection Approximately 1 kHz at an amplitude of 80% of battery voltage. Variable frequency and cadence. Tone characteristics change as cable condition changes to "normal-open" from any other condition.
Impedance Range
35 O to 330 O with auto-compensation within this range. Cables with impedances outside this range will not be properly tested and may produce erratic or incorrect readings.
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: 32°F to 131°F (0°C to 55°C)
Humidity Operating: 20% to 80% relative humidity
Storage: 0% to 100% relative humidity
Operating Humidity
80% maximum at 86°F (30°C )
50% maximum at 104°F (40°C )
Operating Altitude
9,843 ft max (3,000 m max)
Weight
1 lb (454 grams)
Dimensions
7.4 in x 2.7 in x 1.4 in (18.8 cm x 6.9 cm x 3.6 cm)
Safety
IEC 61010-1:2010; N10140
EMC: IEC/EN61326-1:2006
Certifications and Compliance
Conforms to relevant European Union directives
Conforms to relevant Australian standards
IEC/EN61010-1 CAN/CSA-C22.2 No. 1010.1-92 + CSA-C22.2 No. 1010.1B-97, UL/ANSI 3111-1
