Fenix Search & Rescue LR35R Rechargable LED Torch Max 10,000 Lumens, Head: 2.03" (51.5mm), Powered by 2 x 21700 4000mAH Li-ion Batteries (8000mAh total), Flashlight & Torch, 2 x 21700 4000mAH Li-ion Batteries and USB Charging Cable are Incl

Experience the brightness like never before with our powerful LED torch!
  • Brand: Fenix
  • MPN: FNX-LR35R
  • Part #: TOLFNX0010
  • UPC:
7
PB Tech price
$ 343 .43 $ 394 .94
 +GST  inc GST
Tax free price $364.04


Click & Collect: Available from 16 stores.
Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
$343.43  +GST
$394.94

Six easy payments of $67.80 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Laybuy

Four payments of $101.20 per fortnight*

Klarna lets you spread the cost of your purchase over 4 interest free fortnightly payments.

Click the button below or select Klarna as your payment method during the checkout process.

If you do not have a Klarna account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Klarna

Finance from $3.74 per week, 18 months interest free - 36 months to pay available*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate of 28.50% p.a. applies to outstanding balance at the end of LTF Interest-Free Period (see Ts&Cs for Q Mastercard Standard Interest Rate). Approved applicants only. The indicative monthly repayment is the purchase amount and Establishment Fee divided by the number of weeks in the Start-up interest Period. The indicative repayments assume there are no additional purchases, cash withdrawals, fees or charges. The indicative repayments are only an estimate and figures should be used as an indication only. They do not represent either a quote. pre-qualification or approval. To repay the purchase amount by the expiry of the Start-up interest Free Period, the indicative monthly repayments stated would need to be made by the due date for each statement period.

*See here for full T&C

What PB Tech customers are saying about this product...

See More Reviews

"Very good torch and used it in some tunnels and old building ...view more"

MD
By: MarkD945 29/12/22
Verified Owner

"This is a very bright LED torch. Great size and powerful beam for use on small lifestyle block. Does get quite warm on turbo mode but manual warns you about this. Haven’t needed ...view more"

G
By: Guest 08/12/22

"Fantastic torch. Extremely bright on high setting. Although it does start getting quite hot if you leave it on high for to long but the other settings are really good too. Only com ...view more"

G
By: Guest 10/10/22

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Fenix Search & Rescue LR35R Rechargable LED Torch Max 10,000 Lumens,...
Fenix Search & Rescue LR35R Rechargable LED Torch Max 10,000 Lumens, Head: 2.03" (51.5mm), Powered by 2 x 21700 4000mAH Li-ion Batteries (8000mAh total), Flashlight & Torch, 2 x 21700 4000mAH Li-ion Batteries and USB Charging Cable are Incl
Total:
$ 396 .43
 +GST
$ 455 .89
Buy together and save $16.52 $19.00
Fenix Charger ARE-A4 Dual Charging Mode AC/DC Smart Multifunctional - Complied with AS/NZS Safety Standards AU Plug, Designed for 18650 Battery Use
Fenix Charger ARE-A4 Dual Charging Mode AC/DC Smart Multifunctional - Complied with AS/NZS Safety Standards AU Plug, Designed for 18650 Battery Use
$69.52 $79.95

$53.00  +GST

$60.95

You save 23% You save 23%

Features

Note: This light requires a wall charger that it at least 2 AMPS for proper charging.

Warranty: 5-Years Free Repair Warranty (Battery for 1 year)!

Warnings for This 10000 Lumen Flashlight:

 - This flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone's eyes.
 - This flashlight will accumulate a lot of heat when used for extended periods, resulting in high temperature of the flashlight shell. Pay attention to avoid scalding.
 - All information provided in this manual is subject to change without prior notice.

Fenix USB-C Rechargable LED Flashlight MAX 10,000 Lumens, LUMINUS - Black

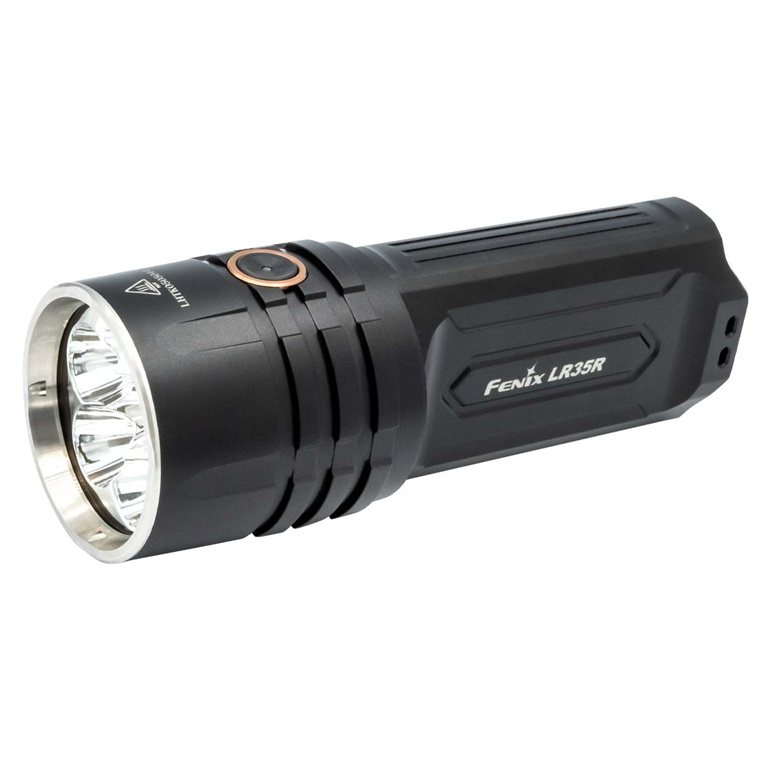

The Fenix LR35R is a super bright searching flashlight that blasts a max output of 10000 lumens and a max beam distance of 500 meters. This 10000 lumens flashlight can be quickly charged with the two included 4000 mAh Li-ion power batteries via the USB Type-C port. The amount of light that the Fenix LR35R flashlight emits is truly remarkable, a wide beam angle and strobe function are quite ideal for Search and Rescue. Extremely small for a flashlight with this much power, only 5.5" long plus a flat light body, this flashlight is the perfect tool for exploring and search and rescue. The battery level indicator lets you know the status of your batteries. Additional features include intelligent memory circuit, lockout function and IP68 rated protection. Once you see the raw power of a 10000-lumen flashlight, you will never feel troubled at night adventures, such as searching, caving, patrolling, etc.

Size: Length: 5.51'' (140mm) x Head: 2.03''(51.5mm) x Body 1.83'' (46.5mm)
Weight: 8.43 oz/239 grams (excluding battery)

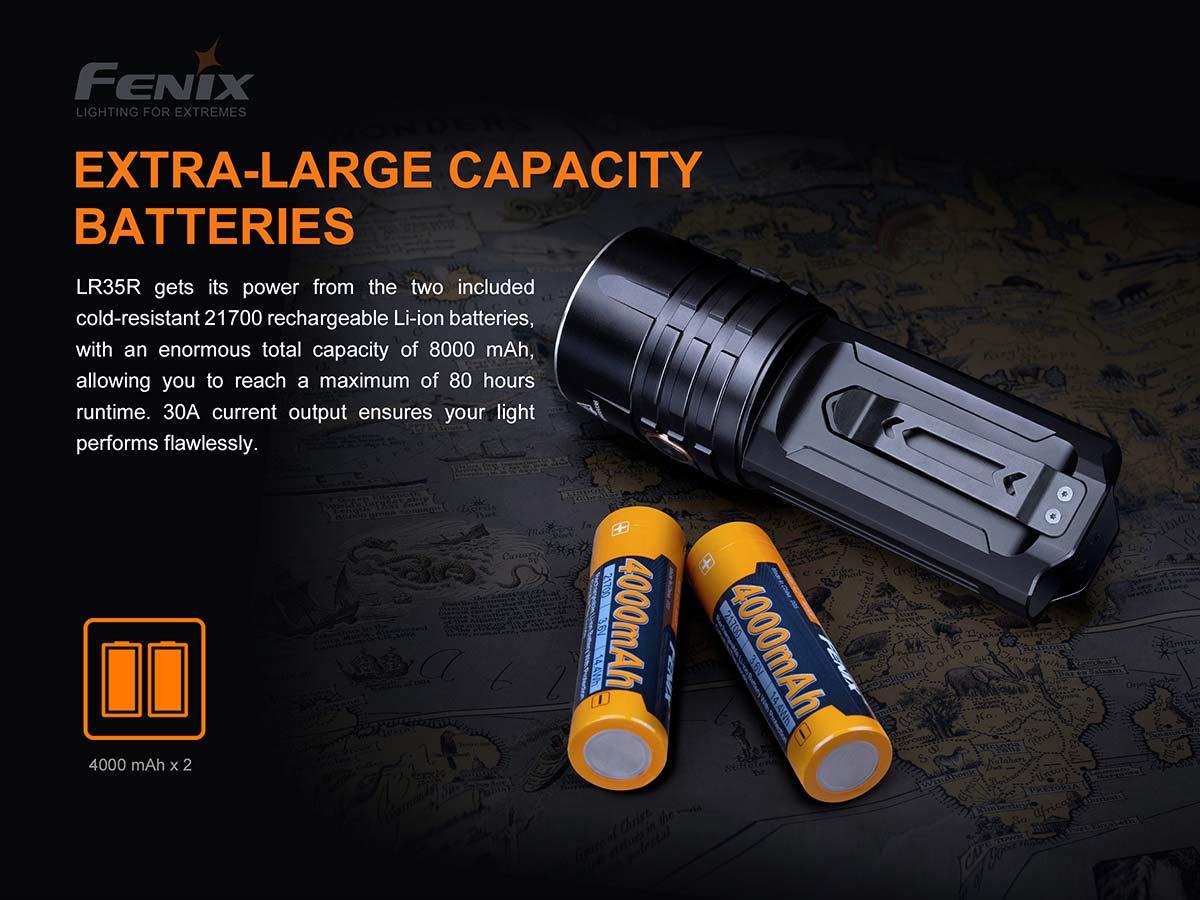

Battery Type: Include Two rechargeable 4000mAh batteries












Additional Features:

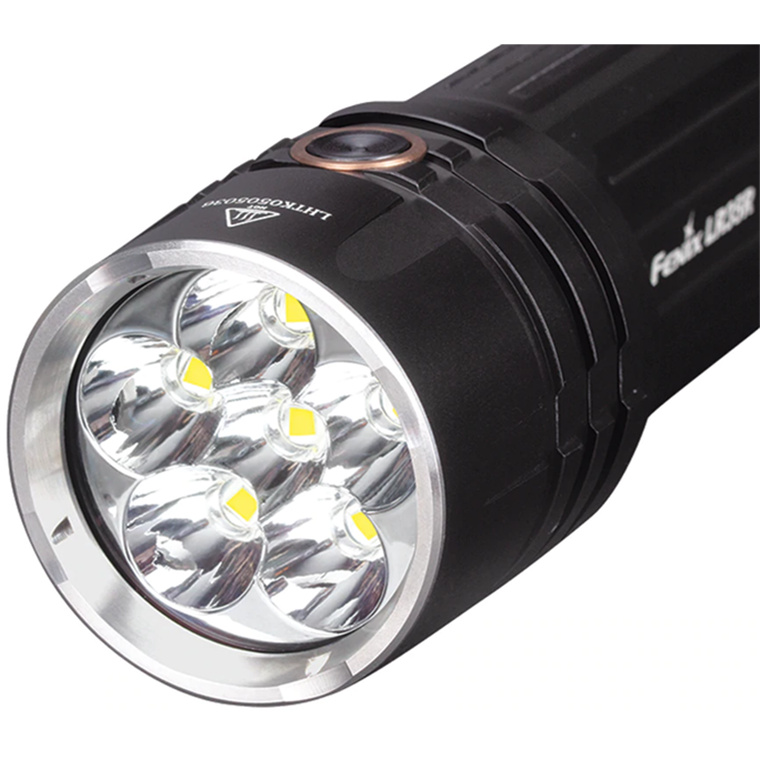

 - 6 Luminus SST40 LED's with a lifespan of 50,000 hours.
 - 10,000 lumens maximum output; 500 meters maximum beam distance.
 - Included 2 x 21700 rechargeable Li-ion power batteries.
 - USB Type-C charging port.
 - Battery level indication for instant checking of remaining battery level.
 - Lockout function avoids accidental activation.
 - Intelligent overheat protection against high surface temperature.
 - Intelligent memory circuit recalls the last used brightness level.
 - Premium type HAIII hard-anodized anti-abrasive finish.

Operating Instruction

On/off

 - With the light unlocked and switched off, press and hold the switch for 0.5 seconds to turn on the light.
 - With the light switched on, press and hold the switch for 0.5 seconds to turn off the light.

Output Selection for 10000 Lumen Flashlight: In general mode, single click the switch to cycle through Eco, Low, Med, High, Turbo.

Mode Switching: In general mode, press and hold the switch for 1.2 seconds to enter strobe; single click the switch again to turn back to the last used output in general mode.

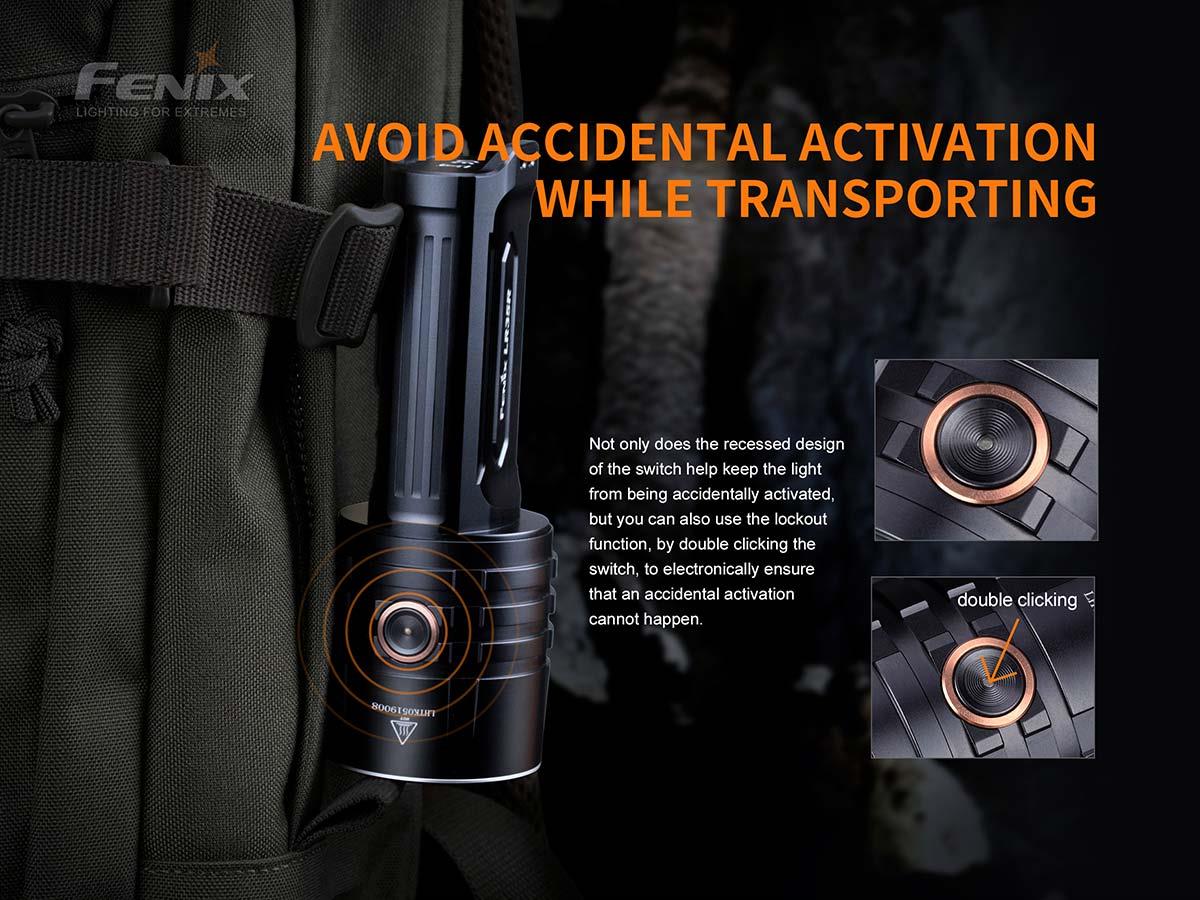

Lock/Unlock

 - Lock: with the light unlocked and switched off, double click the switch to lock the light, the light will blink twice on Eco to indicate locked status.
 - Unlock: with the light locked and switched off, double click the switch, the light will be unlocked and activated on Eco.
 - In locked status, clicking or pressing the switch will activate 2 one-second blinks on Eco to indicate locked status.

Battery

* Note: It is recommended to use Li-ion power battery, or the 10,000 lumens maximum output may not be reached.
** 21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.

Battery Replacement: Unscrew the tail cap to insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.

Intelligent Memory Circuit: The light memorizes the last selected output of general mode. When turned on again the previously used output of general mode will be recalled.

Intelligent Overheat Protection: The light will accumulate a lot of heat when used on Med, High, Turbo output level for extended periods. When the light reaches a temperature of 65°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C, it will then allow the user to reselect Med, High, Turbo mode.

Low Voltage Warning: When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output, the battery level indicator blinks to remind you to recharge or replace the battery.

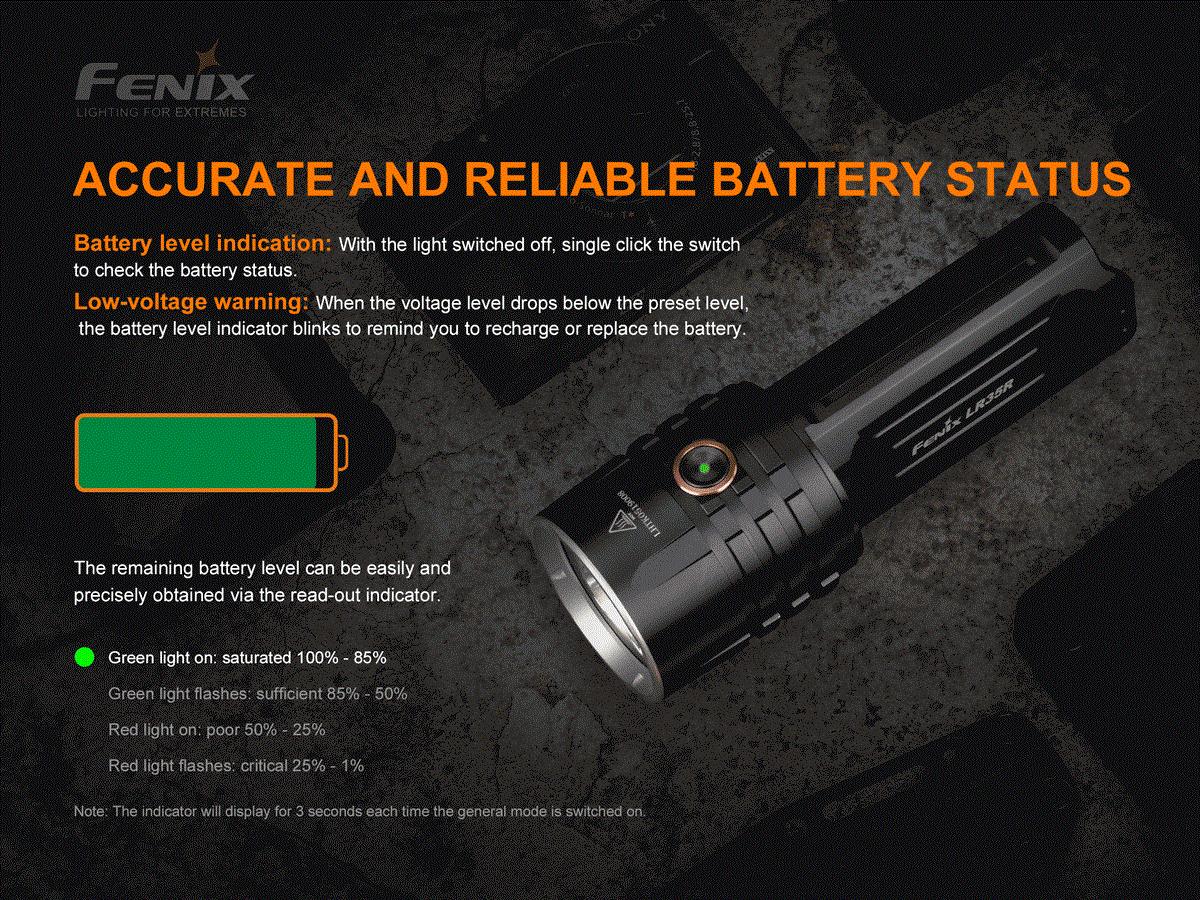

Battery Level Indication: With the light switched off, single click the switch to check the battery status, the indicator will last for 3seconds.

 - Green light on: saturated 100% - 85%
 - Green light flashes: sufficient 85% - 50%
 - Red light on: poor 50% - 25%
 - Red light flashes: critical 25% - 1%

Note: The indicator will display for 3 seconds each time the general mode is switched on.

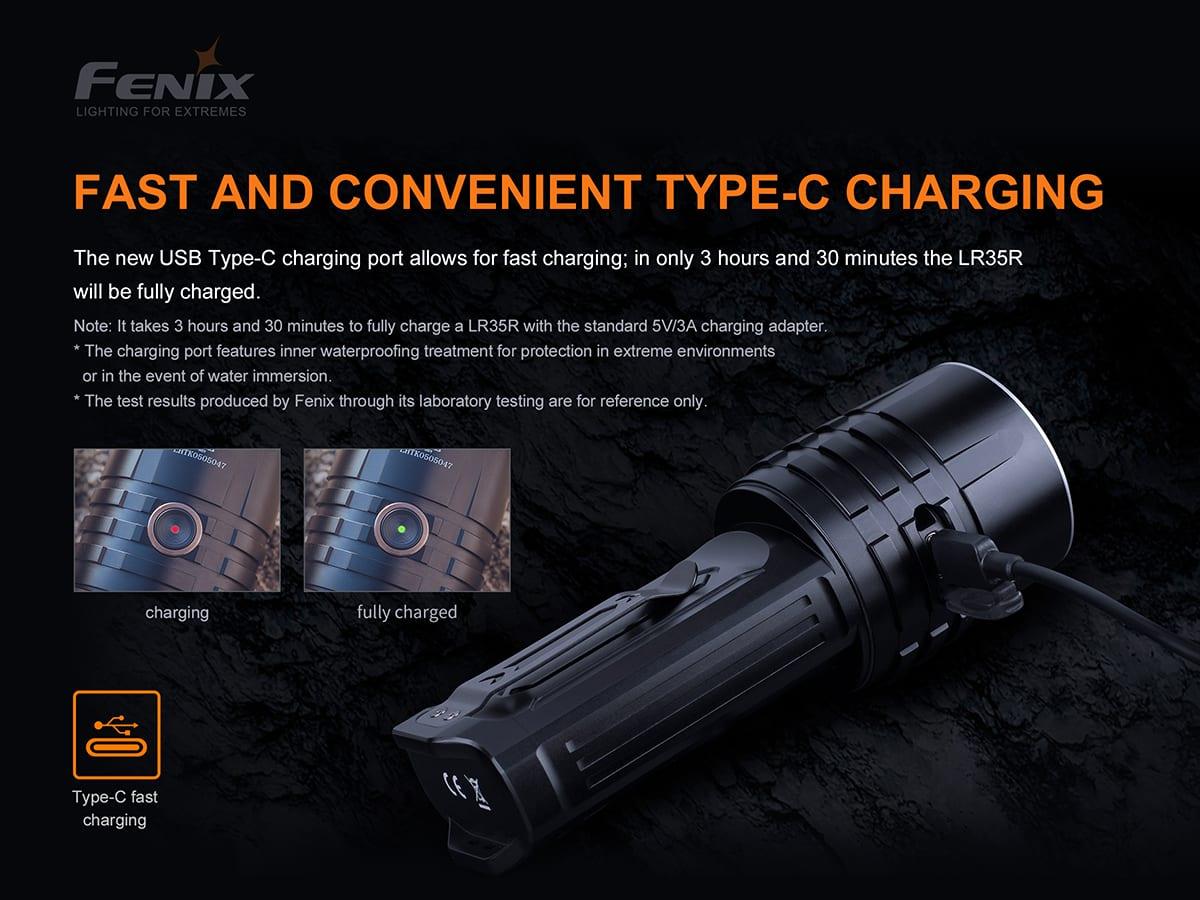

Charging Your 10000 Lumen Flashlight

1. First switch off the light and plug the USB A socket of the charging cable into an electrical outlet, then connect the USB Type-C socket of the charging cable to the light.
2. The indicator will display red while charging, and will turn to green when fully charged.
3. Once charging is completed, be sure to close the anti-dust cover.

Note:

1. Only Eco output level is available when charging.
2. The normal charging time is approximately 3 hours and 30 minutes from depletion to full charging.
3. Recharge a stored light every four months to maintain optimum performance of the battery.

Usage and Maintenance

 - Disassembling the sealed head can cause damage to the light and will void the warranty.
 - Fenix recommends using an excellent quality batteries.
 - If the light will not be used for an extended period, remove the batteries, or the light could be damaged by electrolyte leakage or battery explosion.
 - Lock the light or remove the batteries to prevent accidental activation during storage or transportation.
 - Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
 - Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:

A: The battery needs replacing.
Solution: Replace battery pack /batteries (Ensure batteries are inserted according to the manufacturer's specifications).
B: The threads, PCB board contact or other contacts are dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

Specifications

Light

10,000 Lumens Maximum Ouput (Luminus SST40 LEDs)
USB Type-Charging Port
Lockout Function
Memory Circuit

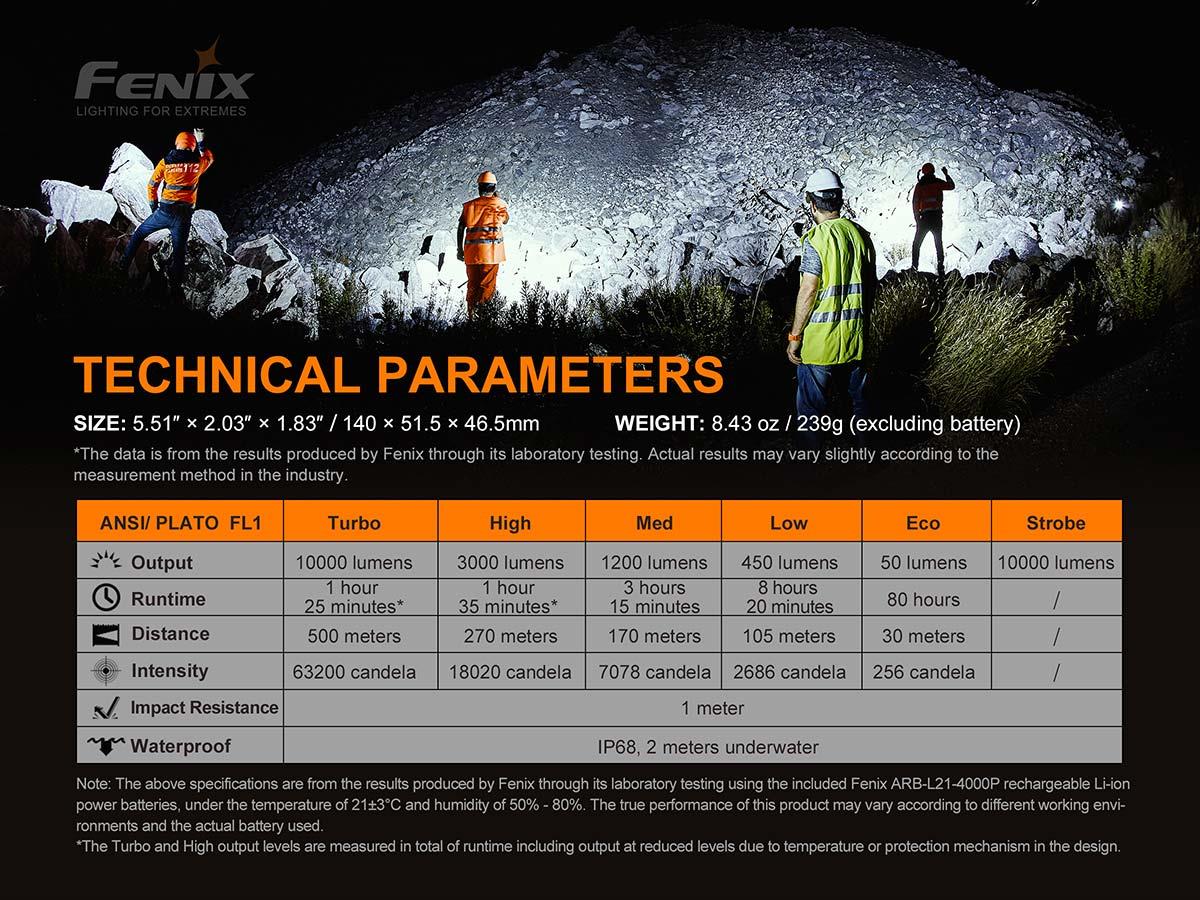

Outputs (Runtimes)

Turbo - 10000 Lumens (1hr 25min)
High - 3000 Lumens (1hr 35min)
Med - 1200 Lumens (3hr 15min)
Low - 450 Lumens (8hr 20min)
Eco - 50 Lumens (80hr)
Strobe - 10000 Lumens

Battery Level Indicator

Overheat Protection

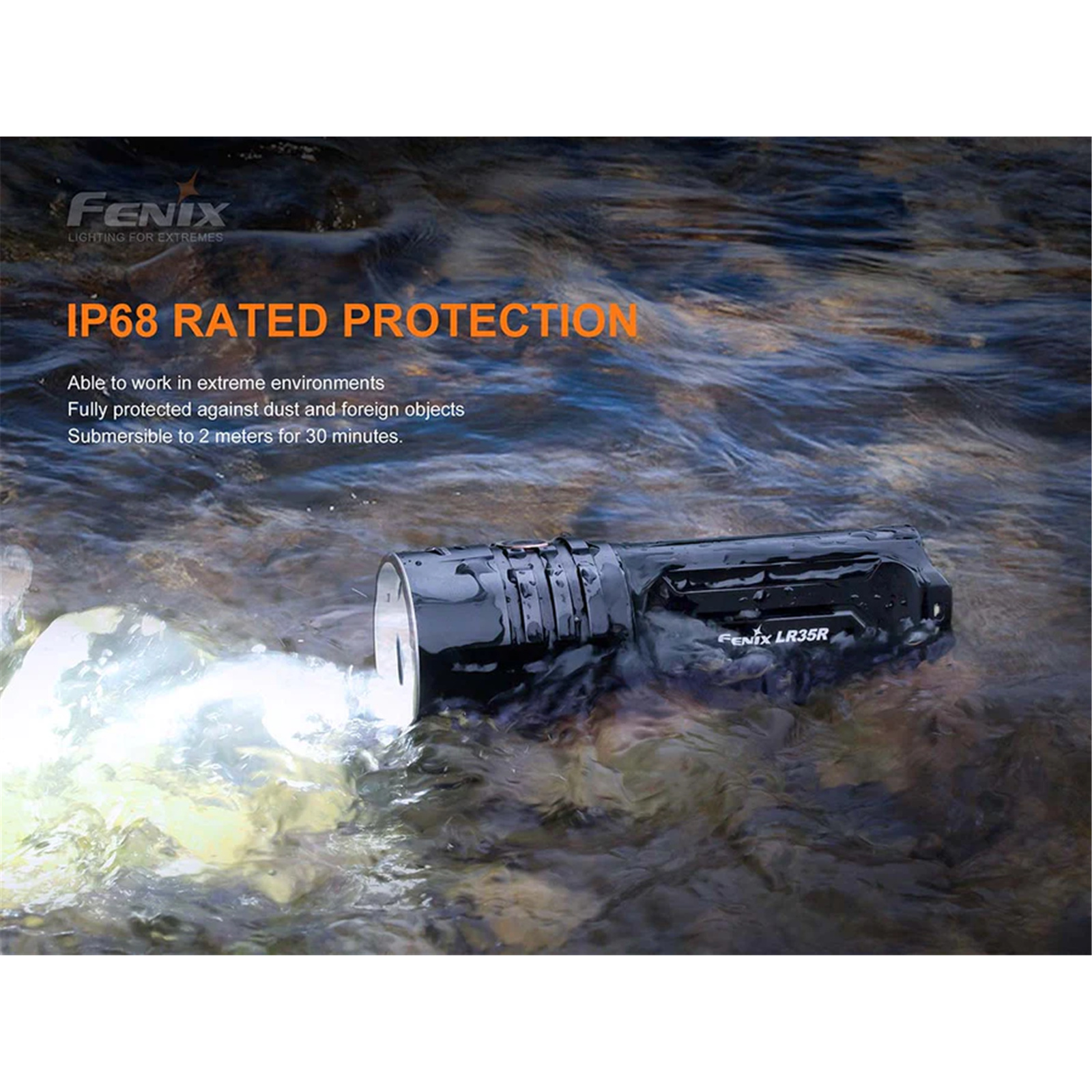

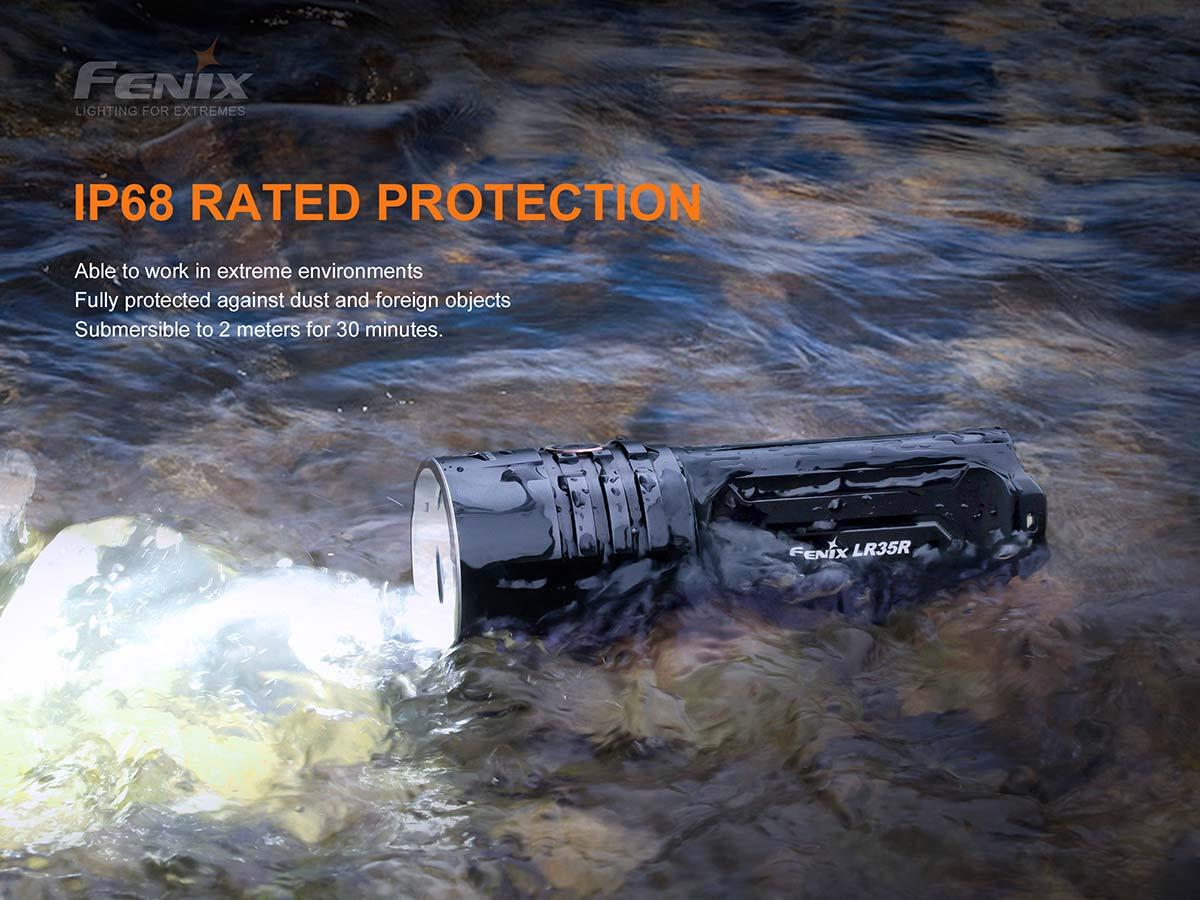

IP68 Rated
1 Meter Impact resistance

Batteries

Included: Two cold-resistant 21700 rechargeable batteries (4000 mAh each)
Compatible 21700 rechargeable batteries

Size

Length: 5.5 in.
Head diameter: 2.03 in.
Body thickness: 1.83 in.
Weight: 8.4 oz./239 grams (excluding battery)

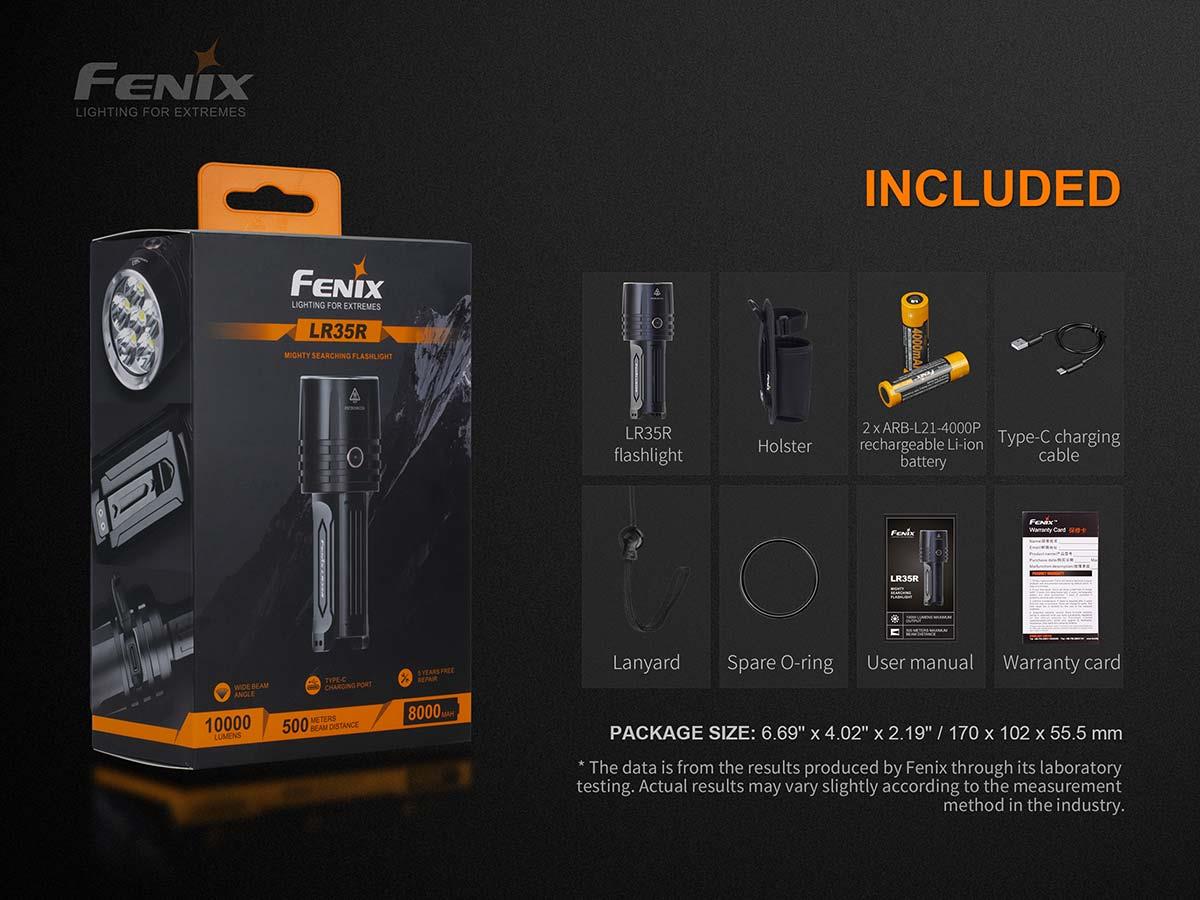

Includes

LR35R Rechargeable Flashlight
21700 Rechargeable Batteries
Lanyard
Holster
Spare O-rings
USB Type-C Charging Cable
LR35R User Manual

Manufacturer Part No:
FNX-LR35R
Brand:
Product Type:
Rechargable LED Torch
UPC
-
Product Family:
Search & Rescue
Shipping Weight:
0.55 kg
PB Part No:
TOLFNX0010
Product Model:
LR35R
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

5 out of 5 Stars Based on 7 Reviews
5 Stars
7
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Very powerful many modes waterproof

PROS:
I have owned and tested over 100 other branded flashlights.
This flashlight blows them out of the water.
This flash light is very reliable and light weight and fits into your pocket. It also has a safety Mode so it wont accidently switch on in your pocket or pack. I could light a fire with it in an emergency situation with dry leaves or paper in turbo mode. Very stable belt clip 5 modes from eco mode 30 lumens up to 10,000 lumens up to 530 meter light throw 90 degree viewing angle with strobe light to ward of attackers. great price compared to other powerful flashlights. Also water proof to 2 meters for up to 30 minutes.
80 hours ru...view more

G
By: Guest 17/02/22
1 out of 1 user found this review helpful
Did you find it helpful?

You get what they advertise

This is a great product, has a good beam of white light when turned on. If you use this in the night, its really bright on turbo. I haven’t recharged this after the first charge after buying and I am using this almost every night in the lowest setting, I occasionally use turbo but for only a few seconds. If you are into camping, you won’t regret buying this torch. Its really small too, I was able to put this in my pocket. This is a GOOD buy.

G
By: Guest 21/02/21
1 out of 1 user found this review helpful
Did you find it helpful?

Insane torch

Very good torch and used it in some tunnels and old buildings. Just a bummer it was on boxing day sales keeper after I brought it. $35 cheap on sale. :(

Battery life not sure about yet as didn't use it for long, and yes it gets very hot on turbo but step down works good.

Looking at getting head touch next.

MD
By: MarkD945 29/12/22
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Awesome super bright LED torch

This is a very bright LED torch. Great size and powerful beam for use on small lifestyle block. Does get quite warm on turbo mode but manual warns you about this. Haven’t needed to recharge yet so not sure about time between charging. USB cable is a bit short and probably not as robust as you would expect.
It’s not a cheap torch but was good price on PB Tech Black Friday sale.

G
By: Guest 08/12/22
0 out of 0 users found this review helpful
Did you find it helpful?

Very bright torch

Fantastic torch. Extremely bright on high setting. Although it does start getting quite hot if you leave it on high for to long but the other settings are really good too. Only complaints is when it's dark it's really hard to find/feel for the on button with your thumb, it should protrude more or something. Also the USB cable that comes with the torch is pretty crappy but it fits on my Samsung Galaxy phone charging cord so I just use that instead.
Other than a couple of niggles it's the best torch I've ever seen/used.

G
By: Guest 10/10/22
0 out of 0 users found this review helpful
Did you find it helpful?

Very Bright

Excellent small torch

G
By: Guest 12/05/22
0 out of 0 users found this review helpful
Did you find it helpful?

The best torch

The best torch I've ever seen, daylight in a small packet lol. Fast delivery great service.

HH
By: HamishH584 04/04/22
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Delivery & Pick-up

Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.

Next Day Delivery

Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed / unopened, with packaging in original condition, and accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase.

Please note, items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

Fenix Search & Rescue LR35R Rechargable LED Torch Max 10,000 Lumens, Head: 2.03" (51.5mm), Powered by 2 x 21700 4000mAH Li-ion Batteries (8000mAh total), Flashlight & Torch, 2 x 21700 4000mAH Li-ion Batteries and USB Charging Cable are Incl

Experience the brightness like never before with our powerful LED torch!
  • Brand: Fenix
  • MPN: FNX-LR35R
  • Part #: TOLFNX0010
PB Tech price $343.43 Excluding GST PB Tech price $394.94 Including GST

Date Created: 14:12, 19-05-2024
Product URL: https://www.pbtech.co.nz/product/TOLFNX0010/Fenix-Search--Rescue-LR35R-Rechargable-LED-Torch-M
Branch New Stock On Display
Albany 0
Glenfield 2
Queen Street 2
Auckland Uni 0
Newmarket 2
Westgate 1
Penrose 2
Henderson (Express) 2
St Lukes 2
Manukau 2
Hamilton 1
Tauranga 1
New Plymouth 2
Palmerston North 1
Petone 2
Wellington 5
Head Office 1
Hornby 2
Christchurch Central 2

Features

Note: This light requires a wall charger that it at least 2 AMPS for proper charging.

Warranty: 5-Years Free Repair Warranty (Battery for 1 year)!

Warnings for This 10000 Lumen Flashlight:

 - This flashlight is a high-intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone's eyes.
 - This flashlight will accumulate a lot of heat when used for extended periods, resulting in high temperature of the flashlight shell. Pay attention to avoid scalding.
 - All information provided in this manual is subject to change without prior notice.

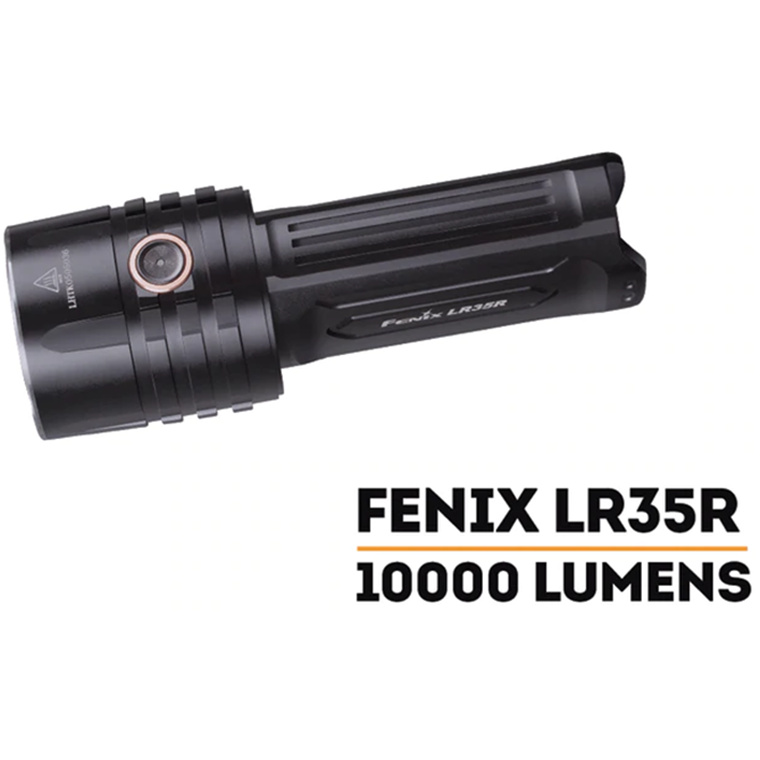

Fenix USB-C Rechargable LED Flashlight MAX 10,000 Lumens, LUMINUS - Black

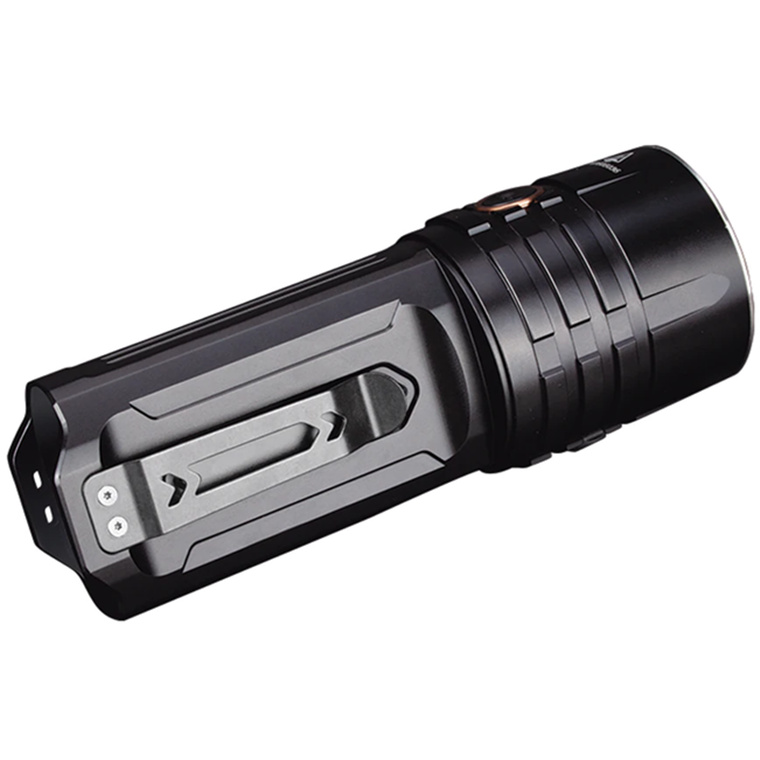

The Fenix LR35R is a super bright searching flashlight that blasts a max output of 10000 lumens and a max beam distance of 500 meters. This 10000 lumens flashlight can be quickly charged with the two included 4000 mAh Li-ion power batteries via the USB Type-C port. The amount of light that the Fenix LR35R flashlight emits is truly remarkable, a wide beam angle and strobe function are quite ideal for Search and Rescue. Extremely small for a flashlight with this much power, only 5.5" long plus a flat light body, this flashlight is the perfect tool for exploring and search and rescue. The battery level indicator lets you know the status of your batteries. Additional features include intelligent memory circuit, lockout function and IP68 rated protection. Once you see the raw power of a 10000-lumen flashlight, you will never feel troubled at night adventures, such as searching, caving, patrolling, etc.

Size: Length: 5.51'' (140mm) x Head: 2.03''(51.5mm) x Body 1.83'' (46.5mm)
Weight: 8.43 oz/239 grams (excluding battery)
Battery Type: Include Two rechargeable 4000mAh batteries












Additional Features:

 - 6 Luminus SST40 LED's with a lifespan of 50,000 hours.
 - 10,000 lumens maximum output; 500 meters maximum beam distance.
 - Included 2 x 21700 rechargeable Li-ion power batteries.
 - USB Type-C charging port.
 - Battery level indication for instant checking of remaining battery level.
 - Lockout function avoids accidental activation.
 - Intelligent overheat protection against high surface temperature.
 - Intelligent memory circuit recalls the last used brightness level.
 - Premium type HAIII hard-anodized anti-abrasive finish.

Operating Instruction

On/off

 - With the light unlocked and switched off, press and hold the switch for 0.5 seconds to turn on the light.
 - With the light switched on, press and hold the switch for 0.5 seconds to turn off the light.

Output Selection for 10000 Lumen Flashlight: In general mode, single click the switch to cycle through Eco, Low, Med, High, Turbo.

Mode Switching: In general mode, press and hold the switch for 1.2 seconds to enter strobe; single click the switch again to turn back to the last used output in general mode.

Lock/Unlock

 - Lock: with the light unlocked and switched off, double click the switch to lock the light, the light will blink twice on Eco to indicate locked status.
 - Unlock: with the light locked and switched off, double click the switch, the light will be unlocked and activated on Eco.
 - In locked status, clicking or pressing the switch will activate 2 one-second blinks on Eco to indicate locked status.

Battery

* Note: It is recommended to use Li-ion power battery, or the 10,000 lumens maximum output may not be reached.
** 21700 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only use quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.

Battery Replacement: Unscrew the tail cap to insert the battery with the anode side (+) towards the light head, then screw the tail cap back on.

Intelligent Memory Circuit: The light memorizes the last selected output of general mode. When turned on again the previously used output of general mode will be recalled.

Intelligent Overheat Protection: The light will accumulate a lot of heat when used on Med, High, Turbo output level for extended periods. When the light reaches a temperature of 65°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 65°C, it will then allow the user to reselect Med, High, Turbo mode.

Low Voltage Warning: When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output, the battery level indicator blinks to remind you to recharge or replace the battery.

Battery Level Indication: With the light switched off, single click the switch to check the battery status, the indicator will last for 3seconds.

 - Green light on: saturated 100% - 85%
 - Green light flashes: sufficient 85% - 50%
 - Red light on: poor 50% - 25%
 - Red light flashes: critical 25% - 1%

Note: The indicator will display for 3 seconds each time the general mode is switched on.

Charging Your 10000 Lumen Flashlight

1. First switch off the light and plug the USB A socket of the charging cable into an electrical outlet, then connect the USB Type-C socket of the charging cable to the light.
2. The indicator will display red while charging, and will turn to green when fully charged.
3. Once charging is completed, be sure to close the anti-dust cover.

Note:

1. Only Eco output level is available when charging.
2. The normal charging time is approximately 3 hours and 30 minutes from depletion to full charging.
3. Recharge a stored light every four months to maintain optimum performance of the battery.

Usage and Maintenance

 - Disassembling the sealed head can cause damage to the light and will void the warranty.
 - Fenix recommends using an excellent quality batteries.
 - If the light will not be used for an extended period, remove the batteries, or the light could be damaged by electrolyte leakage or battery explosion.
 - Lock the light or remove the batteries to prevent accidental activation during storage or transportation.
 - Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
 - Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:

A: The battery needs replacing.
Solution: Replace battery pack /batteries (Ensure batteries are inserted according to the manufacturer's specifications).
B: The threads, PCB board contact or other contacts are dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.

Specifications

Light

10,000 Lumens Maximum Ouput (Luminus SST40 LEDs)
USB Type-Charging Port
Lockout Function
Memory Circuit

Outputs (Runtimes)

Turbo - 10000 Lumens (1hr 25min)
High - 3000 Lumens (1hr 35min)
Med - 1200 Lumens (3hr 15min)
Low - 450 Lumens (8hr 20min)
Eco - 50 Lumens (80hr)
Strobe - 10000 Lumens

Battery Level Indicator

Overheat Protection
IP68 Rated
1 Meter Impact resistance

Batteries

Included: Two cold-resistant 21700 rechargeable batteries (4000 mAh each)
Compatible 21700 rechargeable batteries

Size

Length: 5.5 in.
Head diameter: 2.03 in.
Body thickness: 1.83 in.
Weight: 8.4 oz./239 grams (excluding battery)

Includes

LR35R Rechargeable Flashlight
21700 Rechargeable Batteries
Lanyard
Holster
Spare O-rings
USB Type-C Charging Cable
LR35R User Manual

Date Created: 14:12, 19-05-2024
Product URL: https://www.pbtech.co.nz/product/TOLFNX0010/Fenix-Search--Rescue-LR35R-Rechargable-LED-Torch-M
