Fenix Tactical & Ourdoor Flashlights PD32R Black Compact Tactical Torch Max 1,400 Lumens, Head: 1.04" (26.4mm), 344m Beam Distance - Powered by 1 x 3,400 mAH Li-ion Rechargeable Battery Included, USB-C Charging Cable - 5 Years Free Repair

Warning:

 - Do NOT place this flashlight in the of the reach of children!
 - Do NOT shine the flashlight directly into the eyes of anyone!
 - Do NOT place the flashlight near flammable objects, high temperatures can cause objects to overheat and become flammable/ignite!
 - Do NOT use the flashlight in inappropriate ways such as holding the unit in your mouth, doing so could cause serious personal injury or death if the flashlight or internal battery fails!
 - This flashlight will accumulate a significant amount of heat while operating, resulting in a high temperature of the flashlight shell. Pay close attention to avoid burns.
 - Remove the battery to prevent accidental activation during storage or transportation.
 - The LED of this flashlight is not replaceable; so the whole flashlight will need to be replaced when the LED reaches the end of its lifespan.

Warranty: 5-Years Free Repair Warranty (Battery for 1 year)!

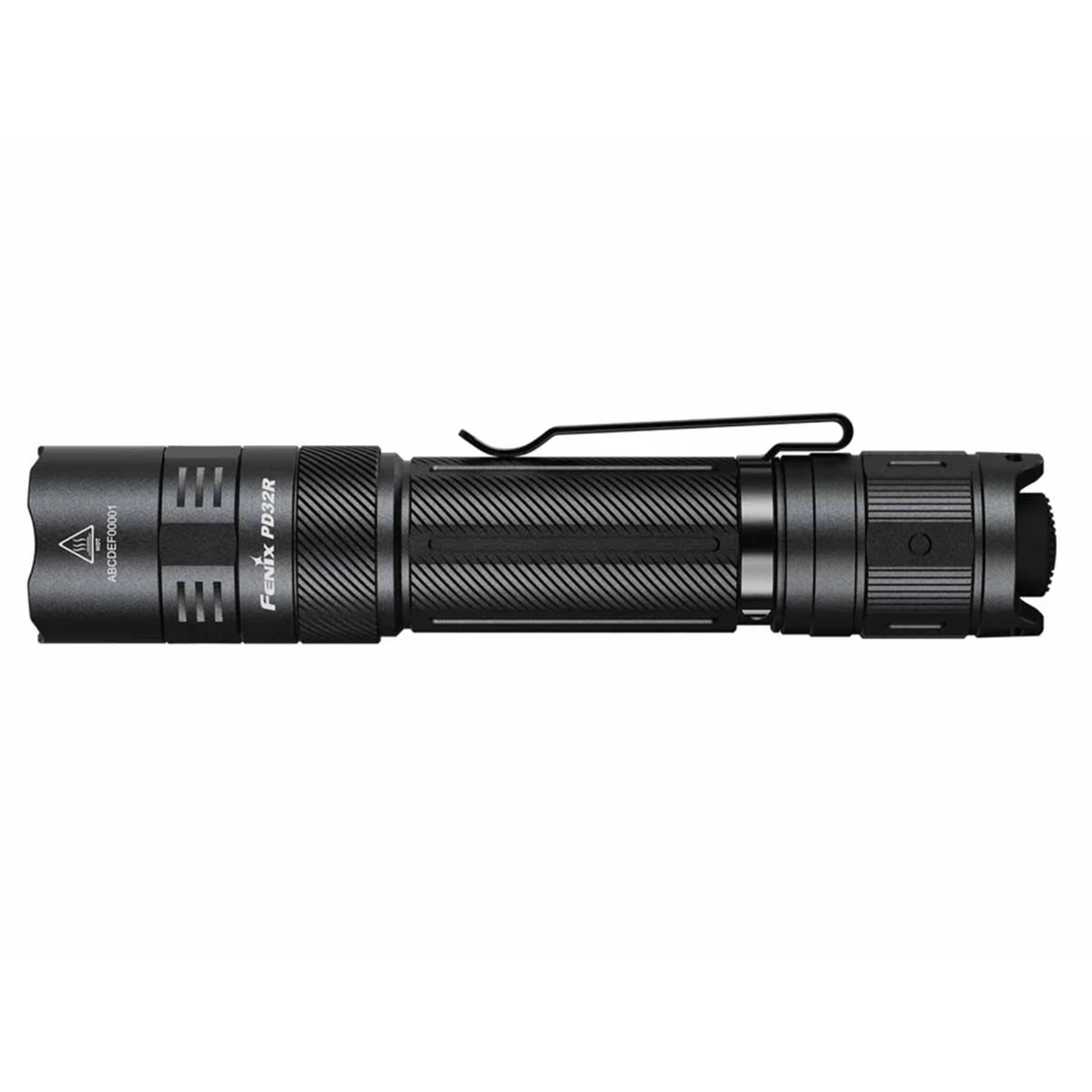

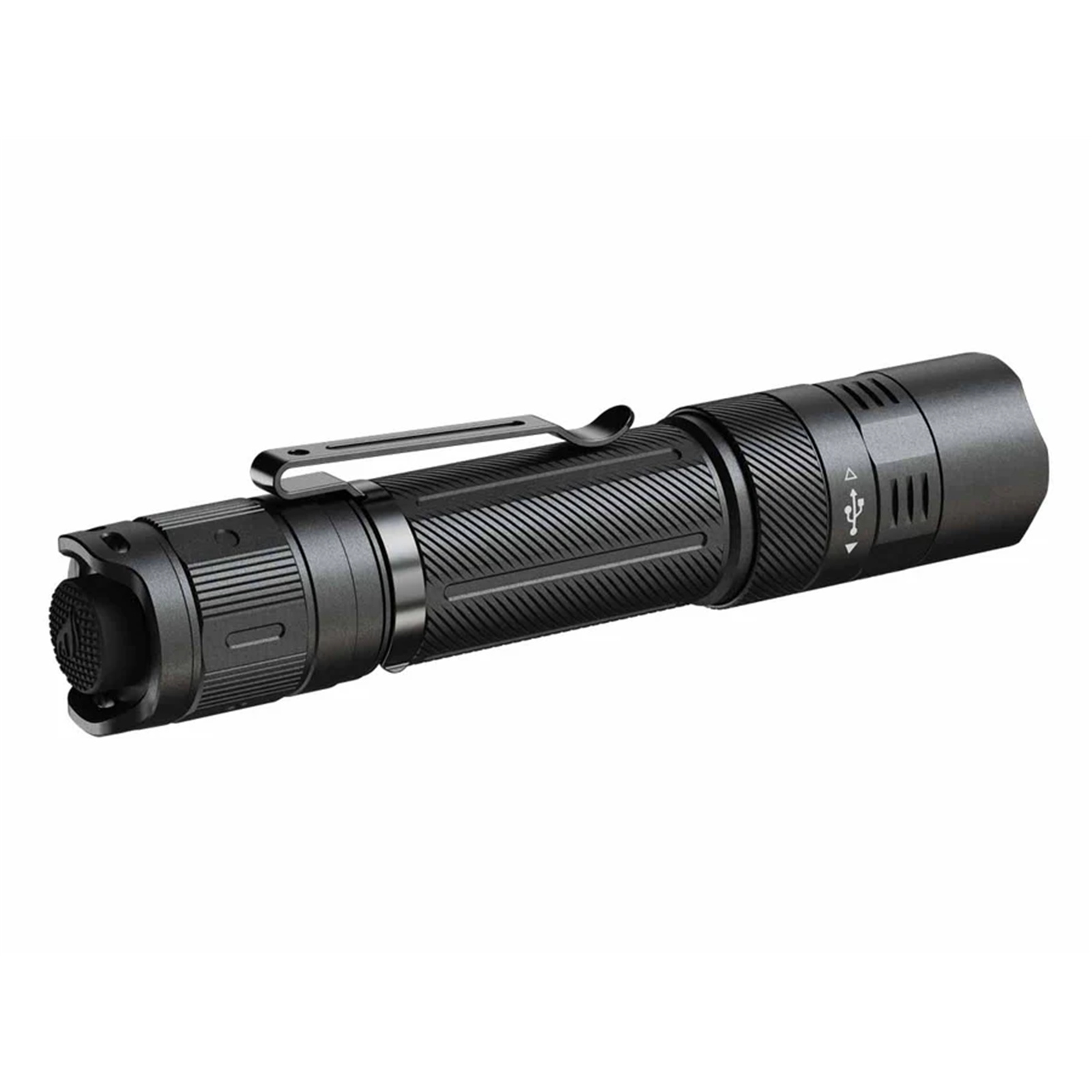

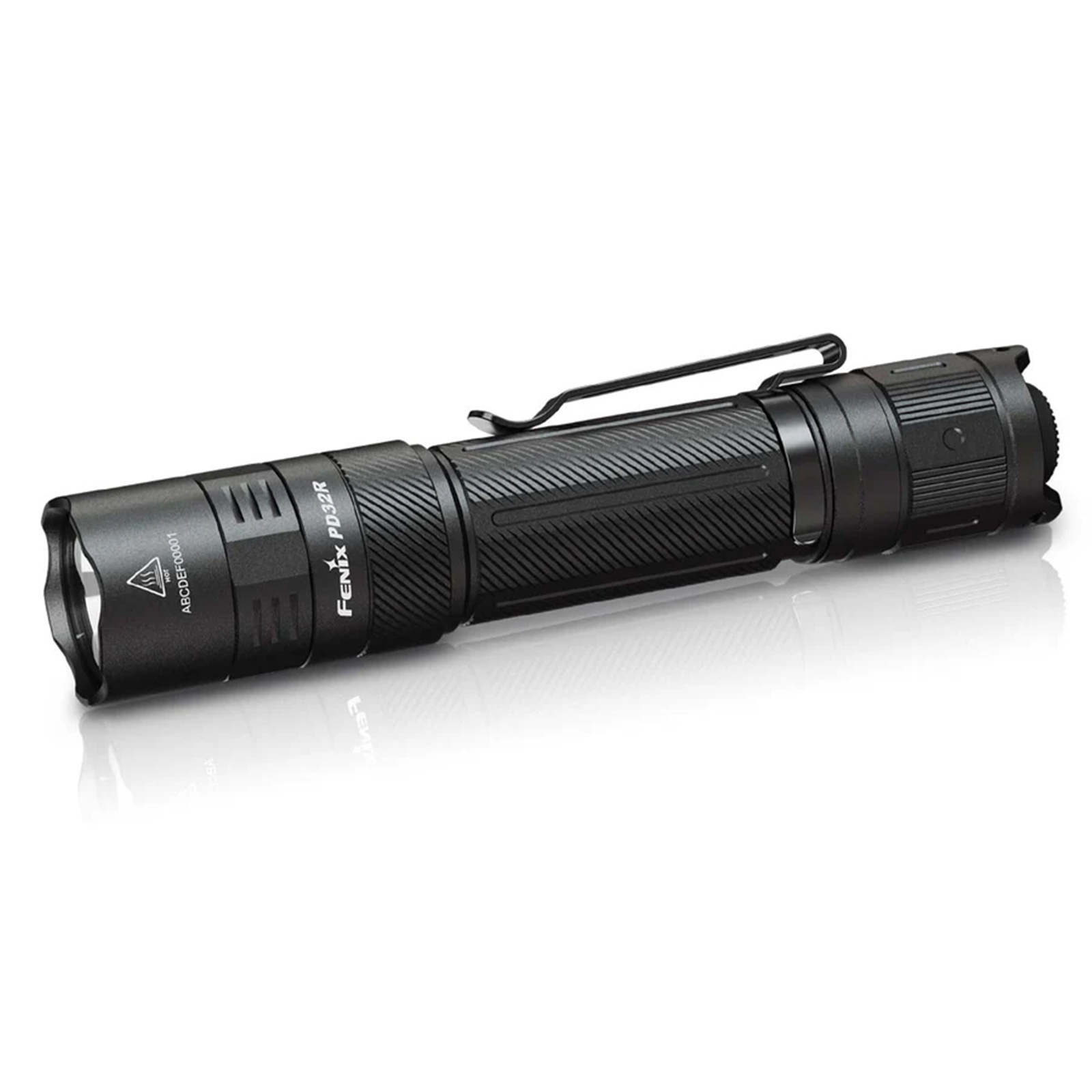

The Fenix PD32R rechargeable flashlight is a compact tactical flashlight that can emit light up to a distance of 347 meters with a maximum brightness of 1400 lumens. The package comes with a 3400mAh rechargeable battery that can be charged through the hidden USB-Type C charging port of the flashlight. Alternatively, the flashlight can be powered by two cold-resistant CR123A batteries, making it ideal for outdoor and high-altitude lighting uses. The flashlight is extremely convenient for law enforcement with its multi-function mute tail switch that controls the on/off function, Strobe mode, and four brightness levels. Compact and tough-built with an IP68 dustproof and waterproof rating, this sturdy flashlight is perfect for outdoor and tactical purposes.

Size: 5.32'' x 1.04'' x 0.93''
Weight: 4.80 oz/136 g (including battery)
Battery Type: Powered by an included 3400mAh battery and compatible with two CR123A batteries.

 - 1400 lumens maximum output and 344 meters maximum beam distance.
 - Uses one Luminus SFT40 LED with a life span of 50,000 hours.
 - A single silent multi-function tail switch controls the on/off function ,strobe mode,and four brightness levels.
 - Hidden USB Type-C charging port.
 - Reverse polarity protection, to protect from improper battery insertion.
 - Anti-roll and anti-slip body design.
 - Included body clip for different lighting demands.
 - Made of durable A6061-T6 aluminum.
 - Premium type HAIII hard-anodized anti-abrasive finish.

Operating Instructions

On/off

Tap the tail switch to momentarily turn on the light, release it and the light will go out.

Fully press the tail switch to constantly turn on the light, press it again and the light will go out.

Output selection

With the light switched on, tap the tail switch to cycle through Low, Med, High, Turbo.

Mode switching

Press and hold the tail switch for 0.5 seconds to enter the Strobe mode, tap the tail switch once again to turn back to the previously used output level.

Intelligent Memory Circuit

The light memorizes the previously used output level excluding the Strobe mode, each time it is turned on, the previously used output level will be activated.

Battery Specifications

*16340/18650 Li-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Using only quality batteries with circuit protection will reduce the potential for combustion or explosion; but cell damage or short circuiting are potential risks the user assumes.

*While using two CR123A batteries, the Turbo output cannot be operated and the actual brightness of Strobe mode is 800 lumens.

Battery Replacement

Unscrew the light tail to insert the battery with the anode side (+) towards the light head, then screw the light tail back on.

Charging

1, With the flashlight switched off, loosen the light neck to reveal the USB Type-C charging port and connect the USB Type-C socket of the charging cable to the light.
2, The indicator will display red while charging, and will turn to green when fully charged.
3, Once charging has completed, be sure to tighten the light neck to maintain the dustproof and waterproof functionality.

Note:

1, The normal charging time of the Fenix ARB-L18-3400 battery is about 3 hours from depleted to fully charged with a 5 V/2 A charging adapter.
2, Recharge a stored light every four months to maintain optimum performance of the battery.
3, The light cannot be operated while charging.

Battery Level Indication

Loosen the light neck to reveal the battery level indicator. Each time the light is turned on, the indicator will show the current battery level and will last for 3 seconds.

 - Green light on: saturated 100% - 85%
 - Green light flashes: sufficient 85% - 50%
 - Red light on: poor 50% - 25%
 - Red light flashes: critical 25% - 1%

*Note: This only works with a Fenix ARB-L18 Series battery.

Intelligent Overheat Protection

The light will accumulate a lot of heat when used at high output levels for extended periods. When the light reaches a temperature of 60°C/140°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C/140°F, the light will gradually recall the preset output level.

Low-voltage Warning

When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Low output is reached. When this happens in Low output, the light blinks 3 times every 5 minutes in Low output to remind users to recharge or replace the battery.

Note: This only works with a Fenix ARB-L18 Series battery.

Usage and Maintenance

 - Disassembling the sealed components can cause damage to the light and will void the warranty.
 - Fenix recommends using an excellent quality battery.
 - If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
 - Loosen the tail cap or remove the battery to prevent accidental activation during storage or transportation.
 - Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
 - Periodic cleaning of the battery contacts improves the light's performance as dirty contacts may cause the light to flicker, shine intermittently or even fail to illuminate for the following reasons:

A: Poor battery level.
Solution: Recharge or replace the battery.

B: The threads, PCB board contact or other contacts are dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
