Fenix Camping & Hiking HM23 V2.0 Running Headlamp Max 300 Lumens, Powered by 1 x AA Battery (incl) or 1.5V 14500 Rechargeable Battery (NOT incl) - Lightweight - Compact - Large Side Switch - 5 Years Free Repair Warranty

Warning

 - Do NOT place this headlamp in the reach of children!
 - Do NOT shine the headlamp directly into the eyes of anyone!
 - Do NOT place light head near flammable objects, high temperatures can cause objects to overheat and become flammable/ignite!
 - Do NOT use the headlamp in inappropriate ways such as holding the unit in your mouth, doing so could cause serious personal injury or death if the headlamp or internal battery fails!
 - This headlamp will accumulate a significant amount of heat while operating, resulting in a high temperature of the headlamp shell. Pay close attention to avoid burns.
 - Turn off and lock the headlamp or take out the battery to prevent accidental activation during storage or transportation.
 - The LEDs of this headlamp are not replaceable; so the whole headlamp will need to be replaced when any of the LEDs reaches the end of its lifespan.

Warranty: 5-Years Free Repair Warranty (Battery for 1 year)!

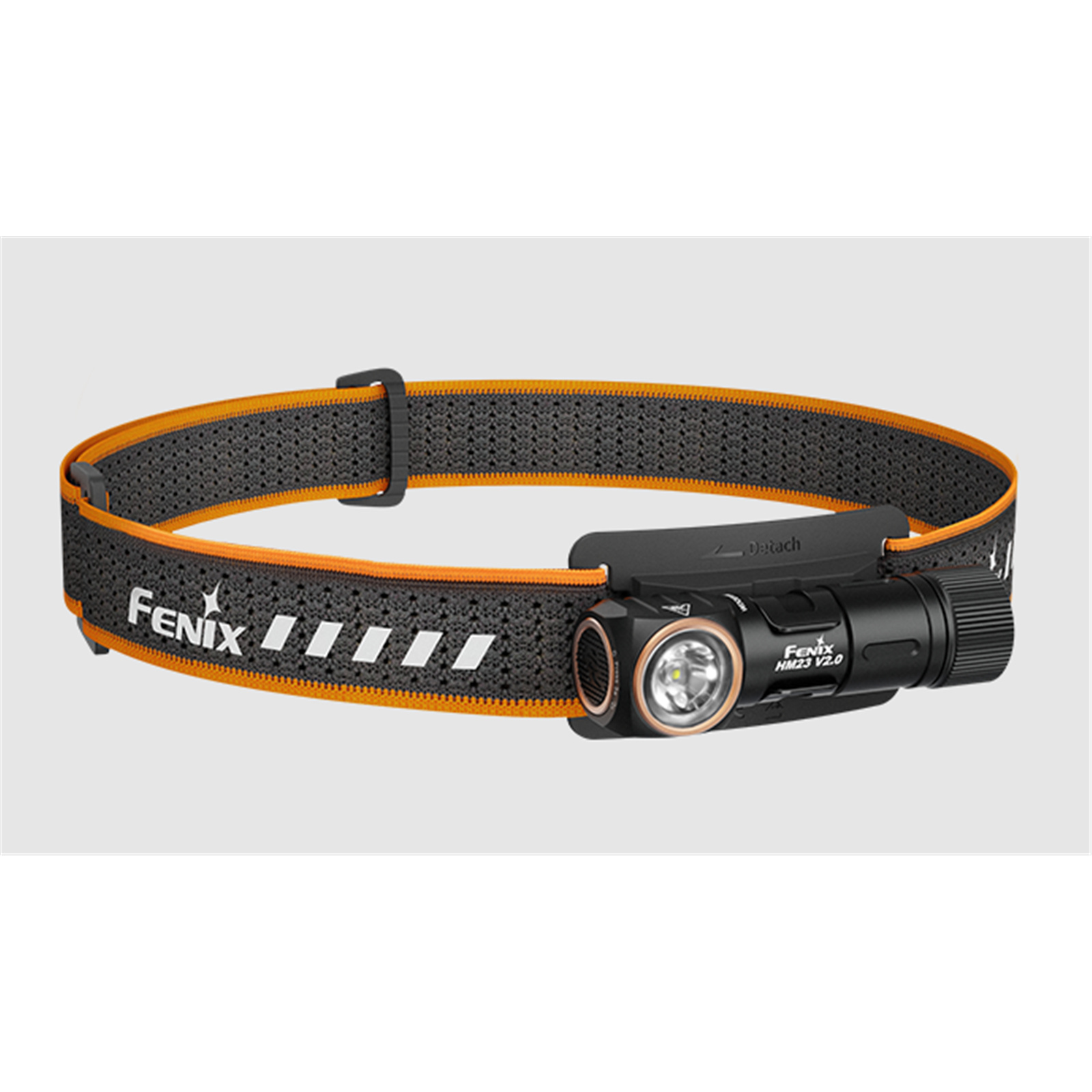

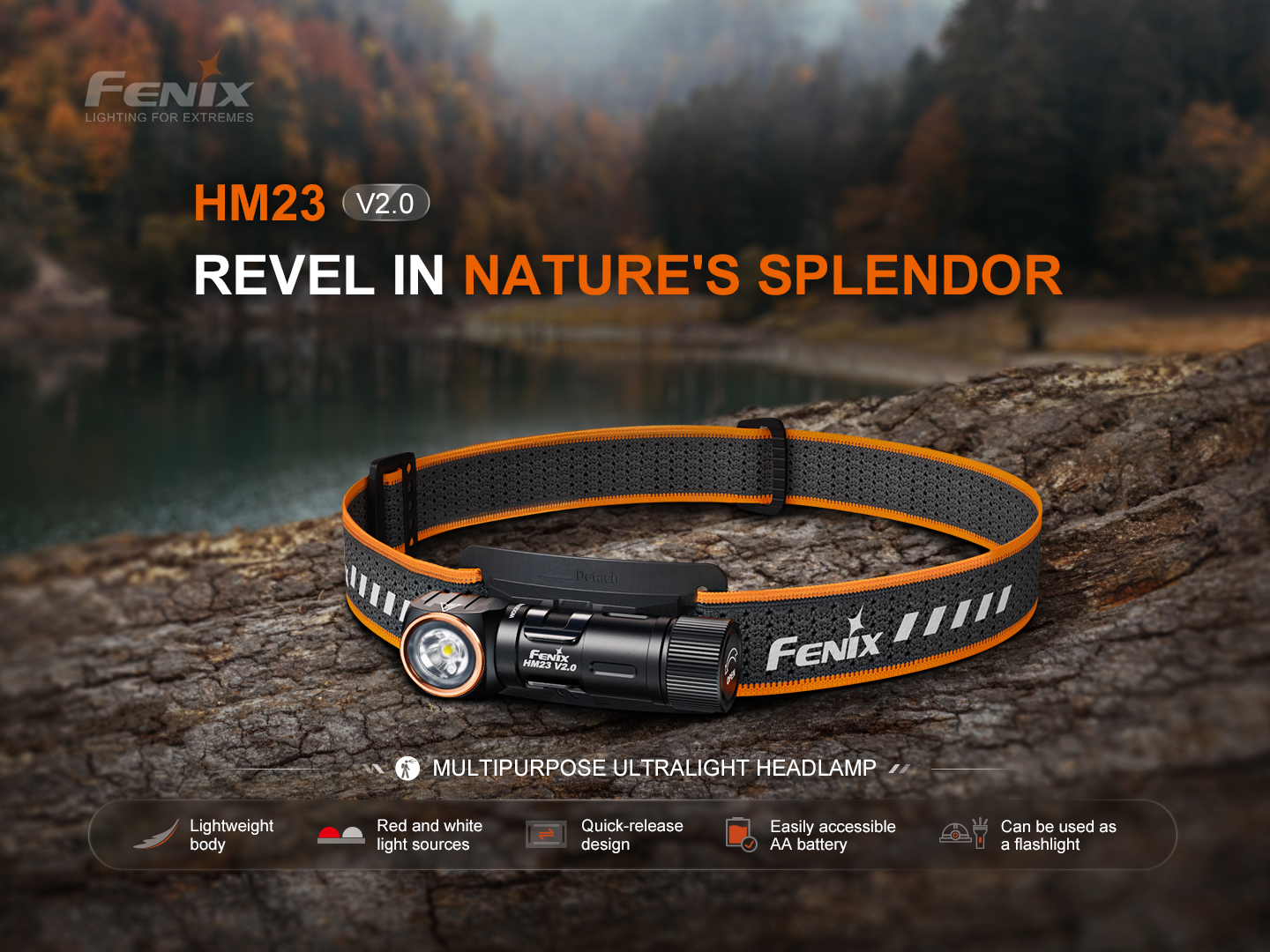

The Fenix HM23 V2.0 headlamp is a highly reliable multipurpose lightweight headlamp. The package comes with an easily accessible AA battery that offers a maximum runtime of up to 100 hours, and a 1.5V 14500 rechargeable battery can also be used to power the headlamp. It features a body clip and a magnetic tail for flexible mounting options, and it can be detached to be used as a flashlight. This headlamp combines white and red light sources to meet different lighting needs. In addition to its lightweight and compact design, this headlamp features IP68-rated protection and 2 meters of impact resistance, making it suitable for rough use across a variety of outdoor activities.

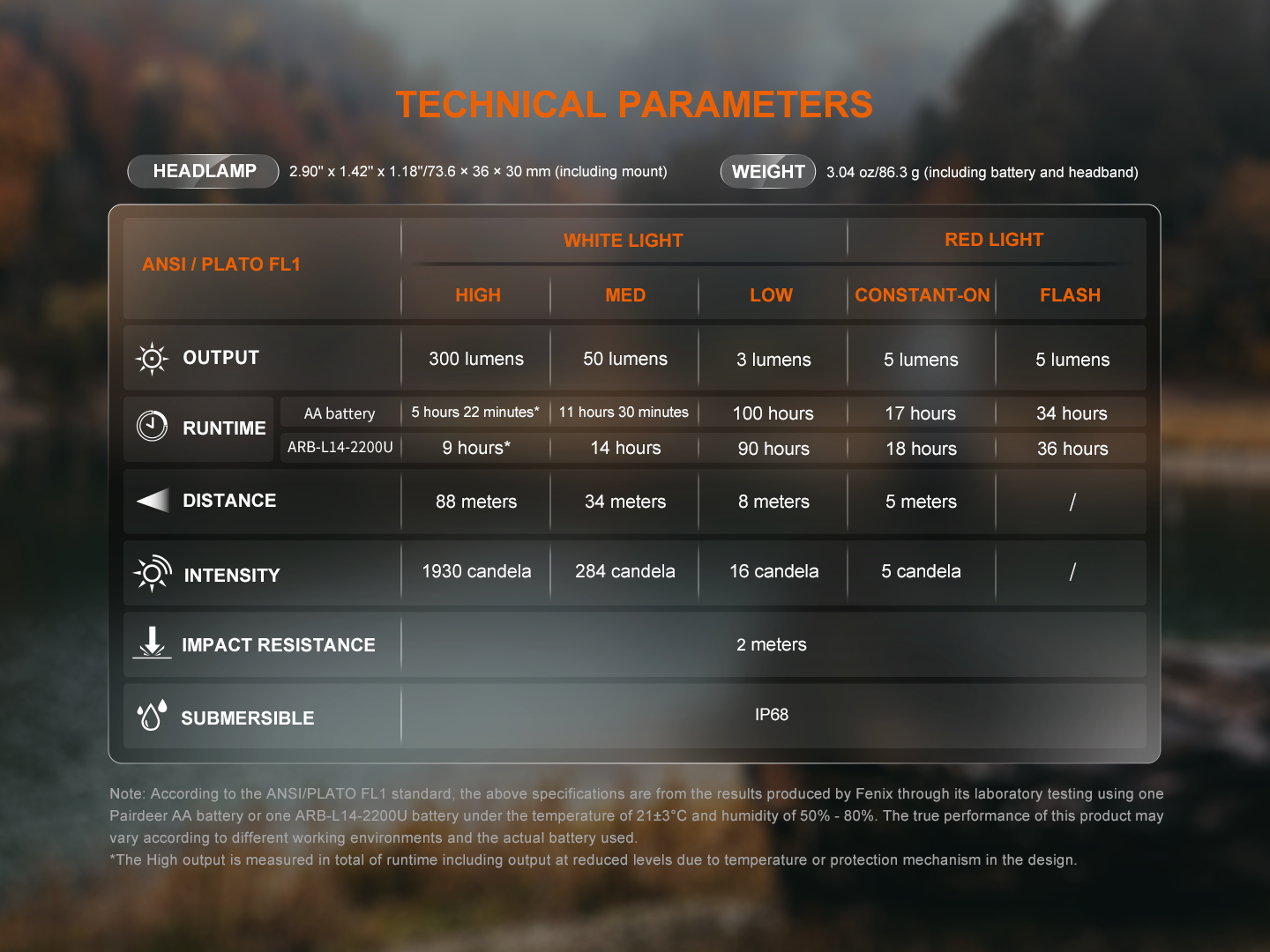

HEADLAMP(INCLUDING MOUNT): 2.90'' x 1.42'' x 1.18'' / 73.6 × 36 × 30 mm
Weight: 3.04 oz/86.3 g (including battery and headband)

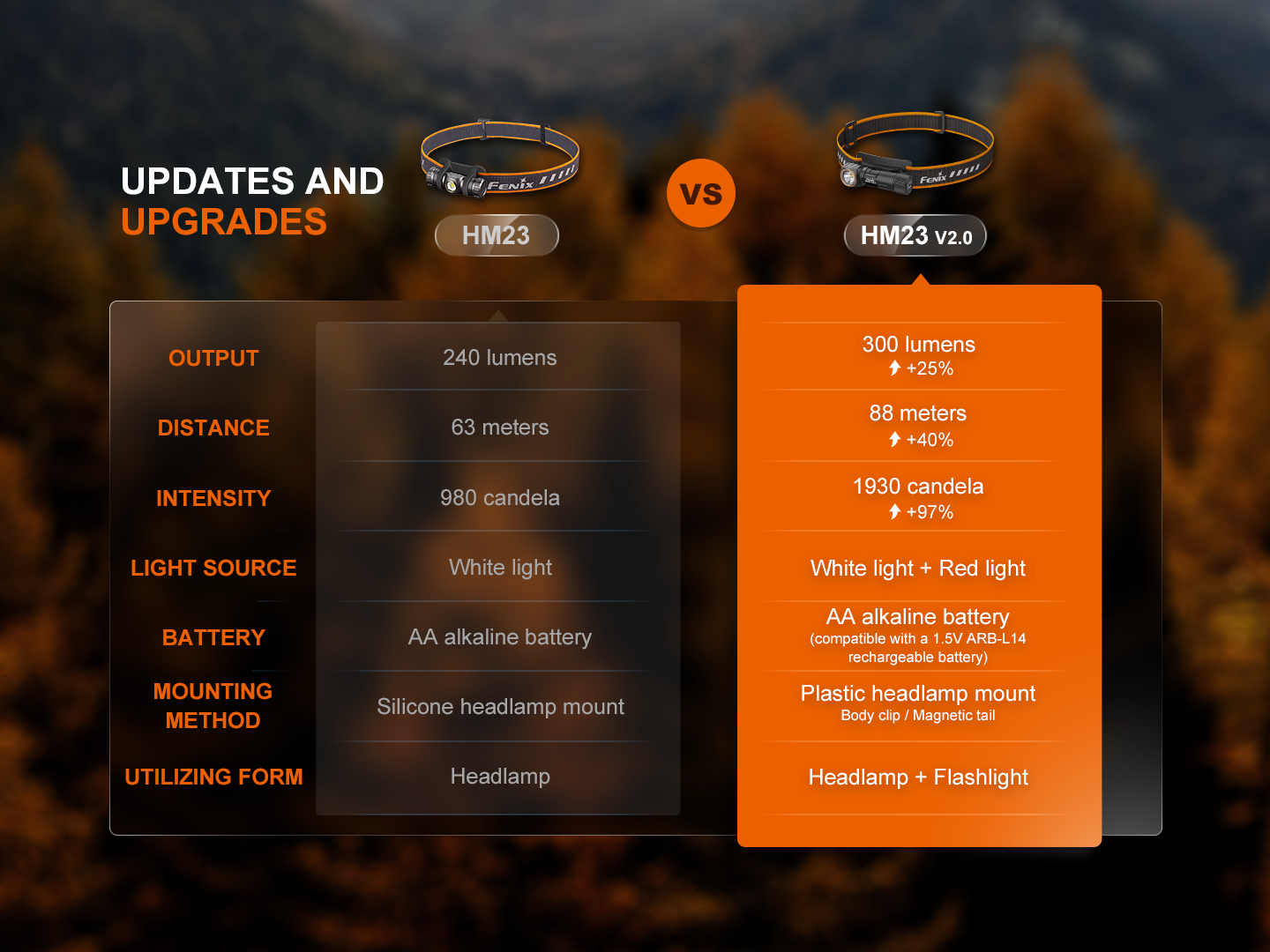

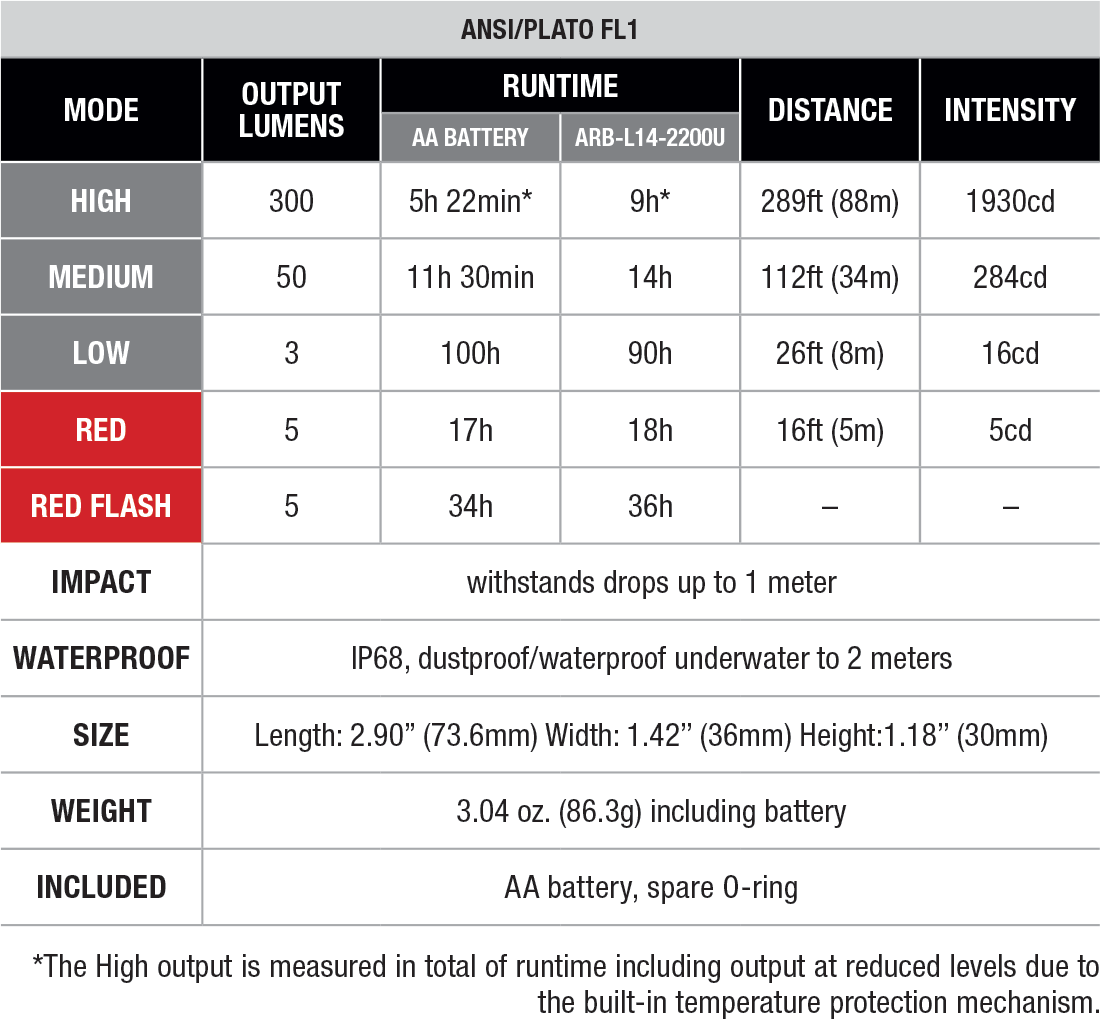

 - 300 lumens maximum output, 80 meters maximum beam distance.
 - Utilizes one Luminus SST20 white LED and two 2835 red LEDs; with a life span of 50,000 hours each.

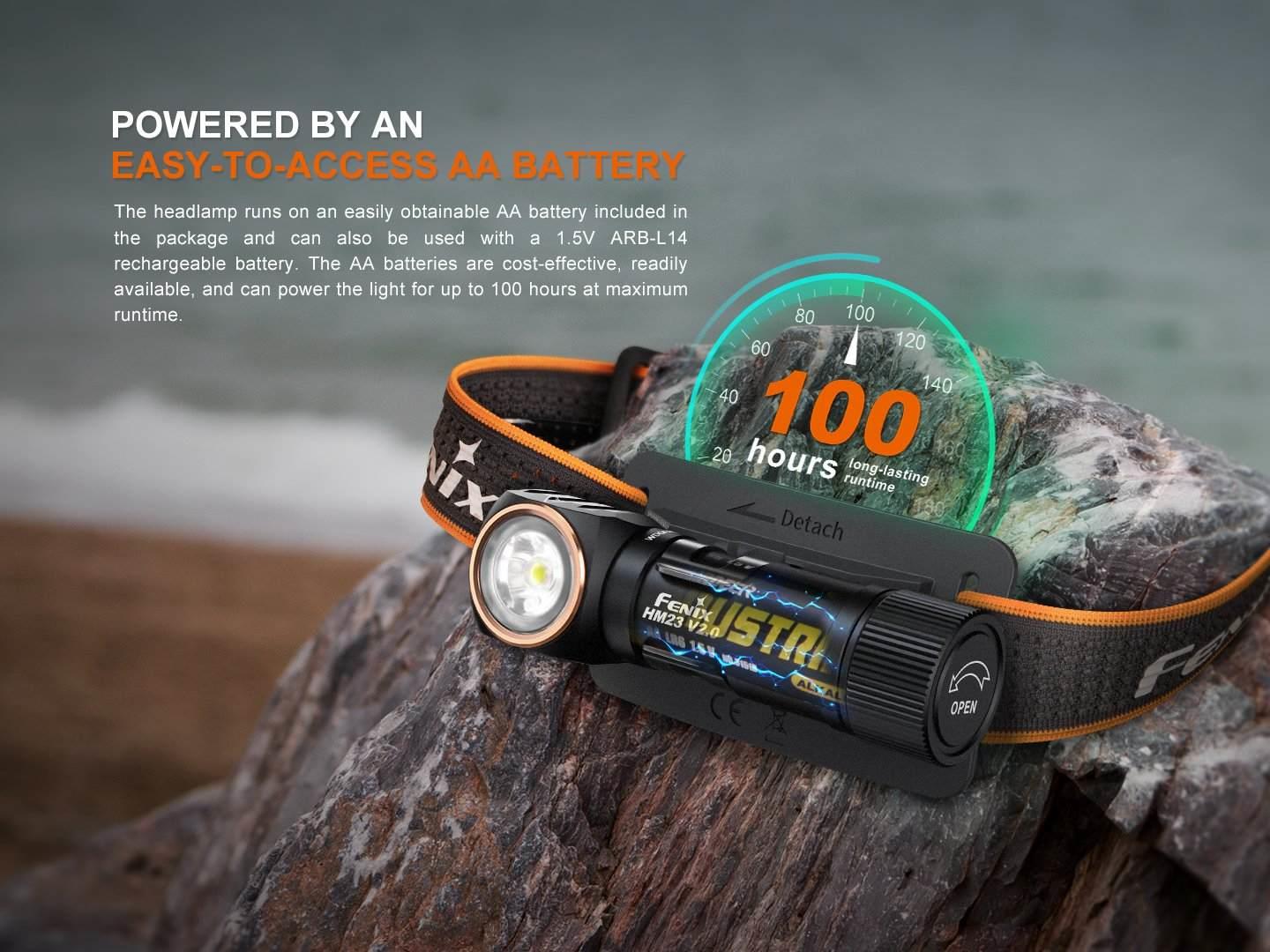

 - Powered by one AA battery and compatible with one 1.5V 14500 rechargeable battery.
 - White and red light sources assist various lighting needs in different outdoor scenarios.
 - Electronic lockout avoids accidental activation.
 - Large side switch for fast and simple operation.

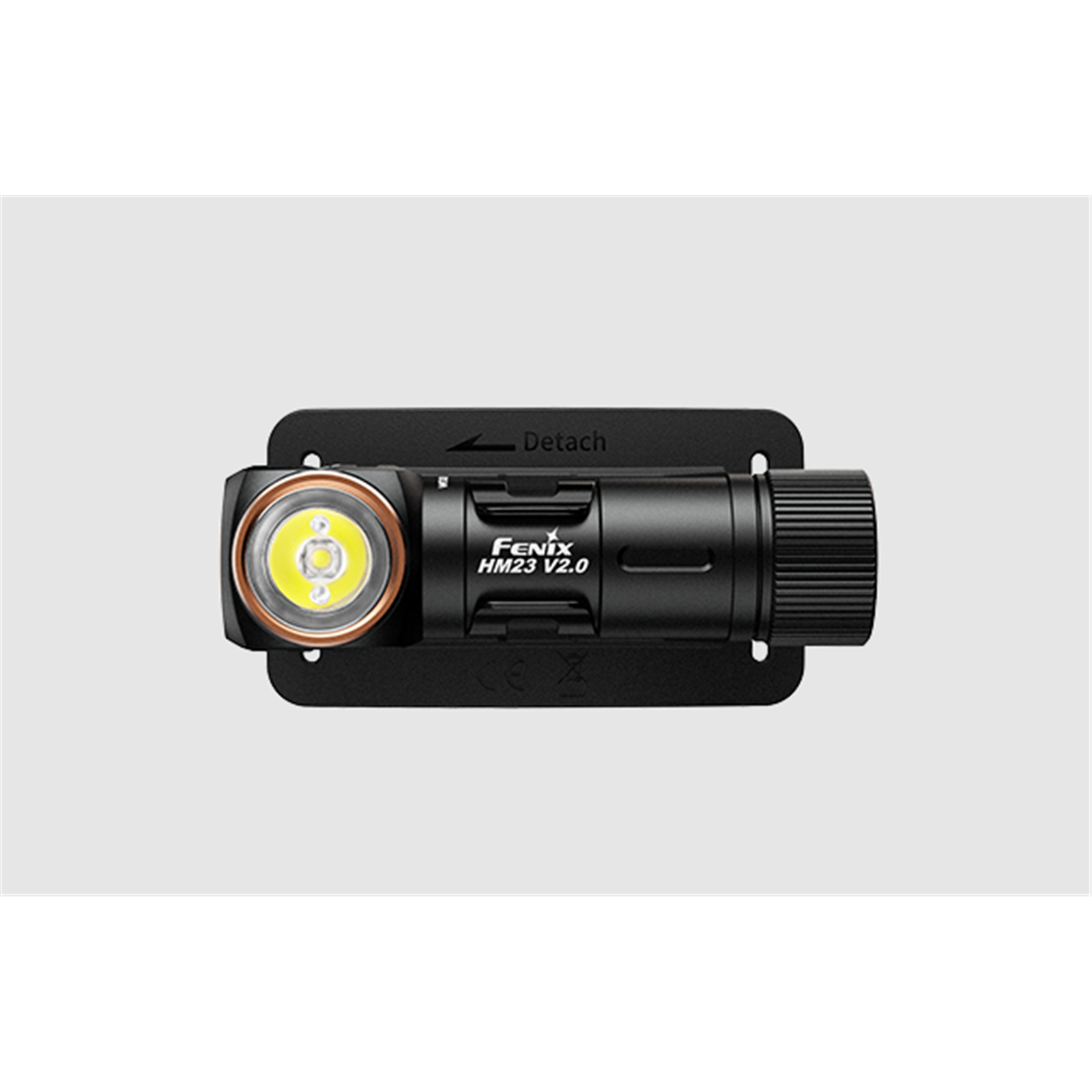

 - Can be used as a headlamp and flashlight.
 - Magnetic tail for hands-free use.
 - Reverse polarity protection to protect from improper battery insertion.
 - Lamp body is made of aluminum alloy material, lightweight and durable.

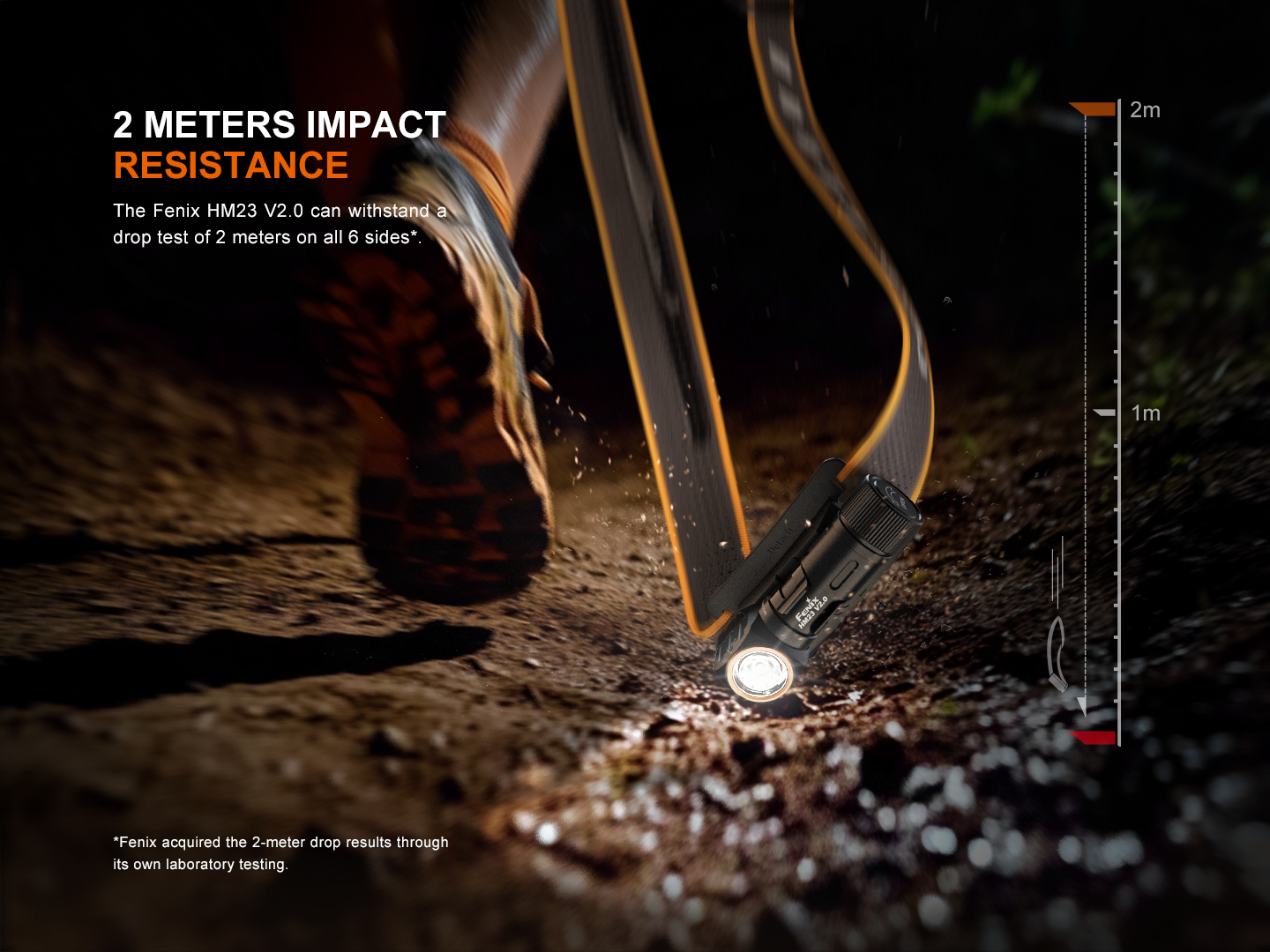

 - IP68-rated protection and 2 meters impact resistance.

Operating Instruction

On/off

Press and hold the switch for 0.5 seconds to turn on/off the lamp.

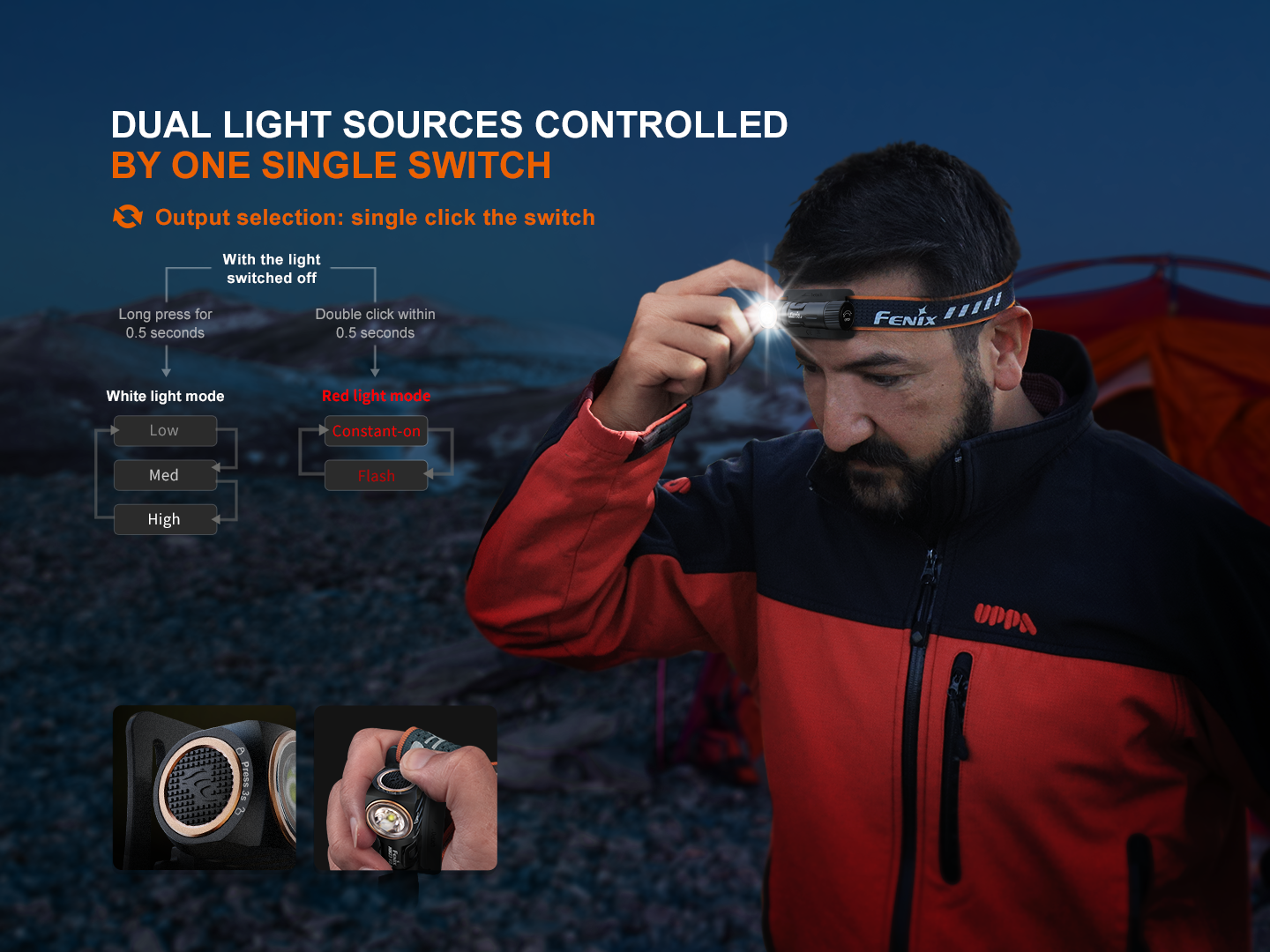

Mode switching

 - With the lamp switched off, press and hold the switch for 0.5 seconds to turn on the lamp and enter the White light mode.
 - With the lamp switched off, double click the switch within 0.5 seconds to turn on the lamp and enter the Red light mode.

Output selection

 - White light mode: single click the switch to cycle through Low?Med?High.
 - Red light mode: single click the switch to cycle through Constant-on?Flash.

Lockout Function

Lock: with the lamp switched off, press and hold the switch for 3 seconds, the lamp will blink red 4 times at 2Hz to indicate locked status.

Unlock: with the lamp locked, press and hold the switch for 3 seconds, the lamp will be activated on the Low output of White light mode after blinking red 4 times at 2Hz to indicate the unlocked status.

In the locked status, a single click or double click of the switch will activate 4 red blinks to indicate the locked status.

*Note: With the light locked, remove and reinsert the battery, the light will not be unlocked automatically. You must still press and hold the switch for 3 seconds to unlock the light.

Intelligent Memory Circuit

The headlamp automatically memorizes the last selected output of each mode. When turned on again the previously used output of selected mode will be recalled.

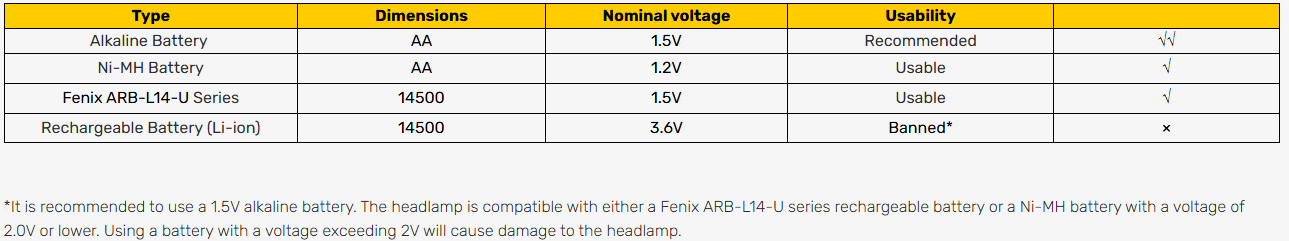

Battery Specifications

Battery Replacement

Unscrew the battery cap and insert the battery with the anode side (+) towards the inner side, then screw the battery cap back on.

Low-voltage Warning

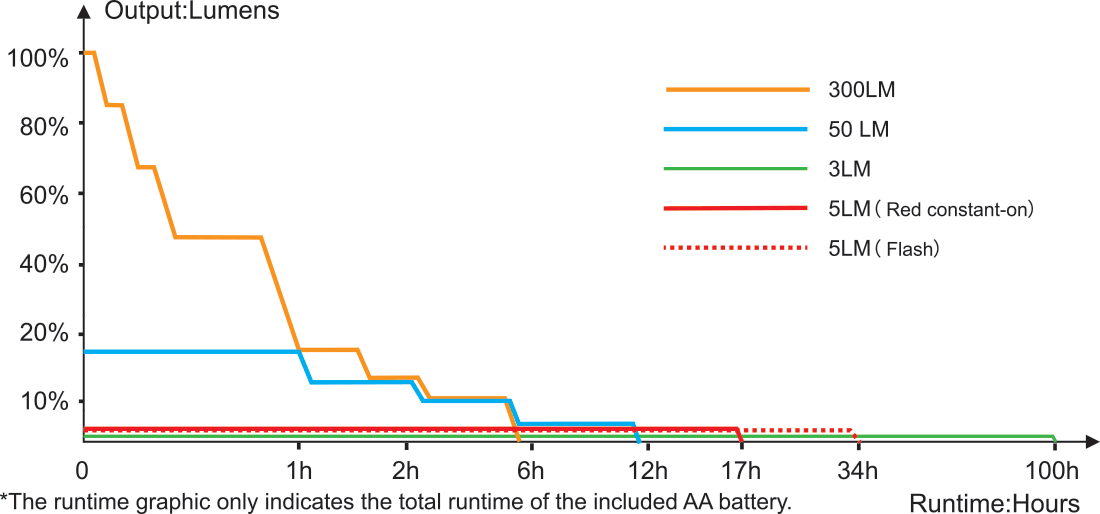

When the voltage level drops below the preset level, the headlamp is programmed to downshift to a lower brightness level until the lowest output is reached. When this happens in the lowest output, the lamp blinks 3 times every 5 minutes to remind users to replace the battery.

Headband Assembly

The headband is factory assembled by default.

Adjust the headband by sliding the buckle to the required length.

Usage and Maintenance

 - Disassembling the sealed head can cause damage to the lamp and will void the warranty.
 - Fenix recommends using an excellent quality battery.
 - If the lamp will not be used for an extended period, remove the battery, or the lamp could be damaged by electrolyte leakage.
 - Lock the lamp or take out the battery to prevent accidental activation during storage or transportation.
 - Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:

A: The lamp is locked.
Solution: Press and hold the switch for 3 seconds to unlock the lamp.

B: Poor battery level.
Solution: Replace the battery (Ensure the battery is inserted according to the manufacturer's specifications).

C: The threads, PCB board contact or other contacts are dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
