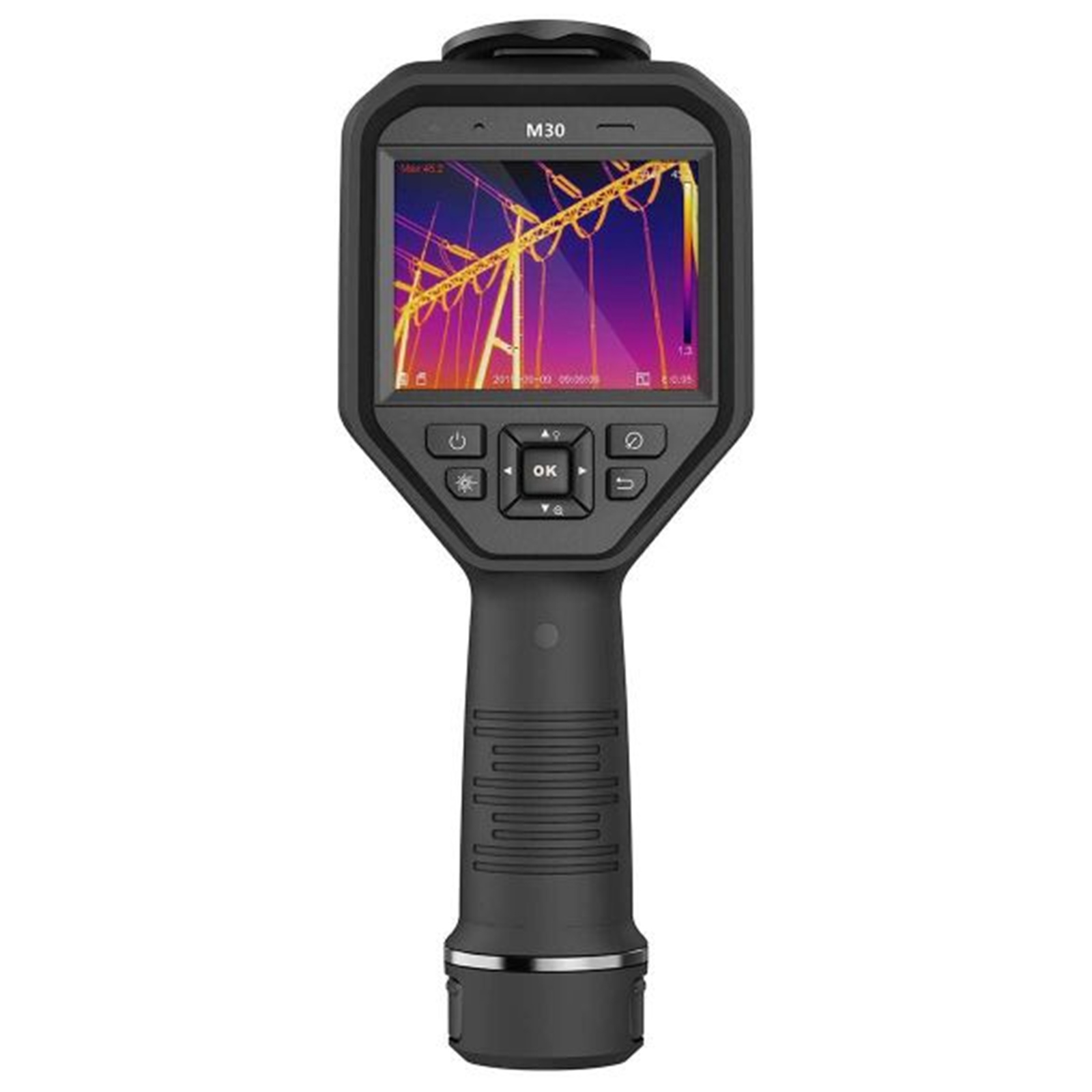

HIKMICRO M30 Handheld Wi-Fi Manual Focus Thermal Imaging Camera. 3.5'' ManualFocus.Thermal&FusionImageodes.Thermal
HIKMICRO M30 Handheld Wi-Fi Manual Focus Thermal Imaging Camera. 3.5'' ManualFocus.Thermal&FusionImageodes.Thermal
- Brand: HIKMICRO
- MPN: M30
- Part #: TOLHKM1017
- UPC:
- Brand: HIKMICRO
- MPN: M30
- Part #: TOLHKM1017
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Tools
HIKMICRO M30 Handheld Wi-Fi Manual Focus Thermal Imaging Camera. 3.5'' ManualFocus.Thermal&FusionImageodes.Thermal
- Brand: HIKMICRO
- MPN: M30
- Part #: TOLHKM1017
Product URL: https://www.pbtech.co.nz/product/TOLHKM1017/HIKMICRO-M30-Handheld-Wi-Fi-Manual-Focus-Thermal-I
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Professional Handheld WiFi Thermal Imaging Camera with Full Analysis Functions
- v3.5'' LCD Touch Screen Display
- Thermal Resolution: 384 x 288 (110,592 pixels)
- NETD: < 35mK (@ 25°C, F#=1.0)
- Temperature Measurement Range: -20°C~550°C
- Accuracy: Max (±2°C, ±2%), for ambient temperature 15°C~35°C and object temperature above 0°C
- Measurement Presets: Centre Spot, Hot Spot, Cold Spot, User Preset Point/Line/Area
- Manual Focus
- 25Hz image frequency
Specifications
Thermal Module
Image Sensor
Vanadium Oxide Uncooled Focal Plane Arrays
IR Resolution
384x288 (110 592 pixels)
Pixel Pitch
17μm
Spectral Range
8~14μm
NETD
< 35mK (@ 25°C,F#=1.0)
Focal Length
10mm
FOV (Field of View)
37.5° x 28.5°
Image Frequency
25Hz
Focus
Manual
IFOV (Spatial Resolution)
1.7mrad
Aperture
F1.0
Minimum Focus Distance
0.1m
Optical Module
Picture Resolution
Configurable: 2MP, 5MP, 8MP
Video Resolution
640 x 480
Focus
Fixed
FOV
37.5° x 28.5°
Image Display
Display
640 x 480 Resolution, 3.5'' LCD Touch Screen
Colour Palettes
White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain
Digital Zoom
1x, 2x, 4x, 8x
Image Modes
Thermal/Optical/Fusion/PIP
PIP
Thermal Picture in Optical Picture
Fusion
Thermal Picture and Optical Picture Combined
Measurement and Analysis
Object Temperature Range
-20°C~550°C
Accuracy
Max (±2°C, ±2%), for ambient temperature 15°C~35°C and object temperature above 0°C
Measurement Presets
Center Spot, Hot Spot, Cold Spot, Off
Point
10 User Presets
Line
1 User Preset
Area
3 User Presets
High Temperature Alarm
Audible Warning
Colour Alarm (Isotherm)
Above/Below/Interval/Insulation
Storage
Storage Media
Removable Micro SD Card (64GB)
Image Storage Capacity
120 000 Images
Image File Format
JPEG with Measurement Data Included
Video Storage Capacity
56 Hours
Video File Format
MP4
Functions
Laser Pointer
Yes
Laser Type
Class Ⅱ
LED Light
70 Lumens
Wi-Fi
802.11 a/ac/b/g/n (2.4GHz and 5GHz)
Bluetooth
Bluetooth 4.2
Level/Span
Auto/Manual
Text Comment
Max 200 Characters
Voice Comment
Max 60 Seconds
Power System
Power Supply
12V DC/1.5A, 5V DC/2A (Charging via USB)
Power Consumption
4.6 W
Battery Type
Dismountable and Rechargeable Li-ion Battery
Battery Operating Time
4 Hours Continuous Running
General
Menu Language
18 Languages English/ German/ French/ Russian/ Korean/ Spanish/ Portuguese/ Italian/ Japanese/ Hungarian/ Czech/ Slovak/ Polish/ Romanian/ Danish/ Turkish/ Traditional_Chinese/ Arabic
Working Temperature Range
-20°C~50°C
Storage Temperature Range
-20°C~60°C
Protection Level
IP54
Drop Test Height
2m
Interface
USB Type-C
Weight
Approx. 660g
Dimension
244 mm x 100 mm x 104 mm
Tripod Mounting
UNC ¼"-20
