Features

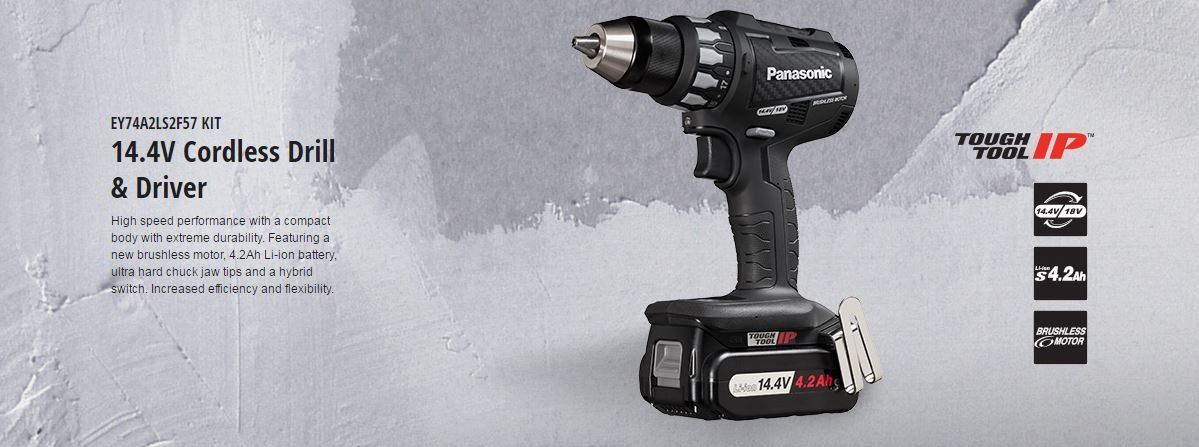

EY74A2LS2F57 14.4V Dual Drill & Driver

- Dual Voltage (14.4V or 18V)
- 4.2Ah Li-Ion battery
- Tough Tool IP Rating
- Compact body - length 178mm, weight 1.90kg
- Electric brake
- Optimum rotation speed control
- High-power brushless motor
- Variable speed control / reversible
- 18-stage clutch plus drill position
- 13mm heavy duty keyless chuck
- LED light to support work
- With 2 battery packs, battery charger (EY0L82) and carrying case

Extreme Durability

EY74A2LS2F57 is equipped with a new brushless motor which helps make the tool last twice as long compared to tools with brush motors. Its new ultra-hard chuck jaw tips are brazed into each jaw giving extra strength and helping reduce wear. Plus, the new hybrid semi-electronic switch helps eliminate heavy friction to internal parts of the switch and it also allows for smoother operation.

Powerful to the Finish

The new large brushless motor delivers a high-speed and powerful performance. The newly designed control circuit increases stable current flow to the motor by more than 70%* enabling the high-power output to be evenly maintained until the task has been completed, even during high-load operation. *Compared with previous brushless motor.

Increased Efficiency and Flexibility

The new "speed control function" lets you to choose from three different low rotation speed settings (high, medium and slow) based on allowable maximum speeds for metal hole saws. It greatly reduces 'run out' when using metal hole saws and prevents surface scorching on stainless steel and other materials.

New Advanced Speed Control

New advanced speed control electronics start rotation speed gradually. This enables slow and smooth starts allowing for ultimate control when you start drilling or working with small screws in precise applications.

Specifications

Max. Torque - Stalling Torque - High/Hard Mode

14.4V : 10Nm / 18V : 12Nm

Max. Torque Stalling Torque - Low/Soft Mode

14.4V : 28Nm / 18V : 32Nm

Max. Torque - Instant Torque - Low/Soft Mode

14.4V : 40Nm / 18V : 50Nm

Speed at No Load - High/Hard Mode

14.4V : 70-1350rpm / 18V : 70-1580rpm

Speed at No Load - Low/Soft Mode

14.4V : 30-400rpm / 18V : 30-470rpm

Clutch Torque

0.5-4.4Nm

Max.Drill Diameter - Low/Soft Mode

In Wood - 14.4V : dia.35mm / 18V : dia.38mm
In Metal - 14.4V : dia.13mm / 18V : dia.13mm

Max.Screws Driving - Low/Soft Mode

In Wood screw - 14.4V : dia.6.8mm / 18V : dia.8mm
In Self-drilling screw - 14.4V : dia.6mm / 18V : dia.6mm

Manufacturer Part No: EY74A2LS2F57 Brand: Panasonic Product Type: -
UPC - Product Family: - Shipping Weight: 2 kg
PB Part No: TOLPAN1001 Product Model: -

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
