Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.


Part #: TOLPAN1012

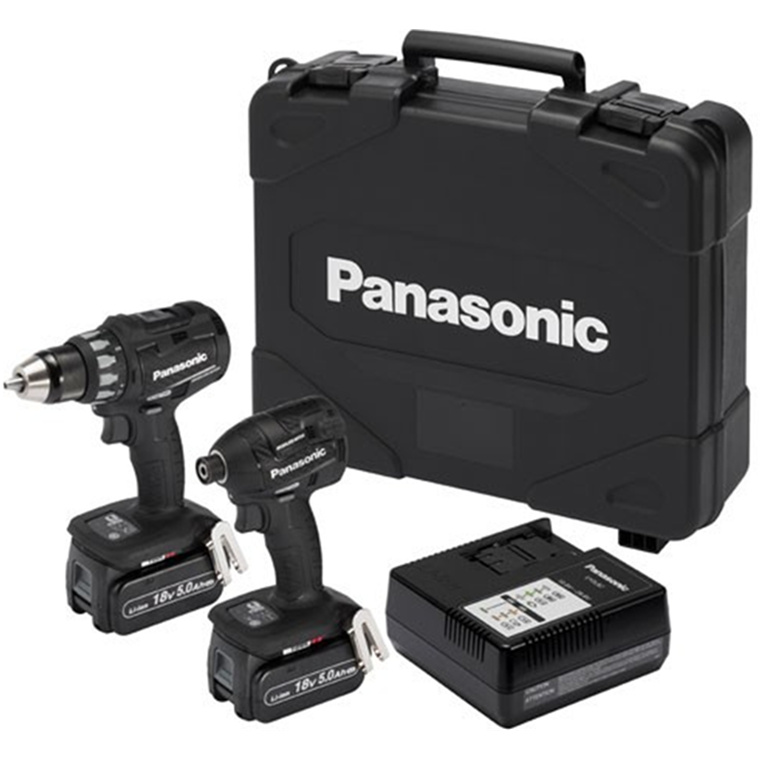

18V/5.0Ah Cordless Drill and Impact Driver Kit

Lightweight and compact yet powerful Drill and Driver - ideal for general construction, carpentry, electrical and plumbing work. The Impact Driver is extremely lightweight and compact making it ideal for overhead work, such as bolt/nut fastening and screw fastening.

- Dual Voltage (14.4V or 18V)
- 5.0Ah Li-Ion battery
- Tough Tool IP Rating
- LED light, electric brake, variable speed control/reversible
- IP56 rated for the ultimate in toughness

EYC215LJ2G57 Kit Includes:
x1 EY74A2 (Body): 18V/14.4V Drill & Driver
x1 EY75A7 (Body): 18V/14.4V Impact Driver
x2 EY9L54B: 18V 4.2Ah Li-ion battery pack
x1 EY0L82B: Charger

High Performance Tough Tool IP Dual Voltage Battery Capacity

The Panasonic EYC215LJ2G57 18V Dual Voltage, 5.0Ah Li-ion battery Cordless Drill & Driver / Impact Driver Combo Kit combines lightweight bodies with extreme power. Both units feature precision variable speed control/reversible, high power brushless motor, plus LED light for user-friendly operation in dark areas, and an electric brake for added safety.

Extreme Durability

EY79A2 is equipped with a new brushless motor which helps make the tool last twice as long compared to tools with brush motors. Its new ultra-hard chuck jaw tips are brazed into each jaw giving extra strength and helping reduce wear. Plus, the new hybrid semi-electronic switch helps eliminate heavy friction to internal parts of the switch and it also allows for smoother operation.

New Brushless Motor
Without brushes and commutator which can reduce the lifetime of the tool, the motor lasts approximately twice compared with brushed motor. * Compared with Panasonic conventional brushed motor.

New Ultra Hard Chuck Jaw Tips
We increased durability of every part right down to the new metal chuck which features tungsten carbide jaw tips. These extra hardened inserts are brazed into each jaw to give extra 'bite strength' and substantially reduce wear.

New Hybrid Switch
To eliminate heavy friction to internal parts of the switch during use of electric brake, we developed a new semi-electronic switch. This gives smoother operation and double* the life expectancy of the part.* Compared with Panasonic conventional switches.

Powerful to the Finish

The new large brushless motor delivers a high-speed and powerful performance. The newly designed control circuit increases stable current flow to the motor by more than 70%* enabling the high-power output to be evenly maintained until the task has been completed, even during high-load operation.

Increased Efficiency and Flexibility

The new "speed control function" lets you to choose from three different low rotation speed settings (high, medium and slow) based on allowable maximum speeds for metal hole saws. It greatly reduces 'run out' when using metal hole saws and prevents surface scorching on stainless steel and other materials.

New Advanced Speed Control

The new 'Speed Control Function' allows the user to select from three different low rotation speed settings, based on allowable maximum speeds for metal hole saws. It greatly reduces 'run out' when using metal hole saws and prevents surface scorching on stainless steel and other materials.

The advanced 'Smooth Start' electronics allow easy, precise speed control, enabling the ultimate control when starting drilling or working with small screws in precise applications.

Advanced Ergonomics

With EY75A7, you'll achieve high-power with optimum centre-balanced ergonomics thanks to its compact design and shorter brushless motor. It's also incredibly comfortable to use, even in narrow spaces.

Multiple Modes for a Variety of Applications

The Impact Driver has four different loads:

Hard: fastening long bit and bolts
Medium: fastening for furniture
Soft: fastening for plaster board
Self-Drilling Screw Mode: this new mode starts at the highest speed to cut the hole, and then it transfers to High-Impact for power. It automatically switches to a slower mode.

Robust Design for Heavy-Duty Use

Powerful and compact, the new brushless motor delivers approx. 200%* more life cycles thanks to a new brushless motor. Plus, a thicker motor shaft ensures more strength for heavy-use. EY75A7 uses rigid metal parts in the switch and housing increase durability and increase wear.

Tough Tools for Tough Conditions

Many things can happen at a job site such as unexpected incidents, water contact, or exposure to dust; which can cause a tool to malfunction. By incorporating the Tough Tool IP technology, it reassures that Panasonic cordless tools perform at its best in the most difficult situations.

Dust and Water - Resistant Level IP56

The International Protection Code classifies the degree of protection provided against intrusion of solid foreign objects and liquids in electrical machinery and fixtures as defined by the IEC standards.

LEVEL 5 - Dust Protected
LEVEL 6 - Protected Against Powerful Water Jets

Performance Protection

Switch - An additional rubber cap seals the switch and protects it against dust and water.
Electronics - The electronic circuits of control panel and battery pack are covered by an Urethan layer for maximum dust and water protection.
Battery - The battery cells are designed to avoid intrusion of moisture.

Dual Voltage for Better Versatility

Dual voltage technology offers powerful performance with either a 14.4V or 18V battery. A special dual voltage circuit detects the voltage of the attached battery pack and controls the current and voltage flows to the tool to ensure optimum performance.

18V 3.0Ah
With the 18V 3.0Ah battery, the application speed and working capacity goes up.

14.4V 4.2Ah
With the 14.4V 4.2Ah battery, it's easier to use with light weight and compactness.

18V 5.0Ah
With the 18V 5.0Ah battery, the application speed and working capacity goes up with increased power.

Powerful and Longer Lasting

Panasonic's new generation 18V 5.0Ah Li-ion battery cell offers more durability during high workload conditions due to its reduction in internal resistance.

Durable New Design

Over-discharged prevention sensor - Prevents over-discharge to avoid lasting cell damage or recharge problems.
Battery overheat protection sensor - Cuts off power to the motor before the battery temperature rises.
Individual monitoring of battery cell voltage - Each cell monitored by sensor to ensure optimal discharge control.
Battery sensor - Flashing lamps indicates overheating battery. Battery is automatically reactivated when temperature drops.
Heat resistance layer technology - In cases where seperator is damaged and abnormal heat is created, HRL acts to contain this heat, just like a Fire wall.
NNP technology - Panasonic's own developed Nickel oxide material provides higher capacity and higher reliability.



Max. Torque

32.0 N-m Stalling torque, 50.0 N-m Instand torque

Speed at No Load

Low 30-470 min-1 (rpm)
High 70-1580 min-1 (rpm)

Clutch Torque

0.5-4.4 Nm (0.23 Nm per stage, total 18 stage)

Charging Time (using EY0L82B charger)

Usable 65 minutes
Full 80 minutes

Weight (including battery)

2.05 kg

Size (LxHxW)

178mm x 250mm x 68mm

Max. Drill Diameter

In Wood ?38 mm
In Metal ?13 mm

Max. Screws Driving

Wood screw ?8 mm
Self-drilling screw ?6 mm


Charging Time (using EY0L82B charger)

Usable - 65 minutes
Full - 80 minutes

Weight (including battery)

1.70 kg

Size (LxHxW)

118mm x 242mm x 66mm

Max. Torque

High/Hard Mode; 160 Nm
Medium Mode; 130 Nm
Low/Soft Mode; 26 Nm
Self-drilling screw Mode; 130 Nm

Speed at No Load

High/Hard Mode; 0-2500 rpm
Medium Mode; 0-1450 rpm
Low/Soft Mode; 0-950 rpm
Self-drilling screw Mode; 0-2500 rpm


High/Hard Mode; 0-3100 ipm
Medium Mode; 0-2900 ipm
Low/Soft Mode; 0-1900 ipm
Self-drilling screw Mode; 0-1200 ipm

Manufacturer Part No:
Product Type:
Product Family:
Shipping Weight:
8.662 kg
PB Part No:
Product Model:
Warranty: 12 months *
