Makeblock Me 12803 Me 130 Motor Pack - 5V / 10000RPM

PB Tech price
PB Tech price
$ 17 .00
 +GST
$ 19 .55
 inc GST
$17.00  +GST
$19.55

Makeblock Me 12803 Me 130 Motor Pack - 5V / 10000RPM

PB Tech price
$ 17 .00 $ 19 .55
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 21 Oct When will I receive it?
$17.00  +GST
$19.55

Features

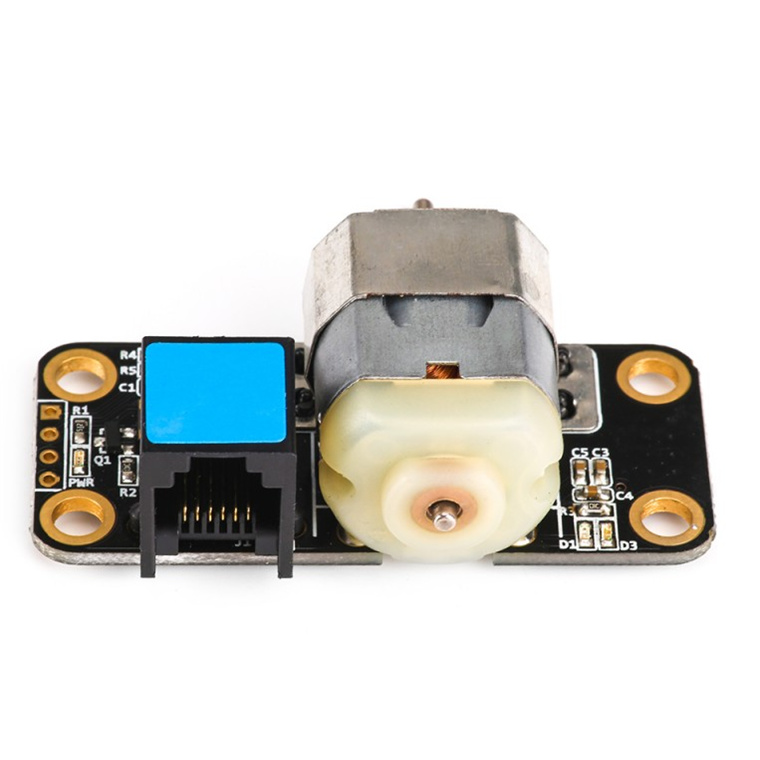

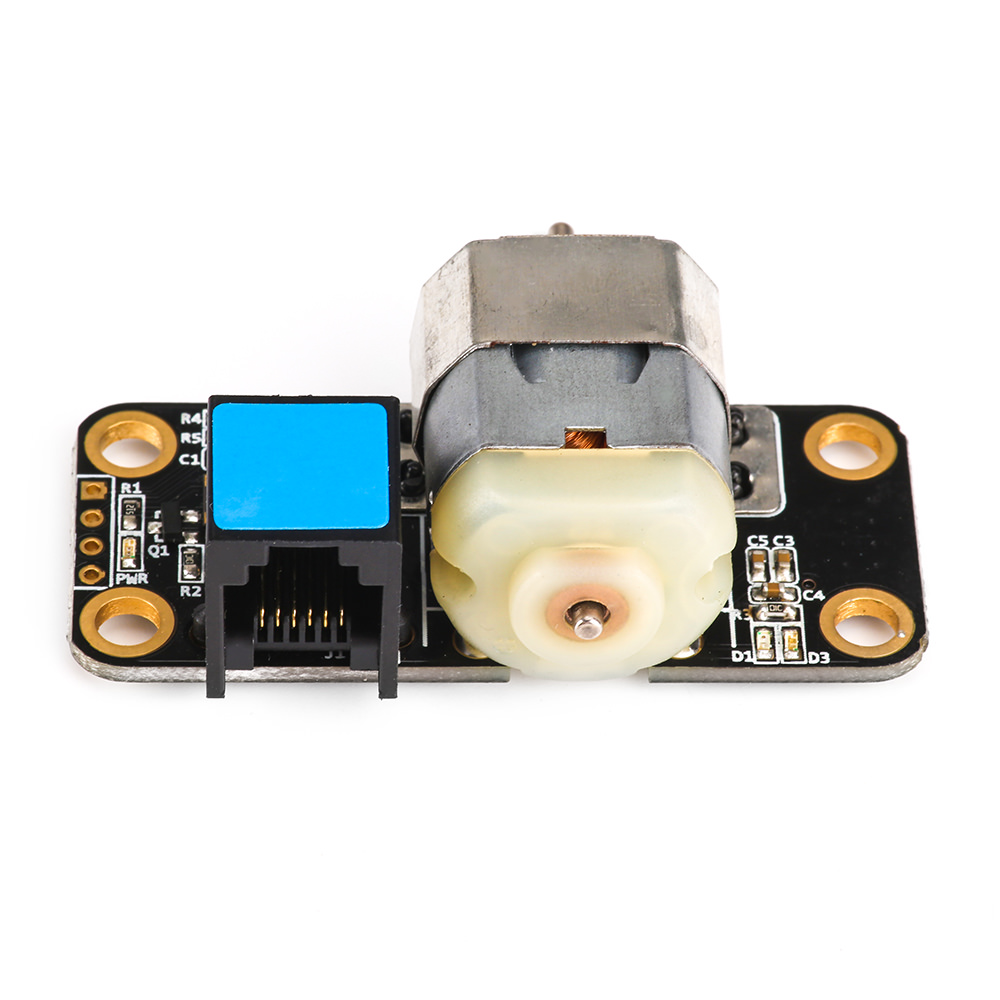

What is Me 130 Motor Pack?

This module is the updated version of the previous Me 130 motor. It has the same dimension as before but now is added a RJ25 port and motor drive chip. The module does not require motor driver port as it can rotate with dual-digital port. It supports Arduino but not the mBlock of mBot.

Features

 - Driving motor with 5V voltage;

 - Support clockwise and anti-clockwise rotation;

 - Over-current and anti-reverse protection;

 - Equipped with LG9110 motor drive chip;

 - 10000RPM no-load speed with 5V voltage.

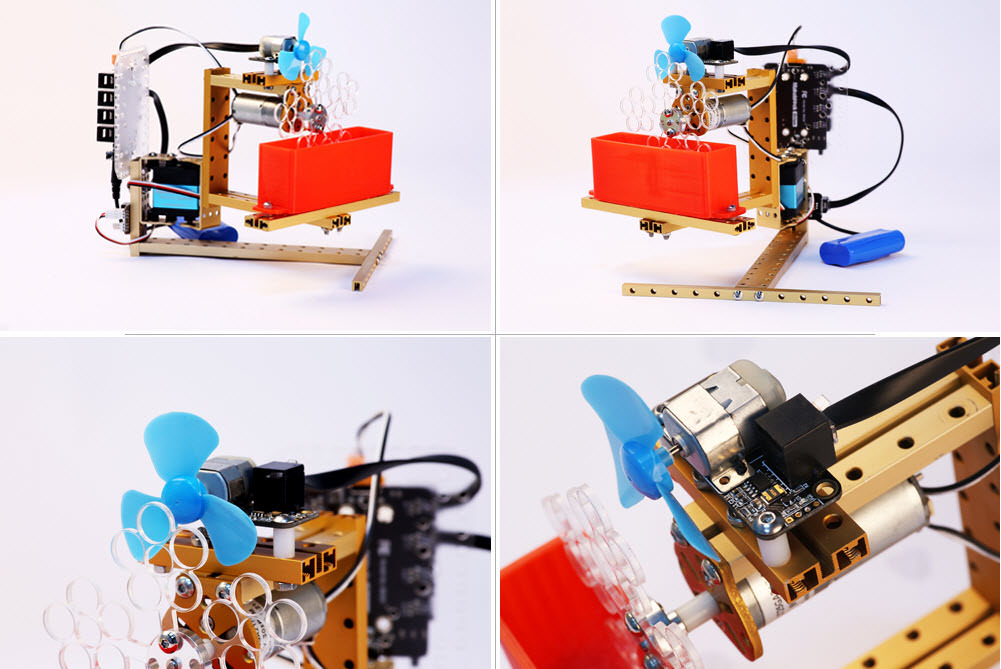

Building Examples

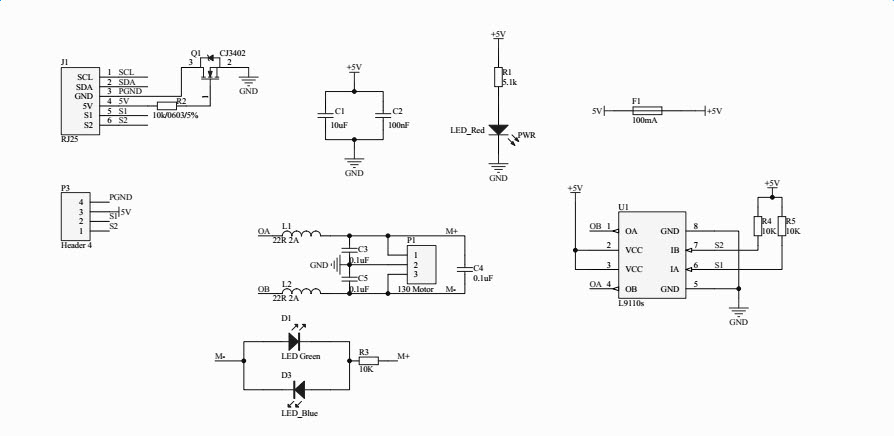

Schematic Diagram

Specifications

Reduction Ratio

0

Rated Voltage

DC 5V

No Load Current

90±10% mA

Load Current

<800mA

NO Load Speed

10000±10%rpm

Working Temperature

-10?~50?

Working Humidity

5%~85%RH

Product Information

SKU

12803

Product Name

Me 130 Motor Pack-5V/10000RPM

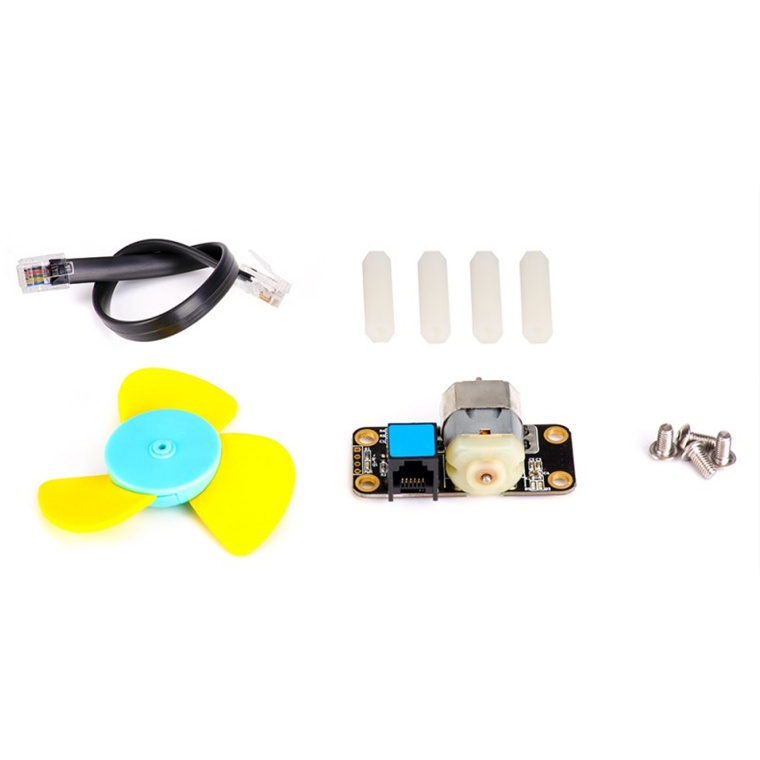

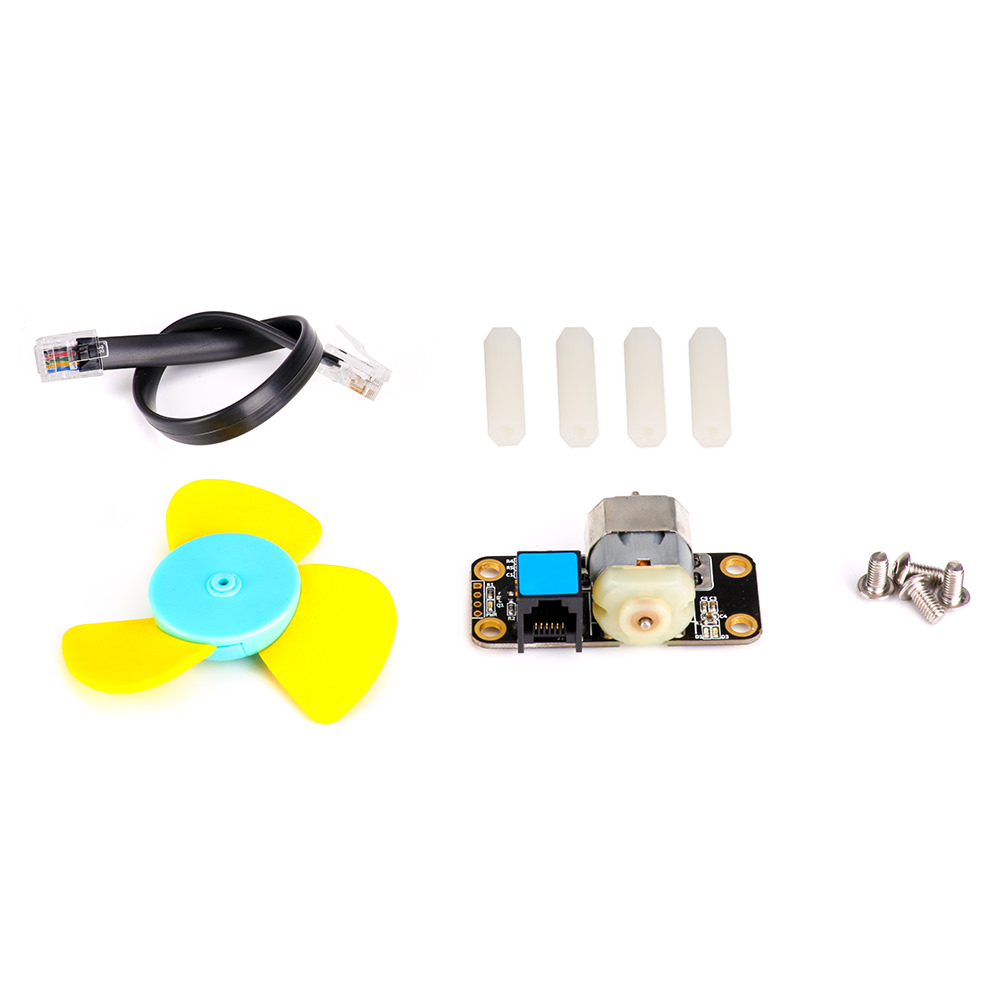

Package content

1 x Socket Cap Screw M4*8-Button Head - stainless steel (four pieces)
1 x Nylon Stud M4*30 - white nylon (four pieces)
1 x 6P6C cable-20cm-black
1 x 5V 130 motor V1.0

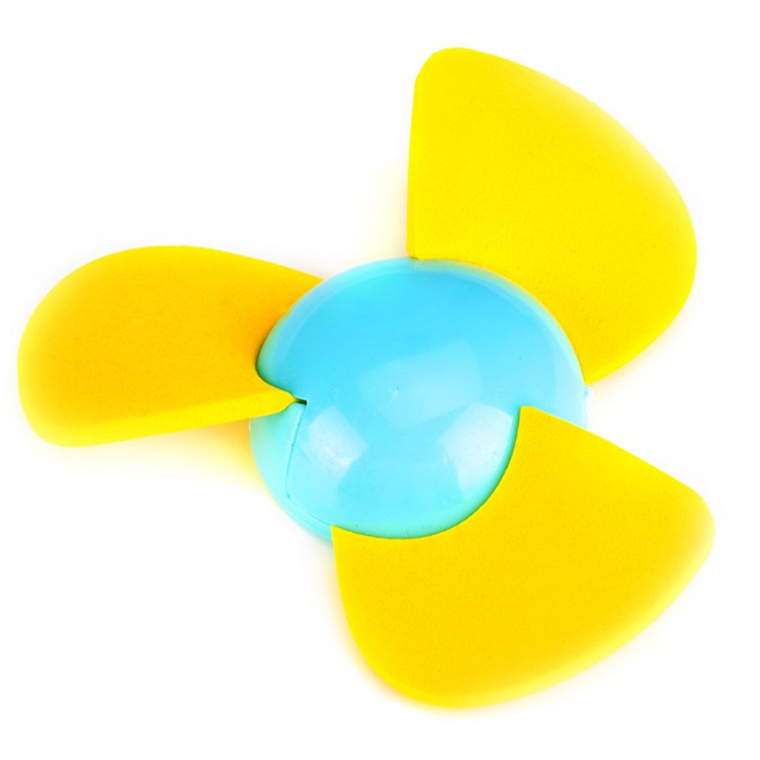

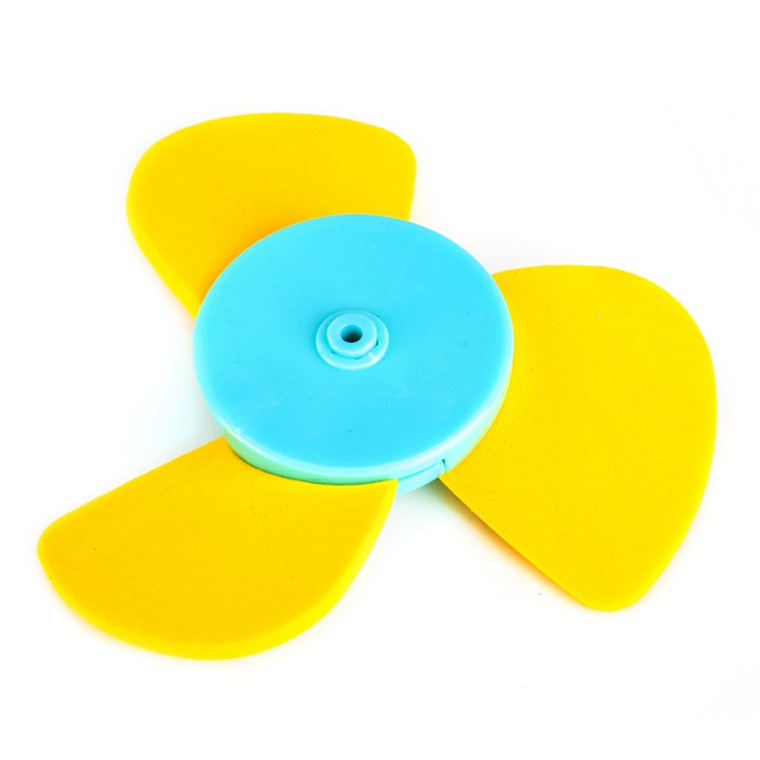

1 x Mini fan (yellow)

Package Dimension

110 x 150 x 10 mm
(4.33 x 5.91 x 0.39 inch)

Net Weight

42g (1.48oz)

Gross Weight

46g (1.62oz)

Manufacturer Part No:
12803
Brand:
Product Type:
-
UPC
-
Product Family:
Me
Shipping Weight:
0.8 kg
PB Part No:
TOYMKB0114
Product Model:
12803
