KONIC 37"-80" Portrait display Wall Mount - For TV, Interactive Display , Digital Signage - Weight Capacity 50kg - Screen Rotation +180-180

PB Tech price
PB Tech price
$ 69 .00
 +GST
$ 79 .35
 inc GST
$69.00  +GST
$79.35

KONIC 37"-80" Portrait display Wall Mount - For TV, Interactive Display , Digital Signage - Weight Capacity 50kg - Screen Rotation +180-180

Portrait or Landscape Viewing: one solution fits any installation
  • Brand: KONIC
  • MPN: KN-TR7946F
  • Part #: TVAKNC7946F
  • UPC:
PB Tech price
$ 69 .00 $ 79 .35
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 15 Sep When will I receive it?
$69.00  +GST
$79.35
  • Brand: KONIC
  • MPN: KN-TR7946F
  • Part #: TVAKNC7946F
  • UPC:

Max Screen Size Supported

80 inches

Max Weight Supported

50kg

Min Screen Size Supported

37 inches

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the KONIC 37"-80" Portrait display Wall Mount - For TV, Interactive...
KONIC 37"-80" Portrait display Wall Mount - For TV, Interactive Display , Digital Signage - Weight Capacity 50kg - Screen Rotation +180-180
Total:
$ 71 .60
 +GST
$ 82 .34
Buy together and save $0.87 $1.00
OEM M8 (8mm x 60mm) Phillips Pan Head Screws (4 Piece/Pack) For Samsung TV Mounting Screw
OEM M8 (8mm x 60mm) Phillips Pan Head Screws (4 Piece/Pack) For Samsung TV Mounting Screw

$2.60  +GST

$2.99

You save 25% You save 25%

Features

KONIC 37"-80" Landscape/Portrait TV Wall Mount

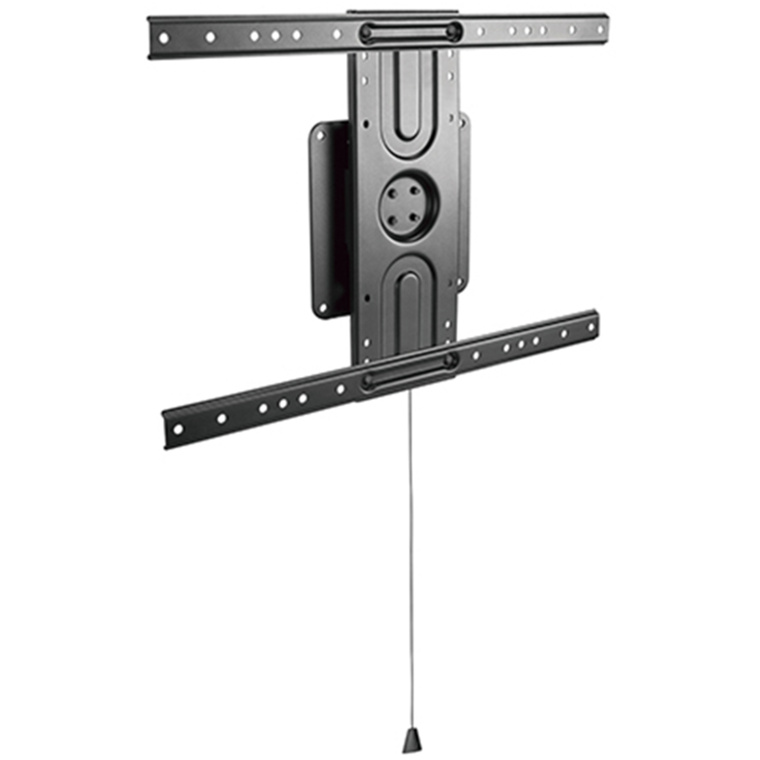

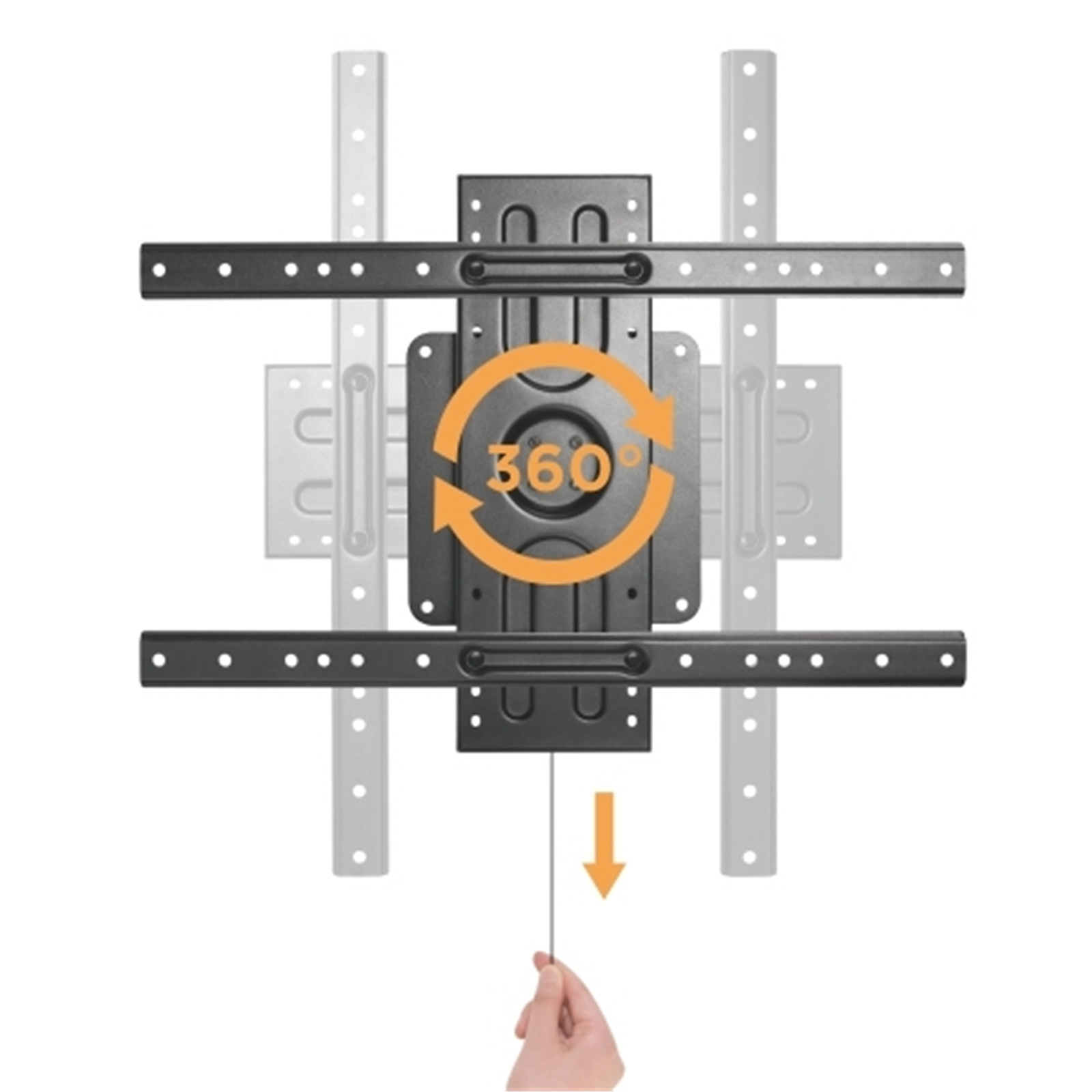

This wall mount is perfect for most 37"-80" displays including digital whiteboards such as Samsung Flip and Microsoft Surface Hub 2S. With 360° rotating mounting plate, the displays can be effortlessly held in landscape or portrait position. The spring lock ensures a safe rotation adjustment, and its magnetic pull strap can be hidden easily for keeping a clean appearance when not in use. Slide-in mounting plate provides easy access for attachment and detachment.

- Portrait or Landscape Viewing: one solution fits any installation
- Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy

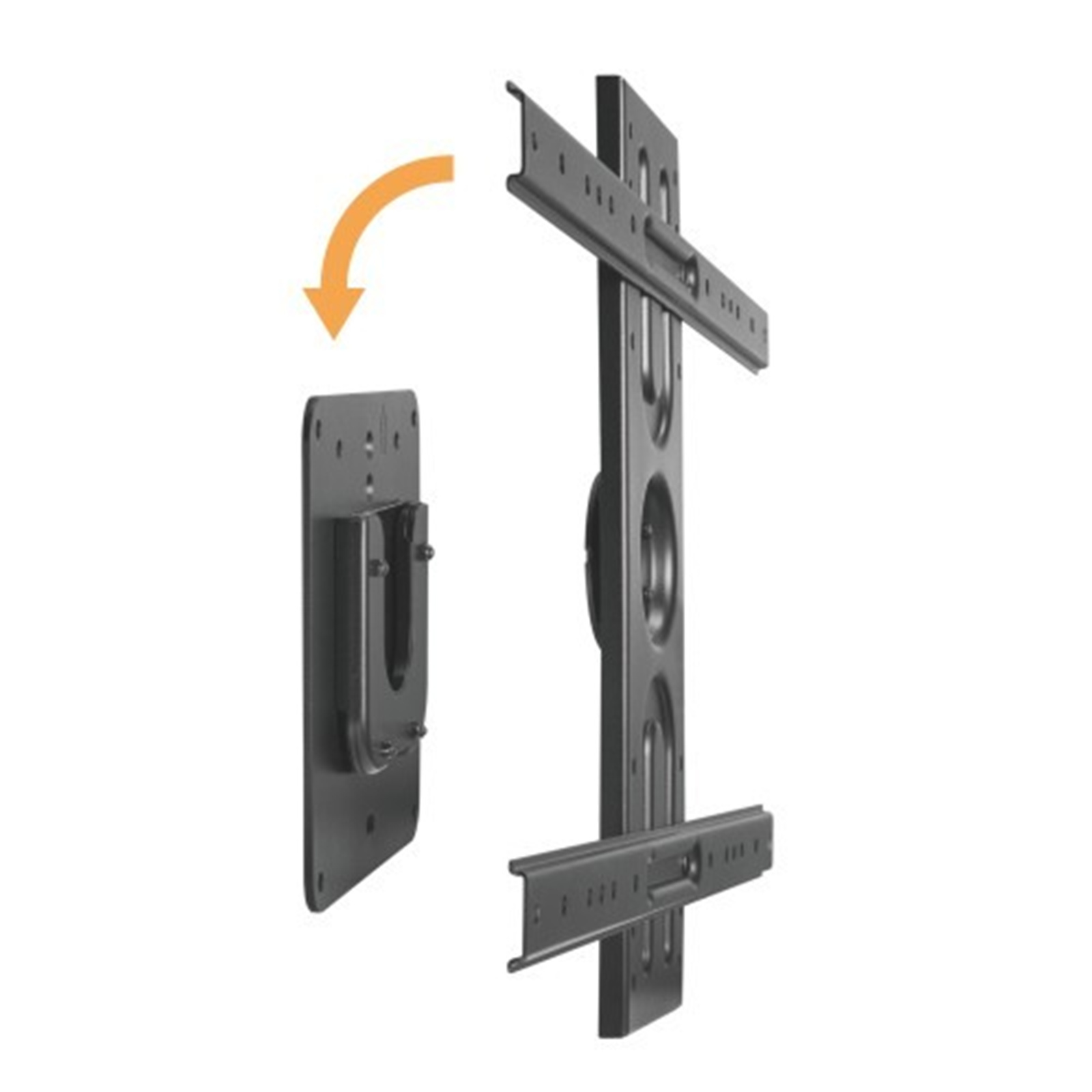

- Slide-in Design: for quick attachment and detachment

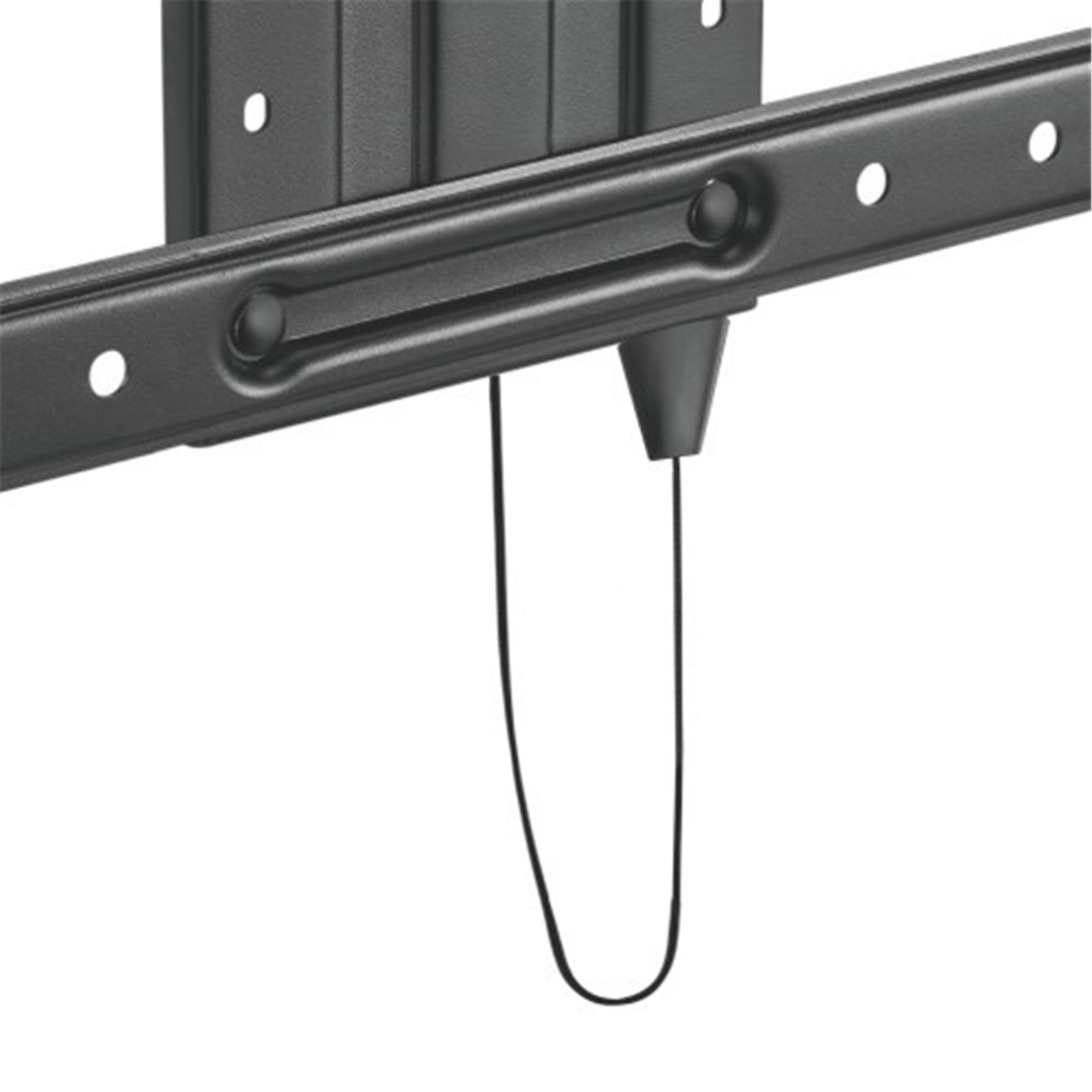

- Magnetic Strap End: hides itself when not in use.

Specifications

Product Category

Fixed TV Wall Mount

Material

Aluminum, Steel, Plastic

Color

Fine Texture Black

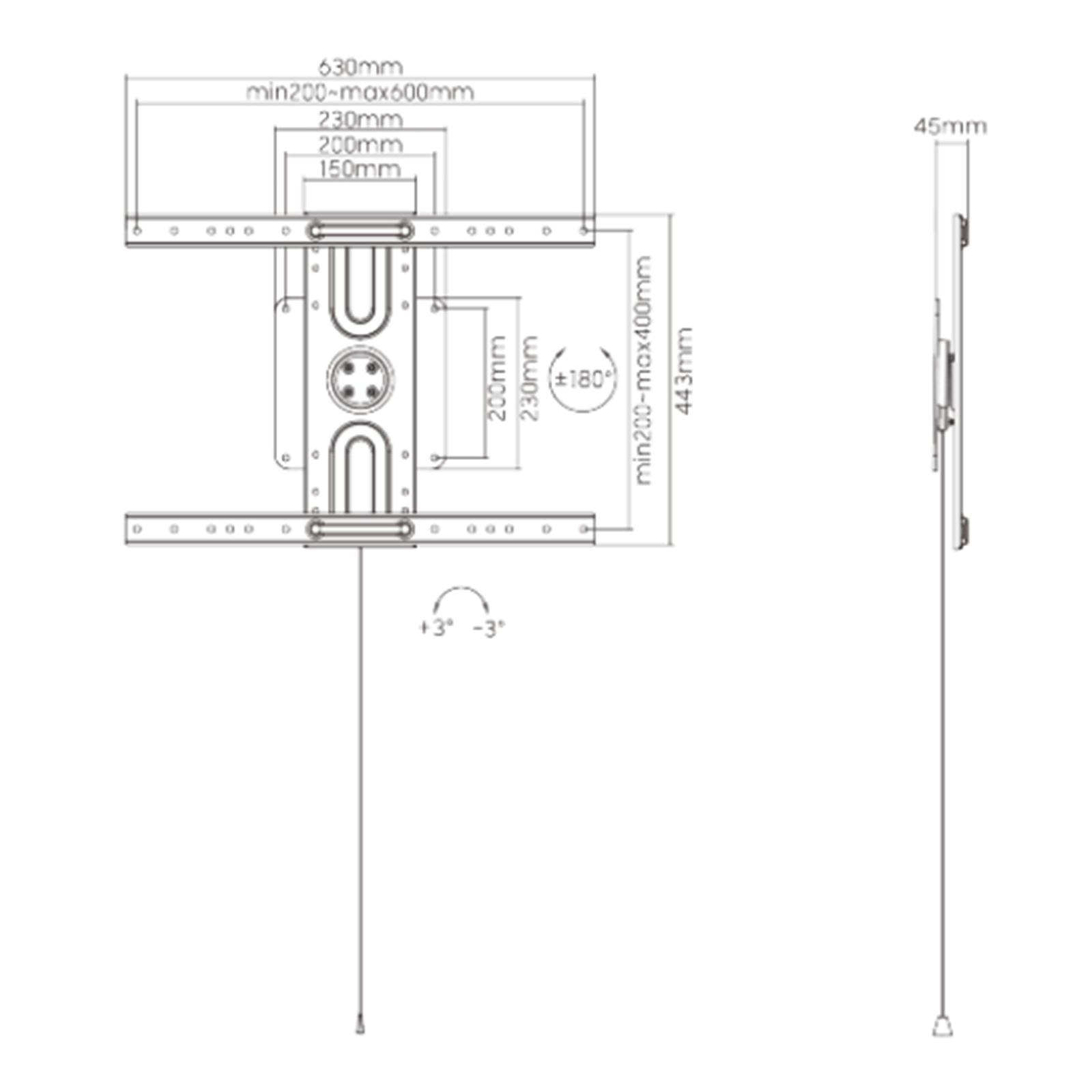

Dimensions

45x630x450mm (1.8"x24.8"x17.7")

Fit Screen Size

37"-80"

Fit Curved TV

Yes

Mounting Hole Pattern

VESA & Universal

VESA Compatible

200x200,300x200,400x200,300x300,400x300,350x350,400x400,400x600,600x400

Max. Mounting Hole

600x400

Weight Capacity

50kg (110lbs)

Manufacturer Part No:
KN-TR7946F
Brand:
Product Type:
Portrait display Wall Mount
UPC
-
Product Family:
37"-80"
Shipping Weight:
5.35 kg
PB Part No:
TVAKNC7946F
Product Model:
-
Warranty: 60 months *
