DrayTek 28-Port Gigabit Ethernet PoE/PoE+ Managed Switch 24-port PoE 4x SFP

PB Tech price

$ 976 .52

+GST

$ 1,123 .00

inc GST

DrayTek 28-Port Gigabit Ethernet PoE/PoE+ Managed Switch 24-port PoE 4x SFP

Brand: DrayTek
MPN: P1282
Part #: UNC001003079
UPC:

PB Tech price

$ 1,123 .00

inc GST

+GST inc GST

In stock at NZ Logistics Centre

No store stock available.

Click & Collect: Select your store to check availability

Delivery: Order now and it ships on 03 Oct When will I receive it?

Add To Compare

Stock Alerts

Finance from $10.72 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

View All Finance Options

Click or hover over image to enlarge

Brand: DrayTek
MPN: P1282
Part #: UNC001003079
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

DrayTek VigorSwitch P1282 is a Web Smart Gigabit PoE switch. It has 24x GbE PoE/PoE+ ports with 400 watts of power budget and 4x GbE/SFP combo ports.

Equipped with enterprise-level features, including IP Conflict Detection & Prevention, ONVIF Surveillance, and ping watchdog, VigorSwitch P1282 is a managed switch that brings network security and stability into mid-sized environments.

ONVIF-Friendly

Recognize the ONVIF devices, display surveillance topology, provide UI for video streaming and device maintenance.

Centralized Hierarchical View
VigorSwitch automatically detects ONVIF devices, and displays the topology of connecting IP cameras and NVRs.

Images Viewing
Images filmed by IP cameras can be viewed directly on VigorSwitch.

Device Management
Support ONVIF devices basic configuration/maintenance remotely via VigorSwitch. Such as remote reboot, factory reset, network settings, etc.

ONVIF Snapshot Alert

Locating Not-Responding Cameras Made Easy

It's already difficult to manage several IP cameras across different locations and customers, not to mention to keep monitoring on which camera stops functioning.

To help on this task, VigorSwitch keeps pinging on the ONVIF IP cameras and taking snapshots from them periodically, and sends out an email alert with the latest snapshot when a camera not responding.

With PoE models, VigorSwitch can also provide first aid to automatically power cycle the particular port to reboot the camera.

IP Conflict Detection & Prevention

Conflict Detection
keeps an eye on the environment and notify the administrator of any IP conflicts.

Conflict Prevention
For a more stable network, VigorSwitch can't only detect but block the misconfigured or malicious IP host.

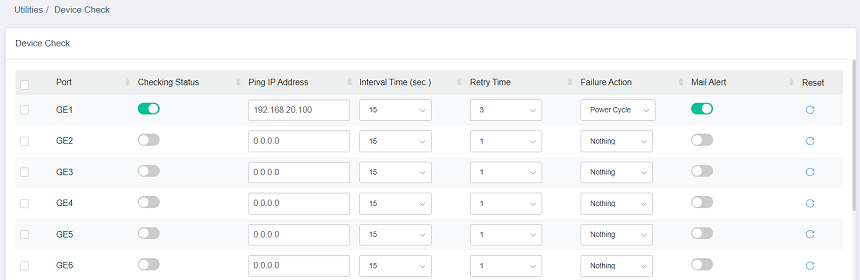

LAN Device Check

Ping Watchdog for LAN Devices
VigorSwitch keeps pinging on the LAN devices. Once the device stop responding to the ping, PoE cycle a port or send email alert.

LAN Management

DrayTek provides an all-in-one management platform for Vigor devices on the LAN side.

Automatic Device Discovery
All you need is connect the VigorSwitch to the LAN side of the router, Vigor Router will then discover the devices to be managed.

Provisioning
Switch profile may be set on the Vigor Router. VLAN and scheduled ports control may be set and provision to the VigorSwitch remotely.

Monitoring
VigorRouter provides a hierarchical centralized view of managing devices, you may always check if the managed VigorSwitch is online and if there's log and alert happens.

System Maintenance
You may perform a factory reset, save/restore a configuration backup, or trigger a remote reboot directly on the VigorRouter. There's no need to log in to each device's management page.

Management Solution

All-in-One Management

Vigor Router SWM
Auto-Discovery, Provisioning, Monitoring, Centralized Hierarchy View, Reboot PoE Devices Remotely, Quick VLAN Configuration

Software Management

Specifications

Performance

Buffer Size (Mbit)

4.2

Switching Capacity (Gbps)

Forwarding Rate (64 bytes)(Mpps)

41.7

MAC Address Table

Max. Jumbo Frame (KB)

Ports

1 GbE

GbE/SFP Combo

PoE

PoE+(802.3af/at) Ports

PoE Power Budget (watts)

400

Scheduled On/Off

Yes

Standard Compliance

Ethernet Standards

802.3af PoE
802.3at PoE+
802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.1q Tag-based VLAN
802.3x Flow Control
802.3 Auto-Negotiation
802.1p Class of Service
802.1d STP
802.1w RSTP
802.3ad LACP
802.1AB LLDP
802.3az EEE

Spanning Tree

STP

Yes

RSTP

Yes

Link Aggregation

Max. Number of Group

Max. Number of Member in Each Group

Type

LACP, Static

Traffic Load Balancing

Yes

VLAN

Max. Number of VLAN

512

VLAN Type

802.1q Tag-based VLAN
MAC-based VLAN
Protocol-based VLAN
Management VLAN
Voice VLAN
Surveillance VLAN

Multicast

IGMP Snooping

v2, v3(BISS)

IGMP Querier

Yes

ONVIF Surveillance

Discovery

Yes

Surveillance Topology

Yes

Real-Time Video Streaming

Yes

ONVIF Device Maintenance

Device Info
Network Settings
Time Settings
Reboot
Reset to Factory Default

QoS

Number of QoS Queues

Queue Schedule

SPQ, WRR

CoS (Class of Service)

CoS
DSCP
CoS-DSCP
IP Precedence

Rate Limiting

Yes

Security

IP Source Guard

Yes

Traffic Control

DoS Defense, Storm Control

IP Conflict Prevention

Yes

Loop Protection

Yes

Management

Local Service

HTTP
HTTPS
Telnet
SSH v2

Config Backup/Restore

Yes

2-Level Administration Privilege

Yes

Access Control

Access List

OpenVPN Client

Yes

SNMP

v1, v2c, v3

SNTP (Simple Network Time Protocol)

Yes

LLDP

Yes

Mail Alert

Port Status
Port Speed
System Restart
IP Conflict
Hardware Monitor
Device Check
ONVIF IP Cam Snapshot

VigorRouter Management (SWM)

Yes

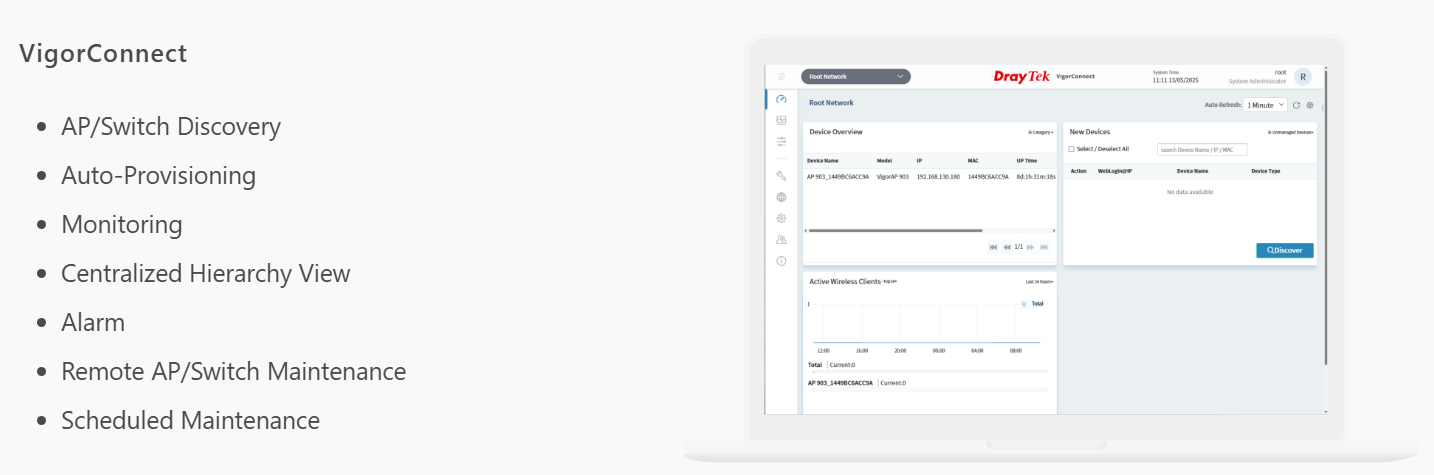

VigorConnect Management (Since f/w)

V2.7.0

VigorACS Management (Since f/w)

V2.7.0

Physical

Rack Mountable

Power Input

AC 100-240V @ 6.5A

Max. Power Consumption (watts)

460.3

Dimension (mm)

440 x 281.3 x 44

Weight (kg)

4.3

Operating Temperature

0 to 50°C

Storage Temperature

-20 to 70°C

Operating Humidity (non-condensing)

10 to 90%

Storage Humidity (non-condensing)

5 to 90%

Manufacturer Part No:

P1282

Brand:

DrayTek

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

UNC001003079

Product Model:

Warranty: 24 months *
