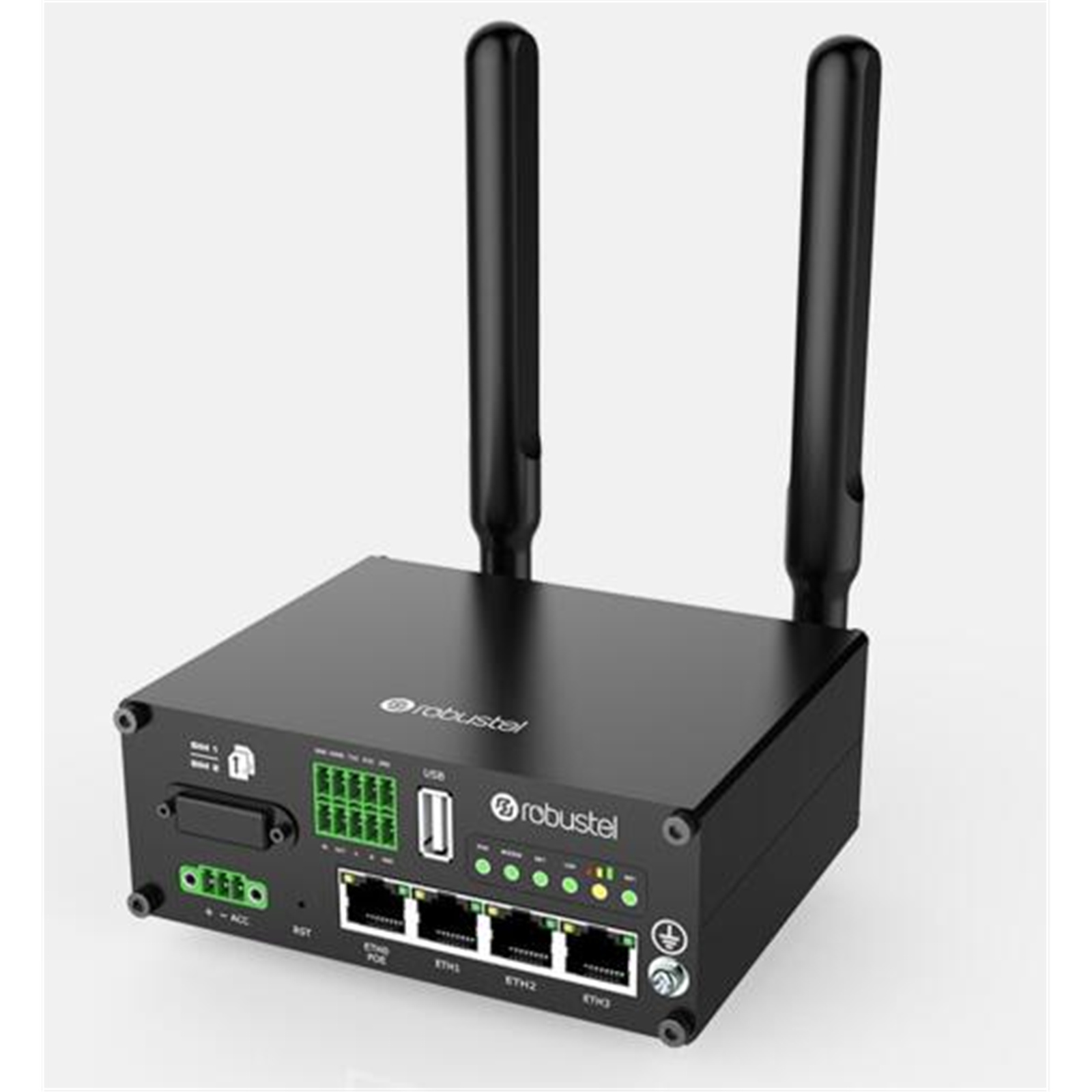

Robustel Router Industrial LTE Dual SIM - Cat6 - WiFi - 4x Ethernet - PoE (R2110-4L)

PB Tech price
PB Tech price
$ 833 .91
 +GST
$ 959 .00
 inc GST

Out of stock

Robustel Router Industrial LTE Dual SIM - Cat6 - WiFi - 4x Ethernet - PoE (R2110-4L)

  • Brand: Robustel
  • MPN: B044742
  • Part #: UNC001004403
  • UPC:
PB Tech price
$ 833 .91 $ 959 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

Offering state-of-the-art mobile connectivity for internet of things applications.

The Robustel High Speed Smart LTE /LTE-A Router (R2110) is a rugged cellular router offering state-of-the-art mobile connectivity for internet of things applications.

R2110 is a powerful platform developed based on RobustOS, a Robustel self-developed and Linux-based operating system which is designed to be used in Robustel devices. The RobustOS includes basic networking features and protocols providing customers with excellent user experience. Meanwhile, RobustOS offers Software Development Kit (SDK) allows partners and customers to develop IoT applications by using C, C++. It also provides various Apps to meet fragmented IoT market demands.

  • Supports WWAN, WAN, WLAN link backup and ICMP detection
  • Supports cold backup , warm backup and load balancing
  • RobustOS + SDK + App
  • IPsec/OpenVPN/GRE
  • Management and maintenance via Web/CLI/SNMP/RCMS
  • Robust industrial design desktop or wall mounting or DIN rail mounting

4G:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32
LTE-TDD: B38/B40/B41

3G: WCDMA: B1/B3/B5/B8

Cellular Interface

Number of antennas

2 (MAIN + AUX)

Connector

SMA-K

SIM

2 Mini SIM (2FF)



Ethernet Interface

LAN port

3 x LAN (10/100/1000 Mbps)

WAN port

Supports 802.3at PoE (PD) on ETH0

1 x WAN (10/100/1000 Mbps)

Magnet isolation protection

1 KV



WiFi Interface

Number of antennas

2

Connector

RP-SMA-K

Standards

802.11a/b/g/n/ac 2*2 MIMO, supports AP and Client modes

Frequency bands

2.412 - 2.472 GHz (2.4 GHz ISM band)

5.15 - 5.825 GHz (5 GHz ISM band)

Security

Open, WPA, WPA2, WEP

Encryption

AES, TKIP, WEP64

Data speed

5G: Up to 867Mbps

2.4G: Up to 300Mbps



Bluetooth Interface (Optional - available on other R2110 models)

Number of antennas

1

Connector

RP-SMA-K

Standards

BLE 5.0 Compatible with BLE 4.2, BLE 4.0



GPS (Optional - available on other R2110 models)

Number of antennas

1

GNSS technology

GPS

Connector

SMA-K with 50 ohms impedance

Tracking sensitivity

GPS: greater than -148 dBm

Horizontal position accuracy

GPS: 2.5 m







Serial Interface

Number of ports

1 x RS-232 + 1 x RS-485

Connector

2 x 3-pin 3.5 mm female socket

ESD protection

±15 KV

Baud rate

300bps to 115200bps





DI/DO

Type

1x DI + 1 x DO, wet contact

Connector

2 x 2-pin 3.5 mm female socket

Isolation

3.75KV DC

Absolute maximum VDC

"V+" +30V DC (DI), +30V DC (DO)

Absolute maximum ADC

100 mA



Others

Reset button

1 x RST

SD

1 x Micro SD interface

Expansion

1 x USB2.0 Host; 5V/500mA

LED indicators

1 x RUN, 1 x Modem, 1 x USR, 1 x RSSI, 1 x NET, 1 x WIFI

Built-in

Watchdog



Software (Basic features of RobustOS)

Network protocols



PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, SSH2, DDNS, etc.

VPN tunnel

IPsec, OpenVPN, GRE

Firewall

DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control

Management

Web, CLI, SMS

Serial port

Transparent, TCP Client/Server, UDP, Modbus RTU to TCP



App Center (Available Apps for RobustOS)

Apps*

L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS, Bluetooth, Dynamic Route, Data Guard

*Request on demand. For more Apps please visit www.robustel.com.



Power Supply and Consumption

Connector

3-pin 3.5 mm female socket with lock

Input voltage

9 ~ 36 VDC (Support POE-PD)

Power consumption

Idle: 500 mA@12 V

Data link: 1.3 A (peak) @12 V



SDK



Supported programming language



C, C++

Flash available for SDK

5 MB

RAM available for SDK

256 MB



Power Supply and Consumption

Connector

3-pin 3.5 mm female socket with lock

Input voltage

9 ~ 36 VDC (Support POE-PD)

Power consumption

Idle: 500 mA@12 V

Data link: 1.3 A (peak) @12 V



Physical Characteristics

Ingress protection

IP30

Housing & Weight

Aluminium, 500 g

Dimension

125 x 100 x 48 mm

Installations

Desktop, wall mounting and DIN rail mounting

Operating temperature

Normal operation: -20 ~ +55 °C

Extended operation: -25 ~ +70 °C

Storage temperature

-40 ~ +85 °C

Relative humidity

5 ~ 95% RH



Approvals

Regulatory

CE, RCM, Telec, JATE, BQB

Carrier

Telstra

Application

E-mark (Vehicle)

Environmental

RoHS 2.0, WEEE

Package Contents
Robustel R2110 High Speed Smart LTE Router
3-pin 3.5 mm male terminal block with lock for power supply
2*5-pin 3.5 mm male terminal block for serial port

Optional Accessories
RP-SMA WiFi antenna
3G/4G SMA cellular antenna
Wall mounting kit
35 mm DIN rail mounting kit
AC/DC power adapter (12V DC, 1.5 A) bare wire
