DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub
DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub
- Brand: DJI
- MPN: CP-RN-00000313
- Part #: UNC001005234
- UPC: 190021083646
- Brand: DJI
- MPN: CP-RN-00000313
- Part #: UNC001005234
- UPC: 190021083646
DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub
- Brand: DJI
- MPN: CP-RN-00000313
- Part #: UNC001005234
- UPC:190021083646

Product URL: https://www.pbtech.co.nz/product/UNC001005234/DJI-LiDAR-Range-Finder-RS-to-DJI-Transmission-Cabl
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

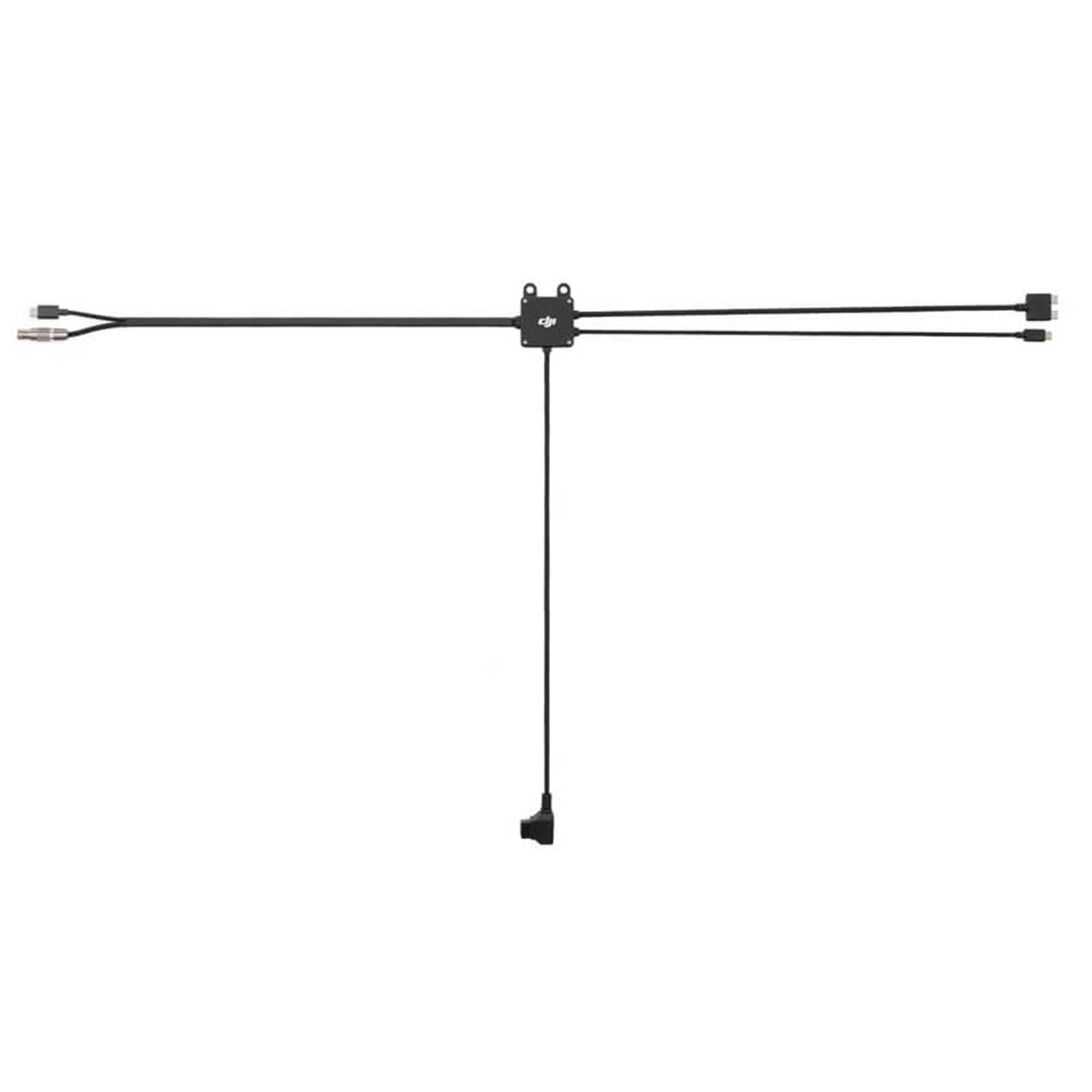

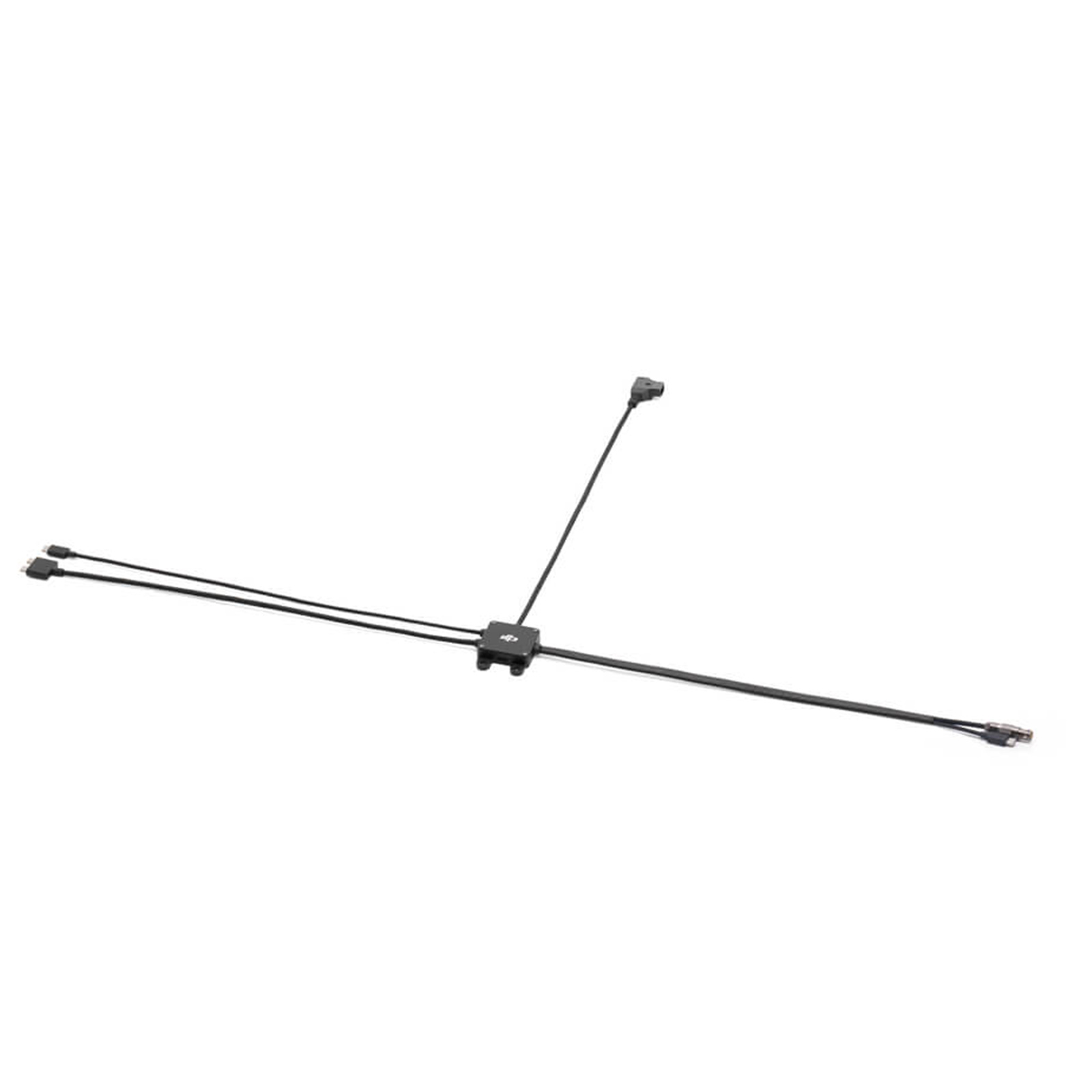

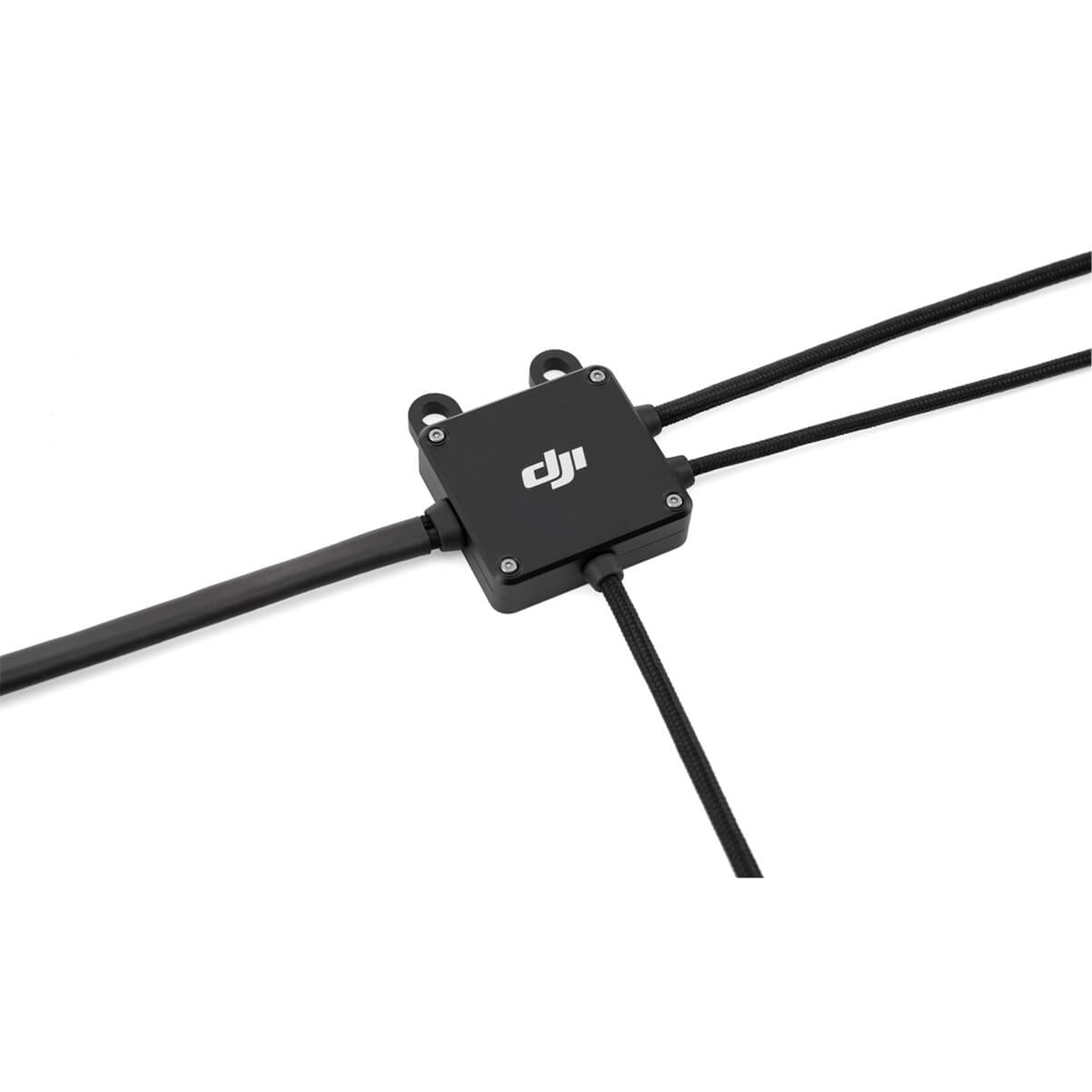

The DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub incorporates four cables that respectively connect to DJI LiDAR Range Finder (RS), DJI Video Transmitter, DJI RS Focus Motor (2022), and a power supply.
By connecting the DJI LiDAR Range Finder (RS) with the DJI Video Transmitter and other accessories, you can get a complete focusing and monitoring system for any combination of camera and manual lens, and achieve lens calibration and autofocus with a manual lens.
By connecting the USB-C Communication Port of the cable hub with DJI RS 3 Pro via a DJI R Multi-Camera Control Cable (USB-C), you can build inter-connection among DJI RS 3 Pro, DJI Transmission, and the LiDAR Range Finder (RS) for stabilization, remote monitoring and control, and autofocus.
*Please use 12-17 V external power for power supply.
DJI Warranty Information
Manufacturer's warranty for DJI products may vary depending on the part under question, batteries have 3-6 months manufacturer's warranty while the remote control might have 12 months manufacturer's warranty. More information can be found on the DJI website.
Specifications
Cable and Port Type

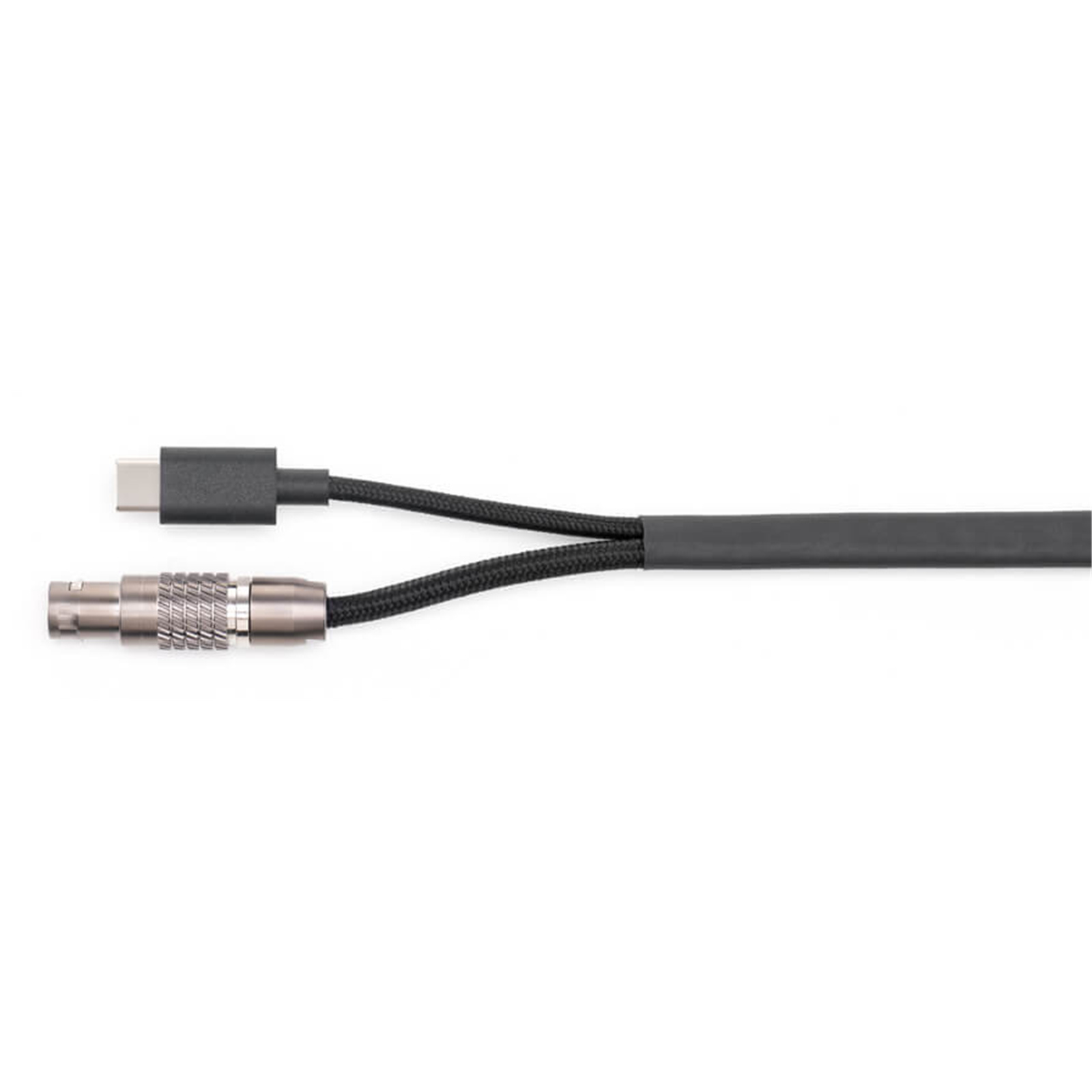

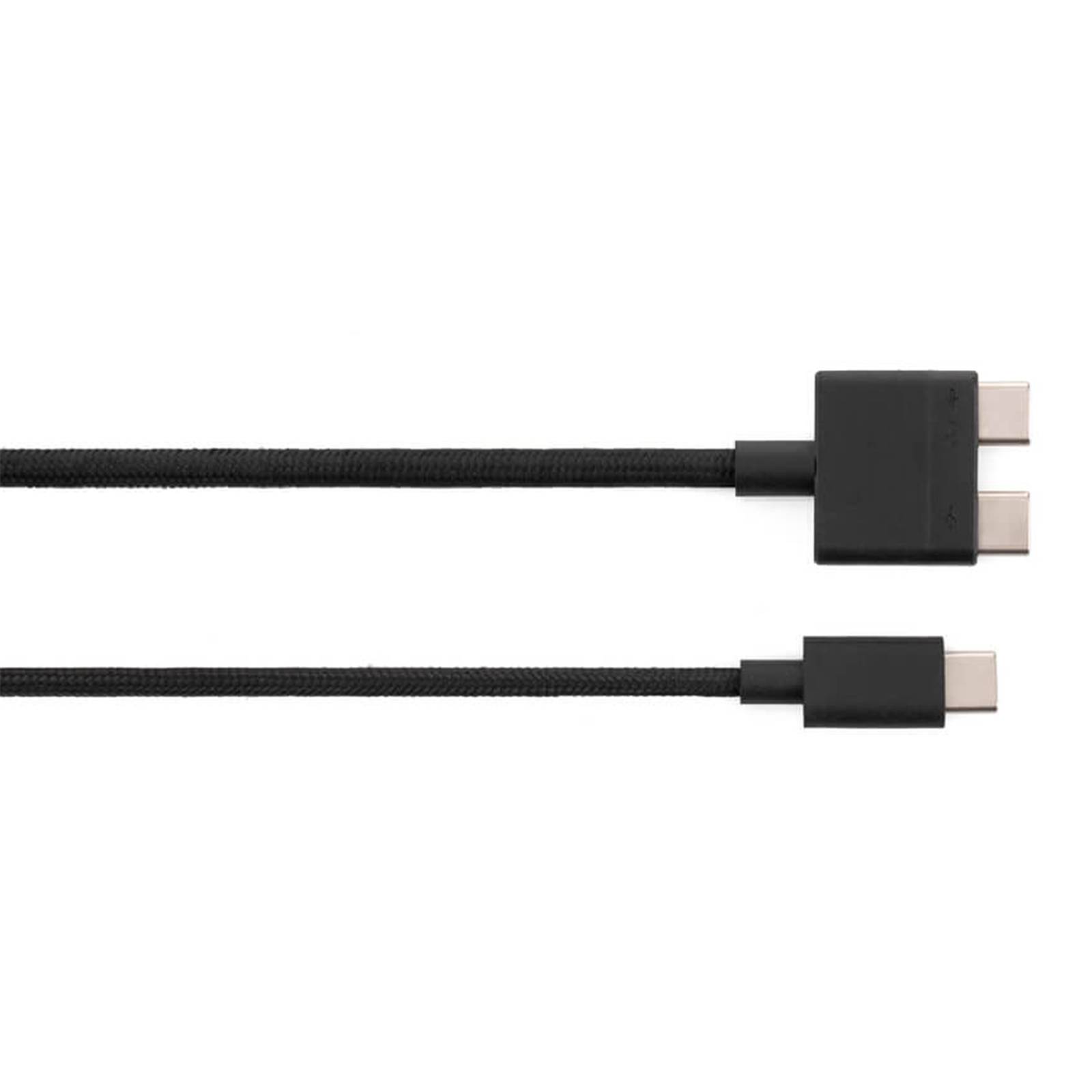

Dual USB-C LiDAR Connection Cable (40 cm)
USB-C Focus Motor Connection Cable (40 cm)

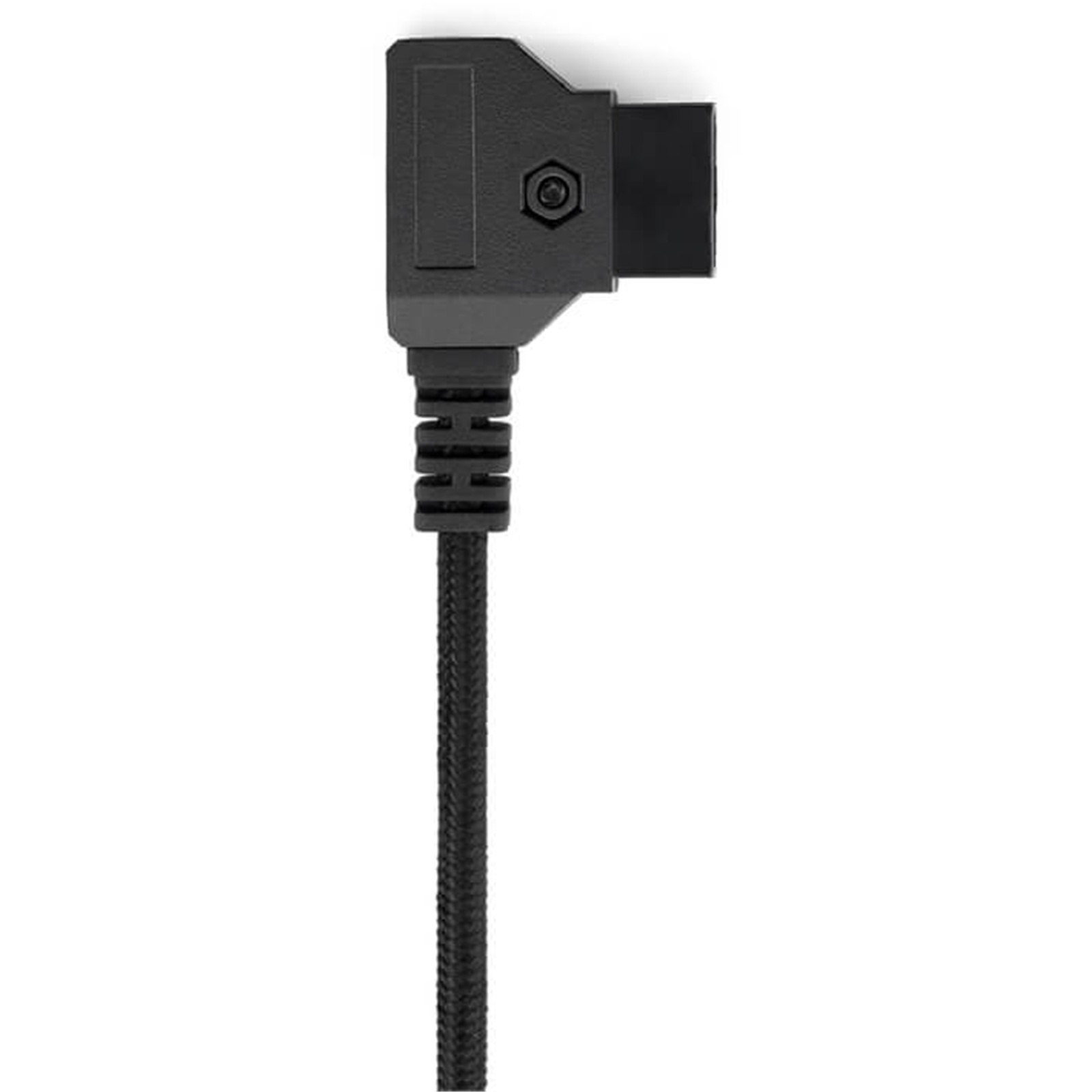

P-Tap Power Cable (40 cm)
DC-OUT and USB-C Splitter Cable (40 cm)
USB-C Communication Port
Operating Voltage
12 to 17 V
Compatibility
DJI RS 4 Pro
DJI Transmission
In The Box
DJI LiDAR Range Finder (RS) to DJI Transmission Cable Hub x 1
Screw 1/4-20 x 2
M4 Screw (10 mm) x 2
