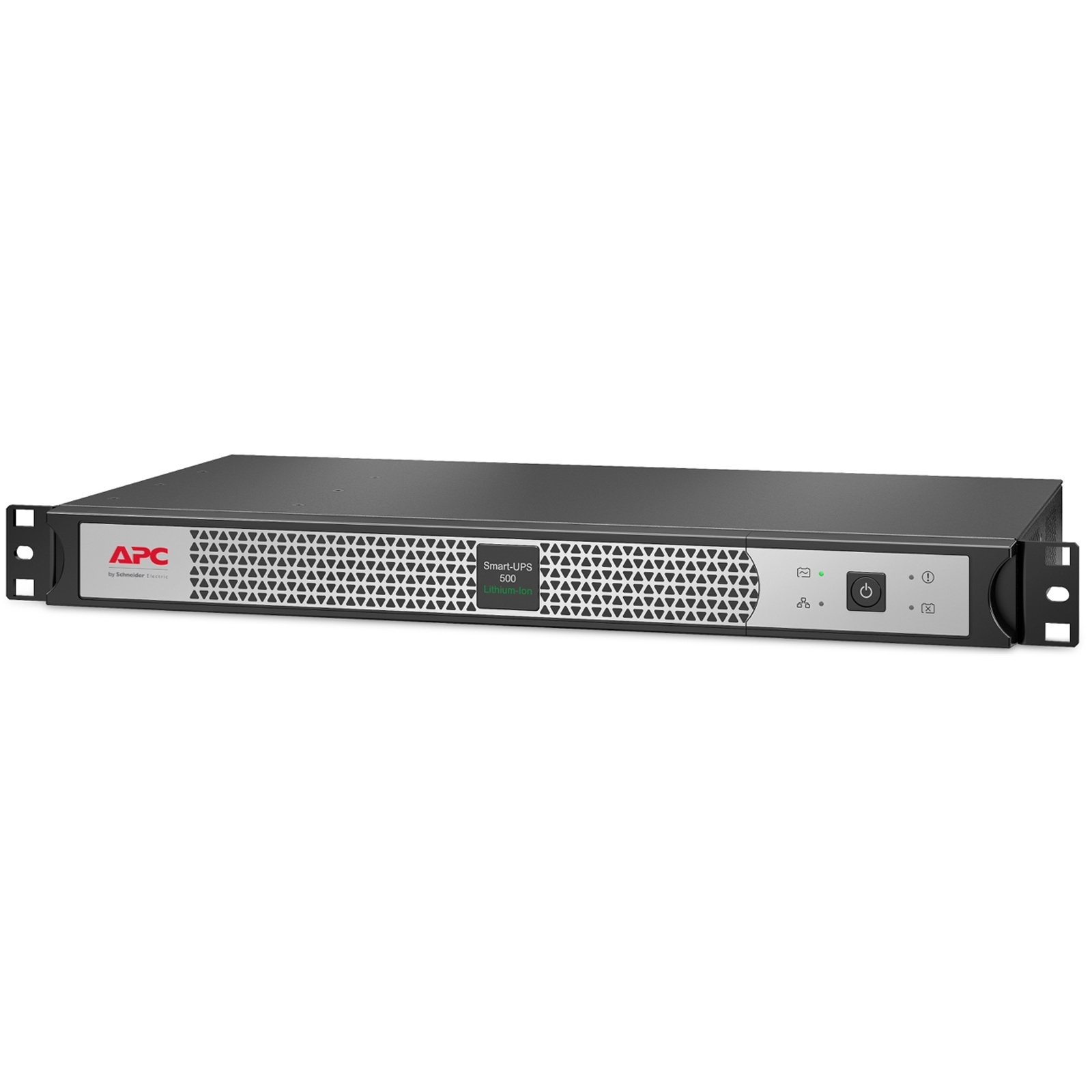

APC APC Smart-UPS C Lithium Ion, Short Depth 500VA, 230V with Network Card
APC APC Smart-UPS C Lithium Ion, Short Depth 500VA, 230V with Network Card
- Brand: APC
- MPN: SCL500RMI1UNC
- Part #: UPSAPC0007
- UPC: 731304402565
- Brand: APC
- MPN: SCL500RMI1UNC
- Part #: UPSAPC0007
- UPC: 731304402565
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular UPS - Line Interactive
APC APC Smart-UPS C Lithium Ion, Short Depth 500VA, 230V with Network Card
- Brand: APC
- MPN: SCL500RMI1UNC
- Part #: UPSAPC0007
- UPC:731304402565
Product URL: https://www.pbtech.co.nz/product/UPSAPC0007/APC-APC-Smart-UPS-C-Lithium-Ion-Short-Depth-500VA
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 230V, 4x IEC C13 outlets, Network Card, Short Depth
- 500VA/400W line interactive pure sine wave 1U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Short depth UPS provides extra space for cable management
- 1-Year Secure Network Management Card subscription included
Specifications
Main
Main Input Voltage
230 V
Main Output Voltage
230 V
Rated power in W
400 W
Rated power in VA
500 VA
Product or component type
Uninterruptible power supply (UPS)
Input Connection Type
IEC 60320 C14
output connection type
4 IEC 60320 C13
Number of rack unit
1U
Battery type
Li-Ion (Lithium-Ion)
Provided equipment
Installation guide
Rack mounting support rails
USB cable
Range of product
Smart-UPS
Batteries & Runtime
Battery graph comments
This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several
Extended runtime
0
Battery design life
8…10 year(s)
Battery charger power
10 W rated
General
Redundant
No
Physical
Colour
Black with silver front bezel
Height
4.4 cm
Width
43.2 cm
Depth
23.2 cm
Net weight
4.1 kg
Mounting preference
No preference
Mounting mode
Rack-mounted
USB compatible
Yes
Input
Input protection type
Circuit breaker
Input voltage limits
208...253 V
Network frequency
50/60 Hz +/- 3 Hz auto sensing
Output
Harmonic distortion
Less than 5 %
Maximum configurable power in VA
500 VA
Maximum configurable power in W
400 W
Transfer time
6 ms typical : 10 ms maximum
UPS type
Line interactive
Wave type
Sine wave
Output frequency
50/60 Hz +/- 3 Hz sync to mains
Environmental
Acoustic level
45 dBA
Heat dissipation
41.61 Btu/h
Operating altitude
0...10000 ft
Ambient air temperature for operation
0…40 °C
Ambient air temperature for storage
-15…45 °C
Storage altitude
0.0000000000…7620.0000000000 m
IP degree of protection
IP20
Relative humidity
0…95 % non-condensing
Storage Relative Humidity
0…95 % non-condensing
Communications & Management
control panel
LED status display with on line : on battery : replace battery and building wiring fault
Free slots
0
Preinstalled device
Network management card 3
Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Surge Protection and Filtering
Surge energy rate
510 J
Noise suppression
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
