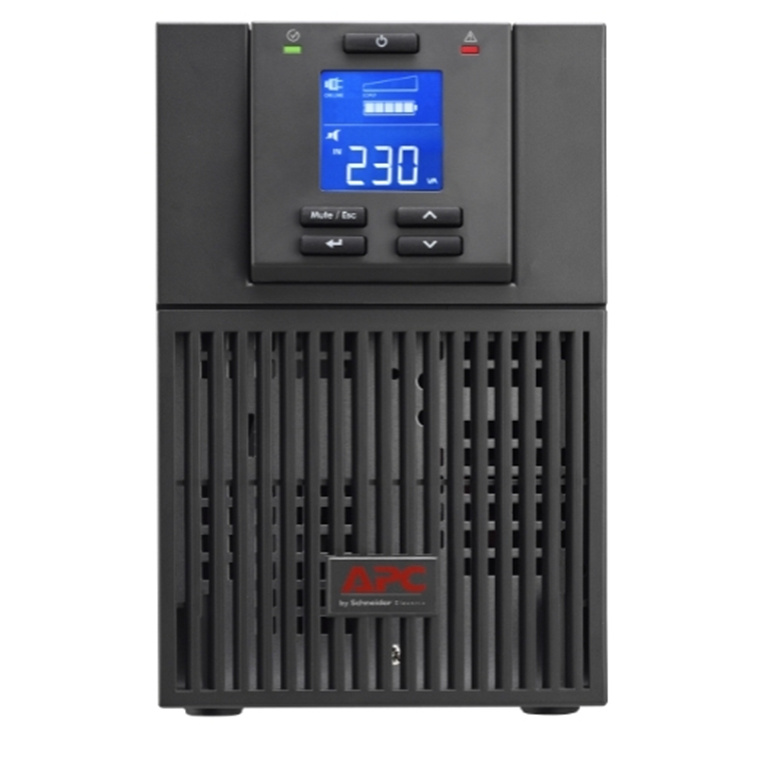

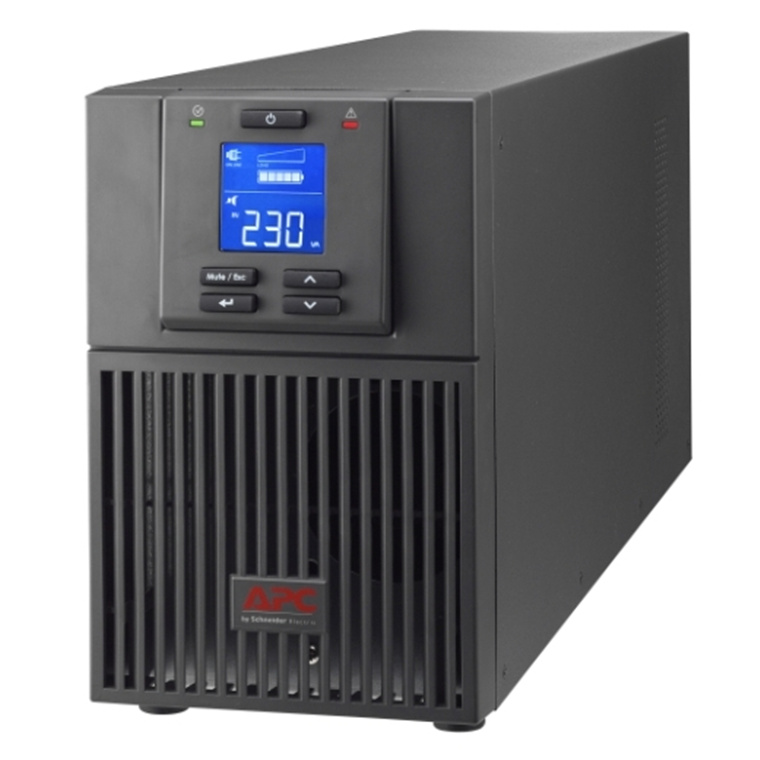

APC Easy UPS SRV, Tower, 1000VA / 800W, Double Conversion Online, Pure Sine Wave output, 3x C13 Outlets, Smartslot, USB

APC Easy UPS SRV, Tower, 1000VA / 800W, Double Conversion Online, Pure Sine Wave output, 3x C13 Outlets, Smartslot, USB
PB Tech price: PB Tech price:
$825 21  +GST $948 99  inc GST

Generating Print Page

APC Easy UPS SRV, Tower, 1000VA / 800W, Double Conversion Online, Pure Sine Wave output, 3x C13 Outlets, Smartslot, USB

Part #: UPSAPC011000
PB Tech price: PB Tech price:
$825 21 $948 99
 +GST  inc GST

Click & Collect: Click & Collect unavailable
Delivery: Order now and it ships on 01/10/2021 When will I receive it?

Six easy payments of $162.91 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $195.49 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Finance from $8.83 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

No payments or interest for 12 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

  • Brand: APC
  • Part #: UPSAPC011000
  • UPC: 731304339205
  • Capacity (VA): 1000VA
  • Capacity (Watts): 800W
  • Form Factor: Tower
  • Outlets: 3
  • Recharge Time: 4 Hours
  • Transfer Time: No Break
  • Run Time (Full Load): 4 Minutes
  • Run Time (Half Load): 11 Minutes
  • View more


APC Easy UPS 1 Phase Online

For IT professionals in small to medium businesses, Easy UPS Online provides basic power protection in unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.

APC Easy UPS Online is a versatile, highquality, cost competitive UPS developed to handle a wide voltage range and inconsistent power conditions, delivering the quality millions of IT professionals around the world trust.

That's Certainty in a Connected World.


Extended Runtime Models Available

Add external battery packs to scale runtime from minutes to hours, fulfilling the needs of long runtime applications

ECO Mode / Green Mode

Energy saving mode allows input voltage regulation range to be be set/modified through the LCD display

Generator Compatible

Ensures clean, uninterrupted power to the loads during an extended power outage

High Power Factor

More real output power in watts: 0.8 PF for 1, 2 & 3 kVA, unity PF for 6 & 10 kVA

Environmentally Robust

Conformal coated

Intelligent Battery Management

Maximizes battery performance through intelligent precision temperature compensated charging

Overvoltage Cutoff Device Protection

Under special application with high voltage condition, OVCD protection will prevent the damage of UPS components and extend UPS lifespan

Input Power Factor Correction

Minimizes installation costs by enabling the use of smaller generators and cabling

Excellent Power Quality and Performance

True Double Conversion provides tight voltage, frequency regulation and zero transfer time for reactive loads

Wide Input Voltage Range

60% Load: 110-300VAC (applicable to 6 & 10 kVA models) Allows for unstable power environments and minimizes transfer to battery

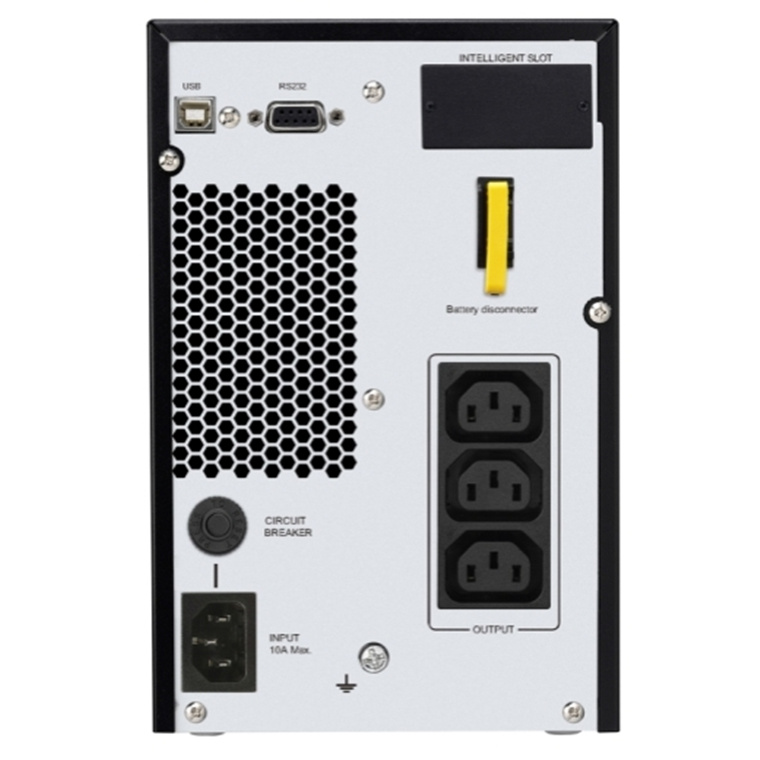

USB Port / Serial Port

Provides management of the UPS via USB/serial communication

Flash Upgradeable Firmware

Allows for field updates of firmware via communication ports

LCD/LED Display

Intuitive interface provides detailed and accurate information about UPS status withability to configure locally

Power Conditioning

Protects connected loads from surges, spikes, lightning and other power disturbances


Built-in Automatic Bypass

Ensures seamless power to the load even in the event of catastrophic UPS failure

Emergency Power Off (EPO)

Immediately remove power to all connected equipment in the event of emergency (applicable to standard & extended runtime 6 & 10 kVA models)

Safety Agency Approved

Tested and approved to work with the connected service provider equipment and within the specified environment


For more information:

APC Warranty Info

All APC UPS’s have a 3 year warranty however the batteries on these UPS’s are only supported for 2 years. You can check the factory warranty of an APC UPS by following this link:



Max Configurable Power (Watts)

800 Watts / 1.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load

88.0 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220, 240

Load Crest Factor

3 : 1


Double conversion online

Waveform type

Sine wave


Internal bypass (automatic and manual)


Input frequency

40 - 70 Hz

Input voltage range for main operations

110 - 285 Adjustable (half load), 160 - 280V

Number of Power Cords


Efficiency at Full Load

88.0 %

Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Lead-acid battery

Included Battery Modules


Typical recharge time


Battery Charge Power (Watts)

38 Watts

Communications & Management

Interface Port(s)

DB-9 RS-232, USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Available SmartSlot™ Interface Quantity


Surge Protection and Filtering

Surge energy rating



Maximum Height

223MM, 22.3CM

Maximum Width

145MM, 14.5CM

Maximum Depth

288MM, 28.8CM

Net Weight


Shipping weight


Shipping Height

330MM, 33.0CM

Shipping Width

235MM, 23.5CM

Shipping Depth

365MM, 36.5CM




Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 (Non-condensing) %

Operating Elevation

0 - 3048meters

Storage Temperature

-20 - 50 °C

Storage Relative Humidity

0 - 95 (Non-condensing) %

Storage Elevation

0 - 15240meters

Audible noise at 1 meter from surface of unit


Online thermal dissipation


Protection Class


Manufacturer Part No:
Product Type:
Product Family:
Easy UPS
Shipping Weight:
10.6 kg
PB Part No:
Product Model:
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
