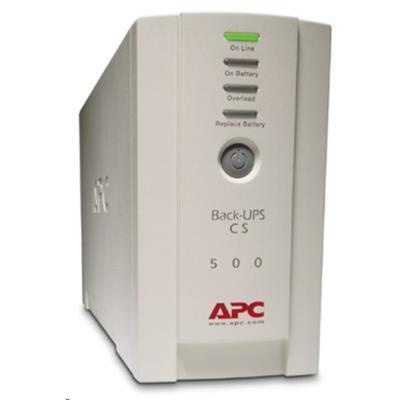

APC BK500EI 500VA UPS CS TOWER 3 battery USB/Serial w/Audible Alarms USB Connectivity

PB Tech price: PB Tech price:
$139 00  +GST $159 85  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A
  • Accessories

Generating Print Page

APC BK500EI 500VA UPS CS TOWER 3 battery USB/Serial w/Audible Alarms USB Connectivity

APC BK500EI 500VA UPS CS TOWER 3 battery USB/Serial w/Audible Alarms USB Connectivity

  • Brand: APC
  • MPN: BK500EI
  • Part #: UPSAPC1161
  • UPC:731304016359
PB Tech price:PB Tech price:
$13900$15985
 +GST  inc GST

Store Pickup: Select your store to check availability
Delivery: Order now and it ships today
When will I receive it?
Add To Compare

Features

BK500EI Features

USB connectivity Provides management of the UPS via a USB port (not available on all models).
Serial Connectivity Provides management of the UPS via a serial port.


Back-UPS Features & Benefits

- Protection from surges, spikes and even lightning is guaranteed!
- Instead of a hard to find fuse, there is a push-button circuit breaker for easy recovery from an overload or short circuit.
- Audible alarms - Proactively notifies you of changing UPS and utility power conditions.
- Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Transformer Block Spacing - Designed to allow the use of up to two transformer block plugs without blocking access to other receptacles.
- APC Back-UPS,300 Watts /500 VA,Input 230V /Output 230V, Interface Port USB

APC Warranty Info

All APC UPS’s have a 3 year warranty however the batteries on these UPS’s are only supported for 2 years. You can check the factory warranty of an APC UPS by following this link: http://www.apc.com/site/support/nz/en/warranty-services

Specifications

Output

Output Power Capacity
300 Watts / 500 VA

Max Configurable Power
300 Watts / 500 VA

Nominal Output Voltage
230V

Output Frequency (sync to mains)
47 - 63 Hz

Topology
Standby

Waveform Type
Stepped approximation to a sinewave

Output Connections
(1) IEC 320 C13 (Surge Protection) IEC 320 C13
(3) IEC 320 C13 (Battery Backup) IEC 320 C13
(2) IEC Jumpers (Surge Protection)


Input

Nominal Input Voltage
230V

Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)

Input Connections
IEC-320-C14 inlet

Cord Length
1.83 meters

Input voltage range for main operations
180 - 266V

Input voltage adjustable range for mains operation
160 - 300V

Maximum Input Current
7A

Input Breaker Capacity
7.0  A


Batteries & Runtime

Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Replacement Battery
RBC2, RBC2J

RBCT Quantity
1

Energy Use/Efficiency
Load Efficiency
25% 96.2%
50% 97.7%
75% 98.1%
100% 98.2%


Communications & Management

Interface Port(s)
USB

Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators

Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm


Surge Protection and Filtering

Surge energy rating
310 Joules

Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Data Line Protection
Analog phone line for phone/fax/modem/DSL (RJ-45 connector)


Physical

Maximum Height
165.00 mm

Maximum Width
91.00 mm

Maximum Depth
284.00 mm

Net Weight
6.32 KG

Shipping Weight
7.05 KG

Shipping Height
178.00 mm

Shipping Width
241.00 mm

Shipping Depth
368.00 mm

Master Carton Units
2.00

Color
Beige

SCC Codes
107 31304 01635 6

Units per Pallet
70.00


Environmental

Operating Environment
0 - 40 ?C

Operating Relative Humidity
0 - 95%

Operating Elevation
0-3000 meters

Storage Temperature
-15 - 45 ?C

Storage Relative Humidity
0 - 95%

Storage Elevation
0-15000 meters

Audible noise at 1 meter from surface of unit
40.00 dBA

Online Thermal Dissipation
24.00 BTU/hr


Conformance

Regulatory Approvals
C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE

Standard Warranty
2 years repair or replace


Sustainable Offer Status

RoHS
Compliant

REACH
REACH: Contains No SVHCs

Includes:
CD with software, Documentation CD, Qty 1 - Detachable 1.2 m IEC power cord, Qty 1 - Detachable 1.8 m IEC power cord, Telephone Cable, USB cable, Warranty card

Manufacturer Part No: BK500EI Brand: APC Product Type: -
UPC 731304016359 Product Family: - Shipping Weight: 6.75 kg
PB Part No: UPSAPC1161 Product Model: BK500EI

Warranty: 36 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

Based on 1 Reviews

5 Stars
0
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0

Filter Results

Do you own this product?

Write a review and go into the draw to win great prizes each month! Learn more WRITE A REVIEW
Displaying 1 - 1 of 1 reviews
Michael
1 November 2012
Works well with a Synology disk station DS213 for automatic shutdown on power loss.
Did you find it helpful?
0 out of 0 users found this review helpful
