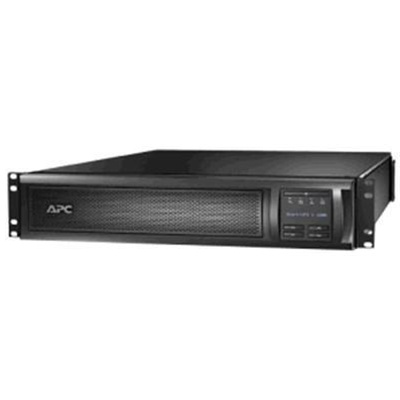

APC - SCHNEIDER SMX2200RMHV2U APC Smart-UPS X 2200VA Rack/Tower LCD 20
APC - SCHNEIDER SMX2200RMHV2U APC Smart-UPS X 2200VA Rack/Tower LCD 20
- Brand: APC
- MPN: SMX2200RMHV2U
- Part #: UPSAPC1678124
- UPC: 731304272687
- Brand: APC
- MPN: SMX2200RMHV2U
- Part #: UPSAPC1678124
- UPC: 731304272687
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular UPS - Line Interactive





APC - SCHNEIDER SMX2200RMHV2U APC Smart-UPS X 2200VA Rack/Tower LCD 20
- Brand: APC
- MPN: SMX2200RMHV2U
- Part #: UPSAPC1678124
- UPC:731304272687

Product URL: https://www.pbtech.co.nz/product/UPSAPC1678124/APC---SCHNEIDER-SMX2200RMHV2U-APC-Smart-UPS-X-2200
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Cold-start capable
Provides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utlility costs, generates less heat.
Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
SmartSlot
Customize UPS capabilities with management cards.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
Battery Information
Backup/Run Time:
0.17 Hour 1.98 kW Full Load
Backup/Run Time:
0.42 Hour 990 W Half Load
Batteries:
Maintenance-free, Sealed, Spill-proof Lead Acid User Replaceable Hot-swappable
Battery Recharge Time:
3 Hour Typical
Output Voltage:
230 V AC Nominal
General Information
Brand Name:
APC
Manufacturer Part Number:
SMX2200RMHV2U
Manufacturer:
American Power Conversion Corp
Package Contents:
Smart-UPS 2200 VA Tower/Rack Mountable UPS
CD with Software
Rack Mounting Brackets
Smart UPS Signaling RS-232 Cable
USB Cable
User Manual
Product Line:
Smart-UPS
Product Model:
SMX2200RMHV2U
Product Name:
Smart-UPS 2200 VA Tower/Rack Mountable UPS
Product Series:
X
Product Type:
Line-interactive UPS
Interfaces/Ports
Interfaces/Ports:
RS-232 Serial
Interfaces/Ports:
USB
Modular Slots:
1 x SmartSlot
Receptacles:
1 x IEC 60320 C19
Receptacles:
2 x IEC Jumper
Receptacles:
8 x IEC 60320 C13
Management
Emergency Power OFF:
Yes
Overload Protection:
Resettable circuit breakers
Miscellaneous
Certifications & Standards:
C-tick
CE
CSA
EN 50091-1
EN 50091-2
FCC Part 15 Class A
GOST
IEC 60950
IRAM
UL 1778
VDE
UL 1449
Form Factor:
2U Tower/Rack Mountable
Green Compliance Certificate/Authority:
REACH
Green Compliance Certificate/Authority:
RoHS
Green Compliant:
Yes
Package Contents:
Smart-UPS 2200 VA Tower/Rack Mountable UPS
CD with Software
Rack Mounting Brackets
Smart UPS Signaling RS-232 Cable
USB Cable
User Manual
Physical Characteristics
Depth:
667.0 mm
Form Factor:
2U Tower/Rack Mountable
Height:
85.0 mm
Weight (Approximate):
37.32 kg
Width:
432.0 mm
Power Description
Filtering:
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time
Frequency:
47 Hz to 53 Hz Output
Frequency:
50 Hz Input
Input Voltage Range:
141 V AC to 255 V AC Mains Operation
Input Voltage Range:
160 V AC to 280 V AC Mains Operation
Input Voltage Range:
230 V AC Nominal
Input Voltage:
220 V AC
Load Capacity:
2.20 kVA/1.98 kW
Output Voltage:
230 V AC Nominal
Plug/Connector Type:
British BS1363A
Plug/Connector Type:
IEC 60320 C20
Plug/Connector Type:
SCHUKO CEE 7 EU1-16P
Switching Time:
4 ms
Product Information
Form Factor:
2U Tower/Rack Mountable
Load Capacity:
2.20 kVA/1.98 kW
Receptacles:
1 x IEC 60320 C19
Receptacles:
2 x IEC Jumper
Receptacles:
8 x IEC 60320 C13
Width:
432.0 mm
Technical Information
Backup/Run Time:
0.17 Hour 1.98 kW Full Load
Backup/Run Time:
0.42 Hour 990 W Half Load
Batteries:
Maintenance-free, Sealed, Spill-proof Lead Acid User Replaceable Hot-swappable
Battery Recharge Time:
3 Hour Typical
Frequency:
47 Hz to 53 Hz Output
Frequency:
50 Hz Input
Input Voltage Range:
141 V AC to 255 V AC Mains Operation
Input Voltage Range:
160 V AC to 280 V AC Mains Operation
Input Voltage Range:
230 V AC Nominal
Input Voltage:
220 V AC
Interfaces/Ports:
RS-232 Serial
Interfaces/Ports:
USB
Load Capacity:
2.20 kVA/1.98 kW
Output Voltage:
230 V AC Nominal
Plug/Connector Type:
British BS1363A
Plug/Connector Type:
IEC 60320 C20
Plug/Connector Type:
SCHUKO CEE 7 EU1-16P
Switching Time:
4 ms
