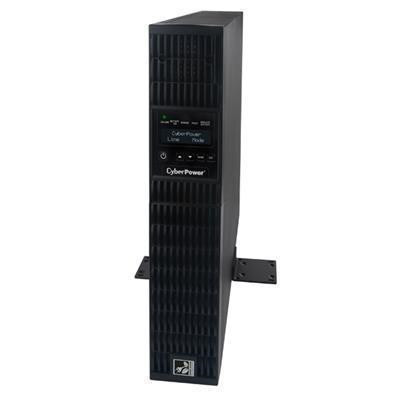

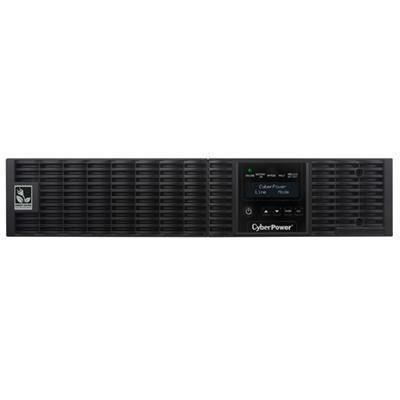

CyberPower OL2000ERTXL2U 2000VA/1800W 2U Online ( Double Conversion) UPS with Pure Sinewave Output 2 years replacement warranty
CyberPower OL2000ERTXL2U 2000VA/1800W 2U Online ( Double Conversion) UPS with Pure Sinewave Output 2 years replacement warranty
- Brand: CyberPower
- MPN: OL2000ERTXL2U
- Part #: UPSCPR52000
- UPC:
- Brand: CyberPower
- MPN: OL2000ERTXL2U
- Part #: UPSCPR52000
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular UPS - On-Line





CyberPower OL2000ERTXL2U 2000VA/1800W 2U Online ( Double Conversion) UPS with Pure Sinewave Output 2 years replacement warranty
- Brand: CyberPower
- MPN: OL2000ERTXL2U
- Part #: UPSCPR52000

Product URL: https://www.pbtech.co.nz/product/UPSCPR52000/CyberPower-OL2000ERTXL2U-2000VA1800W-2U-Online--Do
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The Online Series UPS is ideal for servers, networking equipment, workstations and other mission-critical applications which require Pure Sineware power protection. Featuring Online Double Conversion design and Zero Transfer Time, it can provide consistent and seamless Pure Sinewave power to critical loads. With the add-on advantage of Extended Runtime (XL) battery packs, the UPS backup time can be extended to maximize workflow flexibility. An optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. The included PowerPanel® Business Edition management software provides corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
Features & Benefits:
- 2U Rack Space
- Pure Sinewave Output
- Online (Double Conversion) UPS Topology
- Rack/Tower Convertible Configurations
- EMI, RFI, Surge and Lightning Spike Protection
- Critical Load Outlets
- Phone/Fax/Modem/DSL/Network Protection
- Auto-Restart/Auto-Charge
- Emergency Power Off (EPO) Port
- Multifunction LCD Readout
- Rotatable LCD Indicator
- USB & Serial Connectivity Port
- Extended Runtime (XL) Models
- Hot-Swappable Battery Packs
- Dual Input
- Smart Fan Speed Control By Load Level
- Economy Mode setting
- Smart Battery Management(SBM)
- Remote Control/Wall-Mountable LCD panel
- Generator Mode setting
- SNMP/HTTP Remote Management Capability (Optional)
- PowerPanel® Business Edition Software
Specifications
Model | OL2000ERTXL2U |
Capacity(VA/W) | 2000VA / 1800W |
Typology | Online (Double Conversion) |
Form Factor | Rackmount / Tower (Convertible) |
Energy-Saving Technology | Yes, ECO Mode Efficiency > 93% |
Input | |
Voltage Range | 120~139Vac for 0~25% Load 140~159Vac for 0~50% Load 160~179Vac for 0~75% Load 180~280Vac for 0~100% Load |
Frequency Range | 40~70Hz |
Input Plug Type | IEC C14 |
Output | |
Voltage Range | Pure Sinewave at 200, 208, 220, 230, 240Vac (Configurable) ±2% |
Frequency Range | 50 / 60Hz (Auto-Sensing or Configurable) ±0.25Hz |
Transfer Time (Typical) | 0ms |
Overload Protection | Line Mode: 105~125% Load for 1 min, 126~150% Load for 10 sec Battery Mode: 105~130% Load for 10 sec, 131~150% Load for 2 sec |
Short Circuit Protection | UPS Output Cut Off Immediately or Input Fuse/Circuit Breaker Protection |
Surge Protection and Filtering | |
Lightning / Surge Protection | Yes |
DSL/Phone/Fax/Modem protection | RJ11/RJ45(One In/One Out) |
Physical | |
Receptacles | (8) IEC C13, (1) IEC C19 |
Dimensions(H x W x D)(mm) | 88x433x600 |
Weight(kg) | 31 |
Battery | |
Sealed Maintenance Free Lead Acid Battery | 12V / 9AH x 6 |
Hot-Swappable | Yes |
Typical Recharge Time | 4 Hours |
Runtimes | |
Half load / Full load (mins) | 17/6 |
Status Indication | |
Indicators | Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery |
Audible Alarms | Battery Mode, Battery Low, Overload, UPS Fault, Replace Battery |
Multi-Function LCD Readout | Yes |
Communication | |
Power Management Software | PowerPanel® Business Edition |
Management | |
Self-Test | Yes |
Auto-Charge/Auto-Restart | Yes |
Auto-Overload Recovery | Yes |
Cold Start(DC Start) | Yes |
COM Interface | (1) Serial Port (RS232), (1) USB Port, (1) Relay Out, (1) EPO |
SNMP/HTTP Capable | Optional |
