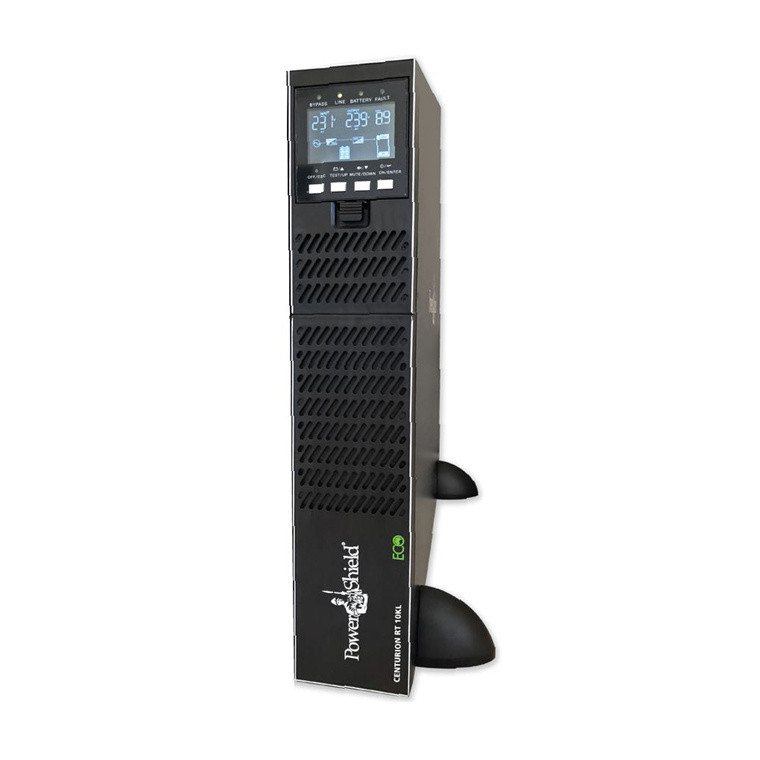

PowerShield Centurion RT 10000VA Long run model, True On-line double conversion, Rack/Tower UPS, No battery, Includes large internal charger

PowerShield Centurion RT 10000VA Long run model, True On-line double conversion, Rack/Tower UPS, No battery, Includes large internal charger
PB Tech price: PB Tech price:
$3,511 30  +GST $4,038 00  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews

Generating Print Page

PowerShield Centurion RT 10000VA Long run model, True On-line double conversion, Rack/Tower UPS, No battery, Includes large internal charger

PowerShield Centurion RT 10000VA Long run model, True On-line double conversion, Rack/Tower UPS,...

  • Brand: PowerShield
  • MPN: PSCERT10KL
  • Part #: UPSPSD0028
  • UPC:
  • Form Factor:Rack/Tower
  • Transfer Time:No Break
  • Capacity (VA):N/A
  • Capacity (Watts):N/A
  • Outlets:Not Specified
  • Recharge Time:Not Specified
  • Run Time (Full Load):Not Specified
  • Run Time (Half Load):Not Specified
PB Tech price: PB Tech price:
$3,511 30 $4,038 00
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 23/06/2021 When will I receive it?

Pay only $851.83 and then 25 easy payments of $135.60 per fortnight*

humm lets you spread the cost of your purchase over 26 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Finance from $35.29 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

No payments or interest for 12 months available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email finance@pbtech.co.nz to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

Features

-Exceptional surge protection

-Unity output power factor (PF=1)

-Informative & easy-shift LCD display

-ECO & advanced ECO mode

-Standard extra large charger

-Hot-swappable batteries

-Rack/Tower design

-Emergency Power Off Function (EPO)

Specifications

INPUT

Line Loss

110V~300V AC @(0~60%) Load; 140V~300V @(60~80%) Load; 176V~300V AC @(80~100%) Load

Low Line Comeback

Low Line Loss Voltage +10V

High Line Comeback

High Line Loss Voltage -10V

Frequency Range

46Hz~54Hz@ 50Hz system; 56Hz~64Hz@ 60Hz system

Phase

Single phase with ground

Power Factor

Correction =0.99@ nominal voltage (100% load)

OUTPUT

Output Power Factor: 0.9

Output

Voltage 208/220/230/240V AC Selectable

AC Voltage Regulation

±1%

Frequency Range (Synchronized Range)

46Hz~54Hz@ 50Hz system
56Hz~64Hz@ 60Hz system

Frequency Range (Batt. Mode)

50Hz±0.1Hz or 60Hz±0.1Hz

Overload

AC Mode: 100%~110%: 10min; 110%~130%: 1min; >130%: 1sec
Battery Mode: 100%~110%: 30sec; 110%~130%: 10sec; >130%: 1sec

Current Crest Ratio

3:1 (max.)

Harmonic Distortion

=1 % @ 100% Linear Load; =4% @100% Non-linear Load

Transfer Time

Line to Battery: 0ms
Inverter to Bypass: 0ms
Inverter to Eco: < 10ms

EFFICIENCY

ECO Mode (Advanced)

<94%

Battery Mode

<93%

BATTERY

Battery Number

Optional strings of 16 or 20 batteries

Typical Recharge Time

According to an external battery pack

Charging Current (max.)

4A ± 10%

COMMUNICATIONS & MANAGEMENT

Interface

USB and RS232 as standard

Software

PowerShield® NetGuard® software - supports Windows, Linux, Unix and Mac based operating systems

Optional

Intelligent slot for PSSNMPV4, PSModbus or PSAS400 dry contact

PHYSICAL

Dimensions (D x W x H)

UPS Unit: 600x438x88mm [2U] (weight: 20kg)
PSRTBB16 (16 batteries): 688x438x88 [2U] (weight: 48kg)
PSRTBB20 (20 batteries): 607x438x133 [3U] (weight: 60kg)

OPERATING ENVIRONMENT

Temperature

0°C~40°C

Humidity

95% (RH Non-condensing)

Altitude

<1000m

Noise Level

Less than 58dB@ 1m

Manufacturer Part No: PSCERT10KL Brand: PowerShield Product Type: -
UPC - Product Family: - Shipping Weight: 0.5 kg
PB Part No: UPSPSD0028 Product Model: -

Warranty: 24 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product
