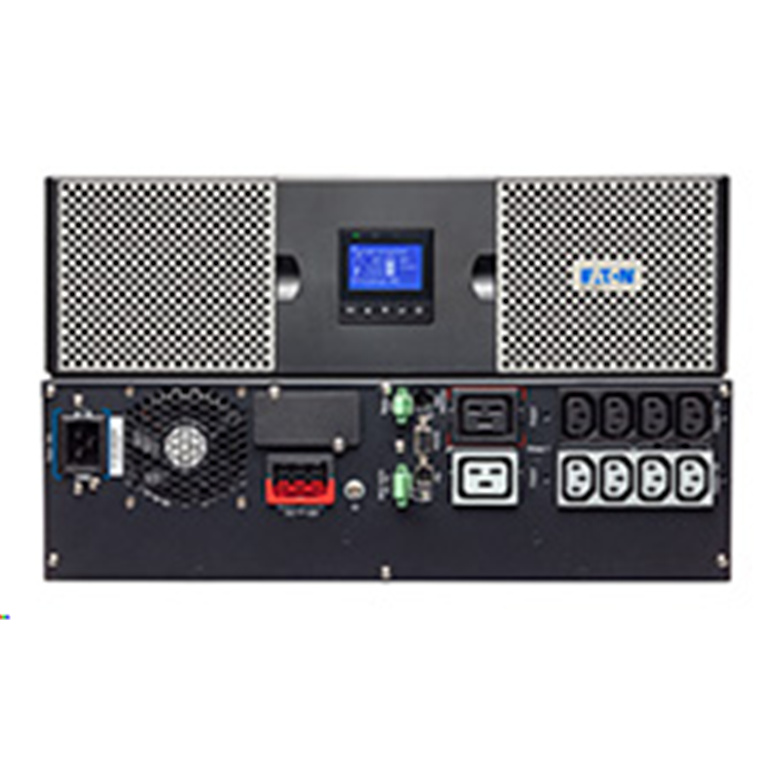

Eaton 9PX 3000VA 3U Rack/Tower, 16Amp Input, 230V (Rail Kit Included)

Eaton 9PX 3000VA 3U Rack/Tower, 16Amp Input, 230V (Rail Kit Included)
Special price: Special price:
$4,261 18  +GST $4,900 36  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

Eaton 9PX 3000VA 3U Rack/Tower, 16Amp Input, 230V (Rail Kit Included)

ON SPECIAL

Eaton 9PX 3000VA 3U Rack/Tower, 16Amp Input, 230V (Rail Kit Included)

  • Brand: Eaton
  • MPN: 9PX3000IRT3UANZ
  • Part #: UPSPWR0007
  • UPC:743172081391
  • Form Factor:Rack/Tower
  • Capacity (VA):3000VA
  • Transfer Time:Not Specified
  • Run Time (Half Load):10 Minutes
  • Outlets:10
  • Capacity (Watts):3000W
  • Recharge Time:Not Specified
  • Run Time (Full Load):3 Minutes

Features

Eaton 9PX 3000VA 2U Rack/Tower, 16Amp Input, 230V (Rail Kit Included)

Specifications

General

Topology

On-line double conversion with Power Factor Correction (PFC) system

Configuration

Rack/Tower

Part Number

9PX3000IRT2U

Rating (VA/Watts)

3000/3000

Dimensions (H x W x D, mm)

86.5 x 440 x 605

Weight (kg)

27.6

Rail Kit Included

Yes

Electrical Input

Connection

(1) IEC-320-C20

Input Voltage Range

176-276V without derating (up to 100-276V with derating)

Nominal Voltage

200/208/220/230/240V

Frequency

50/60 Hz autoselection

Frequency Range

40-70 Hz

Electrical Output

Nominal Voltage

200/208/220/230/240V

Outlets

(8) IEC-320-C13
(2) IEC-320-C19

Efficiency (Normal Mode)

Up to 94% in online mode (Up to 98% in Hi-efficiency mode)

Output Frequency

50/60 Hz autoselect, frequency converter mode

Battery

Runtime (Full load)

3 min

Runtime (Half load)

10 min

Battery Management

ABM® & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units

Extended Battery Capability

EBM (2U)

Communications

User Interface

Multilingual graphical LCD display

Communication Ports

1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay

Communication Slot

1 slot for Network-MS card, ModBus-MS or Relay-MS cards.

Environmental & Standards

Audible Noise

40dB

Operating Temperature

0 to 40°C

Safety markings

IEC/EN 62040-1, UL 1778, CSA 22.10

EMC Markings

IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B

Approvals

CE /CB report (TUV) / cULus / EAC / RCM / KC / Energy Star

Manufacturer Part No: 9PX3000IRT3UANZ Brand: Eaton Product Type: -
UPC 743172081391 Product Family: - Shipping Weight: 34.7 kg
PB Part No: UPSPWR0007 Product Model: -

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
