Vertiv UPS BYPASS PANEL 3KVA MicroPOD for 1Ph Rack/Tower 2.2KVA 230V UPS
Vertiv UPS BYPASS PANEL 3KVA MicroPOD for 1Ph Rack/Tower 2.2KVA 230V UPS
- Brand: Vertiv
- MPN: 02352520
- Part #: UPSVTV6109909
- UPC:
- Brand: Vertiv
- MPN: 02352520
- Part #: UPSVTV6109909
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other UPS Accessories





Vertiv UPS BYPASS PANEL 3KVA MicroPOD for 1Ph Rack/Tower 2.2KVA 230V UPS
- Brand: Vertiv
- MPN: 02352520
- Part #: UPSVTV6109909

Product URL: https://www.pbtech.co.nz/product/UPSVTV6109909/Vertiv-UPS-BYPASS-PANEL-3KVA-MicroPOD-for-1Ph-Rack
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Liebert® MicroPOD Maintenance Bypass and Output Distribution Accessory

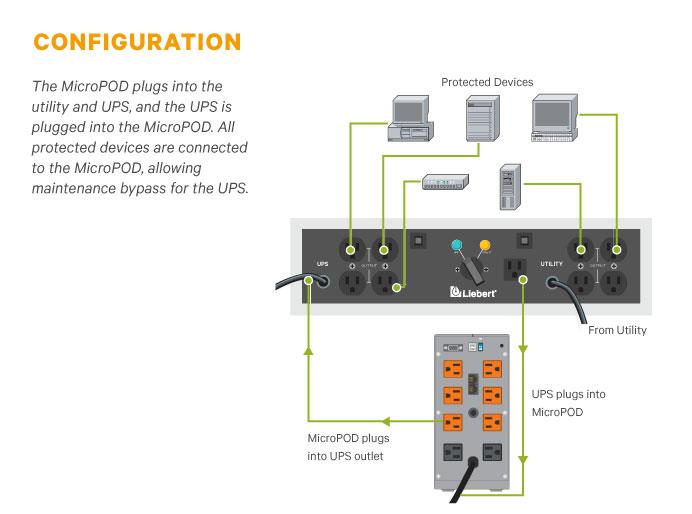

This unit allows manual transfer of connected equipment to utility power via a maintenance bypass switch, permitting scheduled maintenance or UPS replacement without disrupting data center power.
Zero Downtime for Critical Equipment
The bypass pod routes power directly from the mains to the load, bypassing the UPS. This means your servers, networking gear, or other sensitive devices stay powered even while the UPS is being serviced or replaced.
Safe Maintenance
Technicians can safely isolate the UPS from the power circuit, reducing the risk of electrical hazards during maintenance.
Quick UPS Swaps
If the UPS fails or needs upgrading, it can be swapped out without powering down the system.
Improved System Availability
Ensures continuous operation of critical systems, which is especially important in environments like small data centers, medical facilities, or retail operations.
Cost Efficiency
Avoids the costs associated with planned downtime or emergency shutdowns
- Flexible plug-and-play connectability for both input and output.
- Easy to use rotary switch and indicators make the unit simple to operate.
- Compatible with any brand of UPS system.
- Improved availability by routing utility power to attached equipment
- Allows UPS maintenance or replacement of the UPS without discontinuing power to critical equipment.
- Easy to install and operate
- Includes electrical cords
- Cost effective bypass.
- Two-year, no-hassle replacement warranty eliminates the cost of replacement during the warranty period.
- Use with any brand of UPS, 3kVA or smaller

- Manual switchover from UPS to utility power
- Allows continuous operation for connected equipment during UPS maintenance or replacement
- Installs with plug-and-play ease
- Operates with any brand of UPS, 3kVA or smaller
Specifications
Mechanical
Dimensions, W x D x H (mm)
394 x 77 x 88
Weight (kg)
2.0
Operating Ambient Temperature
0 °C to 40 °C
Storage Ambient Temperature
-20 °C to +60 °C
Humidity
0% to 95%, non-condensing
Agency/Standards
CE, ISTA Procedure 1 A
