Aten UH3240 11-in-1 USB-C Dual 4K Docking Station with 100W Power Pass Through

PB Tech price
PB Tech price
$ 139 .35
 +GST
$ 160 .25
 inc GST
$139.35  +GST
$160.25

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Aten UH3240 11-in-1 USB-C Dual 4K Docking Station with 100W Power Pass Through

  • Brand: Aten
  • MPN: UH3240
  • Part #: USBATN3240
  • UPC: 672792015007
PB Tech price
$ 139 .35 $ 160 .25
 +GST  inc GST
Tax free price $147.71*
*Price includes surcharge


Click & Collect: Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$139.35  +GST
$160.25
  • Brand: Aten
  • MPN: UH3240
  • Part #: USBATN3240
  • UPC: 672792015007

4K Support

Yes

DisplayPorts

None

HDMI Ports

2

Google Chrome Support

Not Specified

Intel Driven Apple Support

N/A

M1 Driven Apple Support

N/A

Microsoft Windows Support

N/A

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Aten UH3240 11-in-1 USB-C Dual 4K Docking Station with 100W Power Pass...
Aten UH3240 11-in-1 USB-C Dual 4K Docking Station with 100W Power Pass Through
Total:
$ 252 .79
 +GST
$ 290 .71
Buy together and save $6.86 $7.89
Cruxtec HDMI 2.0 Cable - 2m 18Gbps - 4K/60Hz
Cruxtec HDMI 2.0 Cable - 2m 18Gbps - 4K/60Hz

Cruxtec HDMI 2.0 Cable - 2m 18Gbps - 4K/60Hz

Collect from 16 stores by 4:56pm today
Ships today
$9.88 $11.36

$8.24  +GST

$9.48

You save 16% You save 16%
Logitech MK235 Wireless Desktop Keyboard & Mouse Combo
Logitech MK235 Wireless Desktop Keyboard & Mouse Combo

$36.51  +GST

$41.99

Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG - Height Adjust 200-400mm - Grommet or Clamp Installation
Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG - Height Adjust 200-400mm - Grommet or Clamp Installation
$73.91 $85.00

$68.69  +GST

$78.99

You save 7% You save 7%

Features

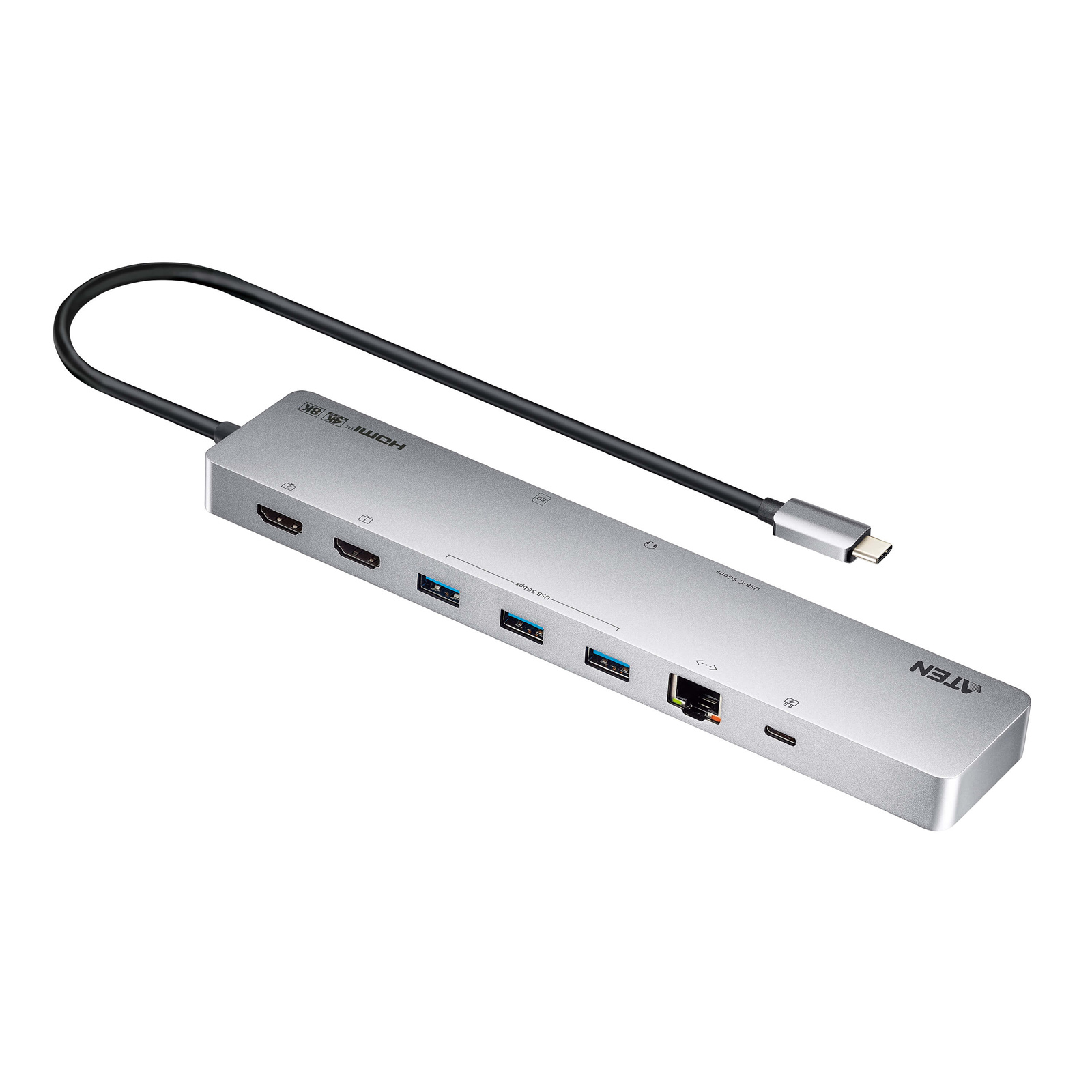

11-in-1 USB-C Multiport Dock with Power Pass-Through

- A multiport dock with 11 essential ports - 2x HDMI, 2x USB-C (1 for power delivery & 1 for data transmission), 3x USB Type-A, 1x SD, 1x Micro SD,1x Ethernet, and 1x audio jack
- Supports up to 8K 7680 x 4320 for single video output or 4K for dual video outputs
- Supports up to 4K @ 120 Hz high refresh rates
- Supports USB PD 3.0 for charging up to 100W via USB-C PD power adapter - supports PD profile specifications of 5V, 9V, 12V, 15V, and 20V

Transform your laptop into the ultimate workstation with unparalleled productivity.

The UH3240 is a multiport dock that can expand up to 11 devices via a single USB-C cable. The myriad functions are packed into one light, compact dock, as you can charge your device, up to 100W, while transferring data at 5 Gbps.

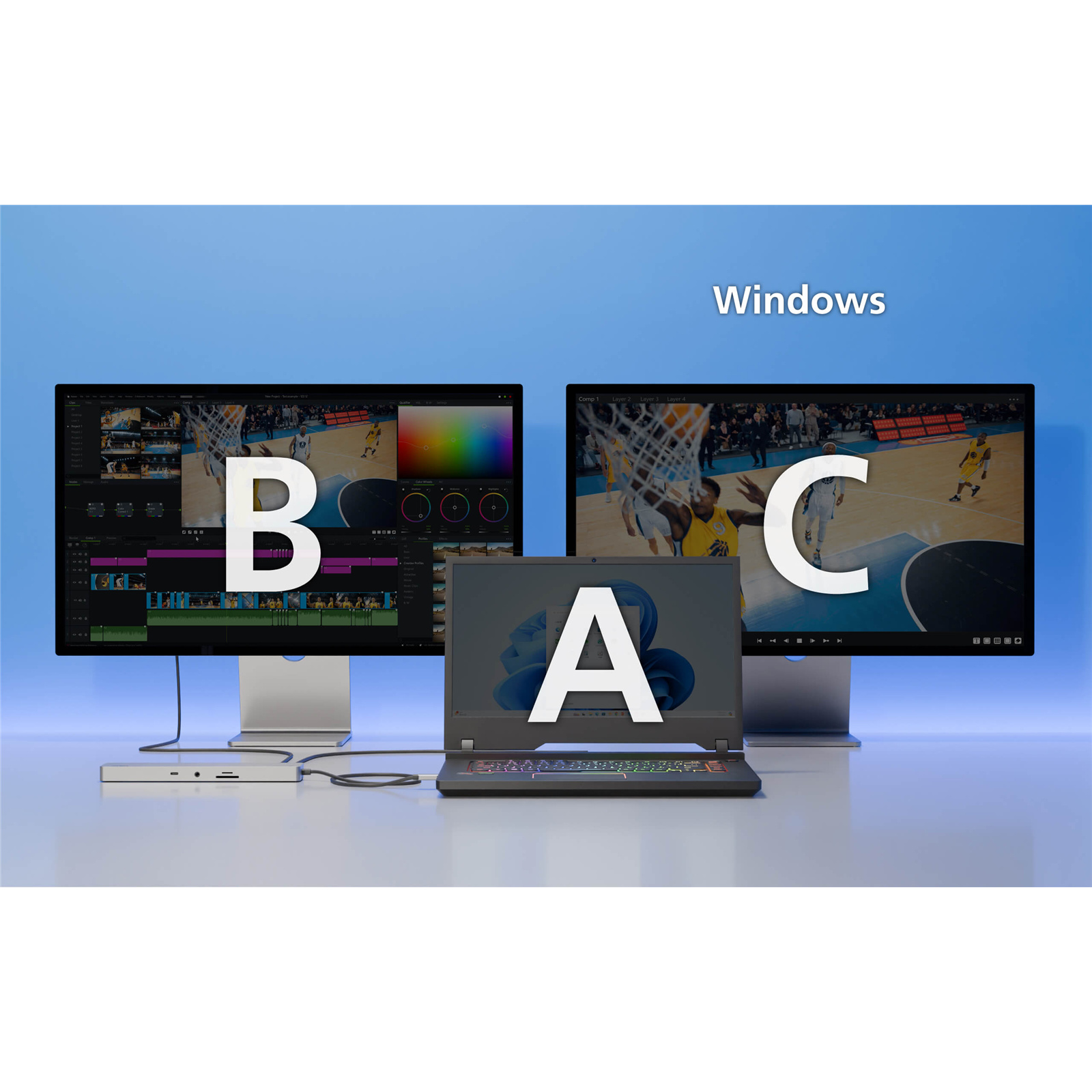

Dual 4K Display

Extend to two 4K Display with Multi-Stream Transport (MST)

Enjoy Impeccable Visual Quality

Optimize your screen resolution to befit the task at hand

Vivid & Sharp 8K Display

Enthralling visual indulgence of entertainment apex

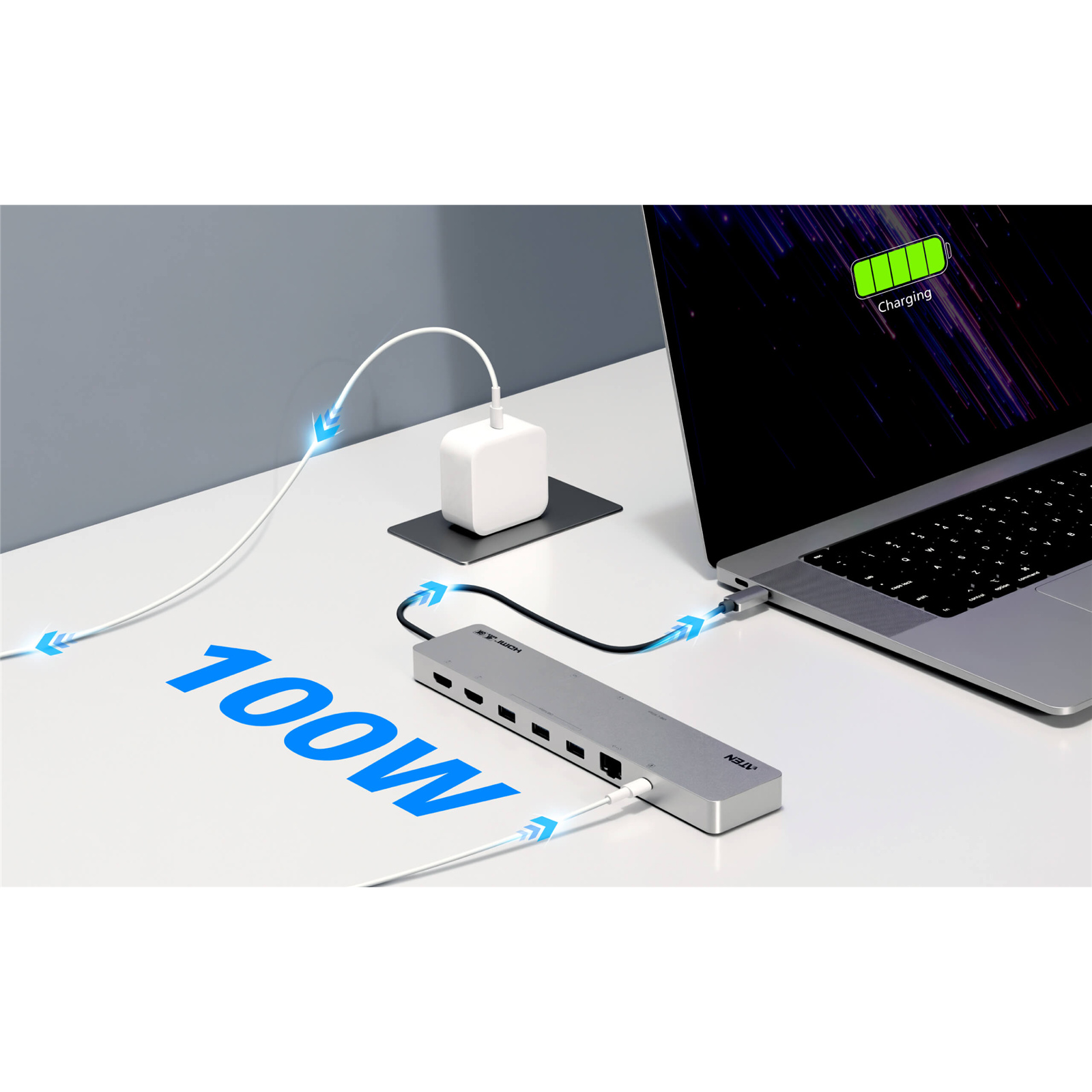

100W Power Delivery with PD 3.0

Power on your devices for your multitasking needs

Note: A self-supplied (original USB-C PD power adapter and cable from the source device is highly recommended) USB-C PD power adapter is needed.

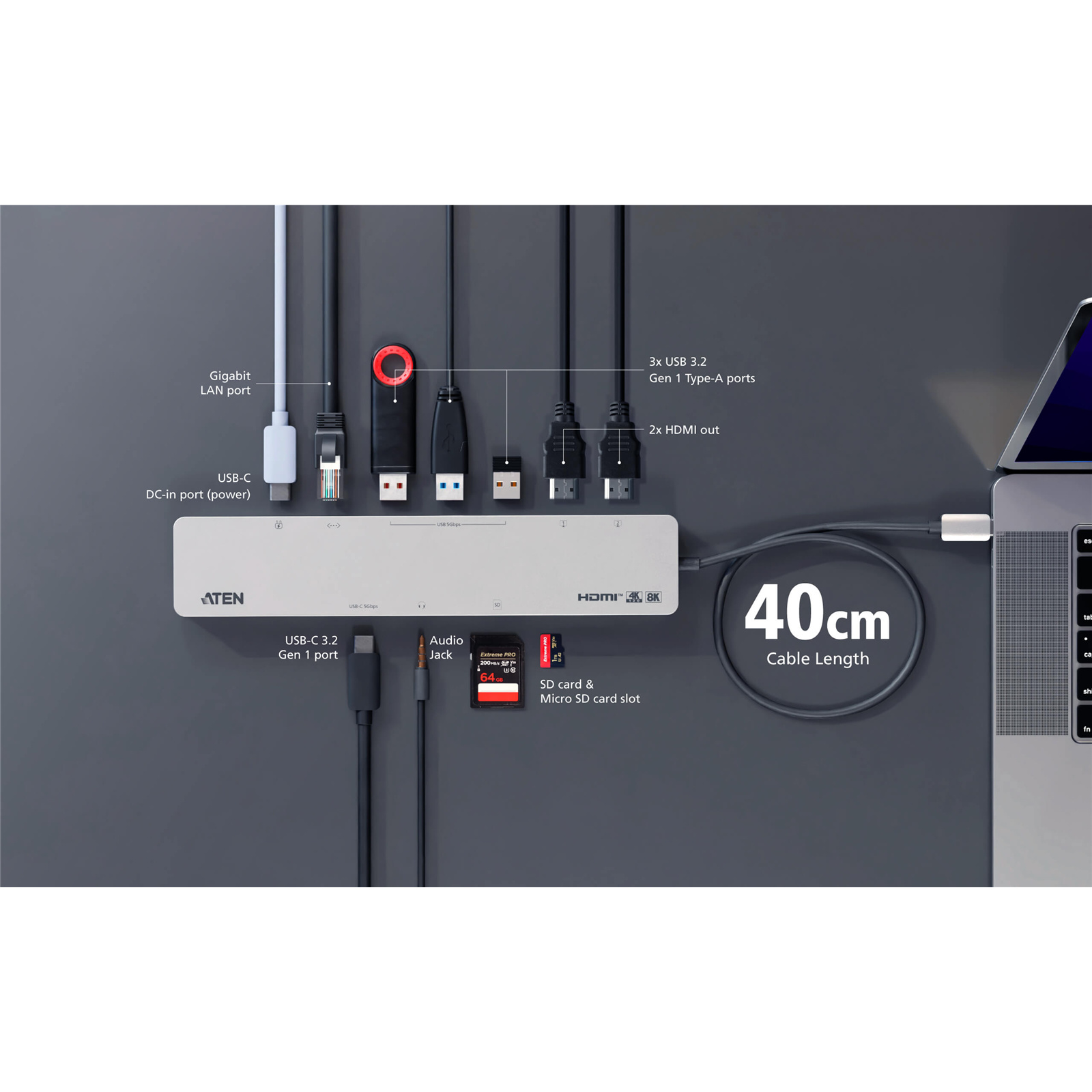

11-in-1 USB-C Dock with Power Pass-through

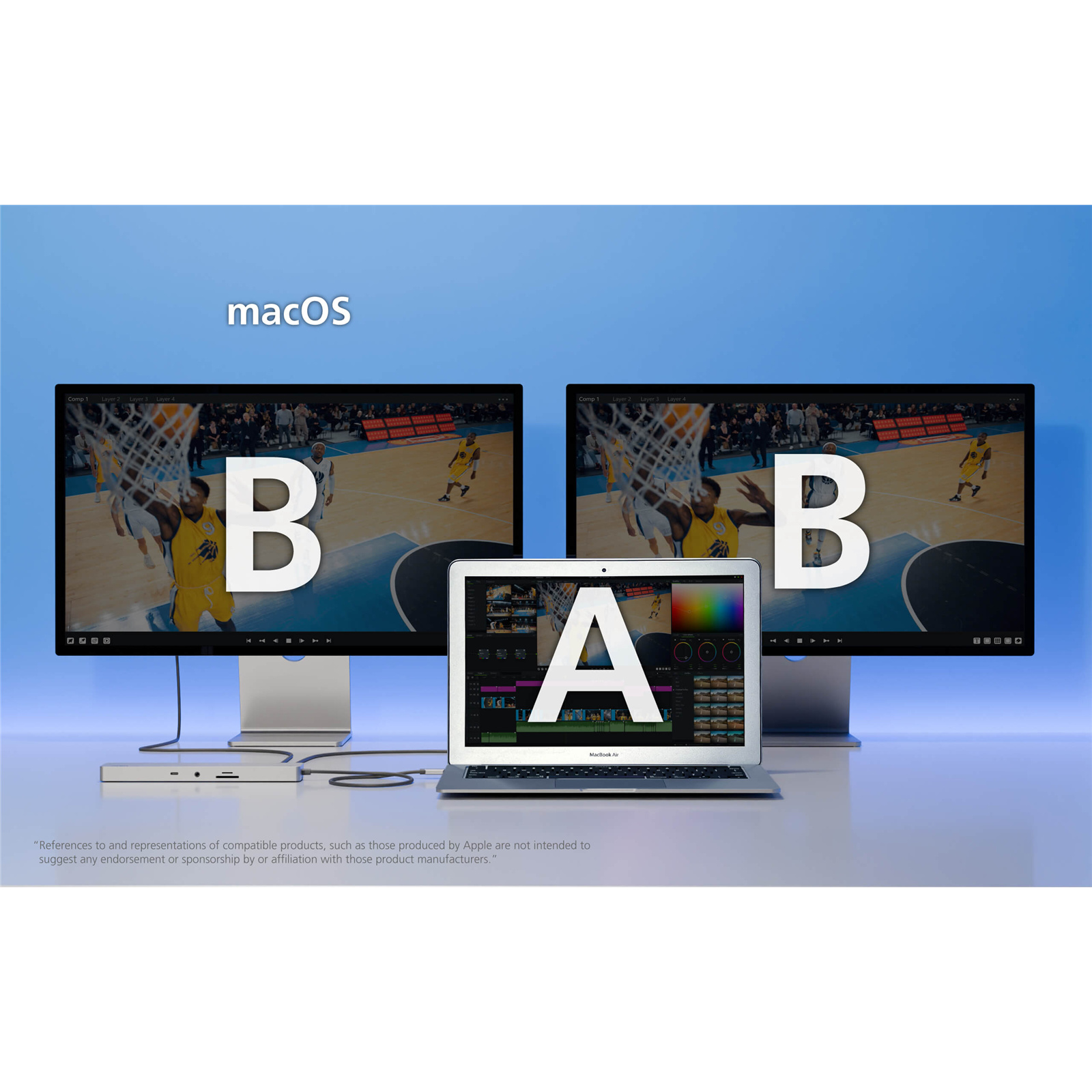

Multiplatform Support

*Relevant compatible devices must be USB-C enabled


Specifications

Computer Connections

1

Cable Length

40cm

Connectors

Computer

1 x USB-C 3.2 Gen 1 Male Cable

Device

3 x USB 3.2 Gen 1 Type-A Female (Max. output 5V, 5W for each)*
1 x USB 3.2 Gen 1 Type-C Female (Max. output 5V, 5W)*
Note:
* 3 x USB Type-A and 1 x USB-C ports share total of 5V, 15W when UH3240 powered by external USB-C PD power adapter.
* 3 x USB Type-A and 1 x USB-C ports share total of 5V, 12W power output when the UH3240 is powered by PC via USB-C (@ 5V, 3A bus-powered).

Video Output

2 x HDMI Female

LAN Ports

1 x Gigabit Ethernet Female

Audio

1 x 3.5mm stereo 4-pole microphone and headphone jack

Power

1 x USB Type-C Female*
Note:
*Supports USB Power Delivery 3.0 for charging up to 100W, power profiles include 5V, 9V, 12V, 15V, and 20V.
*The minimum system power requirement for basic USB functions and video output should be at least 5V, 6W.
*A self-supplied (original USB-C PD power adapter and cable from the host device is highly recommended) USB-C PD power adapter is needed.

Performance

Flash Memory

1 x SD Card Slot (SD/SDHC/SDXC up to 2TB)
1 x Micro SD Card Slot (Micro SD/SDHC/SDXC up to 2TB)

Video Resolution

Single View: 7680 x 4320; 3840 x 2160 @ 120 Hz
Dual View: 3840 x 2160 @ 60 Hz
Note:
*The max. resolution supported for only HDMI 2 is 4K @ 120 Hz.
*We recommend using self-supplied HDMI 2.1 cable or our ATEN 2L-7D02H21 HDMI cable for 8K resolution. For system requirement of the host device, it is highly recommended that the Intel 12thGeneration Core Processor is used to achieve 8K resolution.
*To get max bandwidth, the host should support standard DP 1.4 Alt mode with DSC3:1 and HBR3. When connecting a DP 1.2 Alt mode supported device, the max resolution of HDMI is 4K @ 30 Hz due to bandwidth limitation.
*For extend mode to work, a computer's graphics card must support MST technology. Mac computers only support single-extended display with identical content on the two connected monitors.
*For MST (Extend Mode) - supports up 4K 3840 X 2160 @ 30 Hz; for SST (Mirror Mode) - supports up to 4K 3840 x 2160 @ 60 Hz.

Power Consumption

DC5V:18WBTU/h
Note:
- The measurement in Watts indicates the typical power consumption of the device with no external loading.
- The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

System Requirements

Windows 10 or above, USB-C enabled computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ?nd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html
macOS 10.12 or later, USB-C enabled computer
Android 8.0 or later, USB-C enabled Smartphone with DP Alt Mode
iPadOS 13.1 or later, iPad (USB-C)*
*iPad only supports single view in mirror mode.
iOS 17.0 or later, iPhone (USB-C)*
*iPhone only supports single view in mirror mode.

Environmental

Operating Temperature

0 - 40°C

Storage Temperature

-20 - 60°C

Humidity

0 - 80% RH, Non-condensing

Physical Properties

Housing

Aluminum

Weight

0.18 kg ( 0.41 lb )

Dimensions (L x W x H)

22.00 x 4.30 x 1.60 cm
(8.66 x 1.69 x 0.63 in.)

Note

For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Manufacturer Part No:
UH3240
Brand:
Product Type:
11-in-1 USB-C Dual 4K Docking Station
UPC
672792015007
Product Family:
-
Shipping Weight:
0.2 kg
PB Part No:
USBATN3240
Product Model:
UH3240
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
