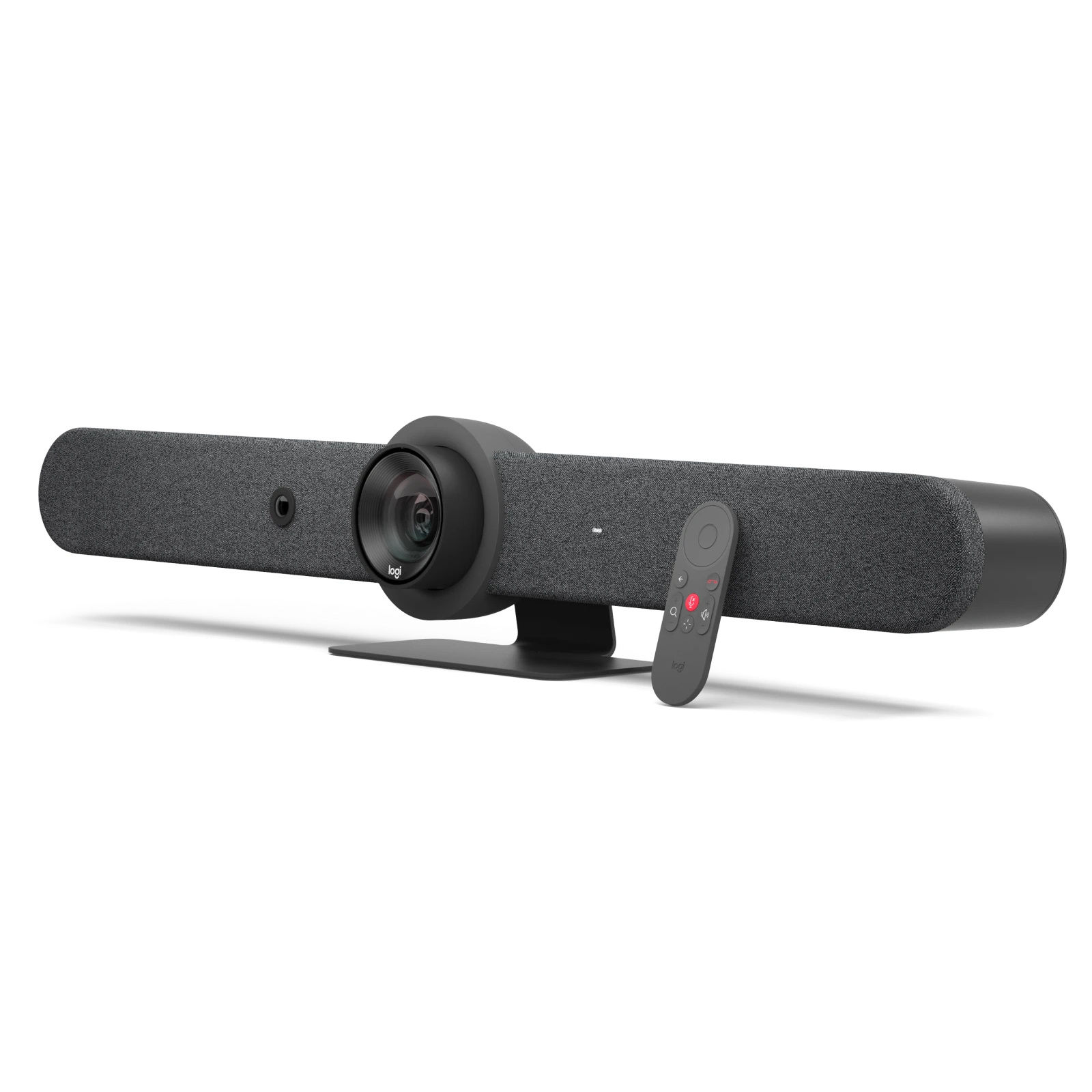

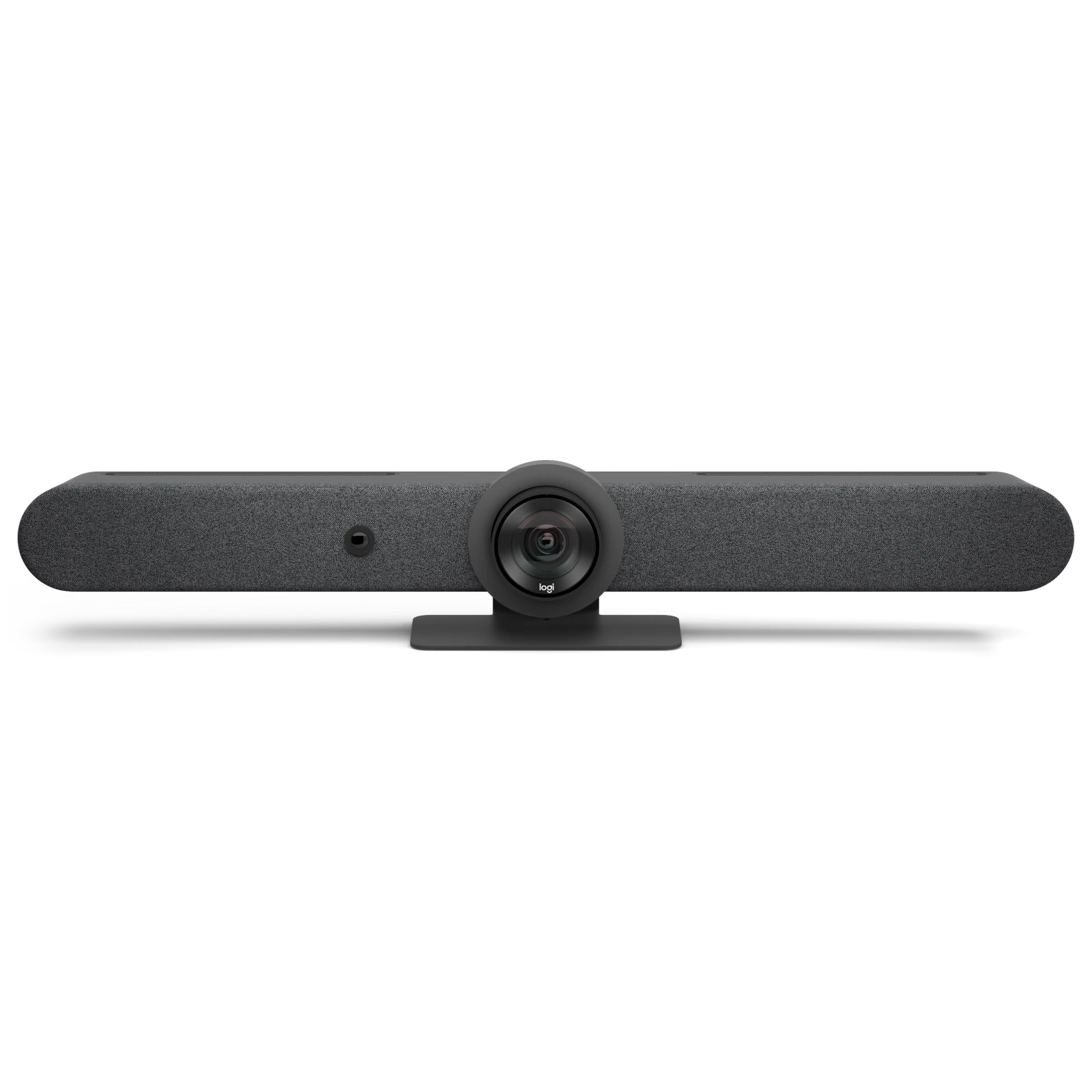

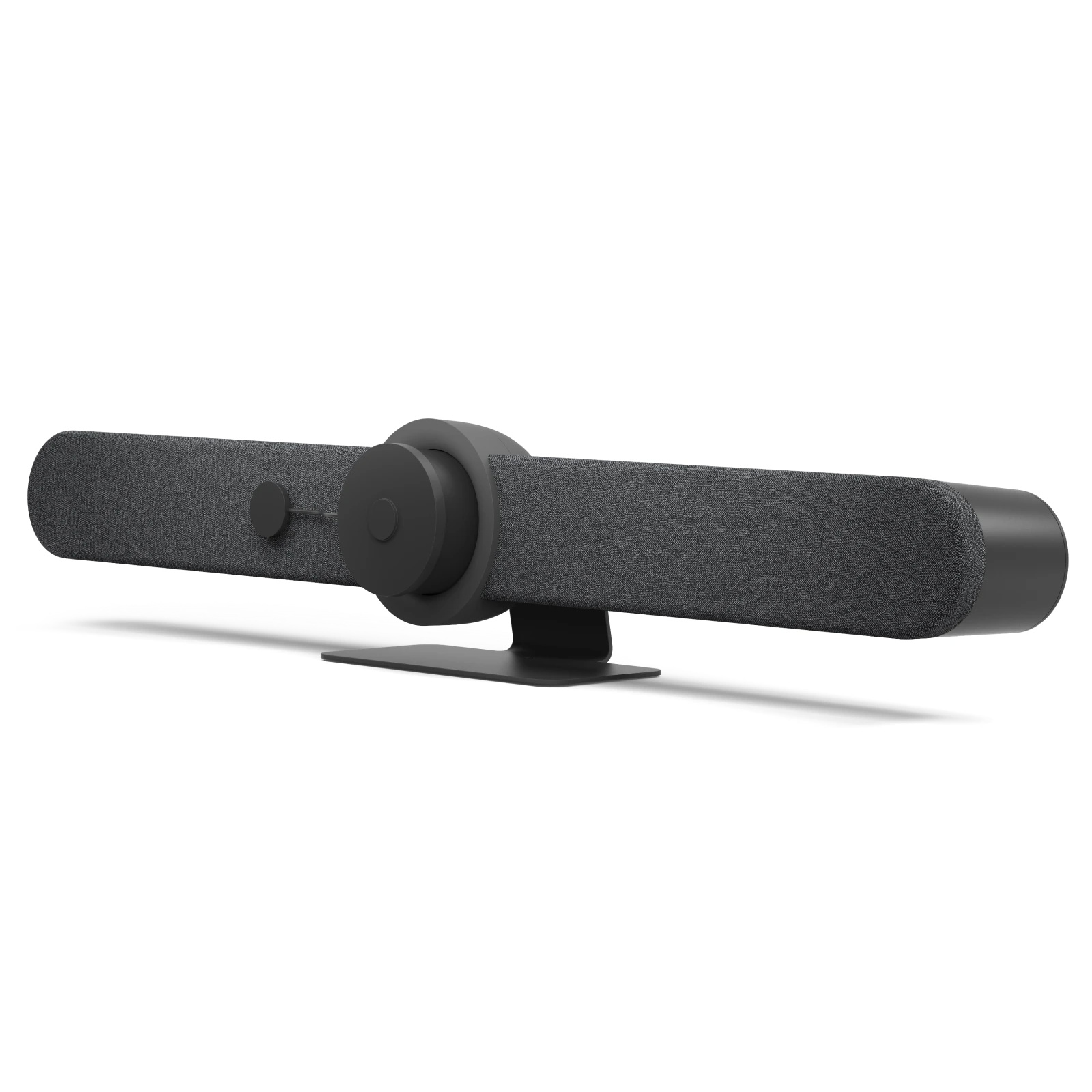

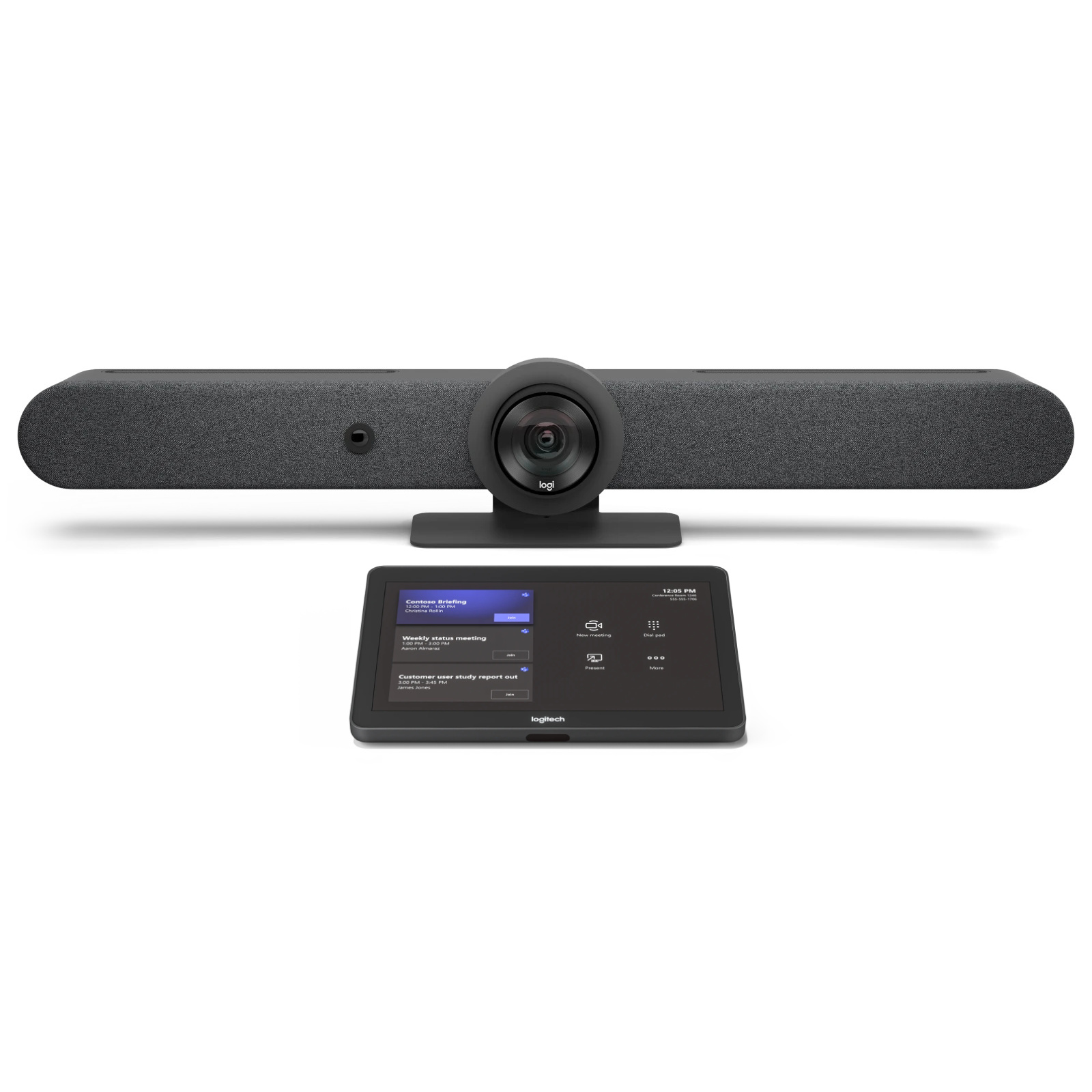

Logitech Rally Bar, Graphite + TAP Cat5e 4K PTZ All-in-one Conference Video Bar, MTR on Android - FOV 120°, 4x Zoom, Microphone Range up to 7M
Out of stock
Logitech Rally Bar, Graphite + TAP Cat5e 4K PTZ All-in-one Conference Video Bar, MTR on Android - FOV 120°, 4x Zoom, Microphone Range up to 7M
- Brand: Logitech
- MPN: TAP-RBG
- Part #: VCLOG5142645
- UPC:
- Brand: Logitech
- MPN: TAP-RBG
- Part #: VCLOG5142645
- UPC:
Logitech Rally Bar, Graphite + TAP Cat5e 4K PTZ All-in-one Conference Video Bar, MTR on Android - FOV 120°, 4x Zoom, Microphone Range up to 7M
- Brand: Logitech
- MPN: TAP-RBG
- Part #: VCLOG5142645

Product URL: https://www.pbtech.co.nz/product/VCLOG5142645/Logitech-Rally-Bar-Graphite--TAP-Cat5e-4K-PTZ-All
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 0 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features
ALL-IN-ONE VIDEO BAR FOR MEDIUM AND LARGE ROOMS
Discover a remarkably simple all-in-one video conferencing setup with brilliant optics, AI-based audio, remote management with Logitech Sync, and more.
EXPAND THE CONVERSATION
Add up to four Rally Mic Pods to extend the audio pick up range and provide convenient access to mute controls.
ENSURE EVERYONE IS SEEN AND HEARD
AI video intelligence, advanced sound pickup, noise suppression, and continuous software improvements provide a clear and natural meeting experience for remote workers.
MANAGE REMOTELY WITH SYNC
Monitor room and device health, deploy updates, and modify settings, all from a single cloud-based platform.
CERTIFIED FOR BUSINESS
Leverage the video conferencing platforms and features you already use. Rally Bar is certified for leading video platforms like Microsoft Teams, Zoom, and Google Meet.
A CHOICE YOU WILL FEEL GOOD ABOUT
Logitech is committed to creating a more sustainable world. We are actively working to minimize our environmental footprint and accelerate the pace of social change.
MADE WITH RECYCLED PLASTIC
The plastic parts in the Graphite version of Rally Bar include 40% certified post-consumer recycled plastic. We're giving a second life to plastic from consumer electronics to help reduce our carbon footprint.*
*Excludes cables, PWA, and packaging. Measured by weight.

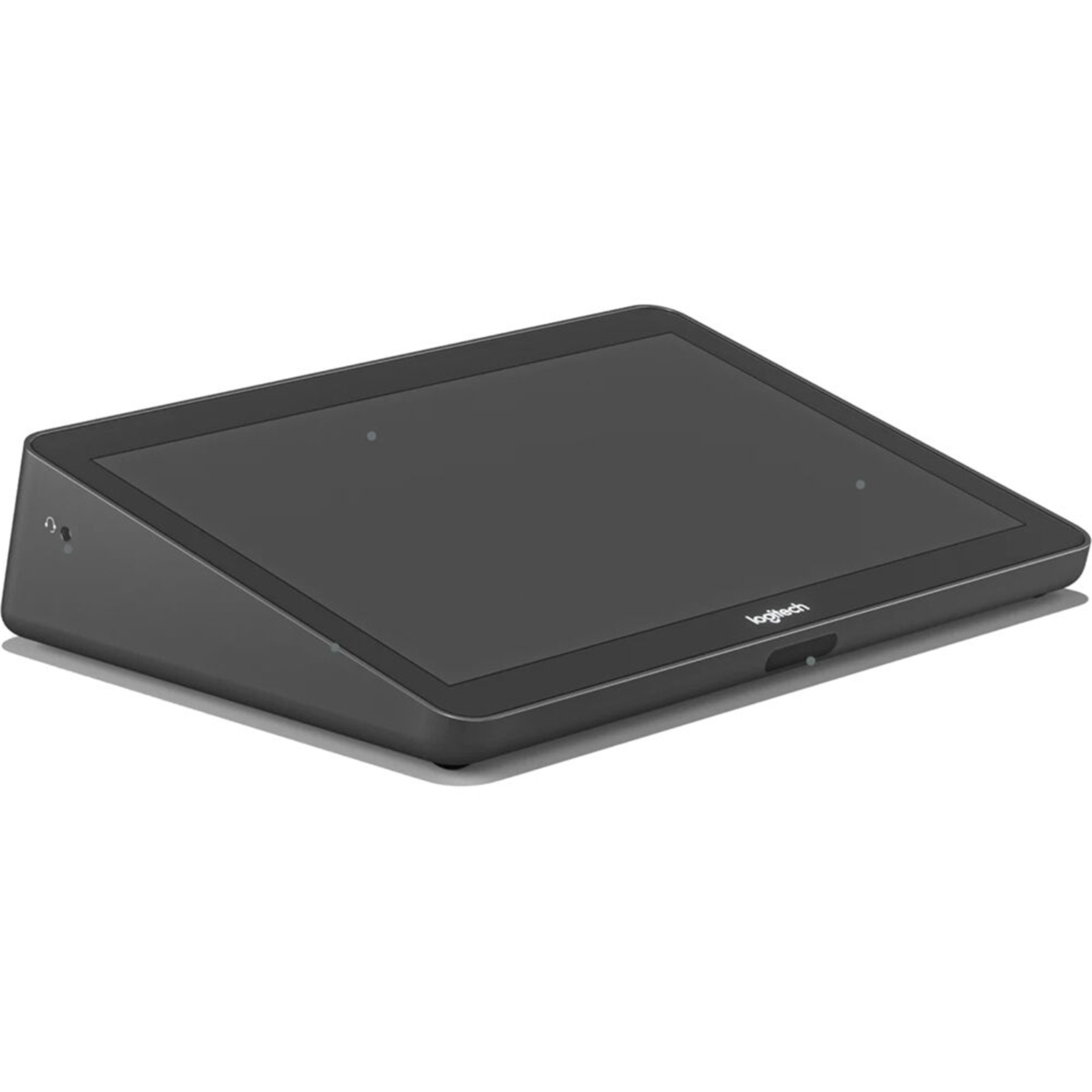

LOGITECH TAP
Make video meetings simple to join with a touch controller with wireless and HDMI content-sharing.
DEPLOY ROOM SOLUTIONS WITH EASE
Transform your space into a Google Meet™ meeting place or a Microsoft Teams® Rooms on Windows® with Logitech Tap. Deliver one-touch join, calendar integration, easy content-sharing, and a consistent experience across all rooms.
CLEAN AND CONVENIENT SETUP - JUST THE RIGHT PRESENCE
With a spacious 10.1" display, low profile, and motion sensor for always-on readiness, Tap has a sleek and unobtrusive presence in the room.
CLEAN AND CONVENIENT SETUP - SIMPLE AND SECURE CABLING
Route cables out the back or through the bottom. Keep connections tight with built-in strain relief and retention mechanisms.
CLEAN AND CONVENIENT SETUP - MULTIPLE MOUNTING OPTIONS
Install Tap almost anywhere in the room with Table and Riser Mounts that fit standard grommets and rotate 180° for visibility and convenience, or save table space in small rooms with the Wall Mount.
CLEAN INSTALLATION
Flexible cabling lets you locate Tap near participants for convenient operation while installing the host computer in a cabinet, beneath a table, or behind a display.
Shown with Tap, PC, and Logitech Rally Bar (USB mode).
SHARE EFFORTLESSLY
Bring instant content sharing via wireless or HDMI connections to video meetings rooms with Tap.
Wireless content sharing available depending on video conferencing service.
DESIGNED FOR ANY ROOM
Provide a consistent one-touch-join experience in rooms of virtually any size or shape.
PLAYS WELL WITH OTHERS
Enable easy and effective meetings for both in-office and at-home workers through Logitech's portfolio of room solutions that integrate with leading video conferencing services to raise the bar on collaboration.
SIMPLE TO MANAGE
With Logitech Sync, you can monitor and manage Tap along with your other meeting room devices from one single platform.
Specifications
Logitech Rally Bar
Dimensions
Height: 164 mm
Width: 910 mm
Depth: 130.5 mm
Lens Depth: 28.8 mm
Weight: 7.08 kg
Certifications & Compatibility
For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications
Microsoft Teams Rooms on Android*
Microsoft Teams Rooms on Windows*
*For medium sized rooms
General Specifications
Built-in Components
6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform
Enclosure
All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
Device Management
Logitech Sync
Displays Supported
2
Display Resolution
Up to 1080p
Network Protocol Support
IPv4, IPv6
Proxy Support
IP based Proxy, FQDN based Proxy, Proxy using PAC file
Camera
Resolution
4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan
Motorized ±25°
Tilt
Motorized ±15°
Zoom
15X HD zoom (5X optical and 3X digital)
Diagonal Field of View
90°
Horizontal Field of View
82.1°
Vertical Field of View
52.2°
Total Room Coverage (field of view + pan and tilt)
132.1° Horizontal x 82.2° Vertical
Speakers
Drivers
2x 70 mm
Sensitivity
92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
Rated Power
8W
THD
1kHz < 2% at 1W
Speaker Sampling Rate
48 kHz
Impedance
4 Ohms
Microphones
Frequency Response
90Hz - 16kHz
Sensitivity
>-36dBFS +/-1 dB @ 1Pa
Microphone data rate output
48KHz
Pickup Range
Up to 7 m
Beamforming Elements
6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
Audio processing
AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
Noise suppression
AI based de-noising algorithm
Add-on Mics
Supports up to 4 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
RightSense™ Technologies
RightLight
Renders natural skin tones for each participant
RightSight
Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
RightSound
Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
Grid View
Detects and frames all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview
Interfaces
HDMI Out
2 (up to 1080p)
HDMI In
1
USB
3x Type A, 1x Type C
Network
10/100/1G Ethernet
WiFi
802.11a/b/g/n/ac
External Mic Input
Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
Remote Control
Bluetooth® Low Energy
Power & Cables
Power supply
Auto-sensing
Operating Voltage/Power
100-240V, 19V, 4.74A
Power Supply Dimensions
127 mm x 51 mm x 30 mm
DC Cable
1.5 m
AC Cable
1 m
HDMI 1.4 Cable
2 m
USB A to USB C 3.0 Cable
2.2 m
Environmental
Operating Temperature
0 to 40°C
Storage Temperature
-40 to 70 °C
Humidity
10 to 95%
BTU/hr
57 idle, 64 in meeting
Security
Full Disk Encryption
AES-128
Data Encryption
Symmetric Keys, PKI
Device Identity
Protected by device attestation
Device Access
Authenticated using API
Key Protection
Arm TrustZone, RPMP
Accessories
Mounts
Wall Mount for Video Bars, TV Mount for Video Bars
Audio
Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
Connectivity
Logitech Strong USB (10m, 25m, 45m)
Touch Controller
Logitech Tap and Tap IP 3Compatibility may vary, see www.logitech.com/support/tap-compatibility for the latest information
Other
Compatibility
Internet Connection: Wired or wireless
USB Mode: Windows 11, Windows 10, the two most recent versions of macOS
Appliance Mode: Room solution software license (not included)
In the Box
Rally Bar
Power supply
AC power cord
HDMI cable
USB cable
Remote control
Lens caps for main camera and AI Viewfinder
User documentation
Logitech Tap Cat5e
DIMENSIONS
Height: 58 mm
Width: 244 mm
Depth: 179 mm
Weight: 1.25 kg
Touch Screen
10.1" diagonal screen with 14° display angle
Oleophobic and anti-glare coating
1280 x 800 resolution
COMPATIBILITY
Windows 10
ChromeOS™ 80 and higher
Logi Collab OS
USB 2.0, 3.0, or 3.1 Type A port
PORTS AND INTERFACES
USB 2.0/3.0/3.1 Type C (to meeting room host system)
USB 2.0 Type A (for accessory connection)
HDMI input (for 1080p video + audio content sharing)
3.5 mm 4 pole Headset Jack
General Specifications
Internal cable retention and strain relief system
Integrated ultrasonic speaker
Integrated PIR Motion Sensor
100mm x 100mm VESA FDMI (Flat Display Mounting Interface)
Kensington Lock slots (2)
COMPATIBILITY AND CERTIFICATIONS
Logitech Tap is certified or compatible as a touch controller for video conferencing room solutions
- Google Meet™
- Microsoft Teams Rooms on Windows
- RingCentral Rooms™
- Zoom Room™
DisplayLink Plug and Display™: Tap connects via USB as an additional display for supported operating systems, including Windows 10 and ChromeOS
PACKAGE CONTENTS
Tap Touch Controller
Cat5e Kit
- Logitech Tap Receiver
- Dongle Transceiver
- 100-240v Power Supply with International Adaptor Set
- 2.97 m Cat5e Cable
- 7.0 m Cat5e Cable
HDMI 1.4a cable 2.0 m
VESA Mounting Screws (4)
Microfiber Cloth
Documentation
