Features

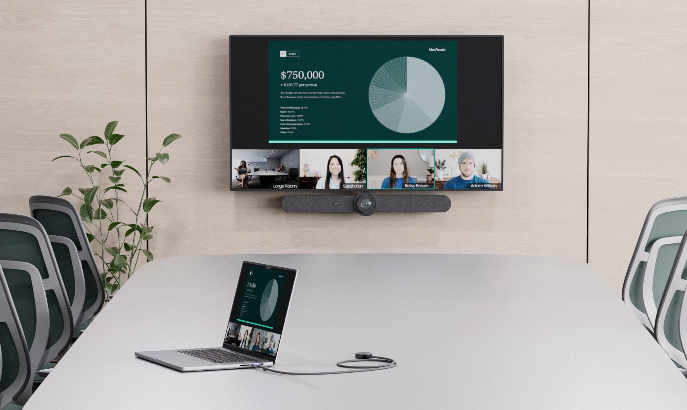

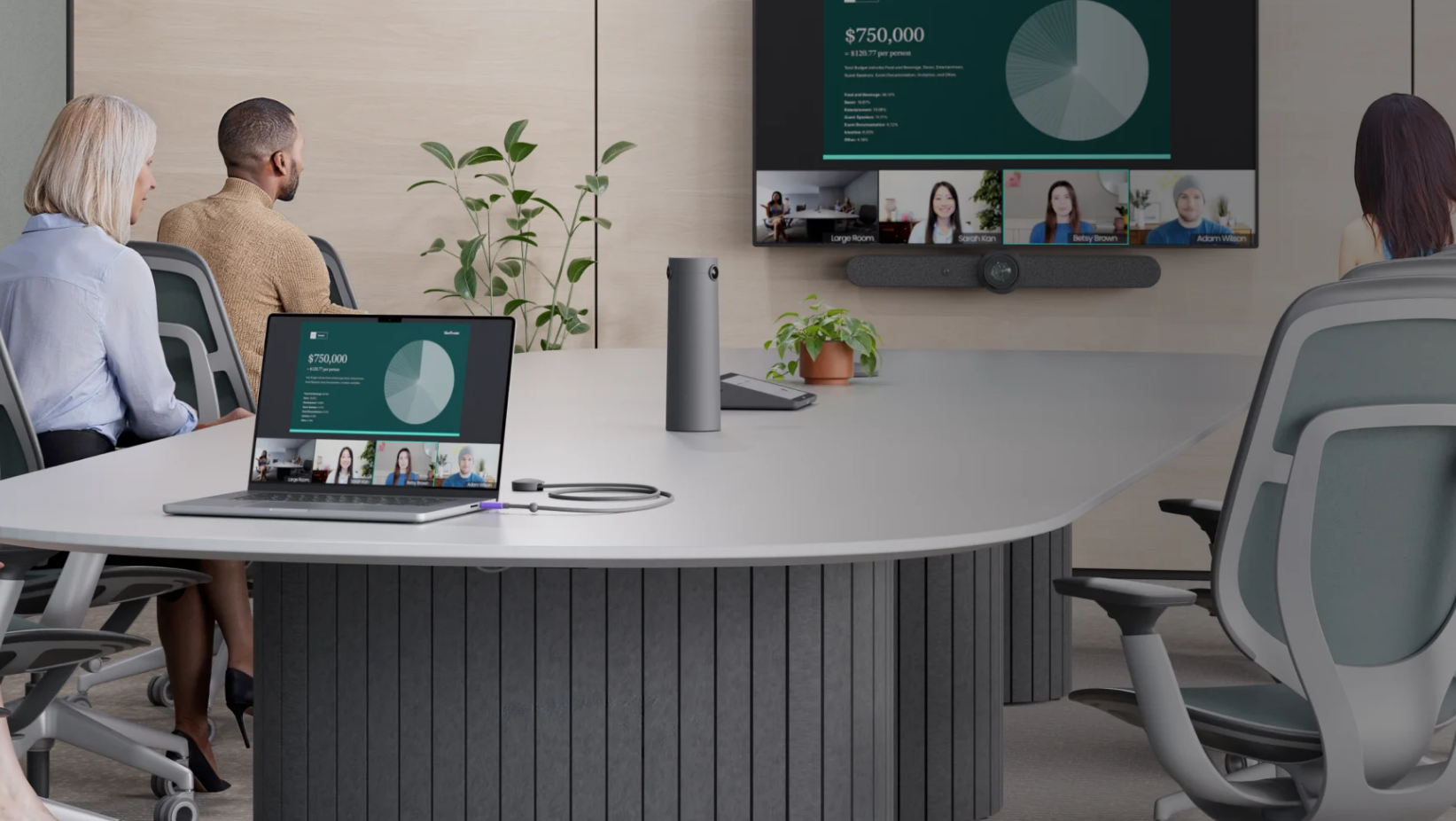

Deploy Logitech Extend with category cabling so that anyone can walk into an Android or BYOD-based meeting room, plug in with the USB-C cable, and launch a meeting from their preferred video platform running on their laptop or mobile device.
EASY BYOD MEETINGS
With Logitech Extend, anyone can walk into an Android or BYOD-based meeting room, plug in with the USB-C cable, and launch a meeting from their laptop or mobile device.
Quick connections. No Additional Drivers.
Use the USB-C cable to quickly plug in a laptop or mobile device and run meetings using a preferred video platform. No need to install additional software.

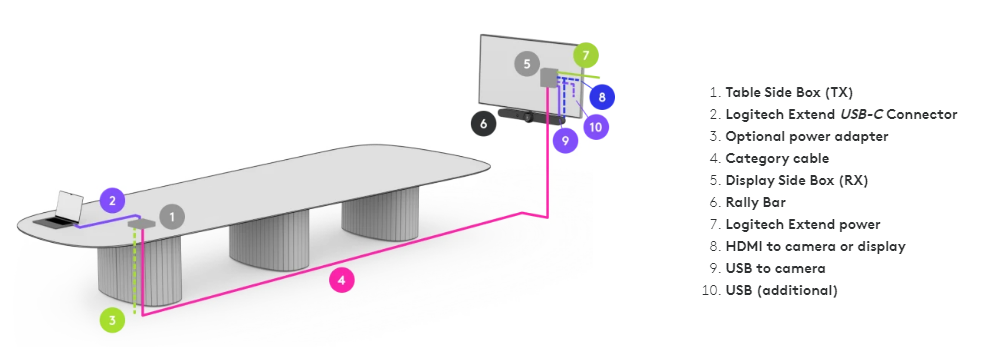

EXTEND AND REACH
Use category cabling to enable BYOD connections in larger rooms.
ENABLE POWER DELIVERY TO DEVICES (optional)
Deliver up to 100W of power to a laptop or mobile device by connecting a standard USB-C power adapter* to the Table Side (TX) box.
*Power adapter not included.

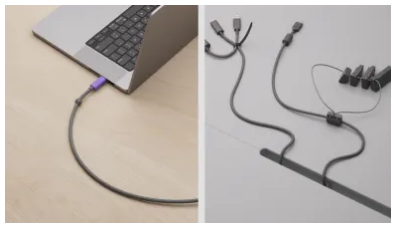

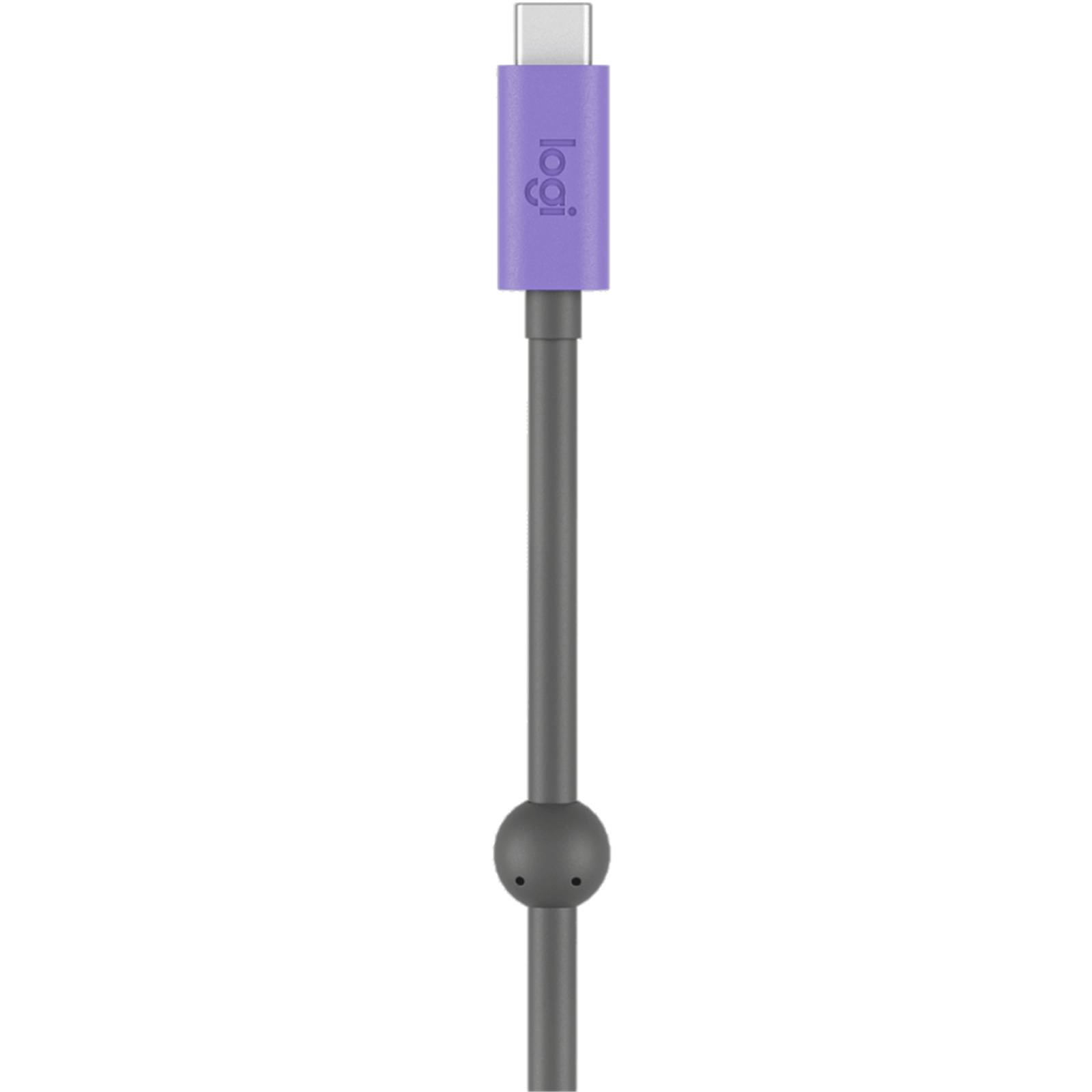

SINGLE USB-C CABLE
Single cable simplicity - no need for multiple cables, adapters, or dongles.
MAGNETIC DOCK
Rest the USB-C cable on the included magnetic dock for a clean tabletop.

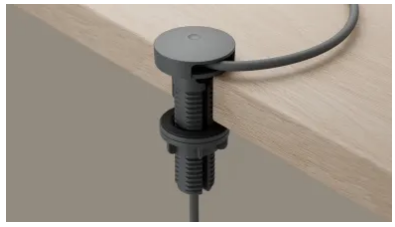

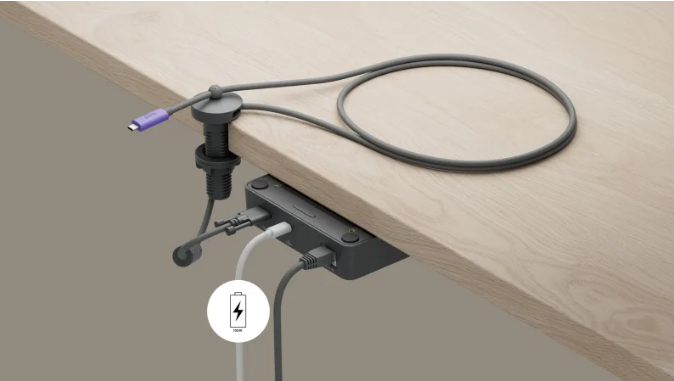

GROMMET ADAPTER
Easily run the USB-C cable through tables with the included adapter.
Specifications
Dimensions

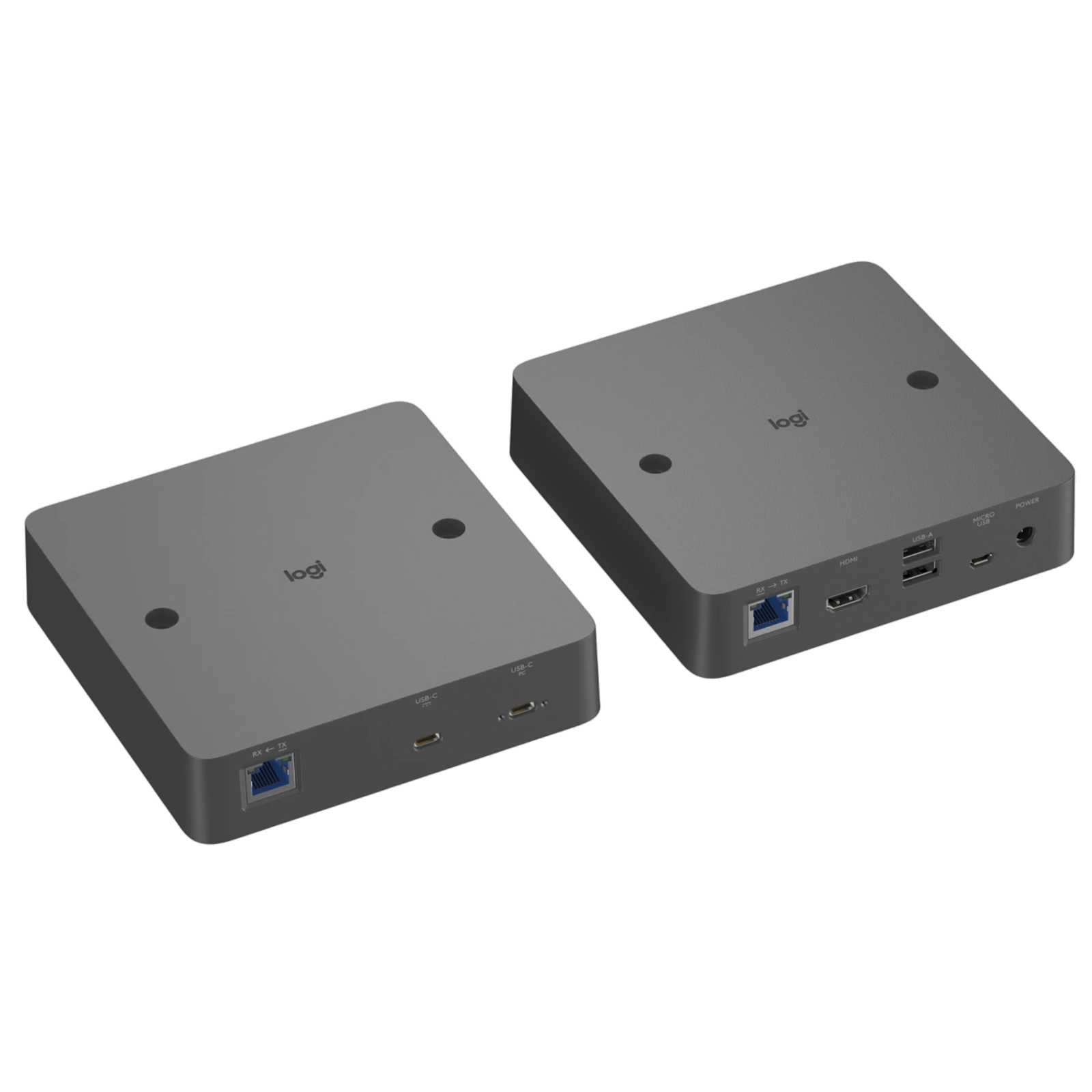

Display Side Box
Height: 143 mm
Width: 143 mm
Depth: 34.5 mm
Table Side Box
Height: 143 mm
Width: 143 mm
Depth: 34.5 mm
Device Management
Logitech Sync device management
Ports and Interfaces
Display Side (RX)
HDMI 2.0 4K60 4:4:4
2x USB 2.0 Type A
Micro USB Management Interface
Logitech Extend Power
RJ45 to Table Side (TX)
Table Side (TX)
Secured USB-C (from TX to user laptop)
USB-C (optional USB-C power supply connection)
RJ45 to Display Side (RX)
Mounting
VESA: 100 x 100 mm
Mounting Holes: 2 through-holes for mounting directly to the wall or table (mounting hardware included)

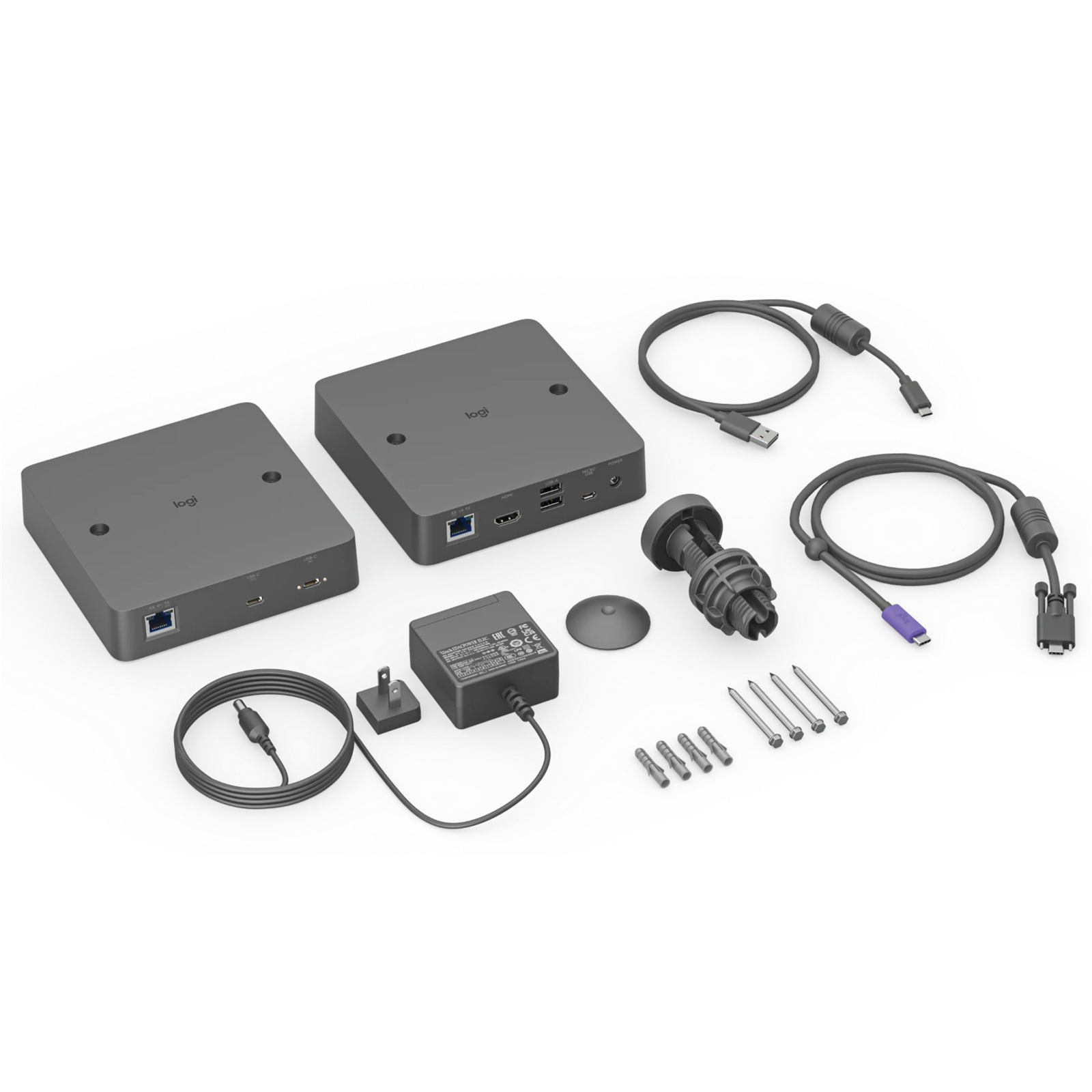

Power and Cables
Power supply
Auto-sensing
Operating Voltage/Power
100-240V, 48V, 0.5A
Power Supply Dimensions
73.5 mm x 53 mm x 35 mm
DC Cable
1.5 m

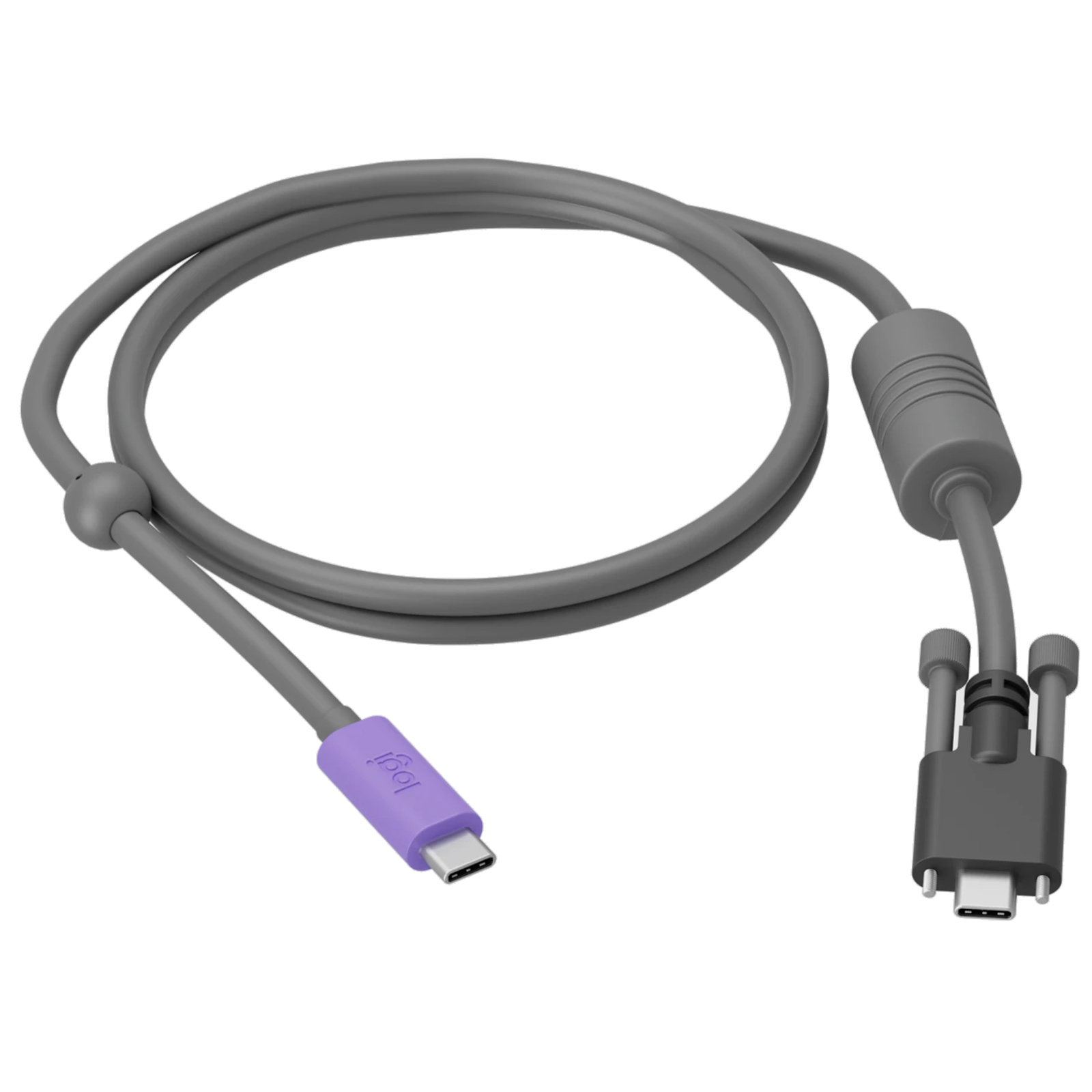

USB-C to USB-C 3.2 Gen 1 Cable
1.5 m
USB A to Micro USB Cable
1 m
Environmental
Operating Temperature
0° to 40° C
Storage Temperature
-25° to 70° C
Humidity
10% to 90%
Security
File Based Encryption
NIST SHA-256 bits
Data Encryption
Public Key Hash
Firmware Update
Digital Signature
