Yealink YPS20 Smart Partition Sensor for Divisible Room

Yealink YPS20 Smart Partition Sensor for Divisible Room

  • Brand: Yealink
  • MPN: 1303180
  • Part #: VCYLK1303180
  • UPC:
  • Brand: Yealink
  • MPN: 1303180
  • Part #: VCYLK1303180
  • UPC:

Room Size

N/A

Meeting Platform

N/A

Features

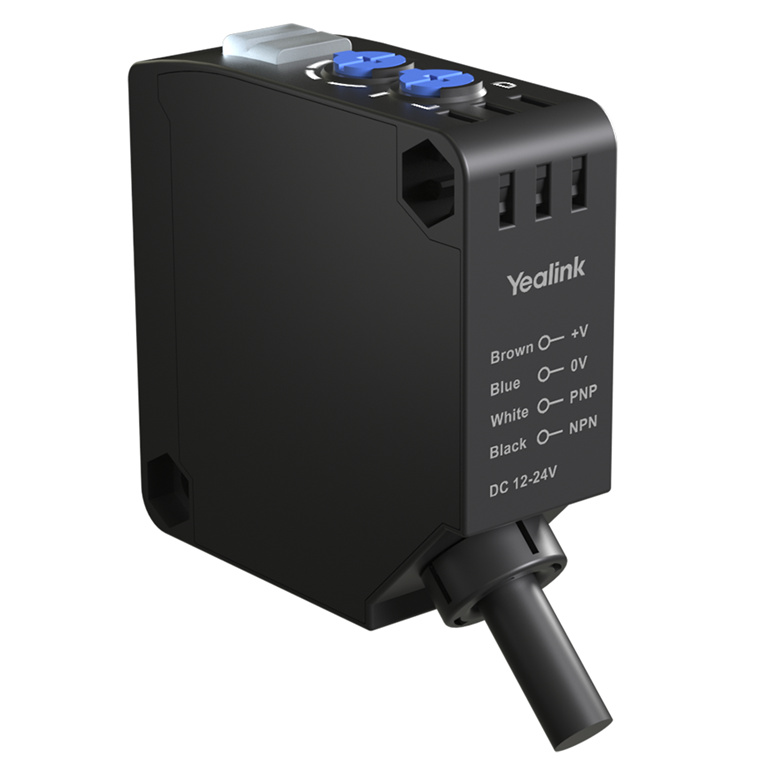

YPS20 is a surface-mount partition sensor. This easy-to-install sensor uses an infrared (IR) beam to sense the position of the movable partition.

In space, the signal strength of the infrared beam is adjustable, and the maximum effective sensing distance can reach 1.5m.

The 2 LED lights on the unit provide the status of sensor power?communication status and partition detection.

Connected to the AP08 GPIO interface, the Room Designer software of Yealink can easily realize the adaptive setting of the divisible meeting room and easily manage the equipment status of the divisible meeting room.

In terms of deployment, with the included 10-meter cable, the sensor can be arranged in the right position in the room, making partition detection easier.

- Simple, compact appearance.
- Infrared diffuse reflection technology is used to achieve high precision and low misjudgment.
- Equipped with 10-meter cable, for flexible installation, wiring, and easy deployment.
- Effective working distance of 1. 5 m.
- Adjustable sensitivity to adapt to complex environments.
- Clear 2-color LED indicators.
- Use with Yealink AP08 and Yealink Room Controller for adaptive settings.

Specifications

Sensing

Sensor Type

Diffuse Reflection

Detection Distance

1.5m

Standard Detection Object

White Drawing Paper: 300×300mm

Return Difference

<= 20%

Light Source (wavelength)

Infrared light-emitting diode (850nm)

Response Time

Less than 0.5 ms

Power and Signal

Supply Voltage

DC 12-24V, ±10% pulsation (P-P) less than 10e

Control Output

NPN/PNP output, wiring switching

Current Output

100 mA

Consumed Output

Less than 25 mA

Controls & Indicators

Action Mode

Dark ON /Light ON switched by knob

Switch Mode

270° knob switch

Sensitivity Adjustment

Single knob switch

Indicator

Action indicator (orange), Stable indicator (green)

Protection

Protection Circuit

Power reverse protection, output short-circuit protection, output reverse protection

Insulation Resistance

More than 20M ohm (DC500 V megohm meter)

Withstand Voltage

AC 1500 V 50/60 Hz 1 min between the whole charging part and the shell

Withstand Vibration

Up and down 1.5 mm at 10~55 Hz for each 2 hours in X / Y / Z directions

Withstand Impact

300 m/s² for each 10 times in X / Y / Z directions

Environment

Ambient Illumination

Lighting collecting surface illumination incandescent lamp: below 3000 lx, sunlight: below 10000 lx

Ambient Temperature

Working: -35-55? / Storing: each -40~70?(no icing, no dew)

Ambient Humidity

Working: 35-85%RH / Storing: each 35~95%RH (no dew)

IP Grade

IEC standard IP65

Material

ABS

Lens

PMMA

Manufacturer Part No:
1303180
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
VCYLK1303180
Product Model:
YPS20
Warranty: 12 months *
